And you missed the entire point of why some use the back.Aaaaaand a first successful rear single mosfet install on an OLED.
And you missed the entire point of why some use the back.Aaaaaand a first successful rear single mosfet install on an OLED.
And you missed the entire point of why some use the back.
Thank you for replay... Yes all 3 oled console working fine after remove all things i well post my install pic.. Let me teake pic of all job. And reading value.Thank you! It’s been a long process trying to figure out that I got a bad batch of mosfets.
In terms of your readings I always want me readings between 0.5 to 0.9. That would be on DAT0, CMD, and CLK. According to your flex cable that would be points A, C, and D.
Make sure that you are using flux. It will help your solder flow and make a much cleaner install.
Post automatically merged:
Post install. Check for shorts. Is the pico flashing an error? Also, check the lcd fpc connector. Make sure you didn’t bend any pins reinstalling the cable.
That isn't a clear benefit if you're going to stretch it to open and tear the front shield to access the CLK.What is the point according to you, I wonder?
To me it's that the solder points on the back are easier to access, less risky to solder on and don't require me to remove the apu shield and mess with thermal paste. BlueBeans' install looks nice to me

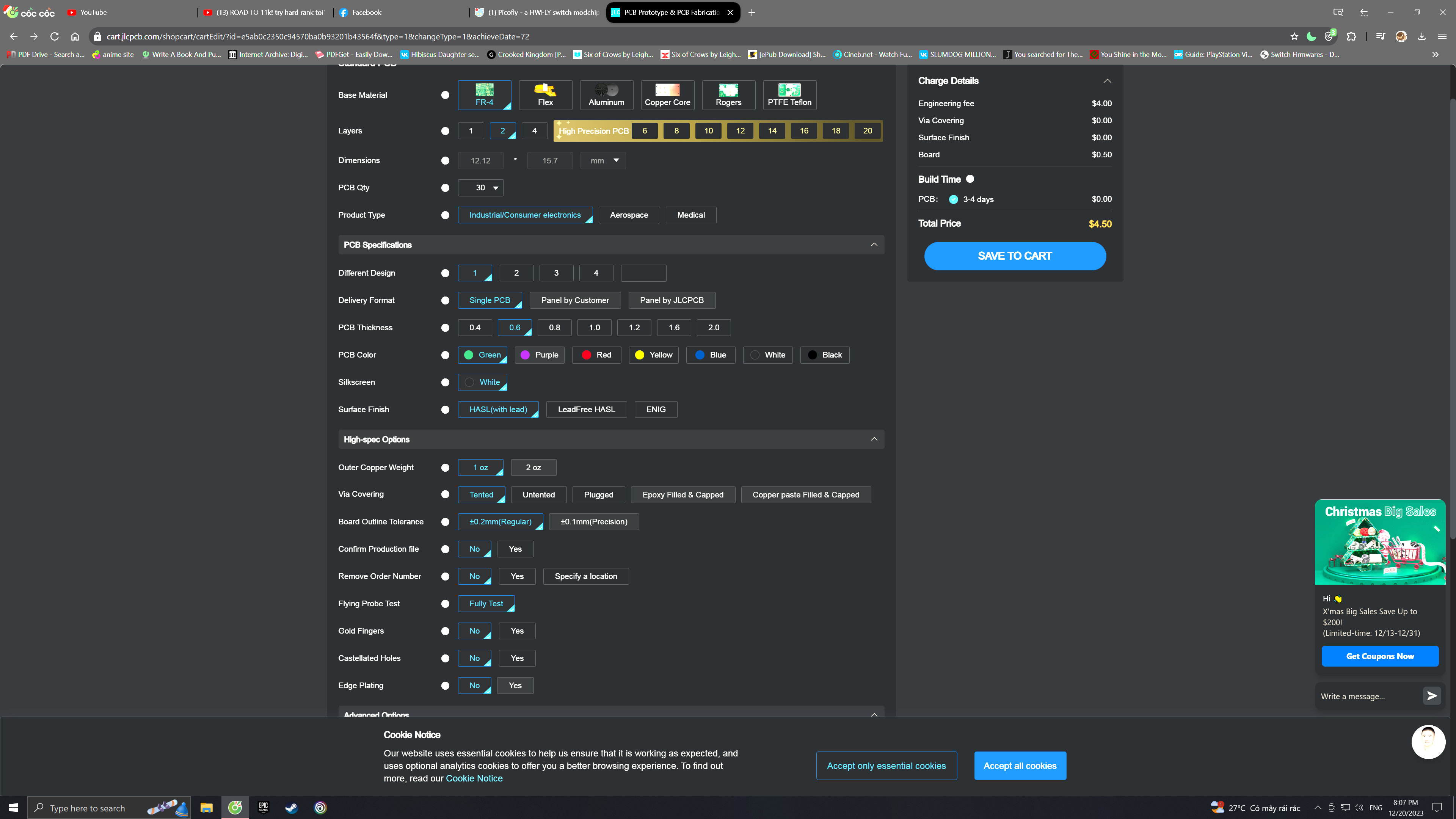

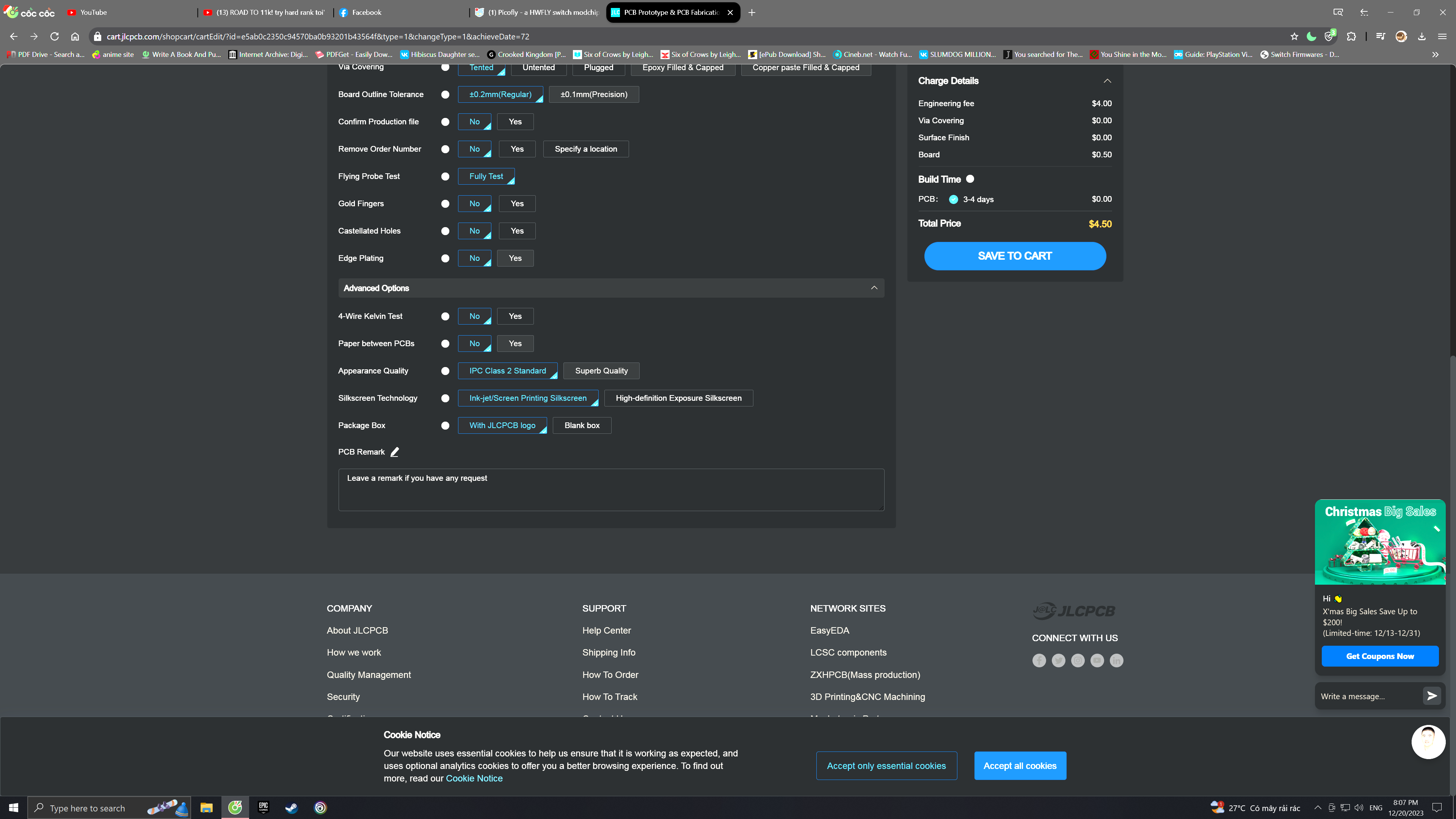

hello friend. do i need to change anything aside from thickness? thank in advancethickness should be 0.6mm, otherwise it won't fit under the emmc cover
hello friend. do i need to change anything aside from thickness? thank in advance
when i choose the quantity option the maximum one is 30. i intended to buy 50 but i could not change it. i don't know why.No, the default settings are fine for everything else.
when i choose the quantity option the maximum one is 30. i intended to buy 50 but i could not change it. i don't know why.
ah i see. thank you.The price does a big jump between 30 (4.11€) and 50 (28.88€), so unless you are ordering 250+ (30.43€) it's not worth it anyway
I’m using 32awg magnetic wire.Are you using awg30??
Does anyone know where to get the hwfly version of rp2040?? The store disappeared from ali
Yes you need the v2 cable. V2 cables can be used for v2, lite, and OLED. Only the v1 is different. It’s the orientation of the caps on the cpu.Hi I would like to ask again since my question seems to have been ignored.
I have a hac001 (01) switch and was wondering if that means I needed the V2 instead of the V1 as I noticed there are up to v5 :/ I know one is for.litw and OLED but yeah.
I wanted to buy 50 myself but stopped at 30 because of the price increase.The price does a big jump between 30 (4.11€) and 50 (28.88€), so unless you are ordering 250+ (30.43€) it's not worth it anyway
Good job! Make sure to give everything a good cleaning with some IPA (alcohol)Thank you for replay... Yes all 3 oled console working fine after remove all things i well post my install pic.. Let me teake pic of all job. And reading value.
Dat0 adapter reading 0.696 v
Cmd 0.464 v
3v3 0.884 V
Rst 1.3 v
MOSFE cpu read 0.201 v
Gnd 0
Clk 0.714 v

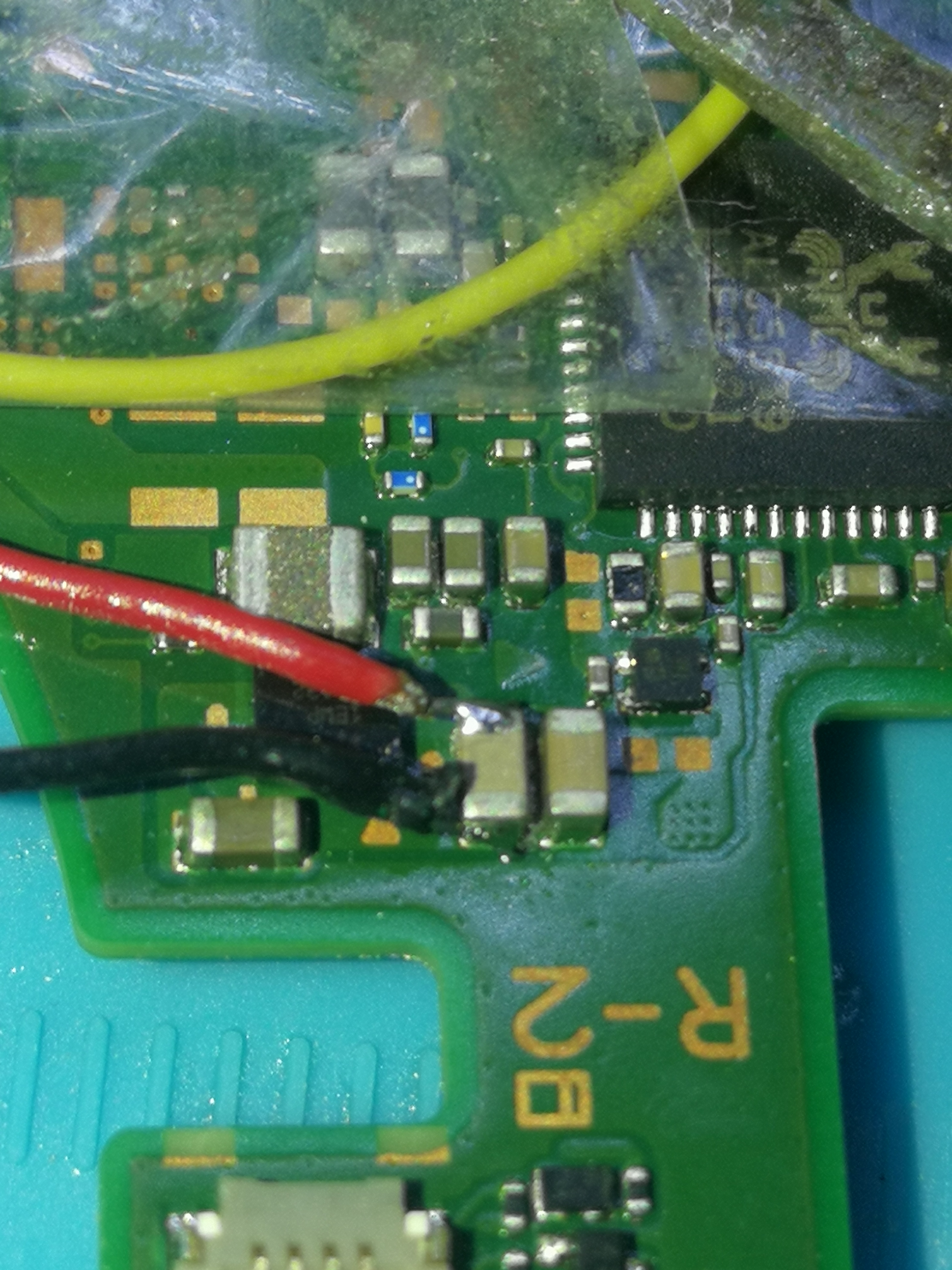

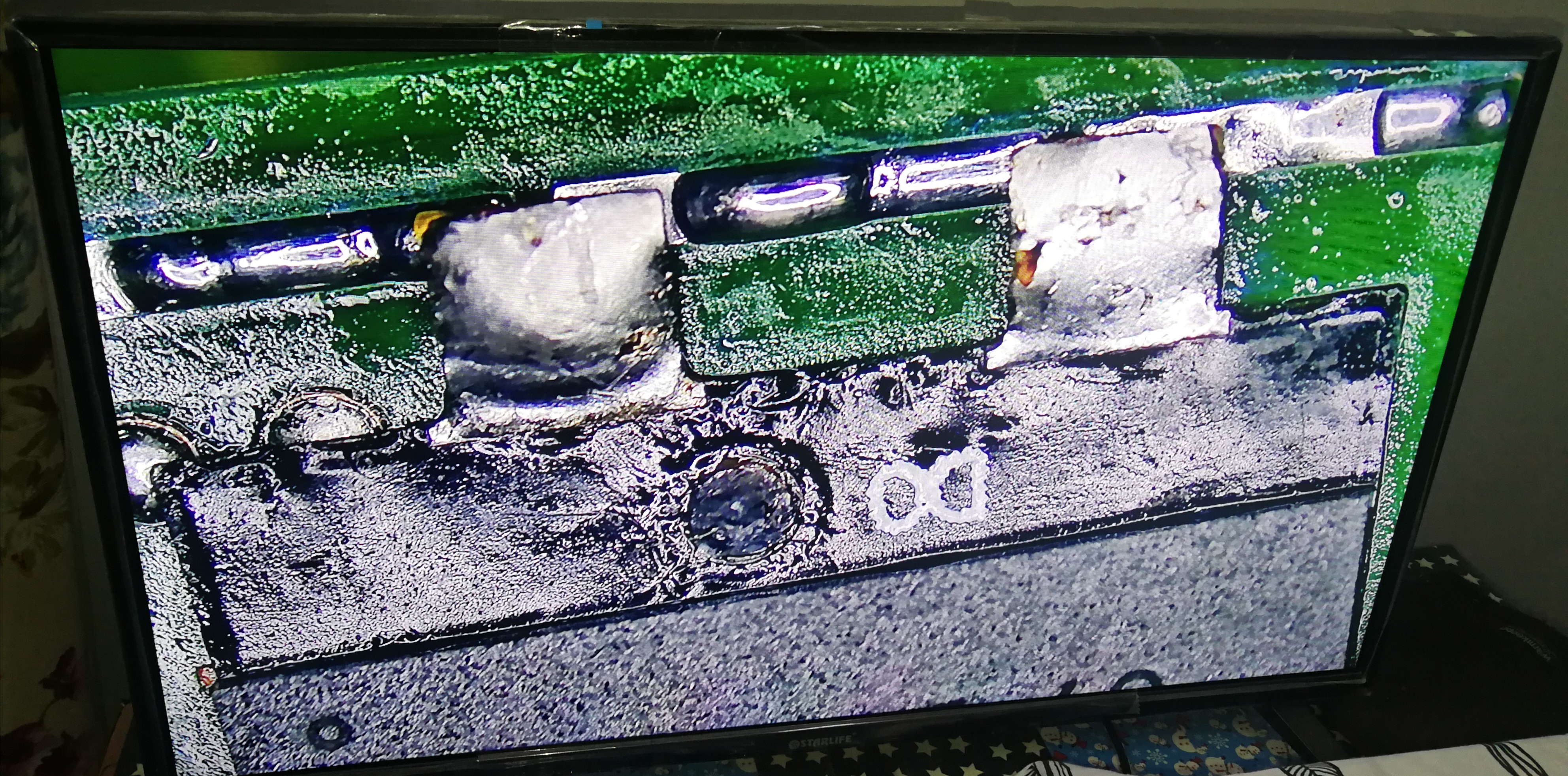

The adapter not soldring yet for more info is it good pic with 2k camera and use boom rf4 microscope.

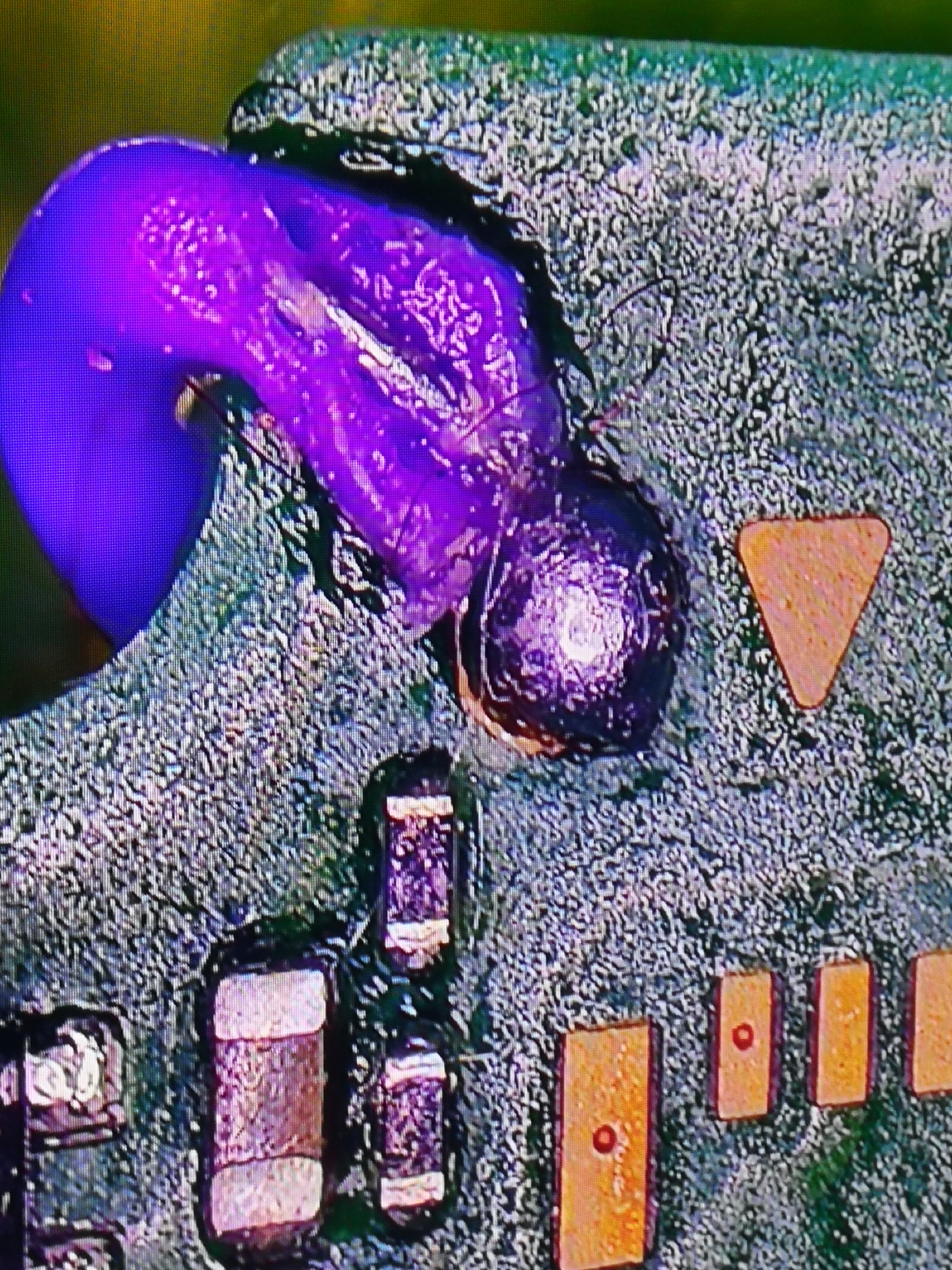

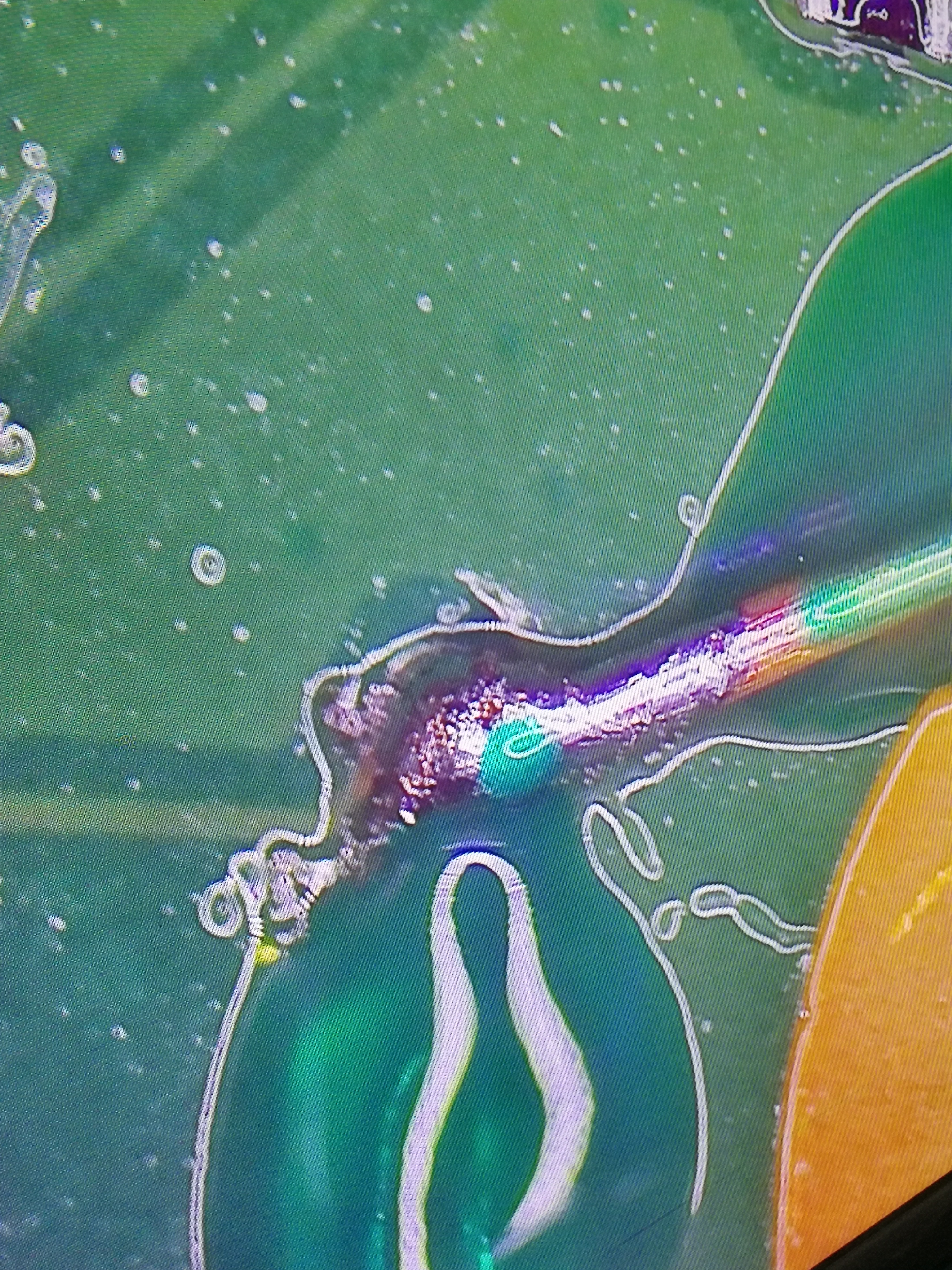

The green mask to keep magnate wier way from Gnd. I use other wier in pic on Clk but size worry me on Clk so i change it to 0.02 mmView attachment 409665View attachment 409666View attachment 409669View attachment 409673
What point am I missing?And you missed the entire point of why some use the back.
I think the adapter dat0 is The reson that chip not glitch blue lite the 4 time yellow light...I’m using 32awg magnetic wire.
Post automatically merged:
Yes you need the v2 cable. V2 cables can be used for v2, lite, and OLED. Only the v1 is different. It’s the orientation of the caps on the cpu.
Post automatically merged:
I wanted to buy 50 myself but stopped at 30 because of the price increase.
Post automatically merged:
Good job! Make sure to give everything a good cleaning with some IPA (alcohol)
Post automatically merged:
What point am I missing?
Good job! I use to cut the shield until I read that someone didn’t so I stopped. Still cover with Kapton tape though.My first OLED, I don't know why, but it worked at first try didn't even had to cut the huge shield off
If I wrap it up with kapton tan I always get problem and picofly keeps spitting error codes, so I have to put the tape on whatever is beneath and over it.Good job! I use to cut the shield until I read that someone didn’t so I stopped. Still cover with Kapton tape though.
That’s what I mean. I put it under and over as well. I still cut the shield for everything except the oled.If I wrap it up with kapton tan I always get problem and picofly keeps spitting error codes, so I have to put the tape on whatever is beneath and over it.
I'll have to try not cutting shield method on V1 and lite and see if it works.
Cutting off the shield from RAM gave me few mm of air between picofly and big shield
You mean backing it up from hekate??The shielding plate on the OLED is thicker than on the V1, V2.
I didn't leave out the CPU shield and everything still works.
Start the console in the OFW and see if you can back up the NAND without any problems. Then you can say everything works
You don’t have to do that. The less cutting the betterYou mean backing it up from hekate??
Does modchip creates problem with nand backups??
I just cut off the CPU shield on RAM side.
