balck screen too on ofw but i remove the tiny and install the original rp and all work fine... i think these chips are bad but can 'i do something to recover them ?
Post automatically merged:
it work with the last pico fw too ?
Check the resistors if they are 47ohms. The 3 resistors nearby pin 27 28 29.
And yes, the latest pico fw is working for the waveshare variant. Im using 2.75 for all my modding.
ok but can i change them if no good resistors ? i think these are very tiny for desolder
ok but can i change them if no good resistors ? i think these are very tiny for desolder
To desolder them is easy. Just cover them in a blob of low melt solder. Just make sure not to bridge any of the nearby pin of rp2040.
After just add 47ohm on the pin header 27 28 29. Dont forget to bridge the resistor pads though otherwise you wont have continuity.
Its happen to me today

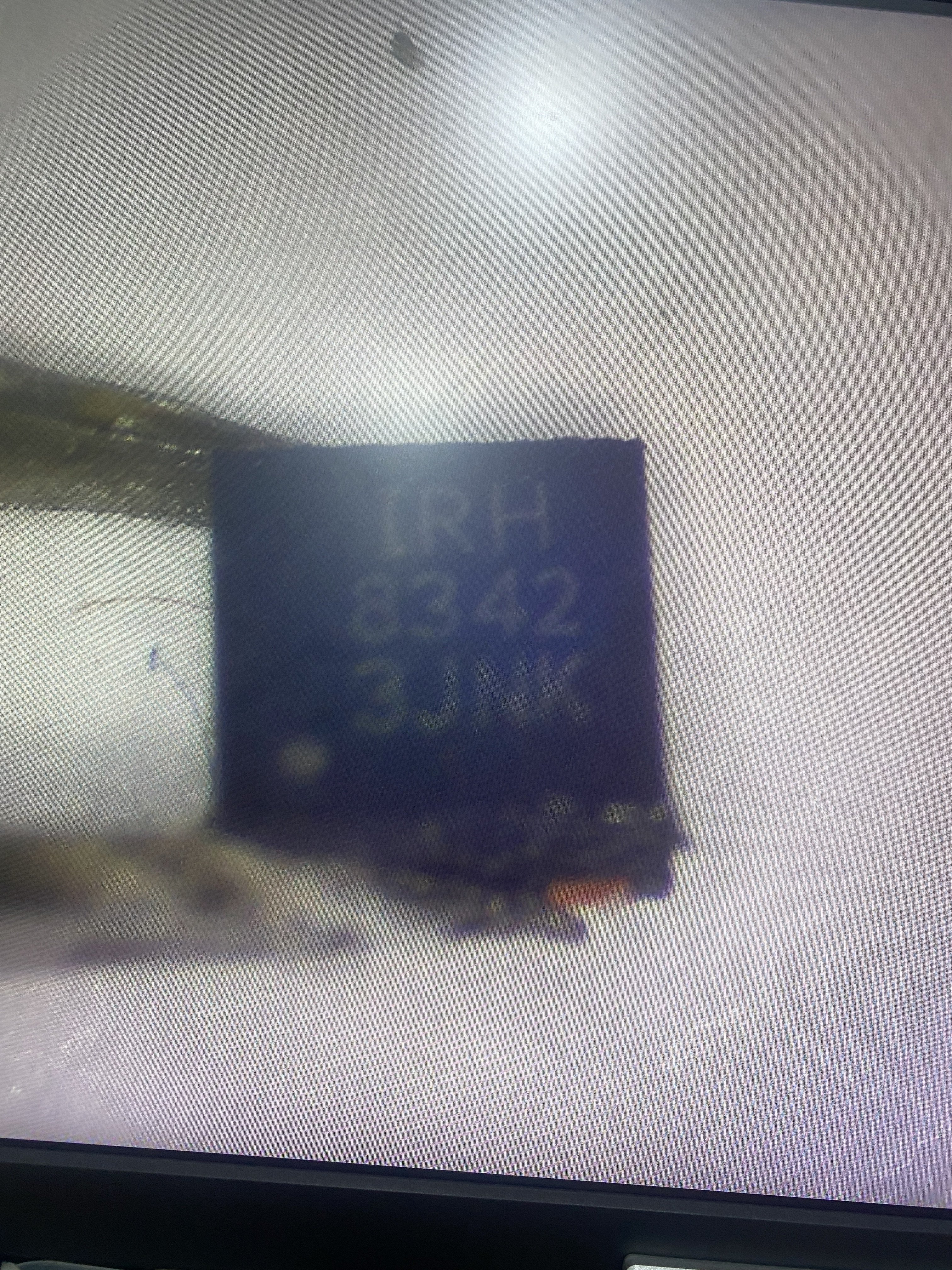

Ordered 10pcs mosfet irh8342 from my local shop
And none of it working
I ussually use aon6414a and its working fine
I just concern about the size, thats why i try my luck use irh8342
I try single mosfet and double mosfet and its not working
When i try to switch to aon6414a its working fine
Im really sure this mosfet is defect or something
Attachments
For the led you could try to remove the 10k resistorHi !!!
Someone have tested Tiny chip on last switch firmware and pico 2.75 fw ?
I have some problem with the chip :
and i have no led on the chip on all pico fw
- v1 patched : black screen after Atmo logo
- v2 error pkg11, can't add more resistance on the chip
https://github.com/Ansem-SoD/Picofly/issues/27#issuecomment-1752973446
Unfortunately i dont have the clone tiny.Can u show me the resistor on the chip please....???
i can't read the schematics
You might track the DIN track of the LED using microscope.
Or just randomly check with multitester any resistor that connect with the DIN pin of the led.
It will be this if its following the same schematic as the waveshare one. Just measure. The line is going through gpio16Can u show me the resistor on the chip please....???
i can't read the schematics
Attachments
Yeah mine definitely ended up being the mosfet. Although the ones I ended up ordering on Amazon tended to be super sensitive. Had to replace 2. I think they’re just hit or miss. I’m not sure.Its happen to me today
Ordered 10pcs mosfet irh8342 from my local shop
And none of it working
I ussually use aon6414a and its working fine
I just concern about the size, thats why i try my luck use irh8342
I try single mosfet and double mosfet and its not working
When i try to switch to aon6414a its working fine
Im really sure this mosfet is defect or something
Do you know if switch lite board has one?? If yes, where??
I got a defective switch lite board, so I can harvest it from there
Picofly does not glitch with rebuild nand(original prodinfo present) but boots into ofw.
Error code:
Picofly FW 2.75 short long short
Picofly FW 2.76 long short long short
-The installed picofly glitch to hekate with corrupt nand.
-The picofly glitch to hekate with empty emmc.
-The picofly(including same flex) glitches fine in another switch where the original nand is present.
-NOT SURE: i might be remembering wrong but the picofly glitches to hekate with rebuild nand WITHOUT original prodinfo present.
I use @sthetix tutorial. I asked him what the issue could be but he unfortunately told me, that he doesn't use picofly.
Do you guys think that this is fixable by FW update for picofly?
Edit: tested with hwfly: same behavior.
Error code:
Picofly FW 2.75 short long short
Picofly FW 2.76 long short long short
-The installed picofly glitch to hekate with corrupt nand.
-The picofly glitch to hekate with empty emmc.
-The picofly(including same flex) glitches fine in another switch where the original nand is present.
-NOT SURE: i might be remembering wrong but the picofly glitches to hekate with rebuild nand WITHOUT original prodinfo present.
I use @sthetix tutorial. I asked him what the issue could be but he unfortunately told me, that he doesn't use picofly.
Do you guys think that this is fixable by FW update for picofly?
Edit: tested with hwfly: same behavior.
Last edited by k28,
I am in another problem with rebuild nand. I can get in hekate but can not boot into ofw with rebuild nand using sthetix rebuild lv3. My switch just flashing nintendo logo then shut off. May i ask you which burnt fuse your console are on?
Post automatically merged:
And don't ever ask that guy using the term"picofly" again. The hating that dude giving to picofly is ridiculous.
Probably because fw 17 rebuild nand issue. Running atmosphere once should fix the problem. It works because atmosspere includes a fix for this issue. But you might want to check if there is a Methode without launching atmosphere because you may be flagged for a ban...
Edit: why does he hate picofly? xD
