Thank you! It’s been a long process trying to figure out that I got a bad batch of mosfets.I'm glad for your reply. I was satisfied when I heard that. My mod is just getting started. I want to acquire skills and knowledge little by little and eventually become successful. thank you!
"use proper tip and solder"
I'm glad for your reply. surely. Looks like my work was too bad. I would try removing the flex cable and using wire or a new flex cable if possible.
Also, congratulations on modifying the MOSFET!
Post automatically merged:
Hello. I'm currently redoing the picofly flex cable. Can someone please tell me the multimeter's diode mode measurements for Switch Lite's A, B, C, and D points? Thanks in advance!
In terms of your readings I always want me readings between 0.5 to 0.9. That would be on DAT0, CMD, and CLK. According to your flex cable that would be points A, C, and D.
Make sure that you are using flux. It will help your solder flow and make a much cleaner install.
Post automatically merged:

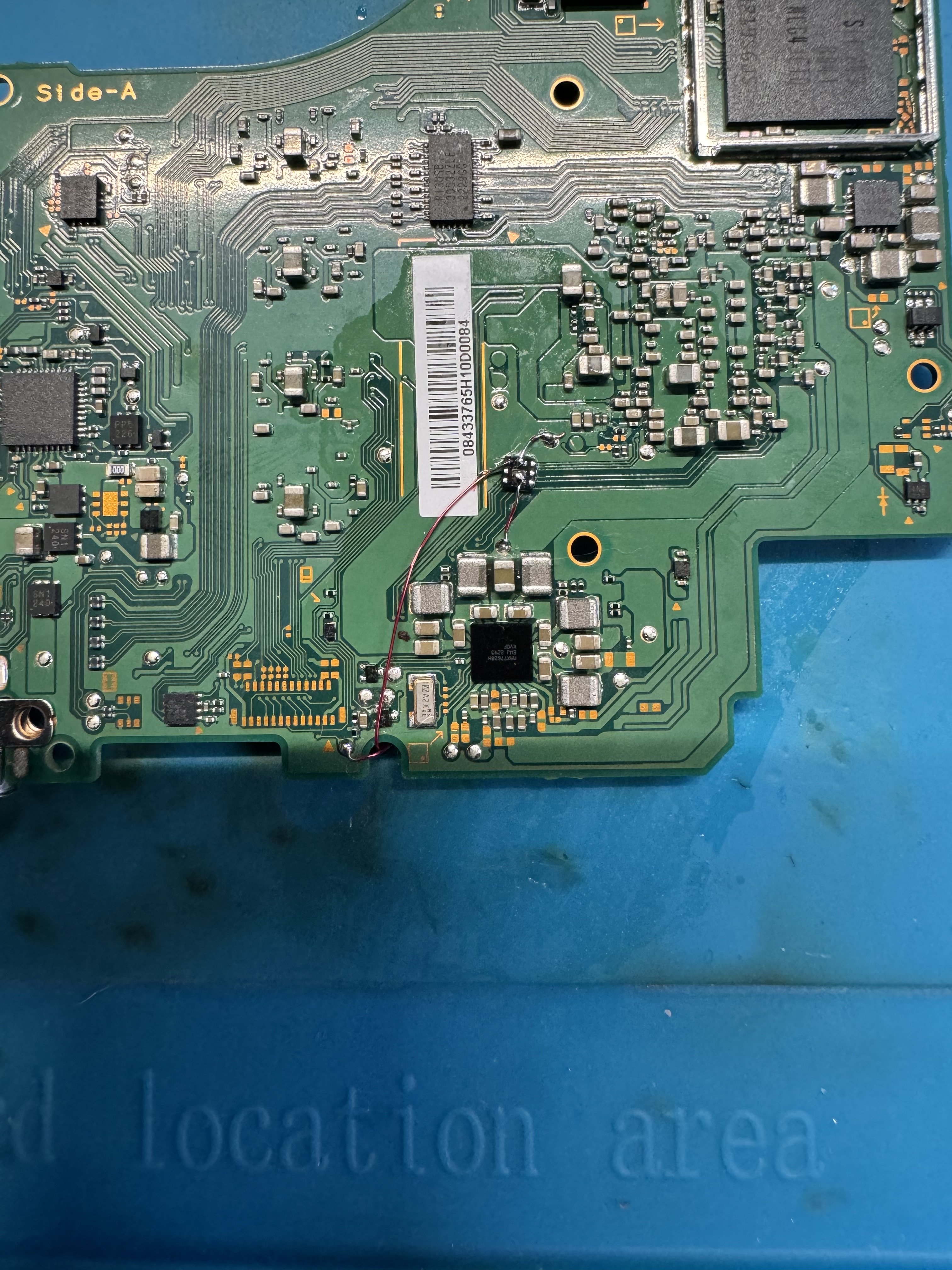

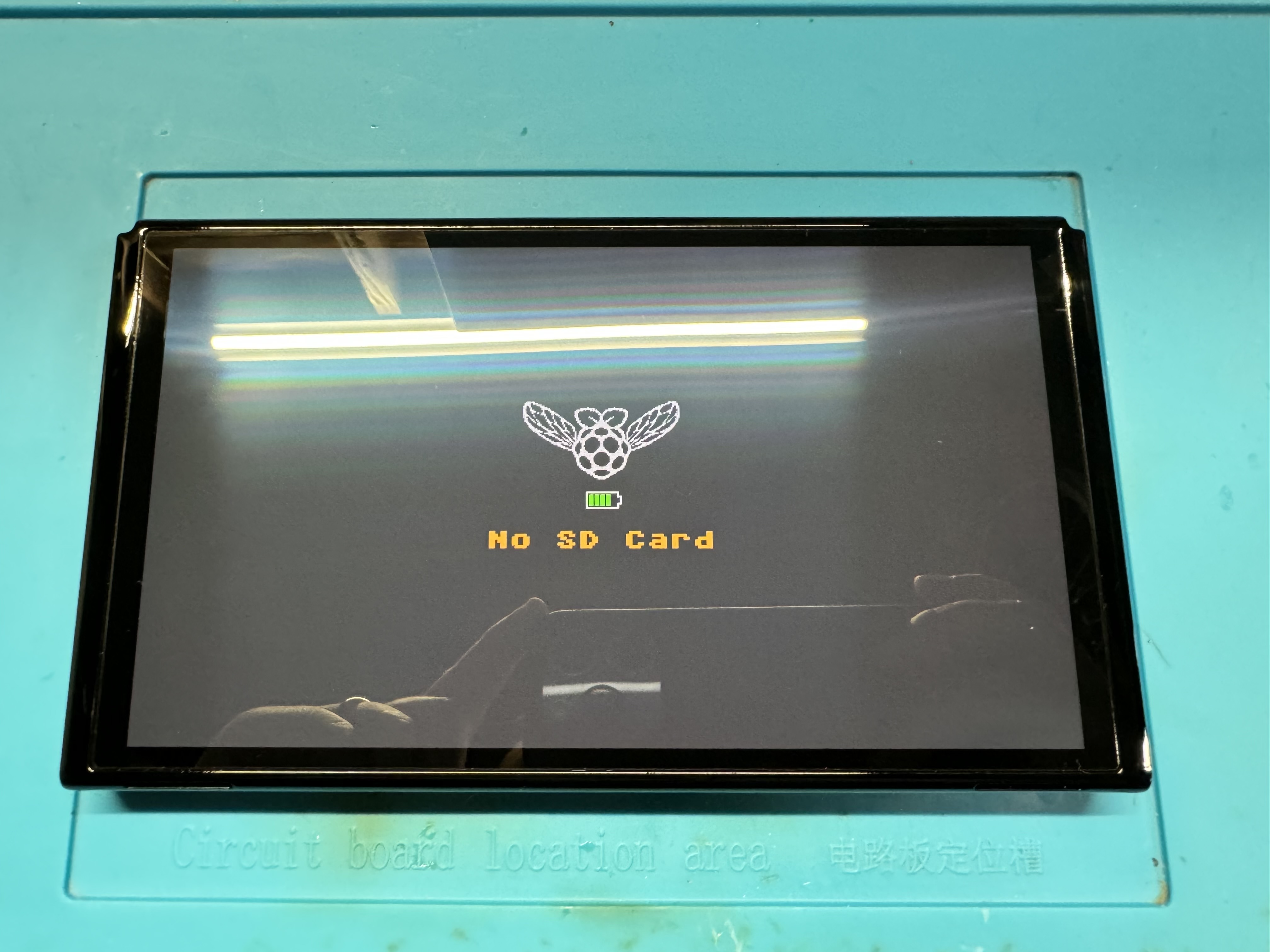

Post install. Check for shorts. Is the pico flashing an error? Also, check the lcd fpc connector. Make sure you didn’t bend any pins reinstalling the cable.Any One know why nintendo switch oled with good reading dat0 adapter from. 0.696 V to 0.701v only black secreen this is The 3 oled with same problem but all console working fine. The adapter is not bad at all. I can add pic. Thanks
