Which is the newest oled chip for nintendo switch

[Szymekward]

As the title says, what is the newest/best nintendo switch oled chip. On aliexpress I see a lot of different models and versions, and in my local market I see picofly, hwfly, but they also come in different versions from what I found out. Pls HELP me <3



[Nephiel]

Do you plan to install it yourself, or take it to a workshop? Is reballing a viable option for you? OLEDs aren't the easiest.

I'd go with a RP2040-Tiny from Waveshare for the chip. For the mosfet, maybe pick a CPU flex cable for ease of install. And for DAT0 on OLED, either Kamikaze, or one of those full-size eMMC adapter boards if reballing is an option. But that's just my personal choice.



[LuigiGad]

For clarity, I'll tell you that basically the modchips all do the same thing, left, hwfly, picofly, etc etc. As far as I'm concerned, the least problematic of all is the Picofly, based on RP2040-zero



[Danook28]

Picofly chip will not glitch i work on it 2 days all soldring read good it is failed all time I think it is time for hwfly chip oled it is beter....



[ikynx]

Picofly chip will not glitch i work on it 2 days all soldring read good it is failed all time I think it is time for hwfly chip oled it is beter....

One bad example doesn't make a rule.



[iiTzSamurai]

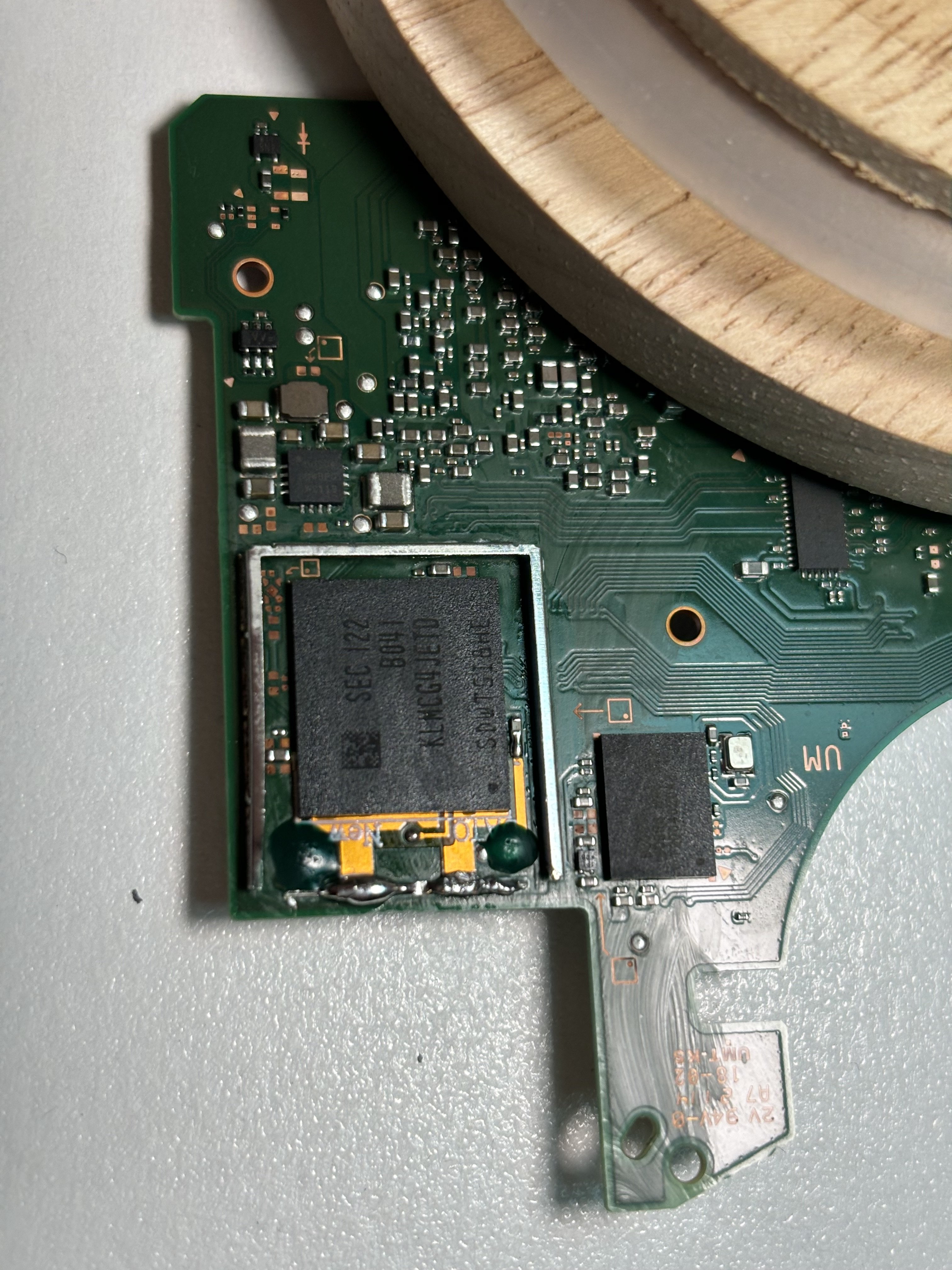

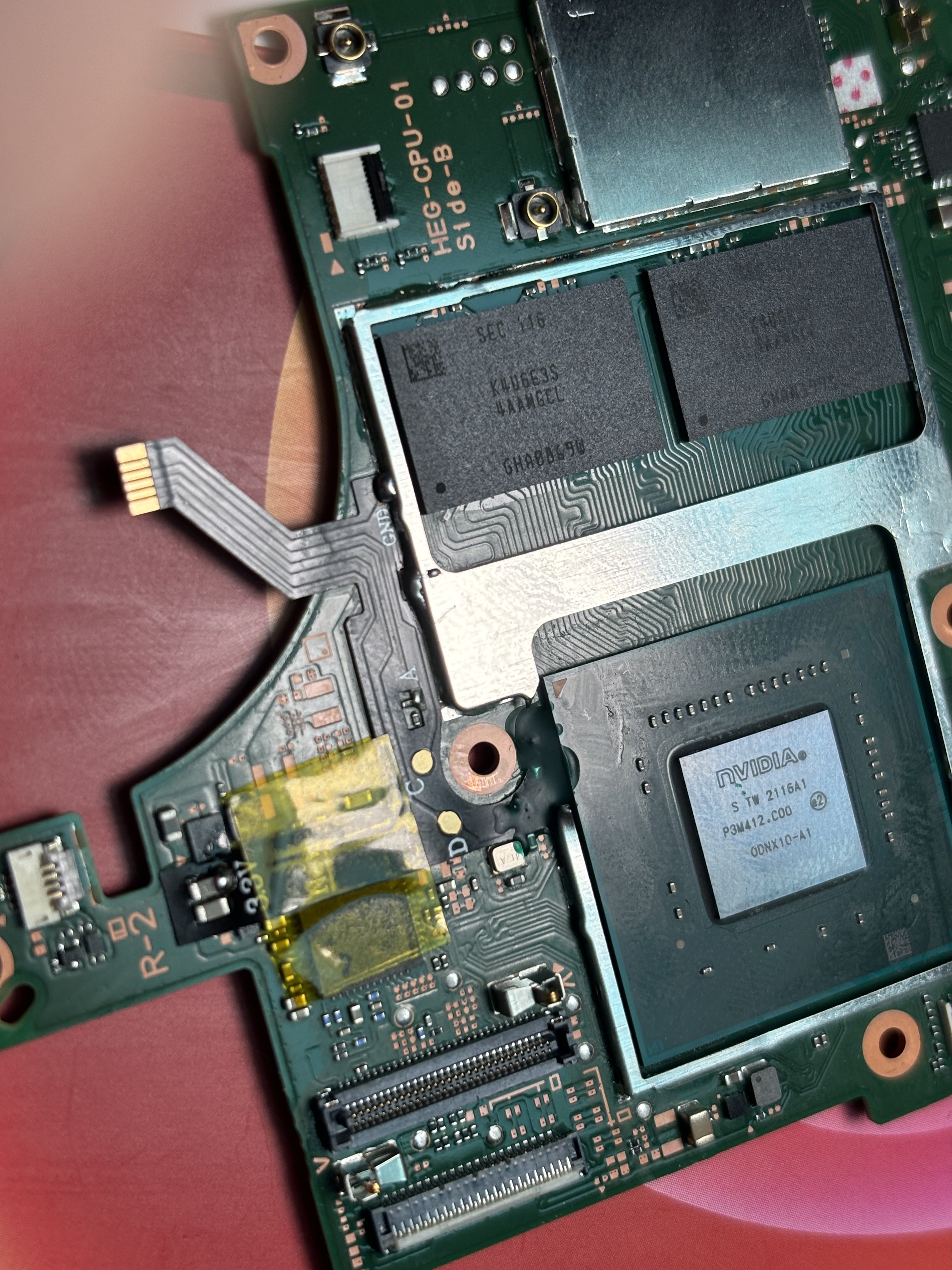

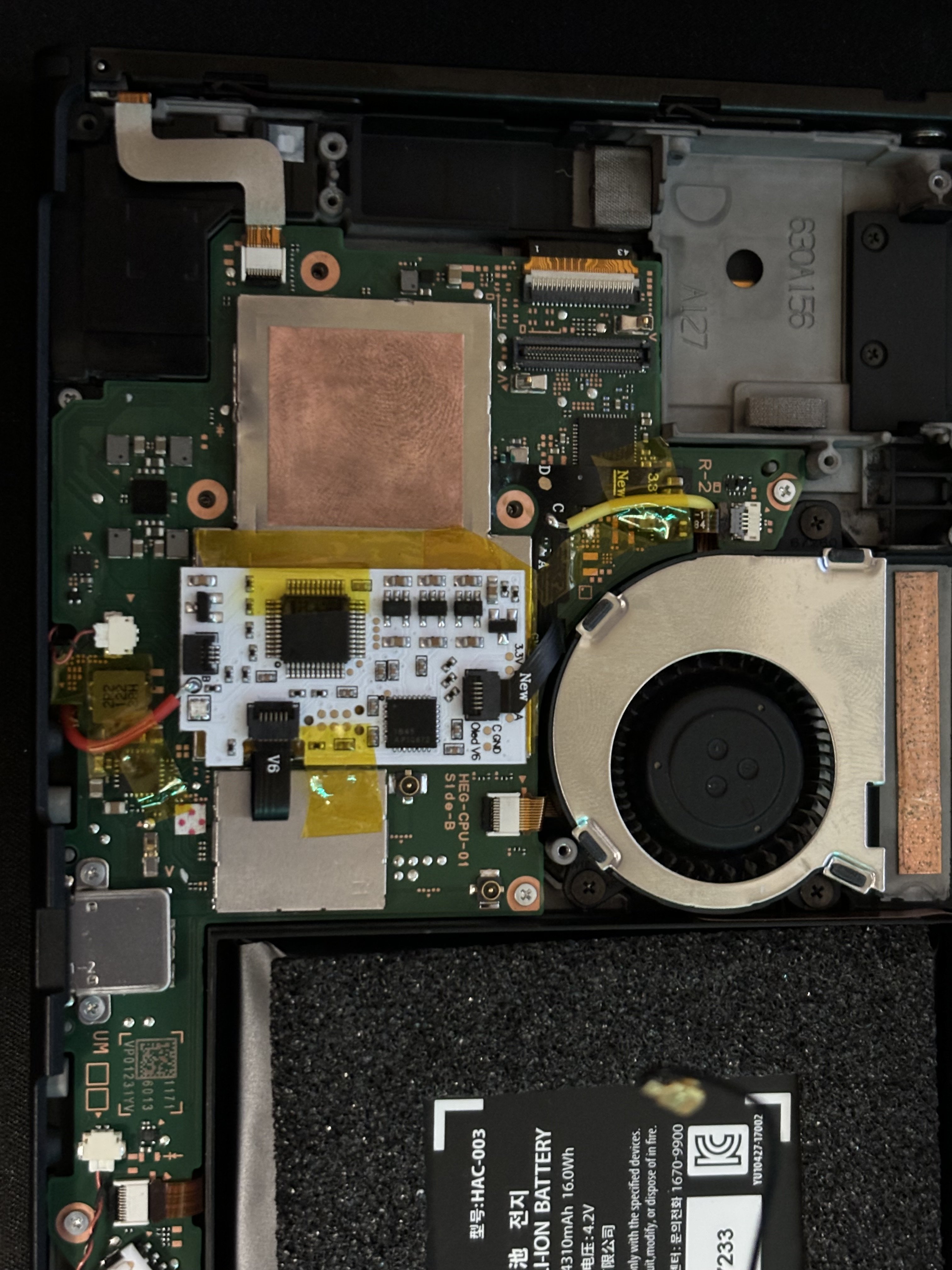

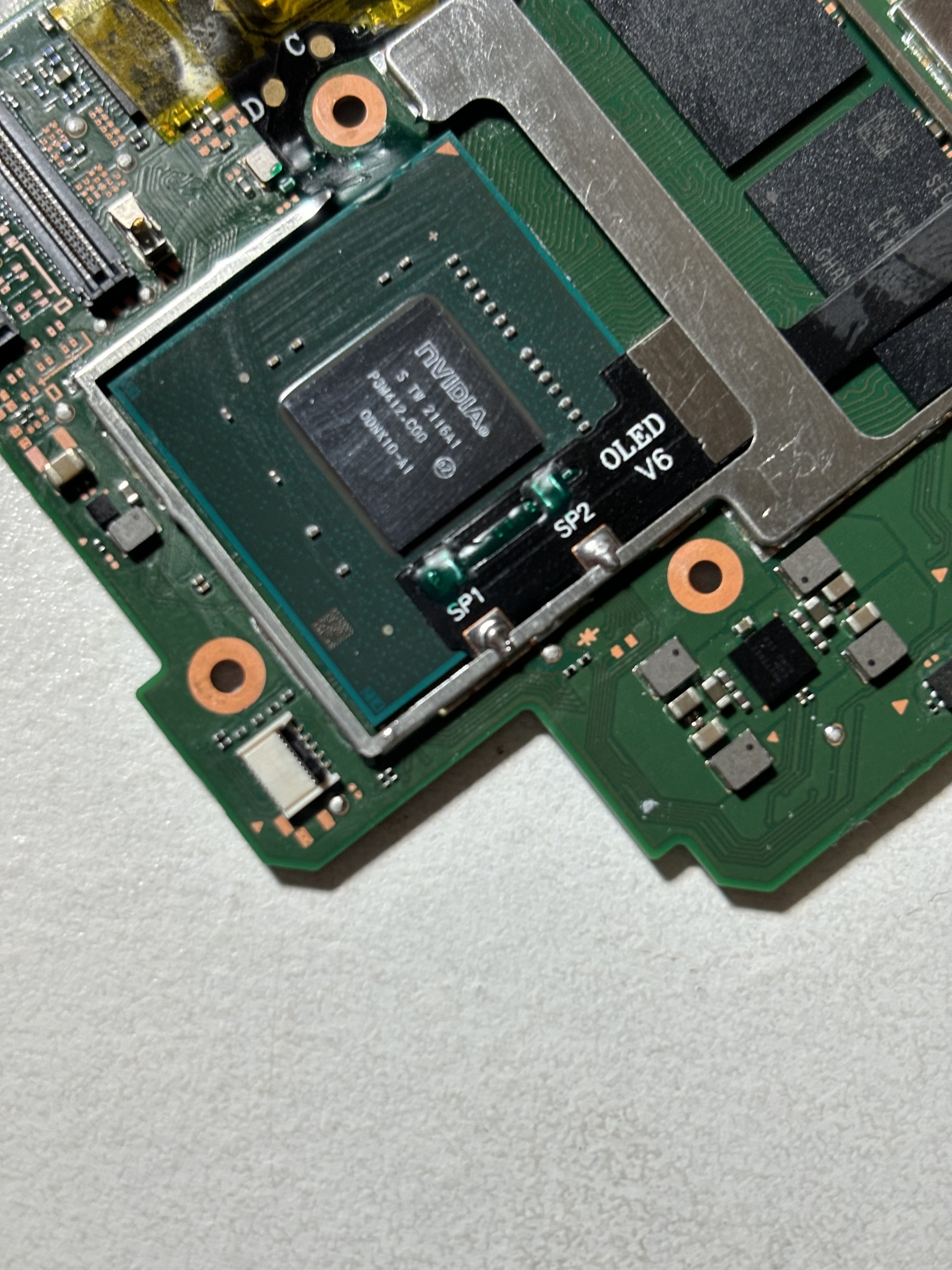

The hardest part is scratching the mb for a certain point to connect to, other than that it’s pretty simple if you take your time. I did all this without experience or a microscope



[Takezo-San]

The hardest part is scratching the mb for a certain point to connect to, other than that it’s pretty simple if you take your time. I did all this without experience or a microscope

You really done that with no soldering experience?



[iiTzSamurai]

You really done that with no soldering experience?

100% - that was my first time, ever... I surprised myself actually lol
