BlueBeans said:
What do you mean? Like turn it on and off checking the error code? I can get two to work with the mosfets I have but never 1. Could the wiring be too thin?
Click to expand...
1 is enough i have never had any device return to me yet. Your wire size is sufficient . i use 0.2mm magnet wire too. I meant that you check the reading on that mosfet the drain ever be grounded or the gate ever have any reading.

superxoi said:
1 is enough i have never had any device return to me yet. Your wire size is sufficient . i use 0.2mm magnet wire too. I meant that you check the reading on that mosfet the drain ever be grounded or the gate ever have any reading.
Click to expand...
The drain is grounded. Both caps on the apu that get soldered to are the ground side.
Post automatically merged:

I’d really like to figure this out as I’ve never been able to use just one mosfet.

Last edited by BlueBeans,
BlueBeans said:
The drain is grounded. Both caps on the apu that get soldered to are the ground side.
Post automatically merged:

I’d really like to figure this out as I’ve never been able to use just one mosfet.
Click to expand...

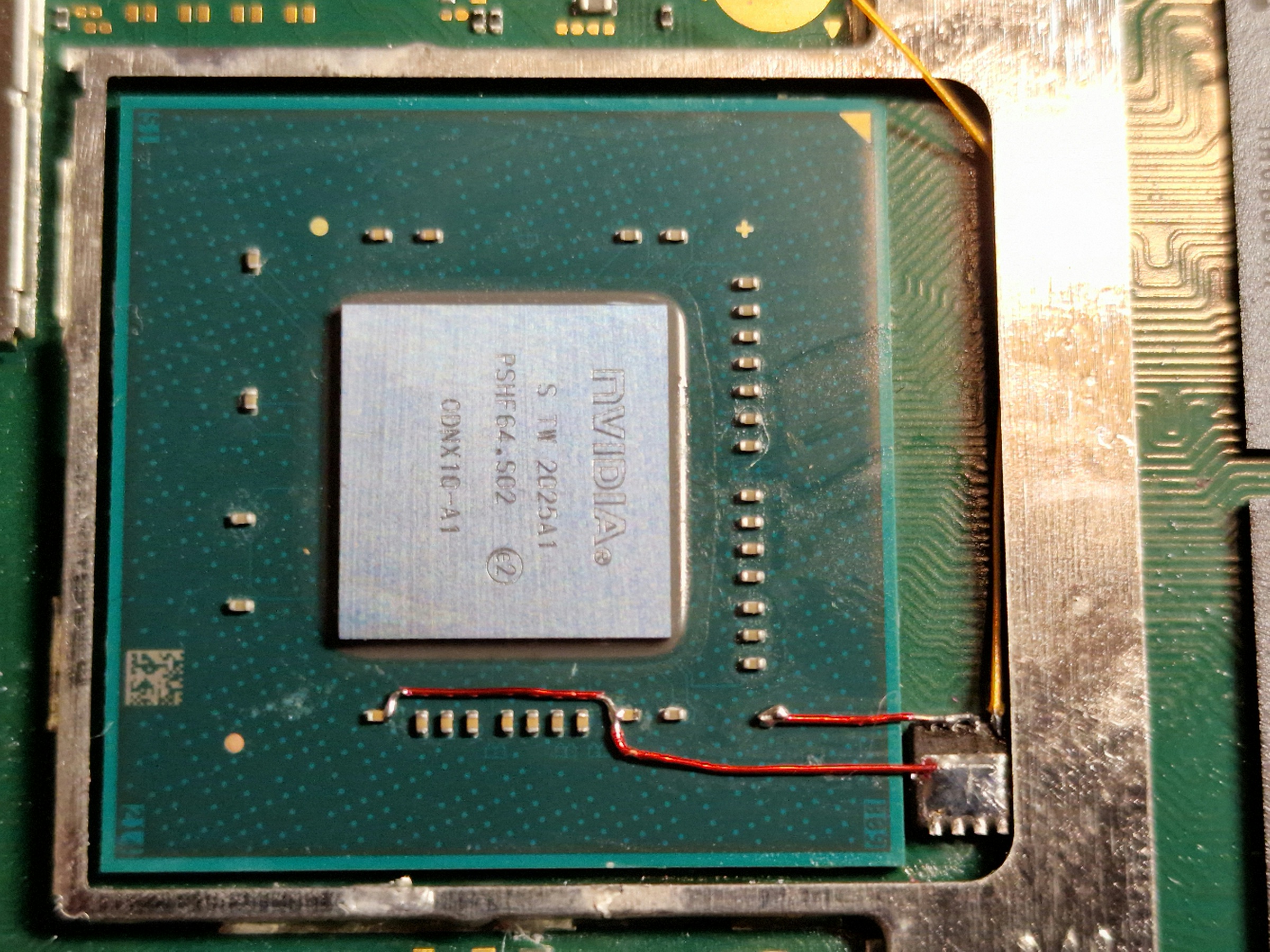

here's what mine usually look like (and it always works)


Attachments

  • 2020_0918_060449_042.JPG
    2.9 MB · Views: 80
  • Like
Reactions: dehydrated_lemur
deeps said:
here's what mine usually look like (and it always works)
Click to expand...
Ok I’ll give this a try. Thank you.
Post automatically merged:

deeps said:
here's what mine usually look like (and it always works)
Click to expand...
It’s still doing the same thing. The mosfet I’m using is a IRH 8342.
Post automatically merged:

Now all I get is ** RST not connected. It is ver much connected and clean.

Last edited by BlueBeans,
BlueBeans said:
Ok I’ll give this a try. Thank you.
Post automatically merged:


It’s still doing the same thing. The mosfet I’m using is a IRH 8342.
Post automatically merged:

Now all I get is ** RST not connected. It is ver much connected and clean.
Click to expand...
The mosfet type is ok. I have at least 30 installs now with the same mosfet and always in single configuration.
One thing I always do is that I pre-tin the wire in the places where it's going to be soldered to make sure that the enamel coating is gone. A little blob of solder on the tip of the iron (400°) and a little bit of flux on the specific spot on the wire, hold the wire inside solder blob for a couple of seconds (it turns black then evaporates) and you are good to go.

QuiTim said:
The mosfet type is ok. I have at least 30 installs now with the same mosfet and always in single configuration.
One thing I always do is that I pre-tin the wire in the places where it's going to be soldered to make sure that the enamel coating is gone. A little blob of solder on the tip of the iron (400°) and a little bit of flux on the specific spot on the wire, hold the wire inside solder blob for a couple of seconds (it turns black then evaporates) and you are good to go.
Click to expand...
That’s what I do as well 😪 what size wire are you using?
Post automatically merged:

I use the same wire when I do it with a flex cable and have zero problems

BlueBeans said:
That’s what I do as well 😪 what size wire are you using?
Post automatically merged:

I use the same wire when I do it with a flex cable and have zero problems
Click to expand...

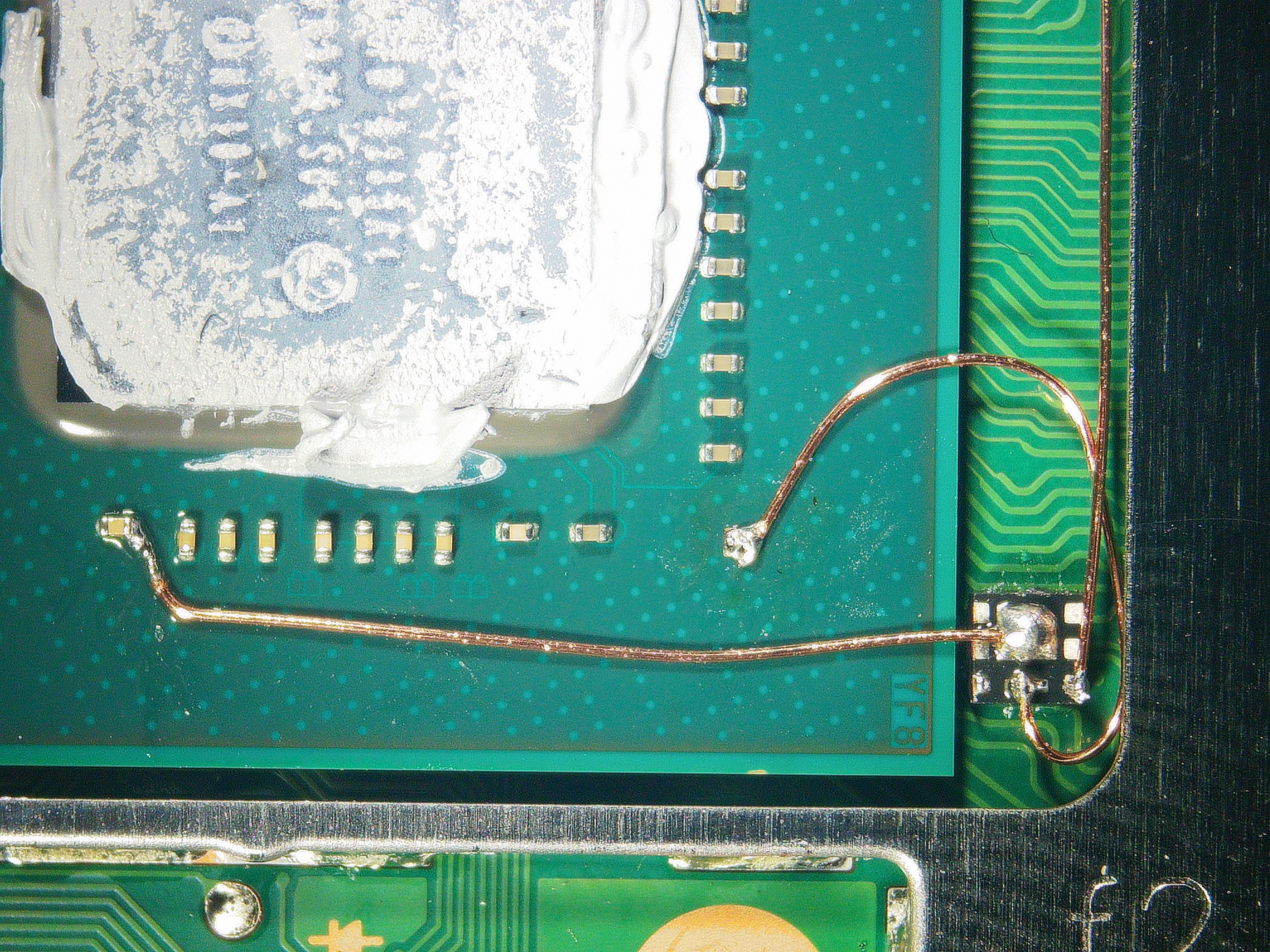

Same one 0.2mm. In the photo I was trying out different mosfets but as you can see the wiring is the same. I don't know, it's weird, everything looks ok...


Attachments

  • 20230516_205407.jpg
    1.2 MB · Views: 72
QuiTim said:
Same one 0.2mm. In the photo I was trying out different mosfets but as you can see the wiring is the same. I don't know, it's weird, everything looks ok...
Click to expand...
Yeah I just don’t get it. Do you use different wire for the cpu or is it all the same?

QuiTim said:
Ok, so points 1-1-1 all have continuity right? As well as points 2-2?
Nr.3 Is that glue or solder?
Lets get to the bottom of this thing :)
Click to expand...
Those all have continuity. 1 to 1 and 1-2. 3 had an ohms reading of 14. #3 was solder.
Post automatically merged:

I’m curious though. Source and drain are being connected to ground points on the apu. The caps we connect to is the ground side.
Post automatically merged:

Point 3 is not soldered to the shield like it looks. Was just sitting on top.
Post automatically merged:

There has been progress. Someone suggested to me about pulling a mosfet from a v1 flex and it worked the first time! Idk if maybe I got a bad batch of mosfet but I’ll be either ordering more or ordering some of the ones from the v1 flex. Here are the mosfets if anyone is interested.

https://www.lcsc.com/mobile/product-detail/MOSFETs_NATLINEAR-NP2016DR-N-G_C2991144.html

Last edited by BlueBeans,
BlueBeans said:
Those all have continuity. 1 to 1 and 1-2. 3 had an ohms reading of 14. #3 was solder.
Post automatically merged:

I’m curious though. Source and drain are being connected to ground points on the apu. The caps we connect to is the ground side.
Post automatically merged:

Point 3 is not soldered to the shield like it looks. Was just sitting on top.
Post automatically merged:

There has been progress. Someone suggested to me about pulling a mosfet from a v1 flex and it worked the first time! Idk if maybe I got a bad batch of mosfet but I’ll be either ordering more or ordering some of the ones from the v1 flex. Here are the mosfets if anyone is interested.

https://www.lcsc.com/mobile/product-detail/MOSFETs_NATLINEAR-NP2016DR-N-G_C2991144.html
Click to expand...
Well that explains it. Might be some fake/bad batch.
I ordered from both of these they are all good:
https://a.aliexpress.com/_mNCXyTI
https://a.aliexpress.com/_mNwL9g8

  • Like
Reactions: QuiTim
hi, can someone send me a diagram of where data + and data - are on the rp2040 zero to hook up a usb 2 cable to reprogram? I have an orange light on bootup and no CFW loading

BlueBeans said:
Trying the single mosfet again. Is this how it is supposed to look? When I put it all together my error code was ==*. Drain and Source are grounded but not touching. Is that right?
Click to expand...
or you can do like this, never failed on me.


Attachments

  • 20231202_125046.jpg
    916.6 KB · Views: 86
