I just tried to create a new CGFX file. My model has textures that make use of the alpha channel and I know that EFE supports that because I opened a CGFX from a Banner and it had working alpha on the model. However when I import the OBJ file for the new CGFX file, the resulting model doesn't use alpha on the textures where it should. Any plans on fixing this or is there something in the OBJ MTL file I need to check for?

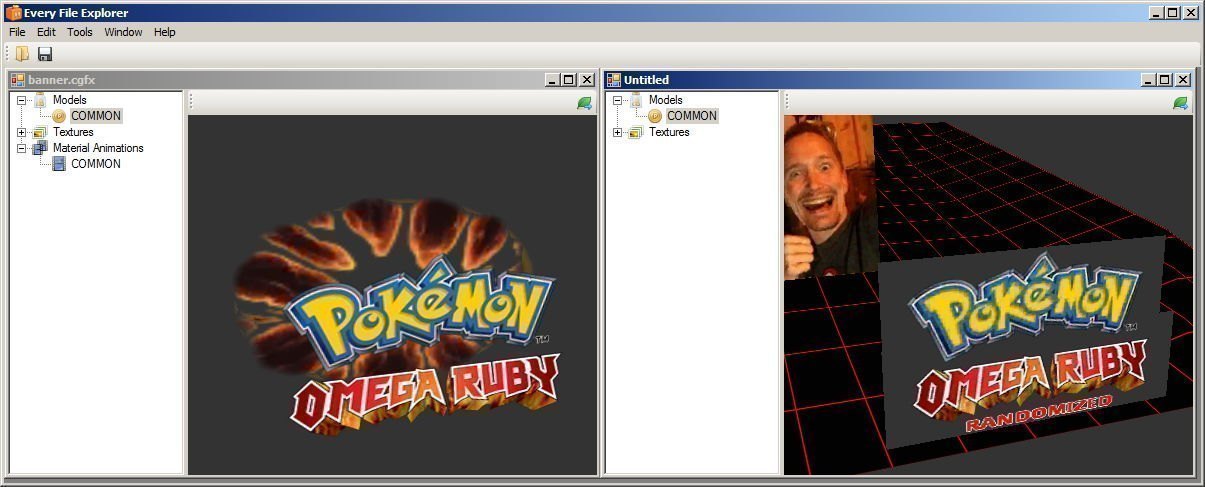

Example of what I'm talking about:

Official CGFX from Omega Ruby Banner file on the left. The modified one I exported that was reimported on the right.

The original logos no longer have alpha. I did make sure to save the one I edited in the same format as the others, but even the original unedited one (the "Pokemon" part has it's own texture) is missing alpha as well. I think something is wrong with the OBJ importer in your program perhaps?

I suppose I can redesign my banner CGFX model to not use alpha, but this really limits what I can do. Hopefully this can be resolved.



[Asia81]

How have you extracted the cgfx from banner.bin ?
Or by other way ?



[Apache Thunder]

You can open the banner.bin file with 3DSExplorer and use that to extract the CGFX file. You can also extract the CWAV file if it has one. But I got an error when I attempted to extract it.

Not that big of an issue. If I need the original I can just have the 3DS play the sound on the home menu with it connected to Line-In input on myPC. The background music of the current theme on the Home Menu gets muted when it plays the sound for the app that got selected. So I can get a clean sample of it that way.

I think you have to rename the bin file to a file with "bnr" extension (example, banner.bnr) as it's not setup to read it with the BIN file extension. After that you just extract the CGFX file which can be opened with EveryFileExplorer. From there I exported it as a DAE file and imported to 3DS Max.



[Asia81]

I tyr to open banner.bin with 3DS Explorer, but i have "CRC Error or Corrupt Save file"



[Apache Thunder]

Rename the file to "Banner.bnr" and try again.



[Asia81]

Rename the file to "Banner.bnr" and try again.

Yeah, thank you



[Gericom]

It is something that I couldn't fix yet. The alpha doesn't work on a real 3ds, but it does in the viewer. I don't exactly know what setting is related to it. (there are all kinds of blending and alpha testing stuff in the files)



[Apache Thunder]

I worked around the issue for my Omega Ruby banner. I subdivided the logo mesh until the polycount was high enough for me to remove the faces where there was only alpha on. So it effectively achieves the same result. Hopefully this will get fixed in the future as this won't really be a viable fix for more complicated models.

I got my 3DS XL back from the mail today and installed my modified Omega Ruby rom and tested the custom 3D Banner I made...IT WORKED GREAT!

An interesting tidbit of info for others looking to do this. It appears the default animation for 3D banners is the 3D mesh simply spinning around. (I would assume the center axis for this spin action would be the same for what ever the world zero position of the mesh is in the modeling program you are using)

So keep this in mind when designing your 3D banners.



[Deleted User]

I just tried to create a new CGFX file. My model has textures that make use of the alpha channel and I know that EFE supports that because I opened a CGFX from a Banner and it had working alpha on the model. However when I import the OBJ file for the new CGFX file, the resulting model doesn't use alpha on the textures where it should. Any plans on fixing this or is there something in the OBJ MTL file I need to check for?

Example of what I'm talking about:

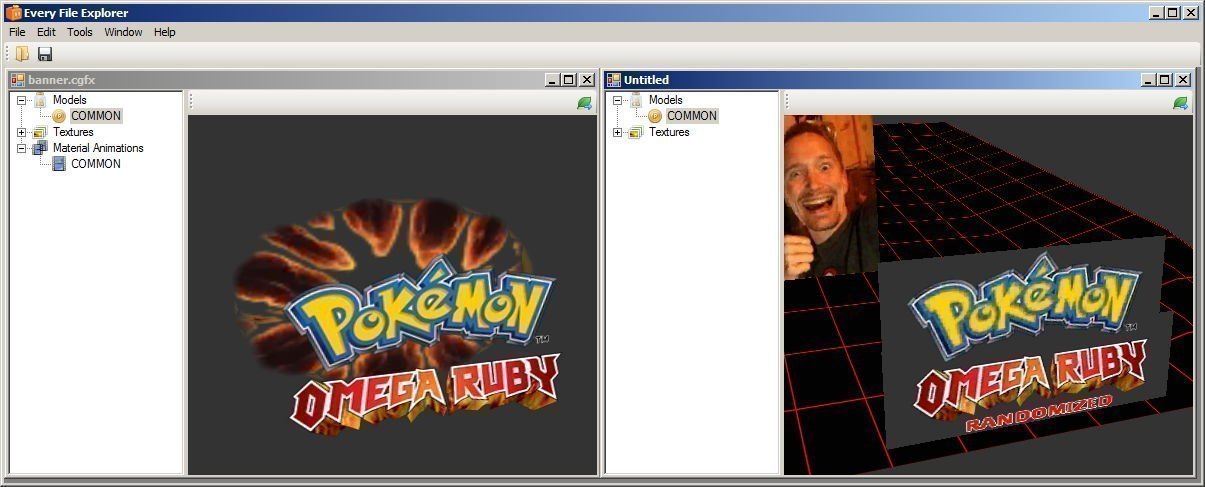

View attachment 15983
