Picofly AIO Thread

[lightninjay]

can i have a link of your HATS maybe its the HATS i am using from sthetix is the problem?

We cannot provide links to HATS here



[WalangAlam]

We cannot provide links to HA

Flash this to your RP2040

this will clear your RP2040 flash rom

Then reflash

i am getting now PKG2 instead of PKG1 error message after clearing and flashing



[lightninjay]

i am getting now PKG2 instead of PKG1 error message after clearing and flashing

Have you dumped your keys from Hekate?



[WalangAlam]

Have you dumped your keys from Hekate?

ah i need to do that? i never did that before with sx. wait i will read about dumping keys...



[abal1000x]

ah i need to do that? i never did that before with sx. wait i will read about dumping keys...

Ehhm.... (The first thing you need to do after Hekate is to dump your nand and keys and save it securely) Ehhm...



[WalangAlam]

Have you dumped your keys from Hekate?

i have my prod.key what to do next?



[lightninjay]

i have my prod.key what to do next?

This is not the place to ask these kinds of questions. You need help with sorting out a proper HATS install. It sounds like you are rushing through this, and potentially losing your opportunity to make safe backups of all your software and keys, which is a huge mistake in my opinion, but I digress.

We are not permitted to discuss HATS in detail here, as that typically leads to piracy. You need to take some time to fully absorb a guide that can even be followed on a site like youtube to get your switch setup the rest of the way.



[WalangAlam]

This is not the place to ask these kinds of questions. You need help with sorting out a proper HATS install. It sounds like you are rushing through this, and potentially losing your opportunity to make safe backups of all your software and keys, which is a huge mistake in my opinion, but I digress.

We are not permitted to discuss HATS in detail here, as that typically leads to piracy. You need to take some time to fully absorb a guide that can even be followed on a site like youtube to get your switch setup the rest of the way.

oh okay thank you. I will read about it then...



[Adran_Marit]

This is not the place to ask these kinds of questions. You need help with sorting out a proper HATS install. It sounds like you are rushing through this, and potentially losing your opportunity to make safe backups of all your software and keys, which is a huge mistake in my opinion, but I digress.

We are not permitted to discuss HATS in detail here, as that typically leads to piracy. You need to take some time to fully absorb a guide that can even be followed on a site like youtube to get your switch setup the rest of the way.

as someone who saw the pikabrick rise and fall, that's why I had the full backup warning.

oh okay thank you. I will read about it then...

Flash the latest 2.64 pico fly firmware
make sure you have the latest hekate files
boot hekate
do a complete nand and boot 0/1 file backup
run lock pick_rcm and get a full keys backup
backup the keys and hand files somewhere safe
boot hekate/atmosphere



[WalangAlam]

are v1 patched and v2 pin outs the same? can i also install this for unpatched v1? solder points are under the emmc? or i should solder on the emmc? i saw points on the board under the emmc and i see points on the emmc...does v1 unpatched has different solder points compared to v1 patched?

Post automatically merged: Apr 14, 2023

my lite is picoflied and working. Error fixed. I will work on my V1, V2 then OLED last...Do you reflow OLED dat0 or just solder anchor them. I have read that solder anchoring last longer that reflow for dat0 connection. are there a lot of post here with dat0 losing connection after few months?



[Dee87]

are v1 patched and v2 pin outs the same? can i also install this for unpatched v1? solder points are under the emmc? or i should solder on the emmc? i saw points on the board under the emmc and i see points on the emmc...does v1 unpatched has different solder points compared to v1 patched?

Yes

my life is f picoflied and working. will work on my V1, V2 then OLED last...Do you reflow OLED dat0 or just solder anchor them. I have read that solder anchoring last longer that reflow for dat0 connection. are there a lot of post here with dat0 losing connection after few months?

The Only real way to make sure that u will never have issues with dat 0 if u take the emmc off reball and set permanent dat 0
the adapter will give u some day issues.

if u try dat 0 adapters goes for the thicker 4 anchors ones since they dont tend to warp when they heat up



[Adran_Marit]

Yes


The Only real way to make sure that u will never have issues with dat 0 if u take the emmc off reball and set permanent dat 0
the adapter will give u some day issues.

if u try dat 0 adapters goes for the thicker 4 anchors ones since they dont tend to warp when they heat up

I've also seen people use a dab of super glue to help hold it



[DejavuStudio]

HI. im flash my 2.64, finished the work.
i got issue that when im wake from sleep, screen go black but i stll can hear soud when i touched the screen. any idead?



[Dee87]

I've also seen people use a dab of super glue to help hold it

yeah well i mean u do what u gotta do but why not just do it right way in the first place and be done with it.

i know there are alot of people without alot knowledge about soldering or reballing but why would u wanna do a halfass job.
sure that my opinion and others have there opinion.

but just do it the right way and be done with it

ive seen alot of people damage there consoles with these dat0 adaptors that why i decided to reball and it was also my first reball on a switch.



[Adran_Marit]

yeah well i mean u do what u gotta do but why not just do it right way in the first place and be done with it.

i know there are alot of people without alot knowledge about soldering or reballing but why would u wanna do a halfass job.
sure that my opinion and others have there opinion.

but just do it the right way and be done with it

ive seen alot of people damage there consoles with these dat0 adaptors that why i decided to reball and it was also my first reball on a switch.

I don't have the tools for it



[cicci084]

thank you so much, ill redo everything all show you how well i did, ur chip looks fantastic compared to mine lol, also could you please send me the link to the copper wire you use? for the life of me i cant get the wire to expose itself when im using it. no matter how much i put flux on it or that i dip it into my soldering iron with solder on it, it just doesnt expose itself properly. Anyways the place that you bought the chip from is the same place where i bought it, if you check the reviews, they all have the official logo. Idk why they remove it in the pics but its the official chip.

I use magnet wire that I recycled from an old transformer/power supply winding. (see example photo)

But I love recycling, not for money, for my passion.

In all cases from the videos I've seen we're talking about awg 36 (i haven't direct experience).
Here buy on amazon

Post automatically merged: Apr 14, 2023

can i have a link of your HATS maybe its the HATS i am using from sthetix is the problem?

I don't think so, I use and have used these hats and no problems on several switches.



[Dee87]

I don't have the tools for it

yeah i mean i understand but on the otherside u can get a okay hot air gun for like 50, $stecil 10$, paste 10$ depends or where u order from thats a one time investment.
but its like i said everybody do how they wanna do it just my oppinion

sure some people will say why spend that much money for one mod , but in the long run u will probaly use that more ofter then u think since u have it.



[Raugo]

try double resistors (94 Ohm) for CMD & DAT0

Post automatically merged: Apr 13, 2023

same thing. you get some interference on eMMC lines, it can't completely work on the full speed. clean flux, use shorter wires, put double resistors on CMD & D0

I replaced the wires with new ones shorted and now is worst, when I try to launch HOS with vol+ and vol- mpt sjpw amything at all except one time that show pink screen. It is possible that i damaged the emmc?

Edit: I mounted the emmc in windows with hekate and can see the content and appear to be ok. The switch enter automatically in rcm when I rty to launch HOS



[rehius]

Edit: I mounted the emmc in windows with hekate and can see the content and appear to be ok. The switch enter automatically in rcm when I rty to launch HOS

looks like your BOOT0 got corrupted, generate and write a clean one from either backup or this way



[ppeach]

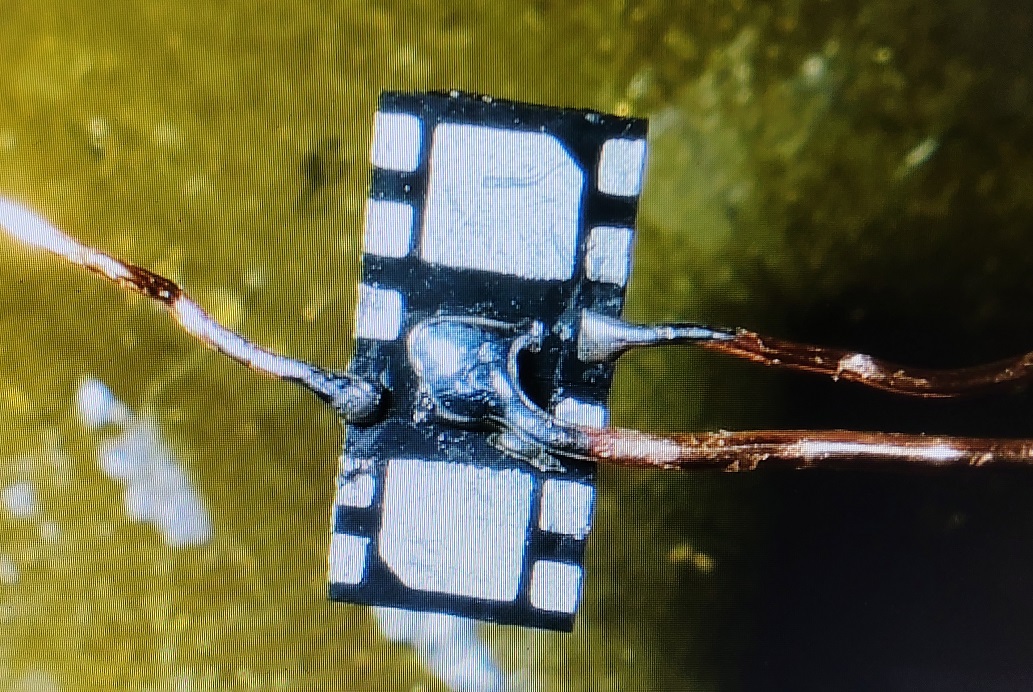

This is practice.
The mosｆet used is IRFHS8342.
I managed to solder it somehow.
Is this OK?
Using flex cable for the first switch was the right choice.
