Hi guys, first time doing a picofly install.
I got a waveshare rp2040 running 2.73 firmware from here (
https://github.com/Ansem-SoD/Picofly/tree/main/Firmwares). I'm installing on a patched V1 and during the process, unfortunately, I lost some pads but luckily there are alternative points for these. So I'm at the point in which I've connected the whole thing but when I turn it on I get blue led then it goes long yellow, then short yellow. Per the documentation here (
https://gbatemp.net/download/a-definitive-picofly-install-guide.37968/) this means Dat0 is not connected but it is. I check continuity in other Dat0 points to see if it was connected, and I have continuity all the way to the board. Here are some screenshots of what I've work.

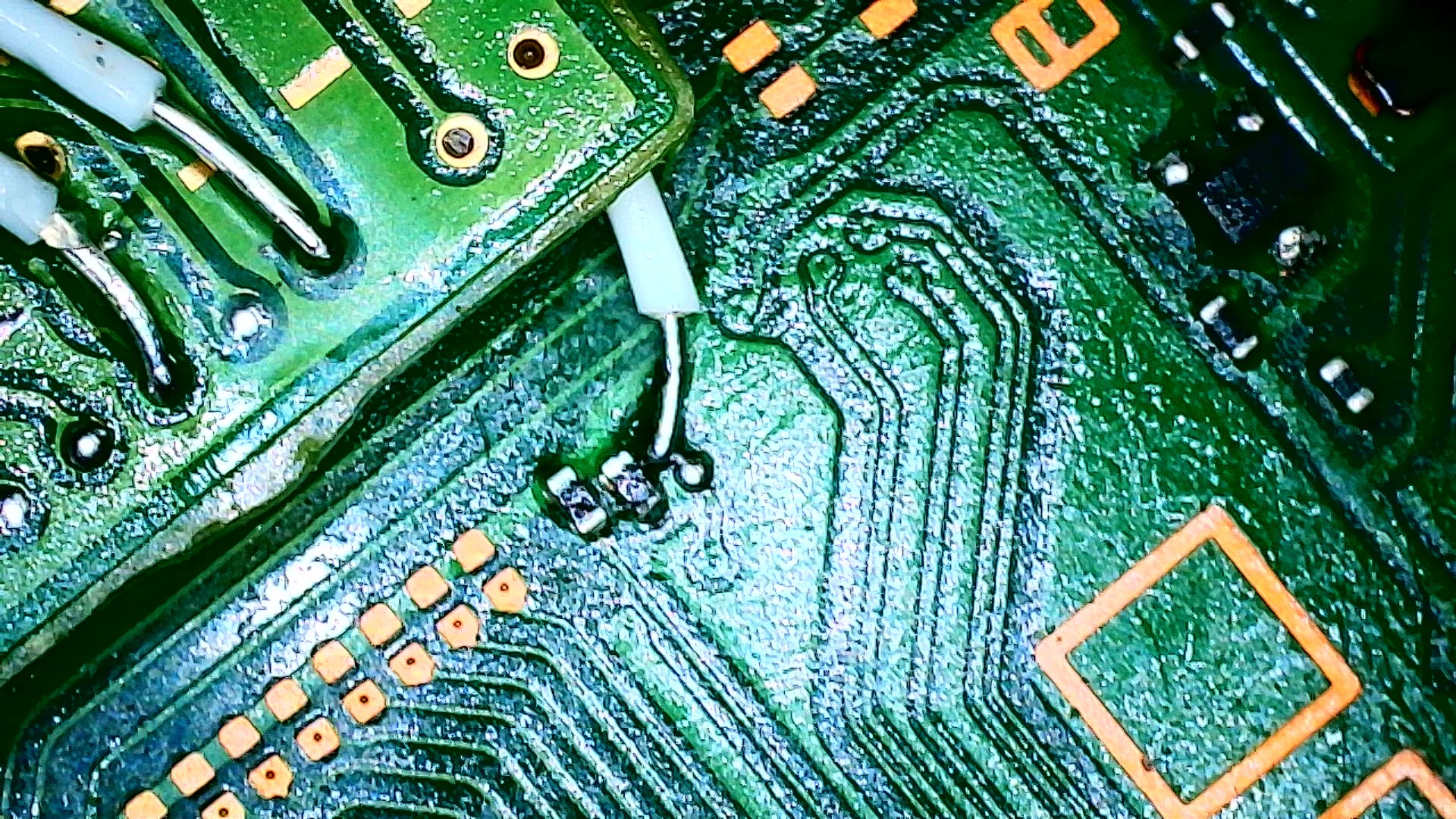

Alternate Dat0 and CLK. Also RST can be seen.
View attachment 410651

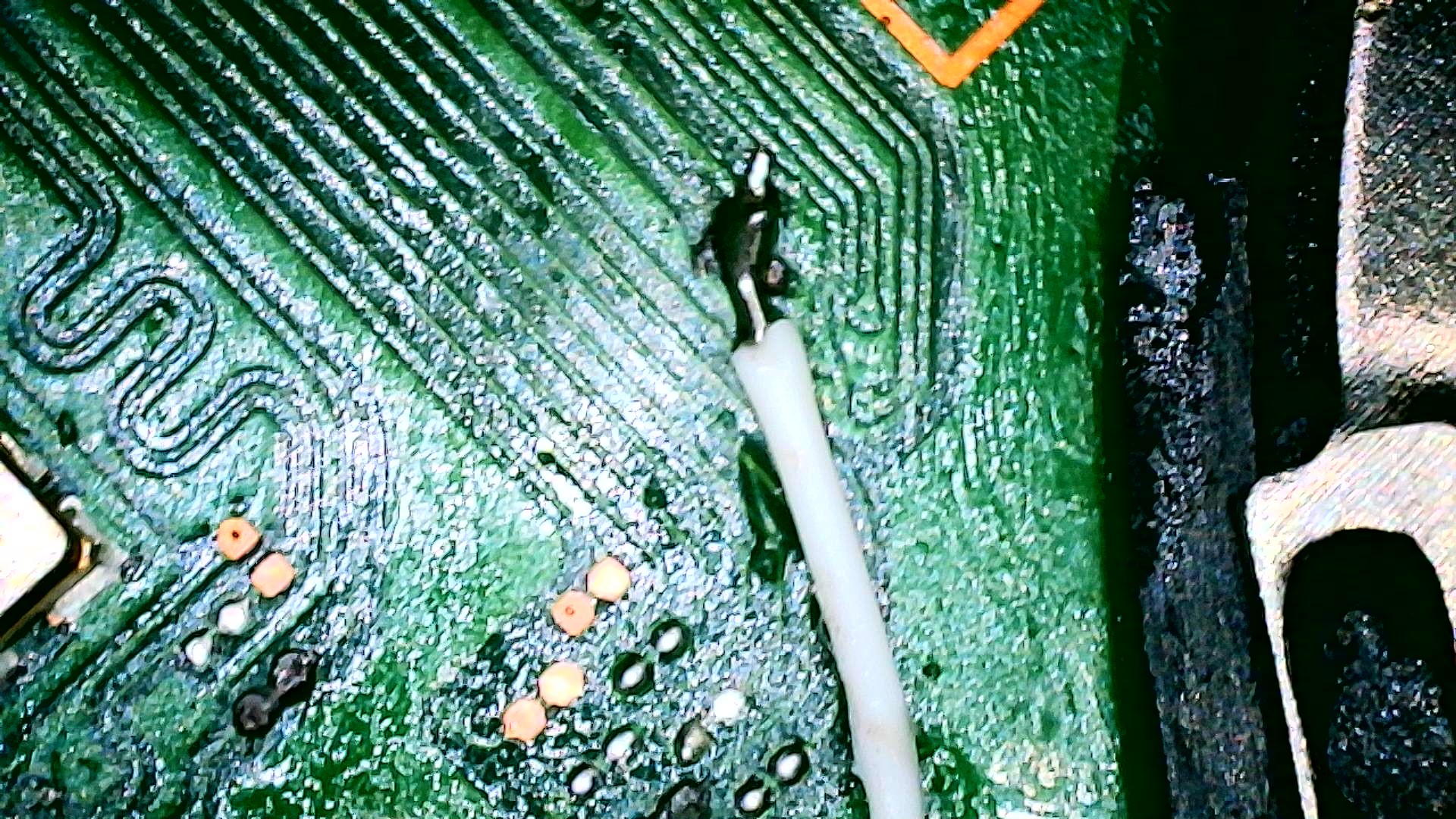

Here is a better view of RST.
View attachment 410652

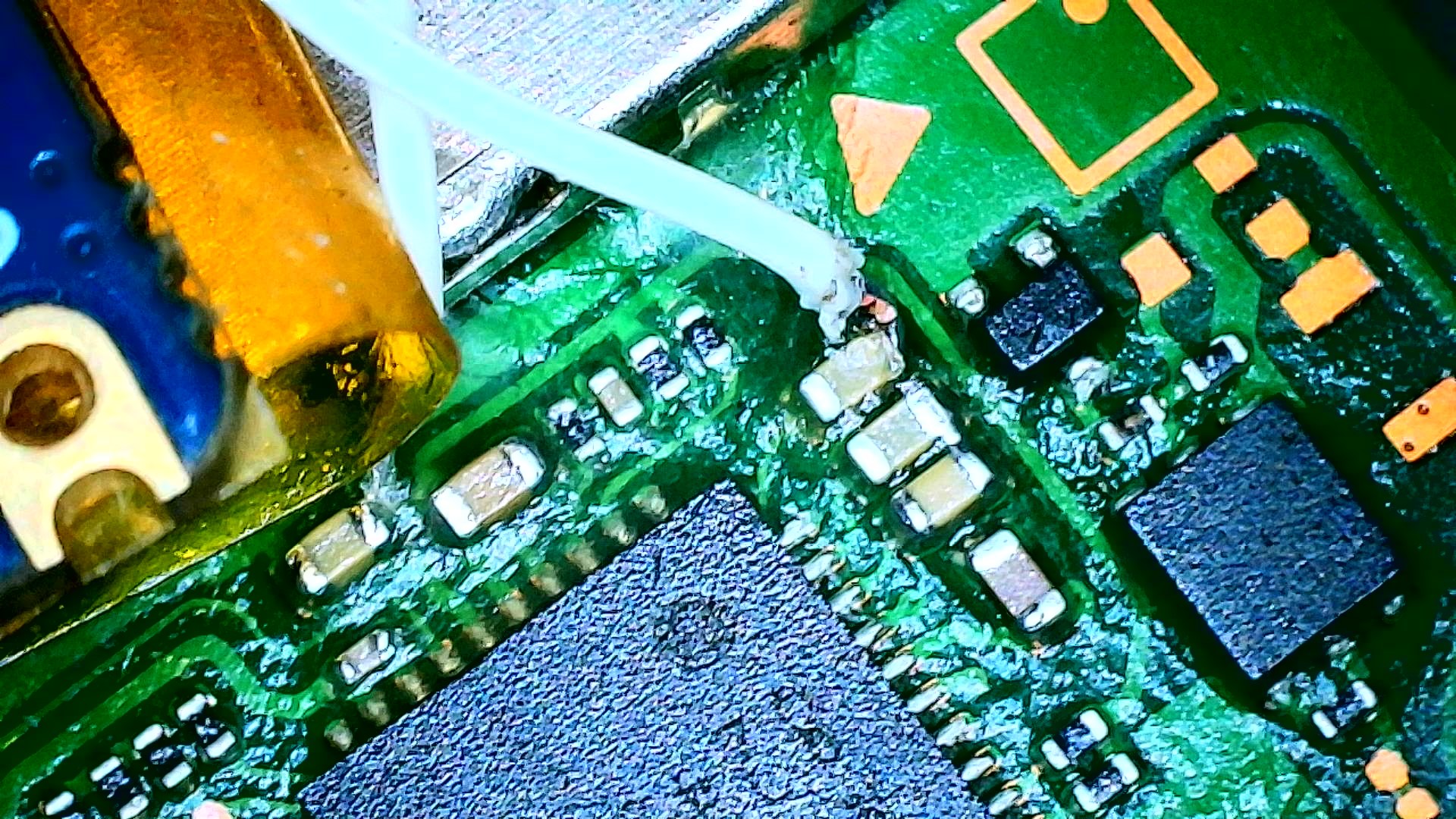

Although it looks bridged there is only one pad there so it should be ok, this is CMD
View attachment 410653

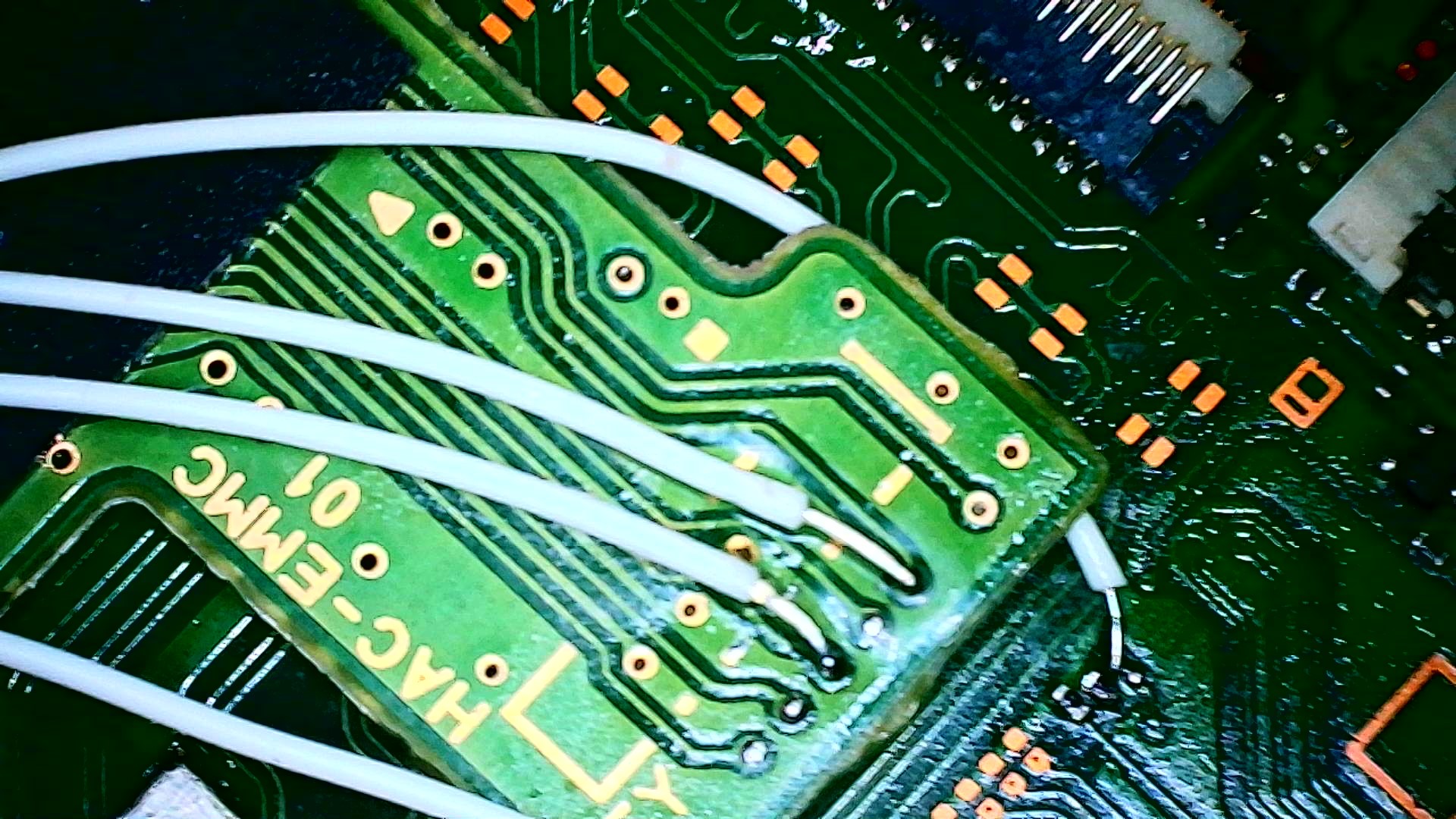

Here is ground
View attachment 410654

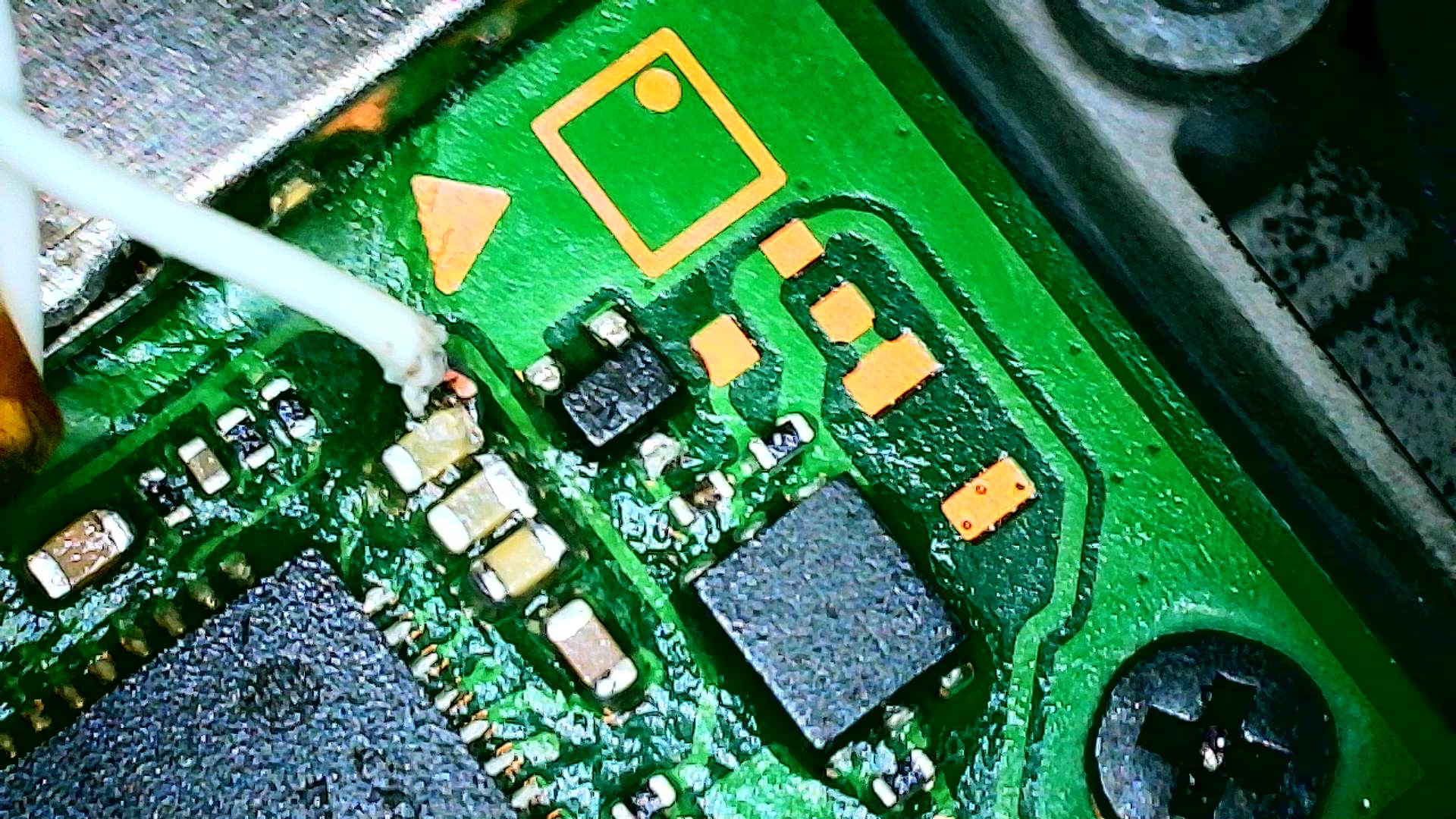

Here is 3.3v althougt not very well focused. That one should be fine since it is turning on the chip.
View attachment 410655
Any suggestions? I did not include pics of the CPU flex since the error points to DAT0. I believe them not to be relevant but if needed, let me know.
