Put the ball onde the pad....the wire...flux and then hot air? Or havre to reball emmc?0.3mm solder ball, hot air, and 0.1mm jumper wire
Put the ball onde the pad....the wire...flux and then hot air? Or havre to reball emmc?0.3mm solder ball, hot air, and 0.1mm jumper wire
Put the ball into the ripped pad whole with little flux and slowly melt onto that remaining copper dot/trace. Do both pads then jumper them together
For resistance problems, D0 requires 100Ω, and the other pins are 47Ωwhat was causing the yellow light?
YES!Hello. Can i take this mosfet?
IRFHS 8342TR IR MOSFET, N-CH, PQFN-6, 30 V, 19 A, 2,1 W
Finally it worked! I just soldered different solder points following this tutorial and this was my solution for my v1 switch
I also kinda user the flex V2 and worked too.
ooofSeems like I was happy too early. Gave the switch my wife so that she can play some and after hitting low battery the picofly called the blue purple color and didnt turn on. Seems like i need to open that up again and check whats the issue.

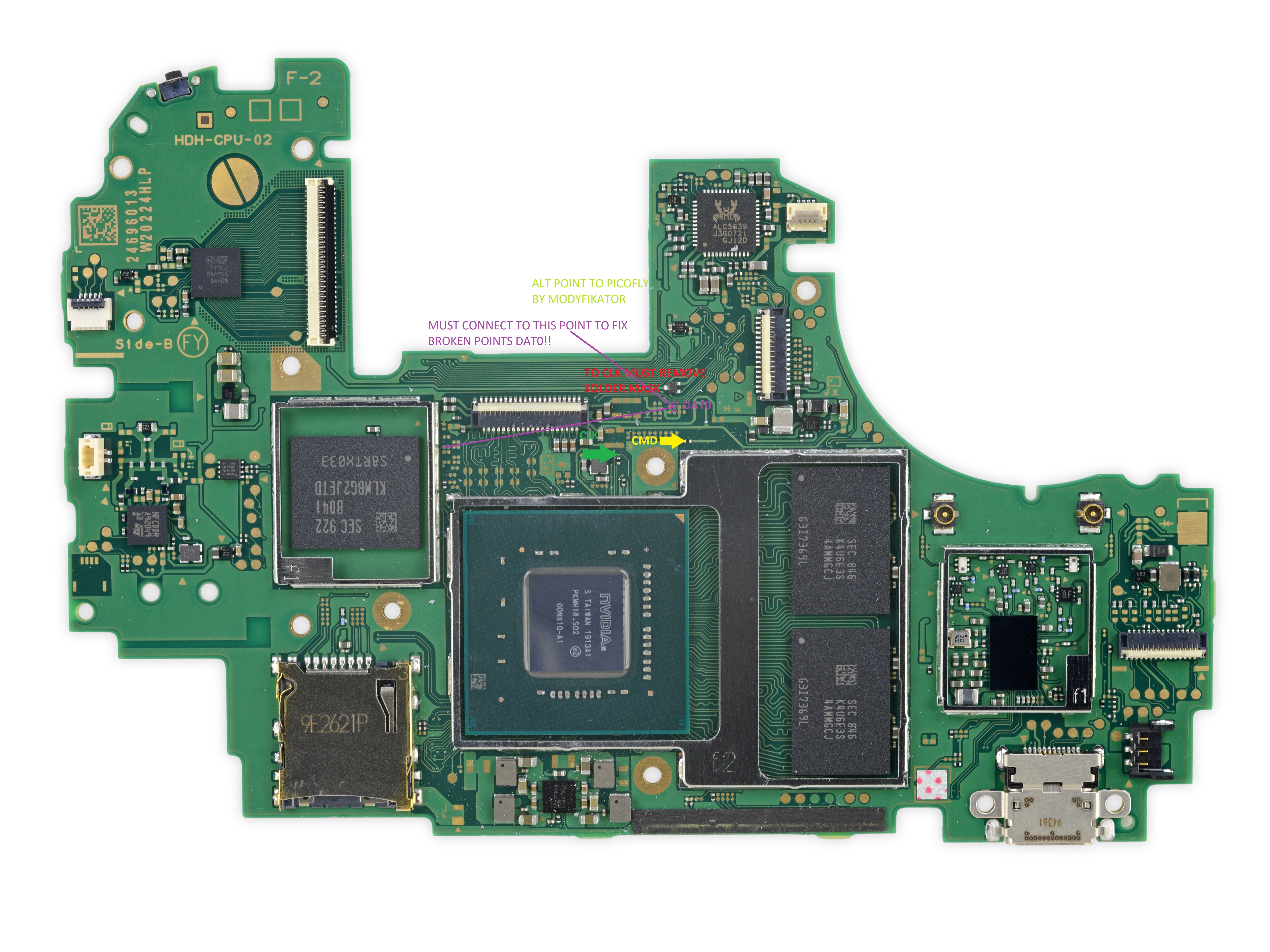

Try connect this point to fix DAT0Hello....i installed picofly and got no sd but the cables. When i was positioning the wires a solder point broken...and now my switch is dead...simple dont shiw any sign of life...is there any tip you can give me ...or if i have some way to fix it

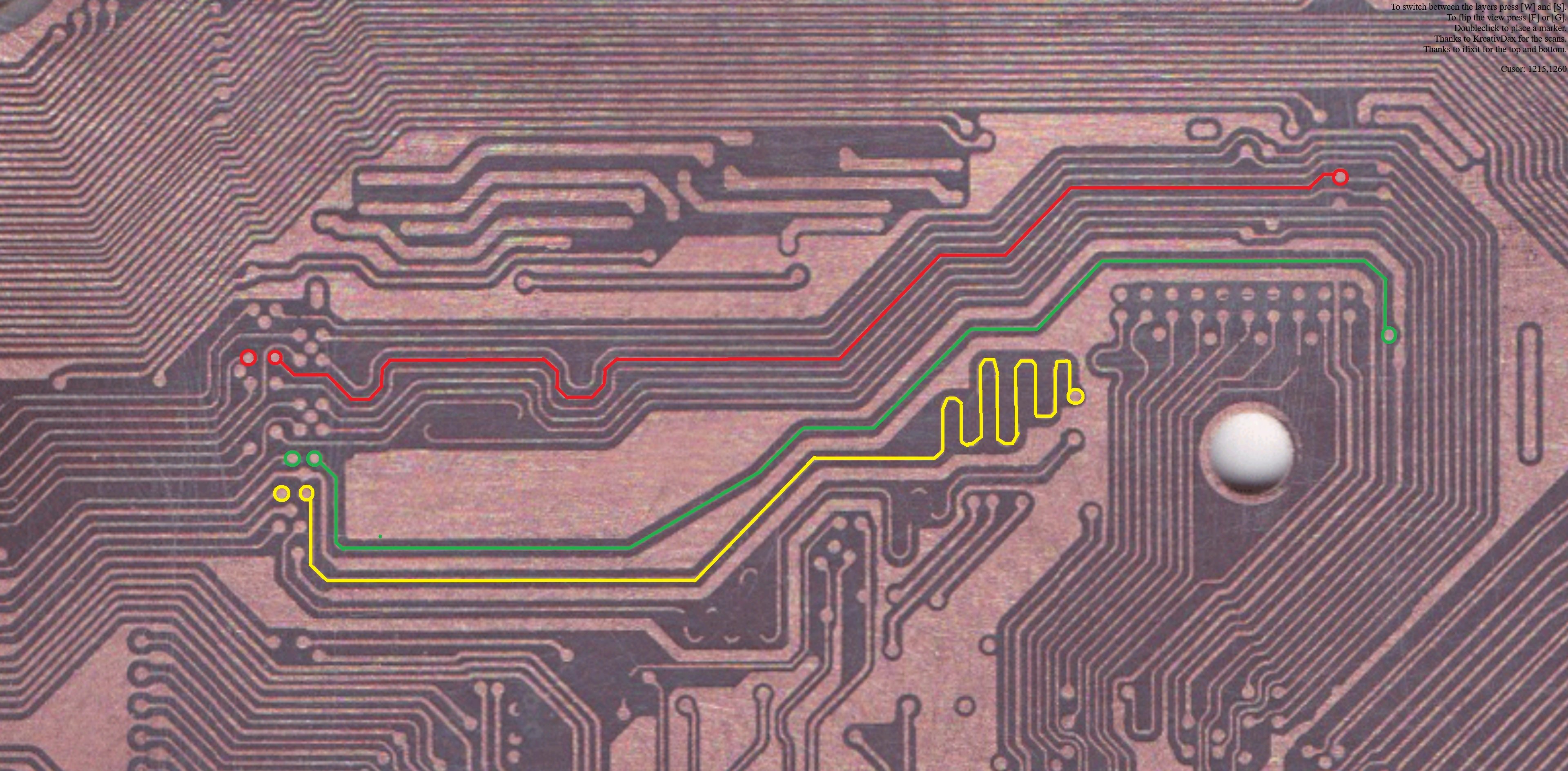

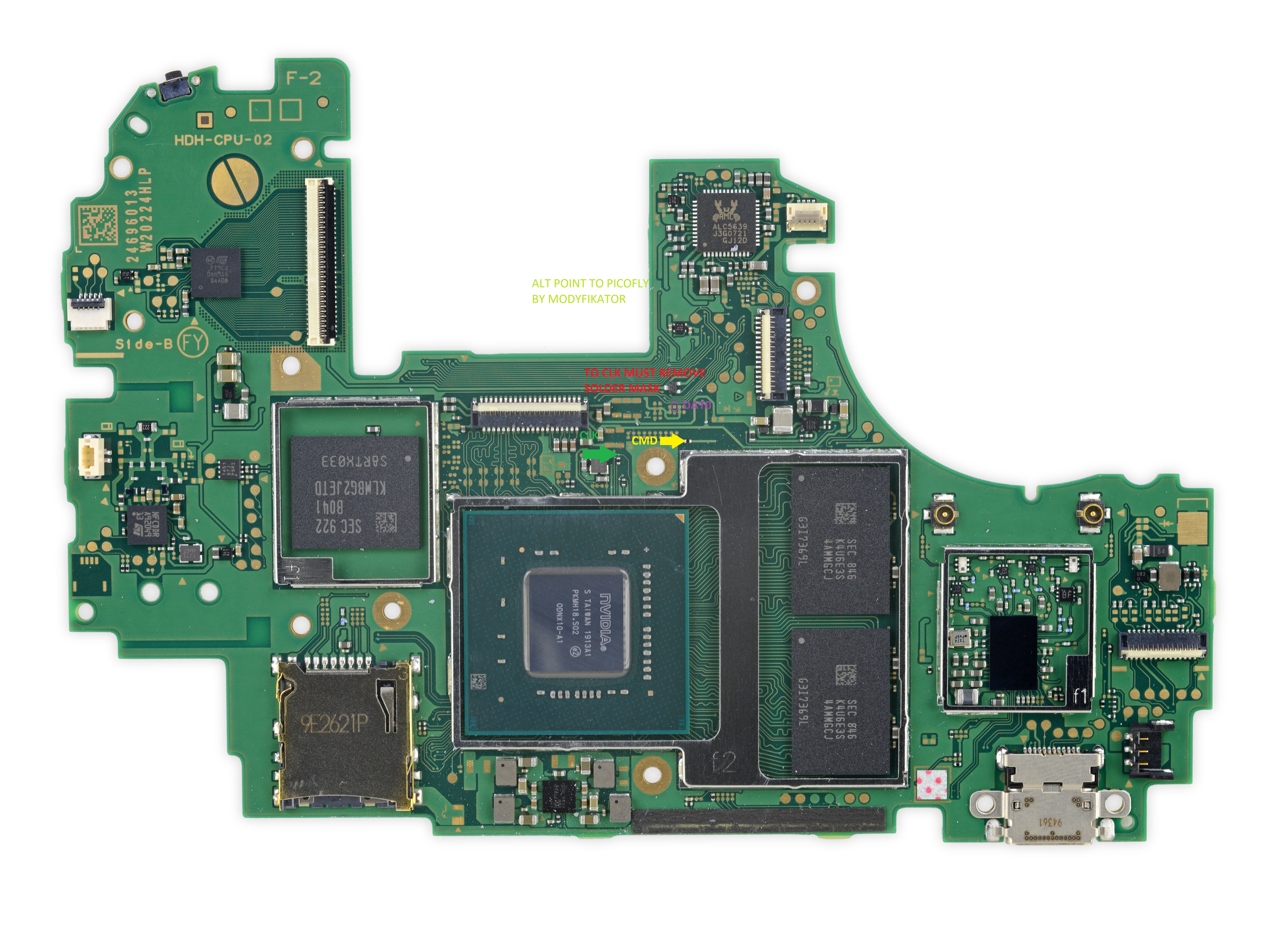

all well and good until the pads are dead.Alternate PICOFLY Points DAT0 , CMD . CLK by Modyfikator
Post automatically merged:
Try connect this point to fix DAT0
it not so big problem can by fix but must remove emmc them add new point and resoldering itall well and good until the pads are dead.
This is rgh3 all over again ahahahahait not so big problem can by fix but must remove emmc them add new point and resoldering itEasy for pro modders like me.

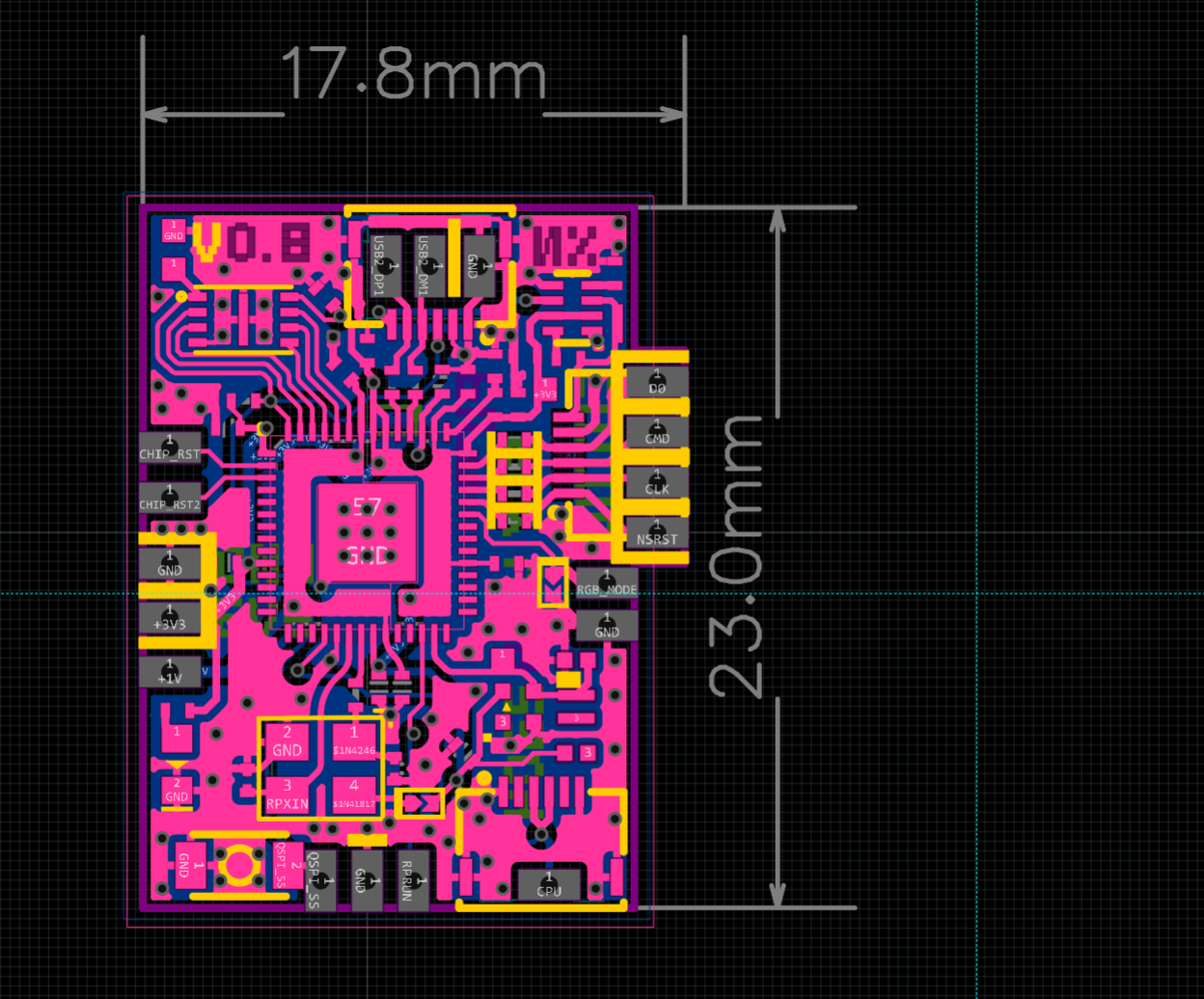

I made it myselfwheres you get the chip?
look good and clean
Video guides often go out of date and are always specific to one model. The best definitive guide to all models is this PDF.hello long time lurker here and Aio thread nextdoor, has anyone made any definitive video guide picofly installation for all models? the ones i found most of them seems outdated![]()
This is rgh3 all over again ahahahaha
I made it myselfView attachment 368383
