Hacking Hardware Picofly - a HWFLY switch modchip

[NooBziN]

When its good and ready. The guy is working on it in his free time. Asking won't make it happen any faster

so I'm going to have to leave the project stopped until a new update
I'm going to continue my c++ project



[Flasheure]

Thank you for answering me. But should I install Atmo and Hekate together or are they different?. Current console firmware is 16.01 ( recently updated)

Atmosphere and Hekate, everything is in the pack, just to run the pack and choose the SD as destination.
Ha yes if you are in 16.01, I should make you a pack: I will see if I have time to do it this weekend!



[MrTechMech]

Hello everyone,
I have a question if any of you have tried to use IRHS8342 mosfet in Nintendo Switch Lite?
If so, could any of you please send what solder points I should solder to.
Because I don't understand from the pictures that are on the internet.
Thanks



[Flasheure]

Hello everyone,
I have a question if any of you have tried to use IRHS8342 mosfet in Nintendo Switch Lite?
If so, could any of you please send what solder points I should solder to.
Because I don't understand from the pictures that are on the internet.
Thanks

I am also the subject because interested



[Dee87]

Hello everyone,
I have a question if any of you have tried to use IRHS8342 mosfet in Nintendo Switch Lite?
If so, could any of you please send what solder points I should solder to.
Because I don't understand from the pictures that are on the internet.
Thanks

lite has a Mariko board

Click Me

here is everything u need to know the picture with the the mosfet is how u need to solder it thats on a mariko board



[MrTechMech]

I know it's all there but I need to know exactly which pins on the mosfet to solder to.
Because when I soldered earlier it started burning the cable on the cpu



[AJun]

The 2040 with the Alibaba W logo appears in the legitimate system card logo. After moving the cable, it works normally, and multiple devices appear. I suspect that the quality of the W mark 2040 is not good.



[Dee87]

I know it's all there but I need to know exactly which pins on the mosfet to solder to.
Because when I soldered earlier it started burning the cable on the cpu

look at the picture there u see the pins u need to solder it too

did u isolate the pin under the mosfet?



[MrTechMech]

Spójrz na zdjęcie tam u zobacz piny, które musisz też

Czy wyizolowałeś pin pod MOSFET?

I don't know, I just soldered to the pins that were supposed to be used



[Dee87]

I don't know, I just soldered to the pins that were supposed to be used

what do u dont know?
if u isolatet the pin that sits under the mosfet?


make sure the dot on the mosfet is on the buttom left when u solder it on


if u solder it on like in the picture u have to isolate the pad that sits under the mosfet with uv mask



[MrTechMech]

what do u dont know?
if u isolatet the pin that sits under the mosfet?


make sure the dot on the mosfet is on the buttom left when u solder it on

Could you show me in a picture what to do?
I don't want to make a mistake



[Dee87]

Could you show me in a picture what to do?
I don't want to make a mistake

u removed the right cap yes?
so u have 2 solder pads
the bottum one u isolate (cover it with uv mask and harden it with a uv lamp)
then u solder the top right pin from the mosfet to the top solder pad where u removed the cap from
then u solder the middle pin from the mosfet to the right side from the left cap

show us some picture of ur work



[MrTechMech]

Give me a moment, I'll redo



[Dee87]

Give me a moment, I'll redo

lets also see a picture how u isolated the bottum pad



[MrTechMech]

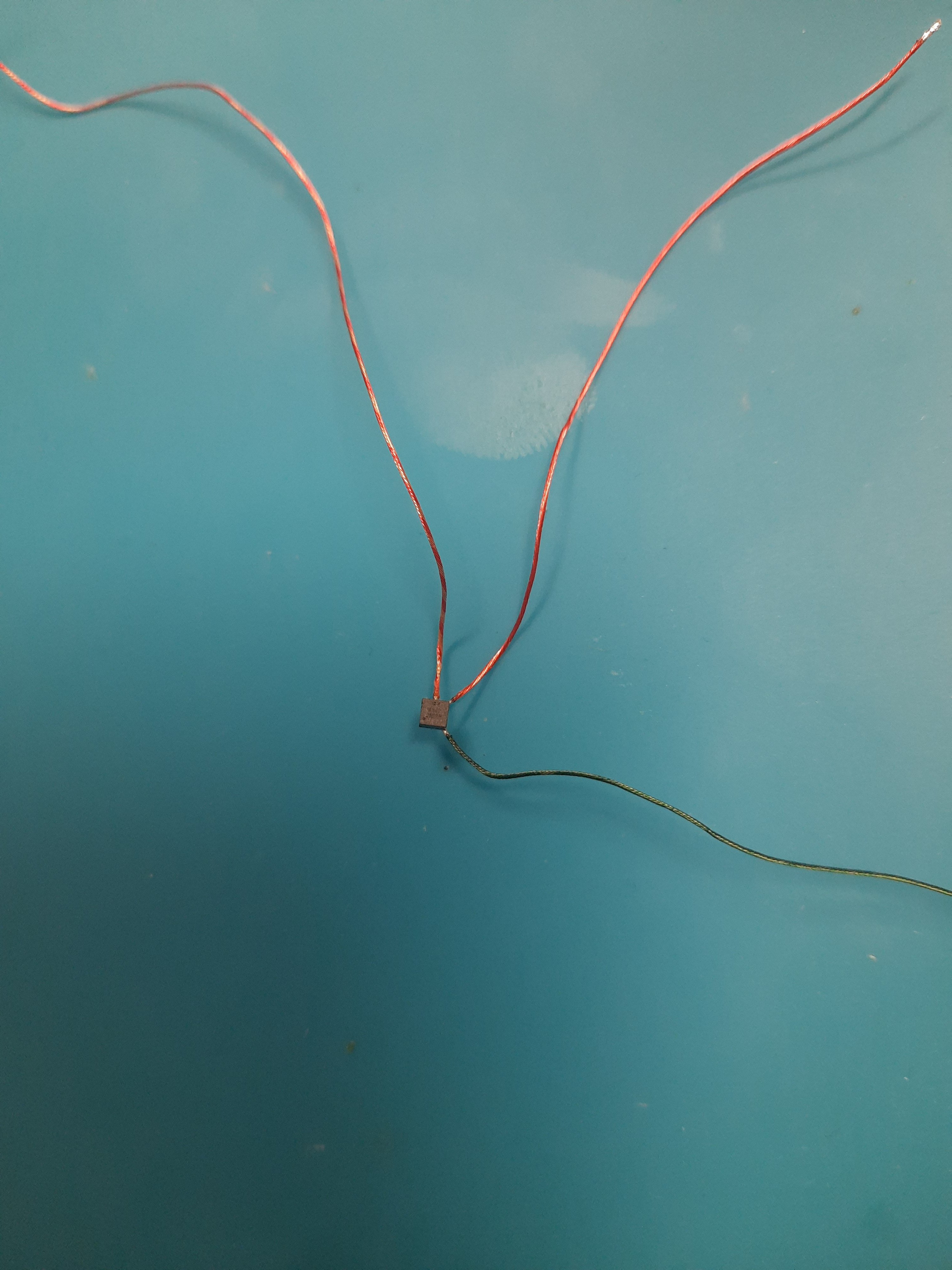

It`s ok?



[Dee87]

View attachment 362371
It`s ok?

show other side of the chip please



[rehius]

Finally someone used a mosfet in his video



[MrTechMech]

show other side of the chip please



[Dee87]

View attachment 362373

okay pin out is right now u can solder it to the apu after u did that show another picture
the wires to the cap7pad should not be to long

u can also use the video @rehius just uploaded for a guidance or solder it on the way the guy in the video did it



[Flasheure]

hi
Who can complete this shema?
Thanks in advance
