Hacking Hardware Picofly - a HWFLY switch modchip

[Dee87]

hi

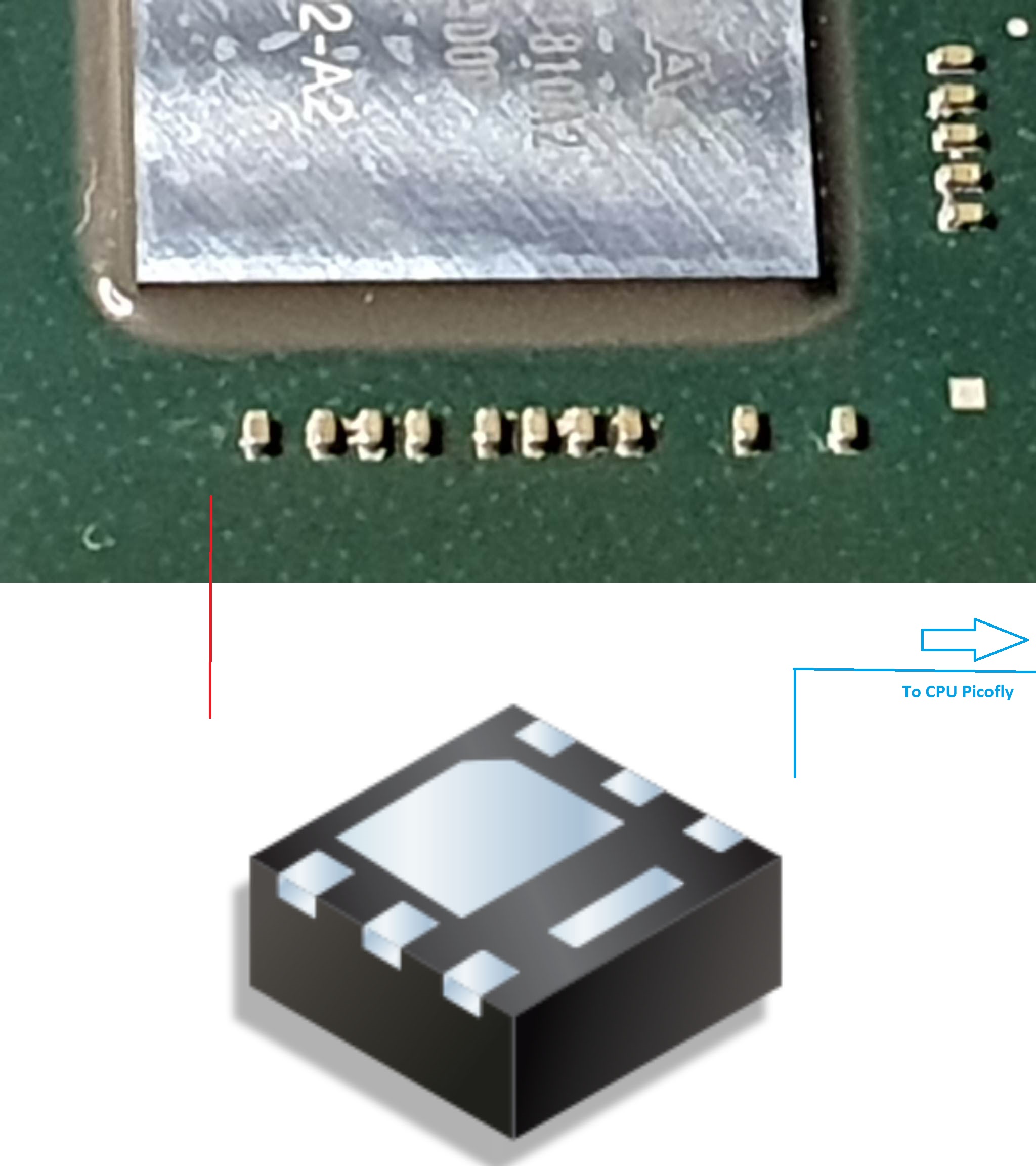

Who can complete this shema?
Thanks in advanceView attachment 362376

Post automatically merged: Mar 31, 2023

View attachment 362371
It`s ok?

did it work ?



[Adran_Marit]

I smell dead switches incoming



[Dee87]

I smell dead switches incoming

lets not hope so

But everybody should know the risk by doing it thereself



[khuong]

I smell dead switches incoming

I don't suggest people start with the switch as their first "solder" job.. but, if they got the money for replacements, or time for spare parts.. than go for it..



[icantfly]

i cant even tin the damn pads lol



[Dee87]

i cant even tin the damn pads lol

flux is ur friend and a good tip

but if u cant get tin on the pads u might let someone else install it for u



[giovany86]

I smell dead switches incoming

Talking about your switch ? x)



[darviral]

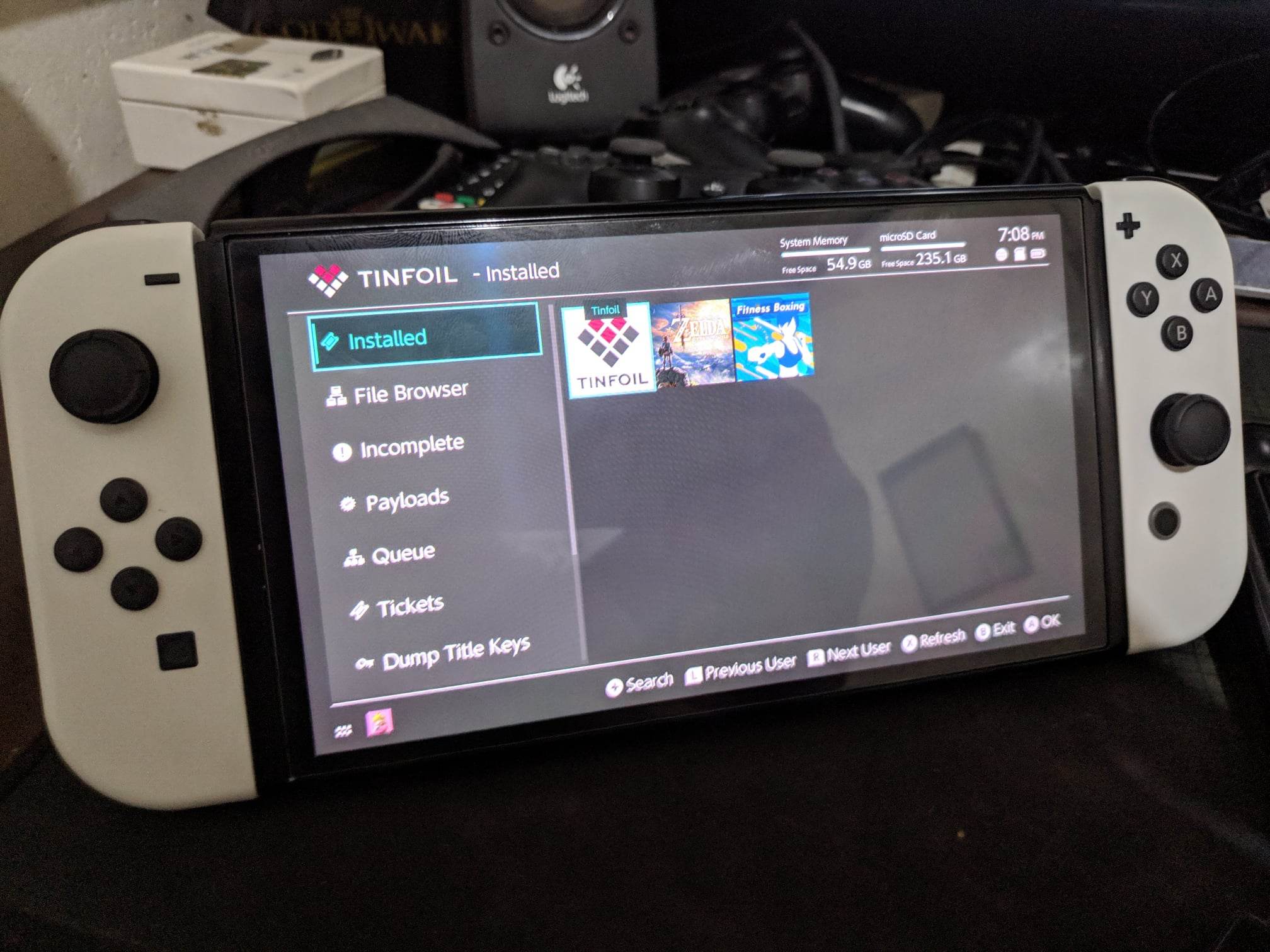

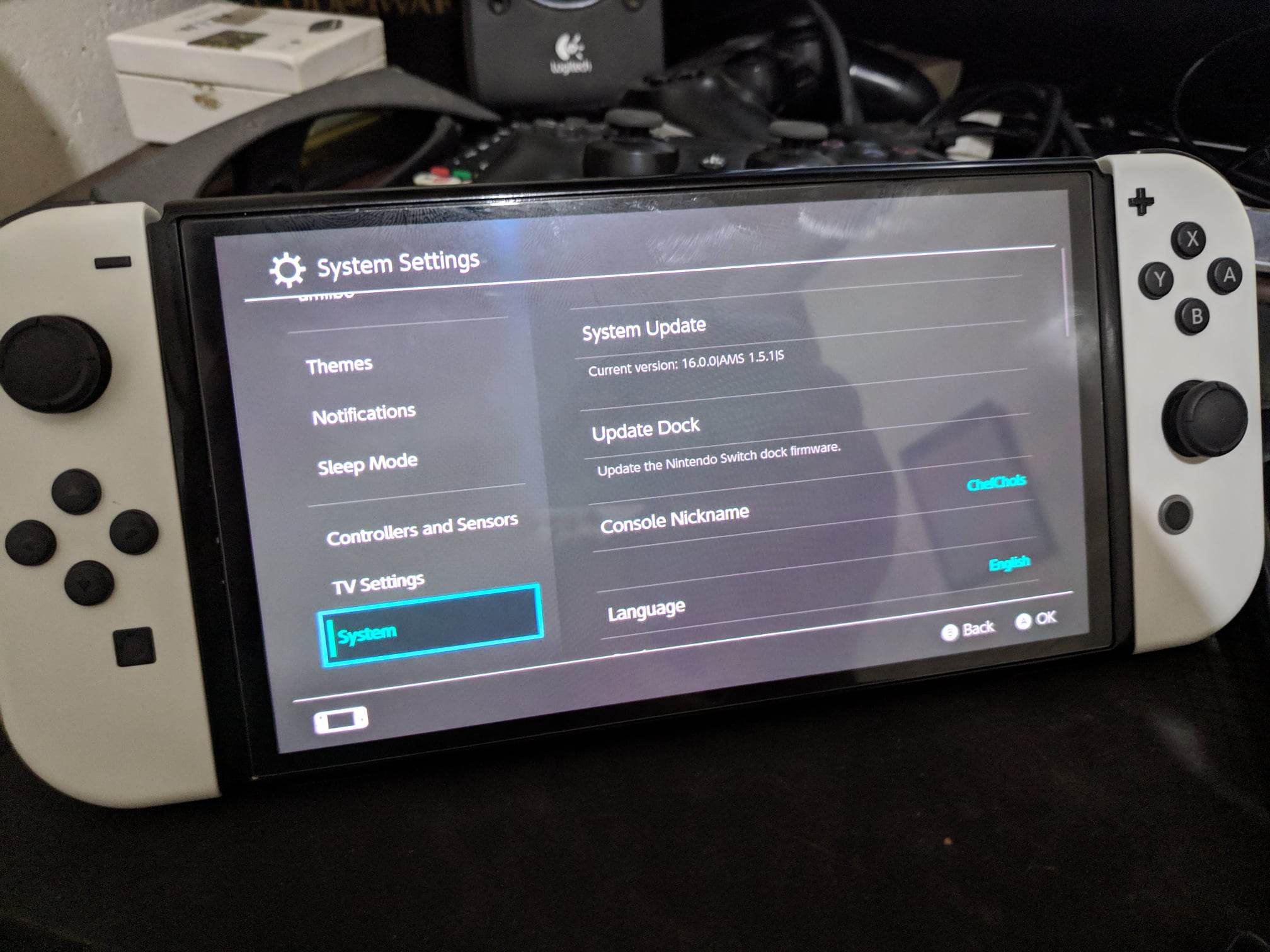

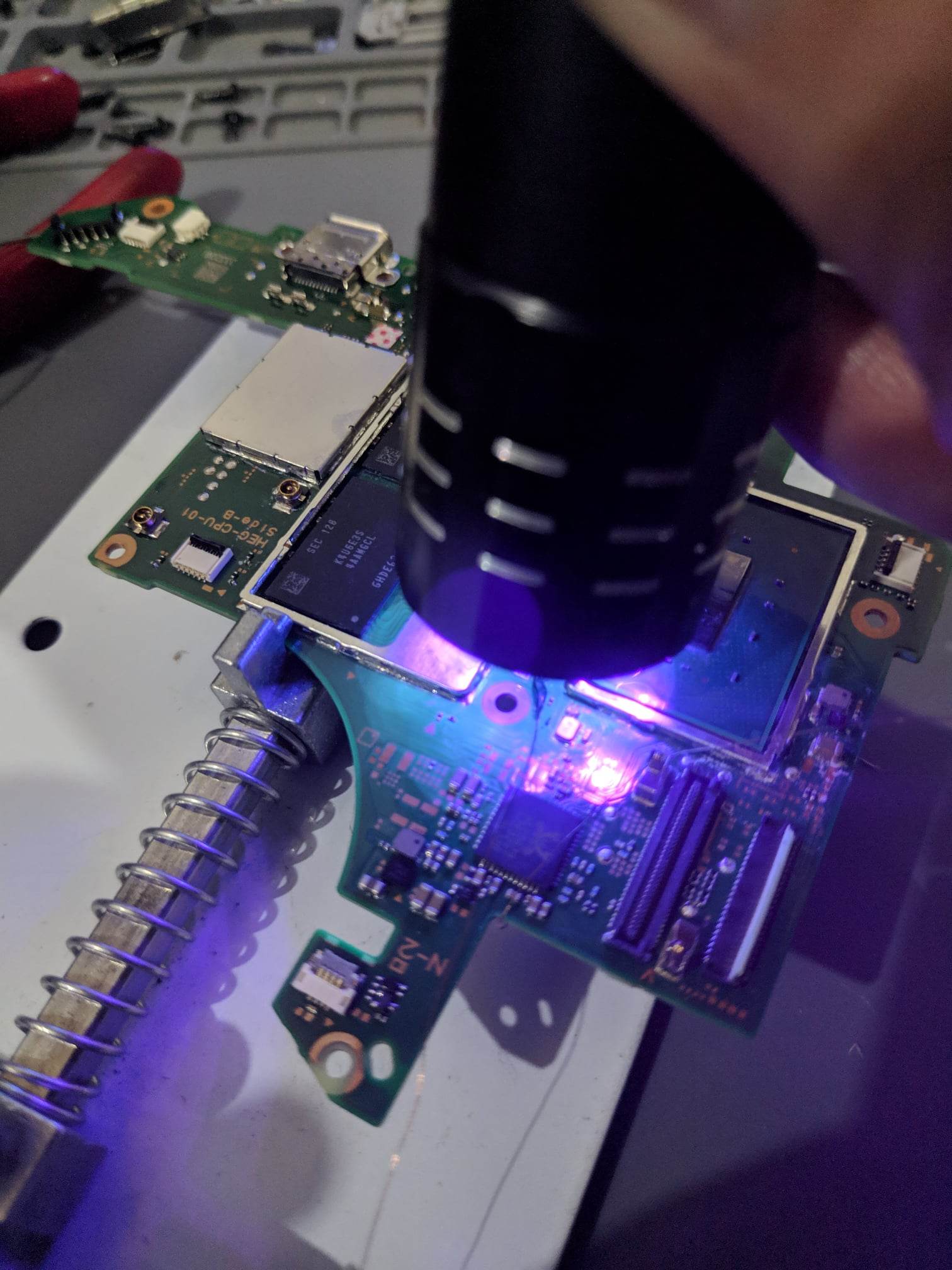

Picofly OLED no flex cable 💯😁



[linuxares]

flux is ur friend and a good tip

but if u cant get tin on the pads u might let someone else install it for u

To many people seem to skip the flux and think those "flux fused" solders will be enough...



[Dee87]

To many people seem to skip the flux and think those "flux fused" solders will be enough...

honestly i made the same mistake at the beginning of my soldering expierence.
thats why i also say to people who dont have that much expierence flux is ur best friend .-)



[WorfRB]

Picofly OLED no flex cable 💯😁

Finally some electronic porn pics.



[Hayato213]

It is best to practice on PCB to solder before moving on to smaller board like the switch motherboard.



[Adran_Marit]

lets not hope so

But everybody should know the risk by doing it thereself

I don't suggest people start with the switch as their first "solder" job.. but, if they got the money for replacements, or time for spare parts.. than go for it..

Talking about your switch ? x)

Yep, hence why in the aio thread I said expert install recommended

I mean I didn't just order an oled after killing my lite in the name of science 🙃



[warriosbest]

Picofly OLED no flex cable 💯😁

noice,
now where is my 4K uncensored video



[Dee87]

Yep, hence why in the aio thread I said expert install recommended

i mean everybody should know that but its better to remind them

I mean I didn't just order an oled after killing my lite in the name of science 🙃

Oh true That was u , well i mean u live and learn right , i bet everyone hase destroyed something in the name of science Xd



[lenoa]

Picofly OLED no flex cable 💯😁

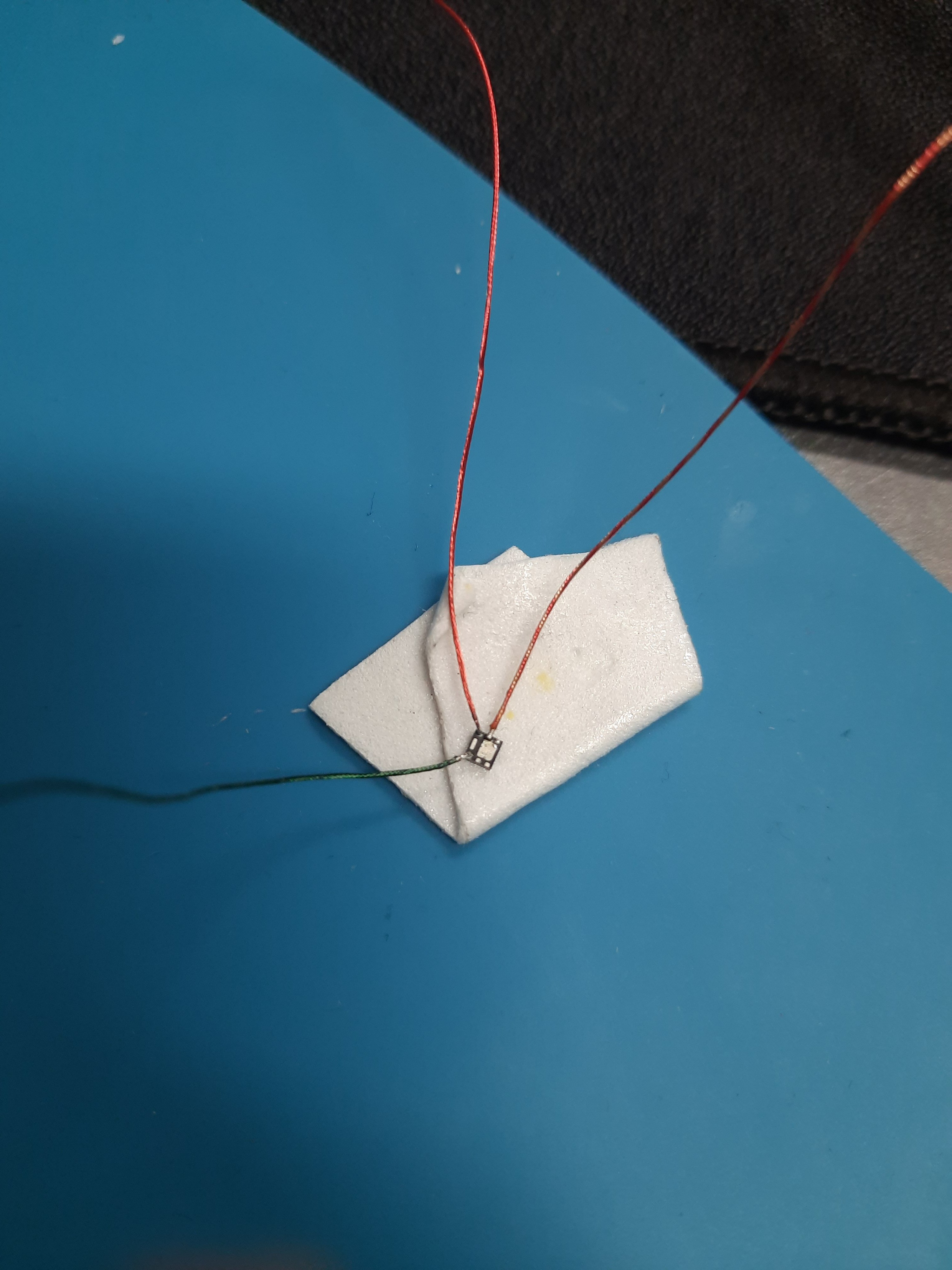

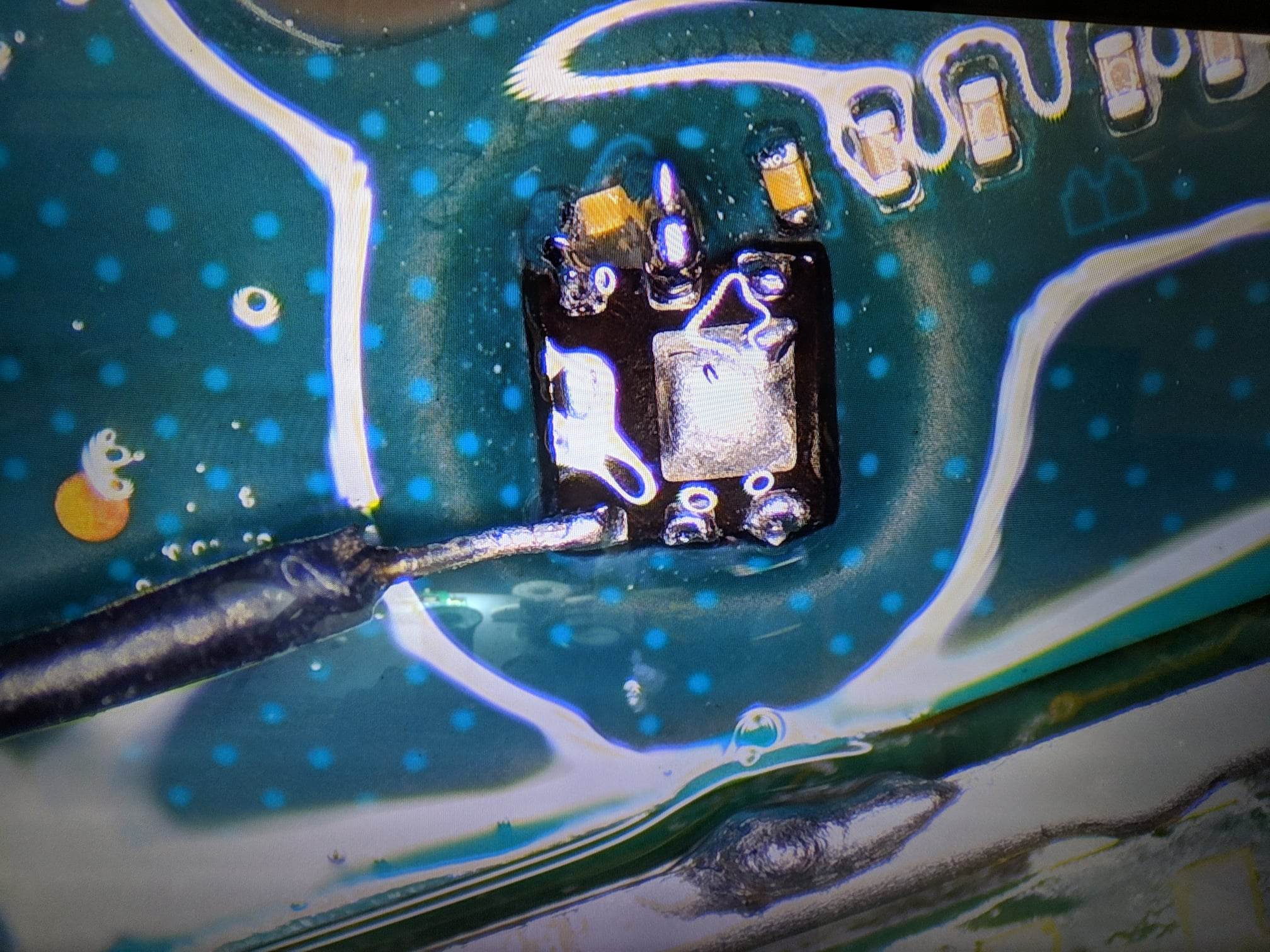

wait, it has diferent pinout mosfet
does it work ?



[Dee87]

Yep, hence why in the aio thread I said expert install recommended

I mean I didn't just order an oled after killing my lite in the name of science 🙃

i remember my first destruction it was the og Ps1 With a modchip and i almost got my ass wooped after i told my mom i need a new ps1 because i destroyed it putting in a modchip hahahahahahaha



[icantfly]

already unscrewd my switch a couple times but get discouraged as soon as i remove the heatshield
no hot air, bad lighting dont help either



[darviral]

wait, it has diferent pinout mosfet
does it work ?

Yes



[808080]

Post automatically merged: Mar 31, 2023

I also added a 47 ohm resistor, but EMMC is also a slow mode
I am in the same situation as you. Is it because of the Chinese system

Did you use unlock. bin
