Hardware Wiiu 5.5.3U try to Update 5.5.6U then Brick

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
As expected SCFM crashes directly after Init because of bad eMMC when it tries to flush.

Even with the right LAN adapter you could have waited till the end of the universe and it wouldn't have helped.
And waiting longer on the update also wouldn't have helped. The update froze because it bricked.

So the eMMC needs to be replaced and then you can just rebuild the mlc.

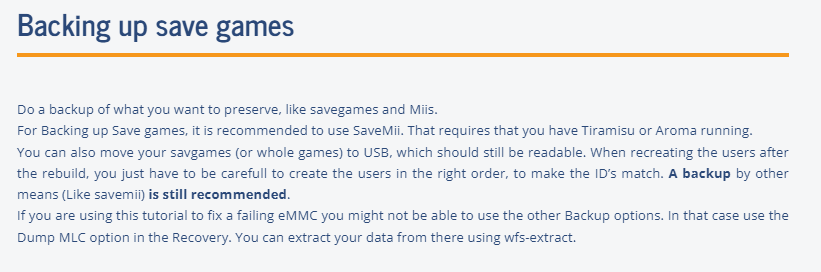

I don't think you wanted to backup saves, but if you want to now would be the moment for it.
Click to expand...
Yes, I want to backup saves, I don't have backups... JAJA, do I know what steps are taken?
And then how do you replace the eMMC? Is the chip physically changed?

edit:

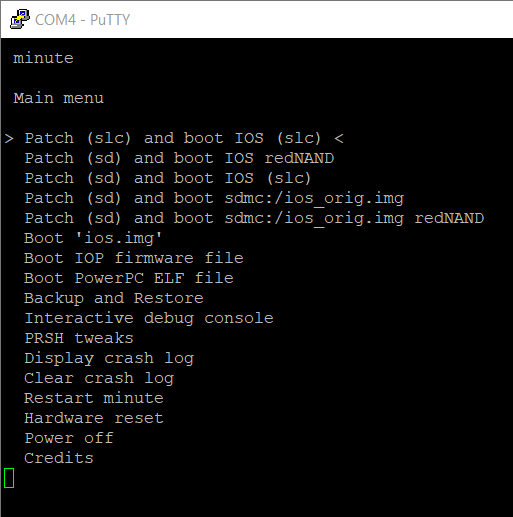

How do I use Savemii from this menu?

Last edited by Shadowthecanine,
S

SDIO

Well-Known Member
Member
Level 8
Joined
Feb 13, 2023
Messages
2,264
Trophies
0
Age
28
XP
1,382
Country
Germany
Ok for the saves we need to dump the eMMC, but for that we need a newer minute because the old one you have, has a bug. And we need to flash the boot1 to slccmpt, so we can use a 64gb or larger SD for the dump.
Get the boot1.img and the fw.img from here: https://github.com/jan-hofmeier/minute_minute/releases/tag/sderase-v1.1
Rename the boot1.img to boot1_slccmpt.img and copy it on your current defuse SD.
Then go to backup and restore in minute and flash the boot_slccmpt.img to slccmpt.
After that we can use any FAT32 formatted SD and don't need to flash the boot1.img to it.
So grab an SD with at least 64gb, make sure it is FAT32 and put the new fw.img on it.
The card will be formatted, so make sure nothing important is on it.
Then boot the new SD and go to backup and restore and do format redNAND. That will take a while and clone the mlc to the SD card from where we can then extract the saves using wfs-extract

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States


SDIO said:
Rename the boot1.img to boot1_slccmpt.img and copy it on your current defuse SD.
Click to expand...
I made this change and I notice changes in the menu...


SDIO said:
Then go to backup and restore in minute and flash the boot_slccmpt.img to slccmpt.
Click to expand...
is "Dump BOOT1_SLCCMPT.RAW" or "restore BOOT1_SLCCMPT.RAW" or "restore BOOT1_SLCCMPT.IMG"?

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
restaurar BOOT1_SLCCMPT.IMG
Click to expand...


then I turn off, change SD1gb to SD64gb fat32... and turn on again...
SDIO said:
So grab an SD with at least 64gb, make sure it is FAT32 and put the new fw.img on it.
The card will be formatted, so make sure nothing important is on it.
Then boot the new SD and go to backup and restore and do format redNAND. That will take a while and clone the mlc to the SD card from where we can then extract the saves using wfs-extract
Click to expand...



waiting for the process to finish...





Attachments

  • 1710799168175.png
    9.2 KB · Views: 6
  • 1710799210037.png
    21.8 KB · Views: 6
Last edited by Shadowthecanine,
Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
After formatting you can try if you can boot the redNAND with this stroopwafel https://github.com/jan-hofmeier/stroopwafel/releases and this minute/rednand.ini:

Code:
[partitions]
slccmpt=false
slc=ture
mlc=true

[scfm]
disable=false
allow_sys=false
[CODE]
Click to expand...

The file "wafel_core.ipx" was already in the SD memory, it is lost when formatting, right? because it says "dumping redNAND" and then "initializing SLC..."
and it's still there...
or are they different things?

S

SDIO

Well-Known Member
Member
Level 8
Joined
Feb 13, 2023
Messages
2,264
Trophies
0
Age
28
XP
1,382
Country
Germany
yes, because of the format it is gone, but you need the new one anyway.

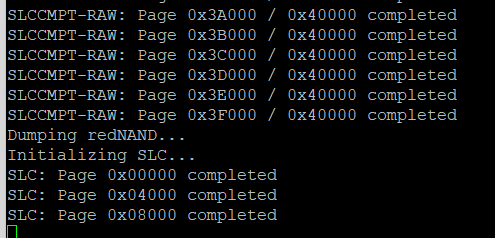

Is it hanging there on that SLC page, or is it progressing?

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
yes, because of the format it is gone, but you need the new one anyway.
Is it hanging there on that SLC page, or is it progressing?
Click to expand...


It is in process, since I told him about the "format redNAND"

Code:
 Backup and Restore

  Dump SEEPROM & OTP
  Dump Espresso OTP & bootrom
  Dump OTP via PRSHhax
  Dump SLC.RAW
  Dump SLCCMPT.RAW
  Dump BOOT1_SLC.RAW
  Dump BOOT1_SLCCMPT.RAW
  Dump factory log
  Dump sys crash logs
  Dump sys crash logs from redslc
> Format redNAND <
  Restore SLC.RAW
  Restore SLCCMPT.RAW
  Restore BOOT1_SLC.RAW
  Restore BOOT1_SLCCMPT.RAW
  Restore BOOT1_SLC.IMG
  Restore BOOT1_SLCCMPT.IMG
  Restore seeprom.bin
  Erase MLC
  Delete scfm.img
  Delete SLCCMPT scfm.img
  Delete redNAND scfm.img
  Restore redNAND MLC
  Sync SEEPROM boot1 versions with NAND
  Set SEEPROM SATA device type
  Test SLC and Restore SLC.RAW
  Return to Main Menu

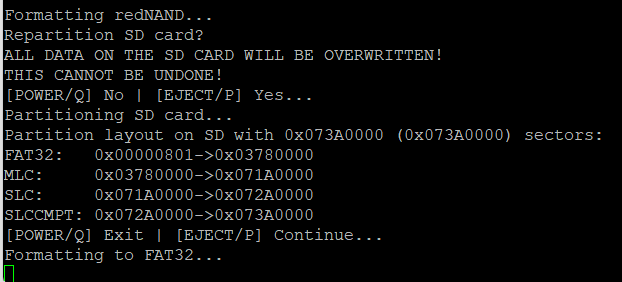

Formatting redNAND...
Repartition SD card?
ALL DATA ON THE SD CARD WILL BE OVERWRITTEN!
THIS CANNOT BE UNDONE!
[POWER/Q] No | [EJECT/P] Yes...
Partitioning SD card...
Partition layout on SD with 0x073A0000 (0x073A0000) sectors:
FAT32:   0x00000801->0x03780000
MLC:     0x03780000->0x071A0000
SLC:     0x071A0000->0x072A0000
SLCCMPT: 0x072A0000->0x073A0000
[POWER/Q] Exit | [EJECT/P] Continue...

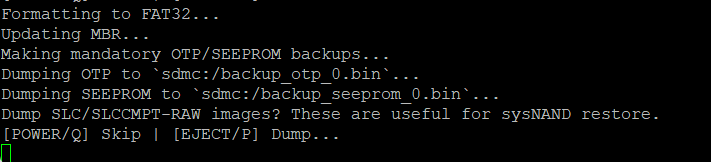

Formatting to FAT32...
Updating MBR...
Making mandatory OTP/SEEPROM backups...
Dumping OTP to `sdmc:/backup_otp_0.bin`...
Dumping SEEPROM to `sdmc:/backup_seeprom_0.bin`...
Dump SLC/SLCCMPT-RAW images? These are useful for sysNAND restore.
[POWER/Q] Skip | [EJECT/P] Dump...
Dumping SLC-RAW to FAT32...
Initializing SLC...
SLC-RAW: Page 0x00000 / 0x40000 completed
SLC-RAW: Page 0x01000 / 0x40000 completed
SLC-RAW: Page 0x02000 / 0x40000 completed
SLC-RAW: Page 0x03000 / 0x40000 completed
SLC-RAW: Page 0x04000 / 0x40000 completed
SLC-RAW: Page 0x05000 / 0x40000 completed
SLC-RAW: Page 0x06000 / 0x40000 completed
SLC-RAW: Page 0x07000 / 0x40000 completed
SLC-RAW: Page 0x08000 / 0x40000 completed
SLC-RAW: Page 0x09000 / 0x40000 completed
SLC-RAW: Page 0x0A000 / 0x40000 completed
SLC-RAW: Page 0x0B000 / 0x40000 completed
SLC-RAW: Page 0x0C000 / 0x40000 completed
SLC-RAW: Page 0x0D000 / 0x40000 completed
SLC-RAW: Page 0x0E000 / 0x40000 completed
SLC-RAW: Page 0x0F000 / 0x40000 completed
SLC-RAW: Page 0x10000 / 0x40000 completed
SLC-RAW: Page 0x11000 / 0x40000 completed
SLC-RAW: Page 0x12000 / 0x40000 completed
SLC-RAW: Page 0x13000 / 0x40000 completed
SLC-RAW: Page 0x14000 / 0x40000 completed
SLC-RAW: Page 0x15000 / 0x40000 completed
SLC-RAW: Page 0x16000 / 0x40000 completed
SLC-RAW: Page 0x17000 / 0x40000 completed
SLC-RAW: Page 0x18000 / 0x40000 completed
SLC-RAW: Page 0x19000 / 0x40000 completed
SLC-RAW: Page 0x1A000 / 0x40000 completed
SLC-RAW: Page 0x1B000 / 0x40000 completed
SLC-RAW: Page 0x1C000 / 0x40000 completed
SLC-RAW: Page 0x1D000 / 0x40000 completed
SLC-RAW: Page 0x1E000 / 0x40000 completed
SLC-RAW: Page 0x1F000 / 0x40000 completed
SLC-RAW: Page 0x20000 / 0x40000 completed
SLC-RAW: Page 0x21000 / 0x40000 completed
SLC-RAW: Page 0x22000 / 0x40000 completed
SLC-RAW: Page 0x23000 / 0x40000 completed
SLC-RAW: Page 0x24000 / 0x40000 completed
SLC-RAW: Page 0x25000 / 0x40000 completed
SLC-RAW: Page 0x26000 / 0x40000 completed
SLC-RAW: Page 0x27000 / 0x40000 completed
SLC-RAW: Page 0x28000 / 0x40000 completed
SLC-RAW: Page 0x29000 / 0x40000 completed
SLC-RAW: Page 0x2A000 / 0x40000 completed
SLC-RAW: Page 0x2B000 / 0x40000 completed
SLC-RAW: Page 0x2C000 / 0x40000 completed
SLC-RAW: Page 0x2D000 / 0x40000 completed
SLC-RAW: Page 0x2E000 / 0x40000 completed
SLC-RAW: Page 0x2F000 / 0x40000 completed
SLC-RAW: Page 0x30000 / 0x40000 completed
SLC-RAW: Page 0x31000 / 0x40000 completed
SLC-RAW: Page 0x32000 / 0x40000 completed
SLC-RAW: Page 0x33000 / 0x40000 completed
SLC-RAW: Page 0x34000 / 0x40000 completed
SLC-RAW: Page 0x35000 / 0x40000 completed
SLC-RAW: Page 0x36000 / 0x40000 completed
SLC-RAW: Page 0x37000 / 0x40000 completed
SLC-RAW: Page 0x38000 / 0x40000 completed
SLC-RAW: Page 0x39000 / 0x40000 completed
SLC-RAW: Page 0x3A000 / 0x40000 completed
SLC-RAW: Page 0x3B000 / 0x40000 completed
SLC-RAW: Page 0x3C000 / 0x40000 completed
SLC-RAW: Page 0x3D000 / 0x40000 completed
SLC-RAW: Page 0x3E000 / 0x40000 completed
SLC-RAW: Page 0x3F000 / 0x40000 completed
Dumping SLCCMPT-RAW to FAT32...
Initializing SLCCMPT...
SLCCMPT-RAW: Page 0x00000 / 0x40000 completed
SLCCMPT-RAW: Page 0x01000 / 0x40000 completed
SLCCMPT-RAW: Page 0x02000 / 0x40000 completed
SLCCMPT-RAW: Page 0x03000 / 0x40000 completed
SLCCMPT-RAW: Page 0x04000 / 0x40000 completed
SLCCMPT-RAW: Page 0x05000 / 0x40000 completed
SLCCMPT-RAW: Page 0x06000 / 0x40000 completed
SLCCMPT-RAW: Page 0x07000 / 0x40000 completed
SLCCMPT-RAW: Page 0x08000 / 0x40000 completed
SLCCMPT-RAW: Page 0x09000 / 0x40000 completed
SLCCMPT-RAW: Page 0x0A000 / 0x40000 completed
SLCCMPT-RAW: Page 0x0B000 / 0x40000 completed
SLCCMPT-RAW: Page 0x0C000 / 0x40000 completed
SLCCMPT-RAW: Page 0x0D000 / 0x40000 completed
SLCCMPT-RAW: Page 0x0E000 / 0x40000 completed
SLCCMPT-RAW: Page 0x0F000 / 0x40000 completed
SLCCMPT-RAW: Page 0x10000 / 0x40000 completed
ECC stats for NAND page 0x102FD: 0 uncorrectable, 1 corrected
SLCCMPT-RAW: Page 0x11000 / 0x40000 completed
SLCCMPT-RAW: Page 0x12000 / 0x40000 completed
SLCCMPT-RAW: Page 0x13000 / 0x40000 completed
SLCCMPT-RAW: Page 0x14000 / 0x40000 completed
SLCCMPT-RAW: Page 0x15000 / 0x40000 completed
SLCCMPT-RAW: Page 0x16000 / 0x40000 completed
SLCCMPT-RAW: Page 0x17000 / 0x40000 completed
SLCCMPT-RAW: Page 0x18000 / 0x40000 completed
SLCCMPT-RAW: Page 0x19000 / 0x40000 completed
SLCCMPT-RAW: Page 0x1A000 / 0x40000 completed
SLCCMPT-RAW: Page 0x1B000 / 0x40000 completed
SLCCMPT-RAW: Page 0x1C000 / 0x40000 completed
SLCCMPT-RAW: Page 0x1D000 / 0x40000 completed
SLCCMPT-RAW: Page 0x1E000 / 0x40000 completed
SLCCMPT-RAW: Page 0x1F000 / 0x40000 completed
SLCCMPT-RAW: Page 0x20000 / 0x40000 completed
SLCCMPT-RAW: Page 0x21000 / 0x40000 completed
SLCCMPT-RAW: Page 0x22000 / 0x40000 completed
SLCCMPT-RAW: Page 0x23000 / 0x40000 completed
SLCCMPT-RAW: Page 0x24000 / 0x40000 completed
SLCCMPT-RAW: Page 0x25000 / 0x40000 completed
SLCCMPT-RAW: Page 0x26000 / 0x40000 completed
SLCCMPT-RAW: Page 0x27000 / 0x40000 completed
SLCCMPT-RAW: Page 0x28000 / 0x40000 completed
SLCCMPT-RAW: Page 0x29000 / 0x40000 completed
SLCCMPT-RAW: Page 0x2A000 / 0x40000 completed
SLCCMPT-RAW: Page 0x2B000 / 0x40000 completed
SLCCMPT-RAW: Page 0x2C000 / 0x40000 completed
SLCCMPT-RAW: Page 0x2D000 / 0x40000 completed
SLCCMPT-RAW: Page 0x2E000 / 0x40000 completed
SLCCMPT-RAW: Page 0x2F000 / 0x40000 completed
SLCCMPT-RAW: Page 0x30000 / 0x40000 completed
SLCCMPT-RAW: Page 0x31000 / 0x40000 completed
SLCCMPT-RAW: Page 0x32000 / 0x40000 completed
SLCCMPT-RAW: Page 0x33000 / 0x40000 completed
SLCCMPT-RAW: Page 0x34000 / 0x40000 completed
SLCCMPT-RAW: Page 0x35000 / 0x40000 completed
SLCCMPT-RAW: Page 0x36000 / 0x40000 completed
SLCCMPT-RAW: Page 0x37000 / 0x40000 completed
SLCCMPT-RAW: Page 0x38000 / 0x40000 completed
SLCCMPT-RAW: Page 0x39000 / 0x40000 completed
SLCCMPT-RAW: Page 0x3A000 / 0x40000 completed
SLCCMPT-RAW: Page 0x3B000 / 0x40000 completed
SLCCMPT-RAW: Page 0x3C000 / 0x40000 completed
SLCCMPT-RAW: Page 0x3D000 / 0x40000 completed
SLCCMPT-RAW: Page 0x3E000 / 0x40000 completed
SLCCMPT-RAW: Page 0x3F000 / 0x40000 completed

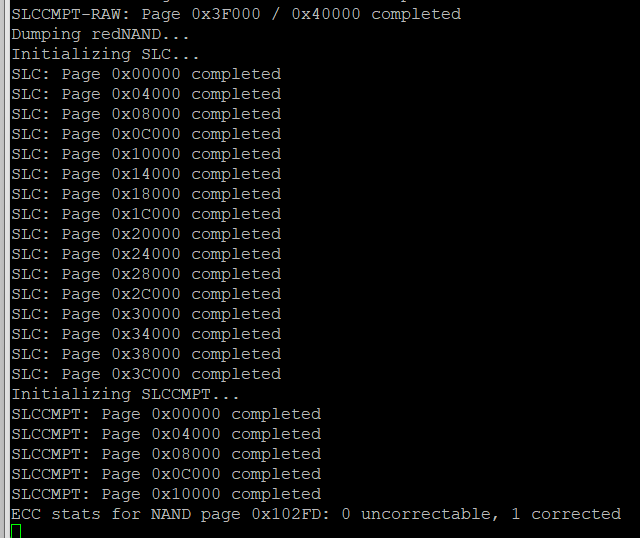

Dumping redNAND...
Initializing SLC...
SLC: Page 0x00000 completed
SLC: Page 0x04000 completed
SLC: Page 0x08000 completed
SLC: Page 0x0C000 completed
SLC: Page 0x10000 completed
SLC: Page 0x14000 completed
SLC: Page 0x18000 completed
SLC: Page 0x1C000 completed
SLC: Page 0x20000 completed
SLC: Page 0x24000 completed
SLC: Page 0x28000 completed
SLC: Page 0x2C000 completed

S

SDIO

Well-Known Member
Member
Level 8
Joined
Feb 13, 2023
Messages
2,264
Trophies
0
Age
28
XP
1,382
Country
Germany
that seems really slow. One SLC shouldn't take more then 5 minutes I think.
Maybe the SD card isn't detected properly and running at a lower clock

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
that seems really slow. One SLC shouldn't take more then 5 minutes I think.
Maybe the SD card isn't detected properly and running at a lower clock
Click to expand...

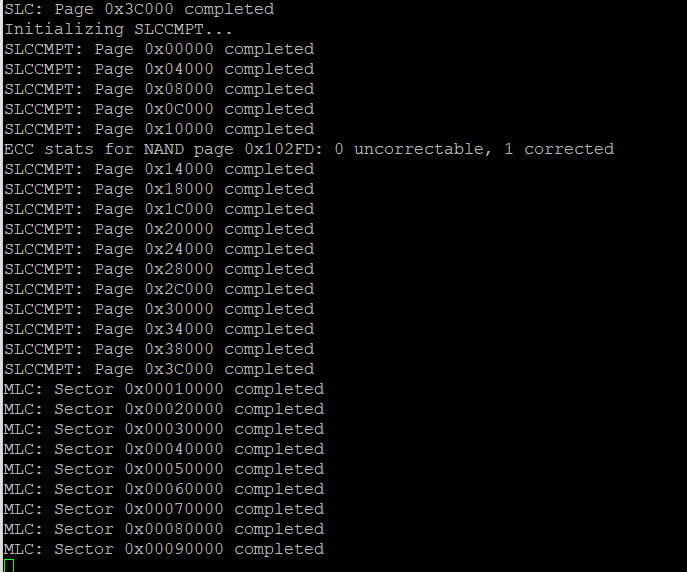

Should it be over already? I see that it is progressing somewhat slowly...
And how can I know if the SD is bad?


Attachments

  • 1710803326817.png
    43.9 KB · Views: 5
S

SDIO

Well-Known Member
Member
Level 8
Joined
Feb 13, 2023
Messages
2,264
Trophies
0
Age
28
XP
1,382
Country
Germany
yes the SLCs should be done long by now. After that comes the MLC which will take much longer. So I would say restart and try again and maybe reseat the card or use another adapter if you use one

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
yes the SLCs should be done long by now. After that comes the MLC which will take much longer. So I would say restart and try again and maybe reseat the card or use another adapter if you use one
Click to expand...
then I turn off the console, change the adapter, which is a MicroSd to SD...(I am using a 64GB MicroSD) to repeat this "RedNAND format" step?

S

SDIO

Well-Known Member
Member
Level 8
Joined
Feb 13, 2023
Messages
2,264
Trophies
0
Age
28
XP
1,382
Country
Germany
The MLC has 0x3A20000 sectors (mot this is in hex not decimal). Just so you get a feeling how long it will take. At the proper speed it should take 30-60min

Shadowthecanine

Shadowthecanine

Active Member
OP
Newcomer
Level 2
Joined
Apr 10, 2017
Messages
32
Trophies
0
Location
Hyperbolic Time Chamber
Website
dragon-porungas-team.variousforum.com
XP
128
Country
United States
SDIO said:
The MLC has 0x3A20000 sectors (mot this is in hex not decimal). Just so you get a feeling how long it will take. At the proper speed it should take 30-60min
Click to expand...


holy cow, that's going to take years jajajaja
I'll change the adapter then we'll see what it does...

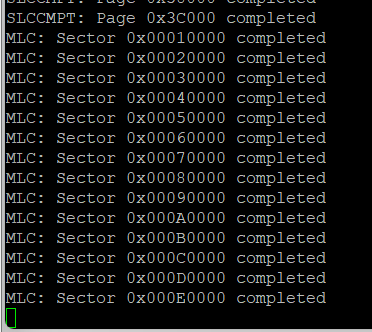

I don't see the difference, it's very slow....



5min...

Last edited by Shadowthecanine,

Site & Scene News

Go to forum More news

Popular threads in this forum

A really, REALLY old browser exploit (for 5.3.2)?

Gaming  Online services for the 3DS and Wii U have been shutdown. Here is how to get back online!

Hacking Hardware  Wii U No Display (Logs dumped)

Hacking Gaming  Xenoblade Chronicles X - Lifeline and Enhancement Mod

Homebrew  Huevo's Vault | Wii U Themes

Watch videos on Wii U, offline, saved on SD?

Super Mario Maker Save Collection (All Event and Staff Courses Preserved, 3DS Mario Challenge Port, and More)

Can you hack your wii u with something other than sd card

General chit-chat
Help Users
  • No one is chatting at the moment.
    Psionic Roshambo @ Psionic Roshambo: I did use a bot for Diablo III though but no ban there lol
