1. Relys

    Relys ^(Software | Hardware) Exploit? Development.$
    Member

    Joined:
    Jan 5, 2007
    Messages:
    874
    Country:
    United States
    So the console isn't bricked. It still goes into RCM and the modchip delivers the payload just fine. However, when I try to update the modchip it does not show up as a device on my computer anymore, so I can't update it with latest version. :( In other words, the modchip bootloader isn't functioning correctly.

    I may have to setup OpenOCD and flash the bootloader via SWD to see if it resolves the issue.

    Last edited: Dec 16, 2019
  2. Parax342

    Parax342 GBAtemp Regular
    Member

    Joined:
    Aug 7, 2019
    Messages:
    113
    Country:
    United States
    Where do I put the bootloader folder?

  3. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    It will make it upon first boot. But it is in SD root.

    Parax342 likes this.
  4. Parax342

    Parax342 GBAtemp Regular
    Member

    Joined:
    Aug 7, 2019
    Messages:
    113
    Country:
    United States
    Why does is say to download a bootloader folder then?
    also what do i do with the 3V arrow on the trinket M0 guide that goes nowhere?

    Last edited: Jan 2, 2020
  5. koolershaker

    koolershaker Newbie
    Newcomer

    Joined:
    May 14, 2019
    Messages:
    3
    Country:
    Comoros
    same problem here...

  6. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    OH yes...

    There is a new minerva.

    Download the bootloader folder, copy over and put latest Atmosphere on there.


    The 3v arrow is an alternative point. It is showing you where to connect to if you want to use a different point.

  7. starlander

    starlander Member
    Newcomer

    Joined:
    Jan 13, 2017
    Messages:
    21
    Country:
    United States

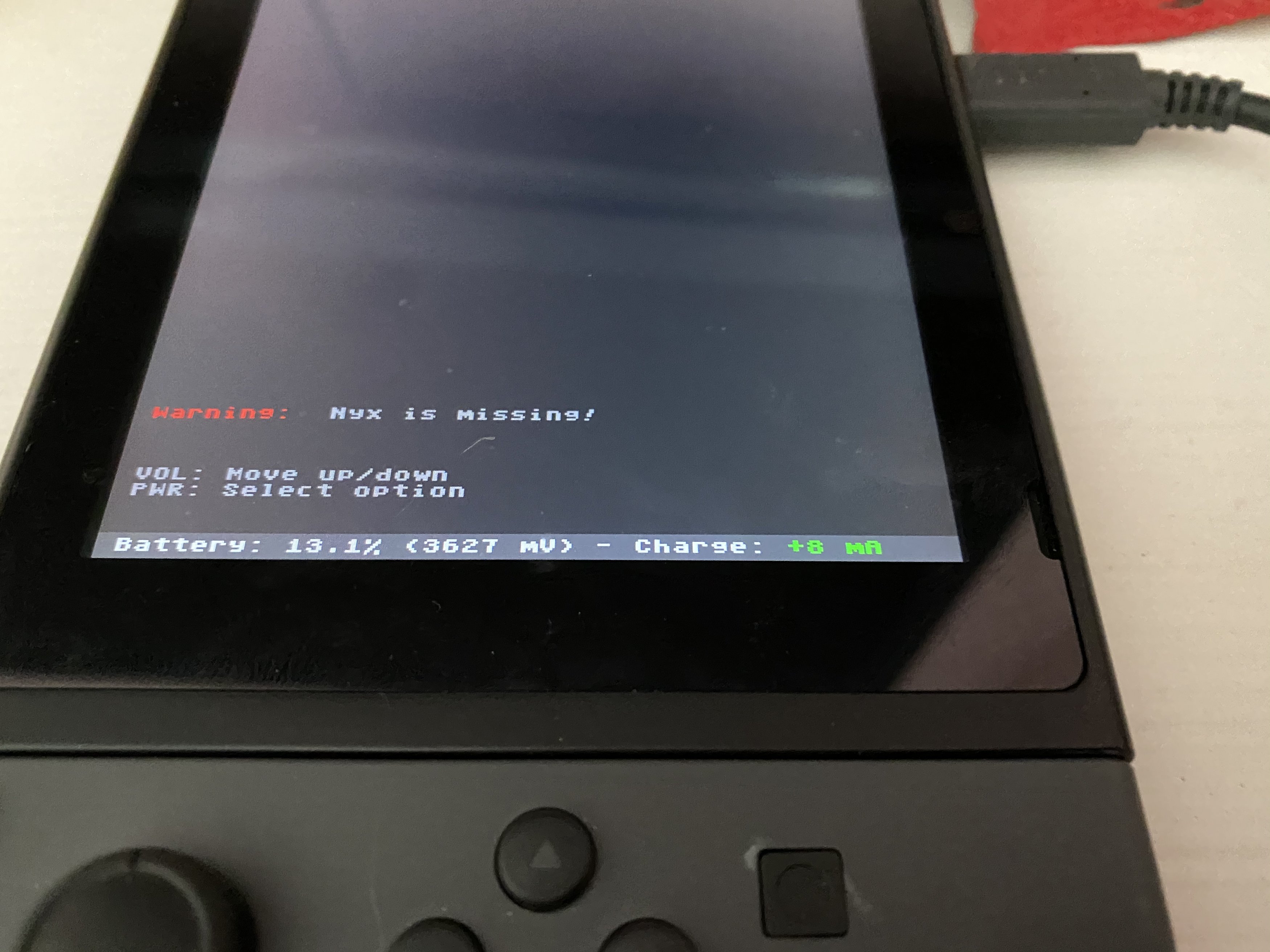

    Troubleshooting assistance needed. After running Trinket M0 chip for a while, I am now noticing the switch is not charging.

    Plugging in multiple usb c chargers shows the charging icon, but battery does not increase.

    Switchboot shows charge rate around 10-20ma, but never higher. Im on v1.5.3beta

    I’m ready to pull it apart and recheck all of the wiring.



    Sent from my iPhone using Tapatalk

    Last edited: Jan 5, 2020
  8. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    Hmmm...

    My first thought would be check your wiring. Check you haven't bridged anything around the usb strap

  9. starlander

    starlander Member
    Newcomer

    Joined:
    Jan 13, 2017
    Messages:
    21
    Country:
    United States
    Thx. I re-flowed the usb strap, d+ and d- and everything is working again.


    Sent from my iPhone using Tapatalk

  10. Relys

    Relys ^(Software | Hardware) Exploit? Development.$
    Member

    Joined:
    Jan 5, 2007
    Messages:
    874
    Country:
    United States
    So I fixed it by booting the switch all the way to the home menu, holding the power button and going into sleep mode and then double pressing the modchip reset button to get into bootloader update mode and connecting the USB cable.

    koolershaker likes this.
  11. Modzvilleusa

    Modzvilleusa Member
    Newcomer

    Joined:
    Apr 17, 2019
    Messages:
    26
    Country:
    United States
    Hey dudes. I was about to do one of these installs. I flashed Part 1 without issue. Then after Flashing Trinket.UF2 The Trinket M0 just gets 8 flashing red lights and isn't detected by my PC. This doesn't seem like normal behavior. Is this normal? If not is there a fix for restoring the Trinket to stock and restarting? any help would be appreciated. Thanks!

  12. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    Yes its normal. The Trinket is in Host mode. This means it is listening. So it cannot register as a device as it ISNT a device and it is looking for the Switch.

    A bit like plugging two PCs together via USB. They are both listening, and will only talk back when it hears something talking to it.

  13. Modzvilleusa

    Modzvilleusa Member
    Newcomer

    Joined:
    Apr 17, 2019
    Messages:
    26
    Country:
    United States
    Thanks for the reply my dude!
    So to be clear, is the only way to flash it with update files at this point is to do so with the trinket installed in the switch using the payload method?

  14. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    No not at all.

    Just press reset twice. Might take a few tries until you get your timing right. But when you do, a drive will open up containing "TRINKET.UF2" or whatever.

  15. Modzvilleusa

    Modzvilleusa Member
    Newcomer

    Joined:
    Apr 17, 2019
    Messages:
    26
    Country:
    United States
    Awesome thank you!

  16. Modzvilleusa

    Modzvilleusa Member
    Newcomer

    Joined:
    Apr 17, 2019
    Messages:
    26
    Country:
    United States
    Two Quick Questions!
    Is the 3.3v point (Near Joycon Stap) Linked to the pad to the left of it? As in can I bridge those two pads like the 2 joycon rail pads? It looks like they are but It's so damn tiny I can't really get the angle with my multimeter.
    Also what exactly does the Vol + strap do? I do want the duel boot set up (powers on normally with power, Vol+ + power for Hekate) Will I be able to achieve this without connecting the Vol+ Strap.
    Thanks again for all of your hard work my dude!

  17. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    Fusee_Suite updated.

    V6 full changelog:

    • Improved button polling for faster boot.
    • Long-press VOL+ has a "progress" graphic
    • Refactored all variables for easier hexediting
    • Screensaver added (bouncing Nintendo logo - can be toggled by button press (Blink 4 VOL+ long press)
    • Boot animations added - (1 = no bootlogo at all, 2 = static, 3 = sliding, 4 = wiping, 5 = "glitching")
    • Change colours of bootlogo and text (either Hexedit, or change in Arduino. Very easy to do!)
    • Screen dimming after period of inactivity
    • Tidied menus
    • Removed SD mount / remount upon every boot attempt - Speeds things up
    • New "button control" graphic on main screen. Less intrusive.
    • BLZ more assets, change colours upon decompression... Sneaky.
    • Typos and bugfixes behind the scenes. New ones probably added. I`m that daft.
    In Fusee Suite OP now.

  18. koolershaker

    koolershaker Newbie
    Newcomer

    Joined:
    May 14, 2019
    Messages:
    3
    Country:
    Comoros
    Thanks man, worked at first try! :yay:

  19. Gismor

    Gismor GBAtemp Regular
    Member

    Joined:
    Nov 12, 2018
    Messages:
    115
    Country:
    Germany
    Im back from my Holiday in New Zealand.
    Now i will update my rebug.
    I see there is a new thread called Fusee Suite.
    What is current the best option for a permament cfw boot?
    the new Fusee Suite or here the switchboot?

  20. mattytrog

    OP mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,666
    Country:
    United Kingdom
    Hello everybody.

    Really really sorry I haven`t been around.

    Illness has struck yet-a-bleedin-gain.

    Got 20 inbox messages to read. Going to be a long night.

    If I can help anyone, let me know.

    #thebritishflujabdidnthelp
