PS5 UART commands

[stetofix]

You mean replaced? Can I just solder in a new one or do I need a donor?

First, check gddr6 ram ic #7 if shows any different in behavior in compare to the other seven ram ics. (Heat, voltage/resistance readings).
If you want to replace the the ic you need the same type of gddr6 ram ic. It could be from a donor or another source. It is not possible to mix different brands.



[vsam1978]

Hi guys Ps5 edm 10 ,bluray version, 5 sec blod uart code:
80810001 General Power Failure
C0810002 HDMI IC PROBLEM or Power Failure
All standby voltages presents, diode readings fine ,no short on motherboard, but stuck at 10 mAmps on boot sequence...
HDMI IC already replaced, what next Southbridge, Rams,SSD controller? Thx.

Hi, did you manage to find it?



[gecko702]

First, check gddr6 ram ic #7 if shows any different in behavior in compare to the other seven ram ics. (Heat, voltage/resistance readings).
If you want to replace the the ic you need the same type of gddr6 ram ic. It could be from a donor or another source. It is not possible to mix different brands.

I keep getting that 80830000 code, basically it could be the APU because sometimes I get this code: C0020303 APU not responding and: 80C00140 so I'm SOL then not even a tech could fix it? but if its possible to fix it, would it be worth it? maybe can go bad again?



[slion43]

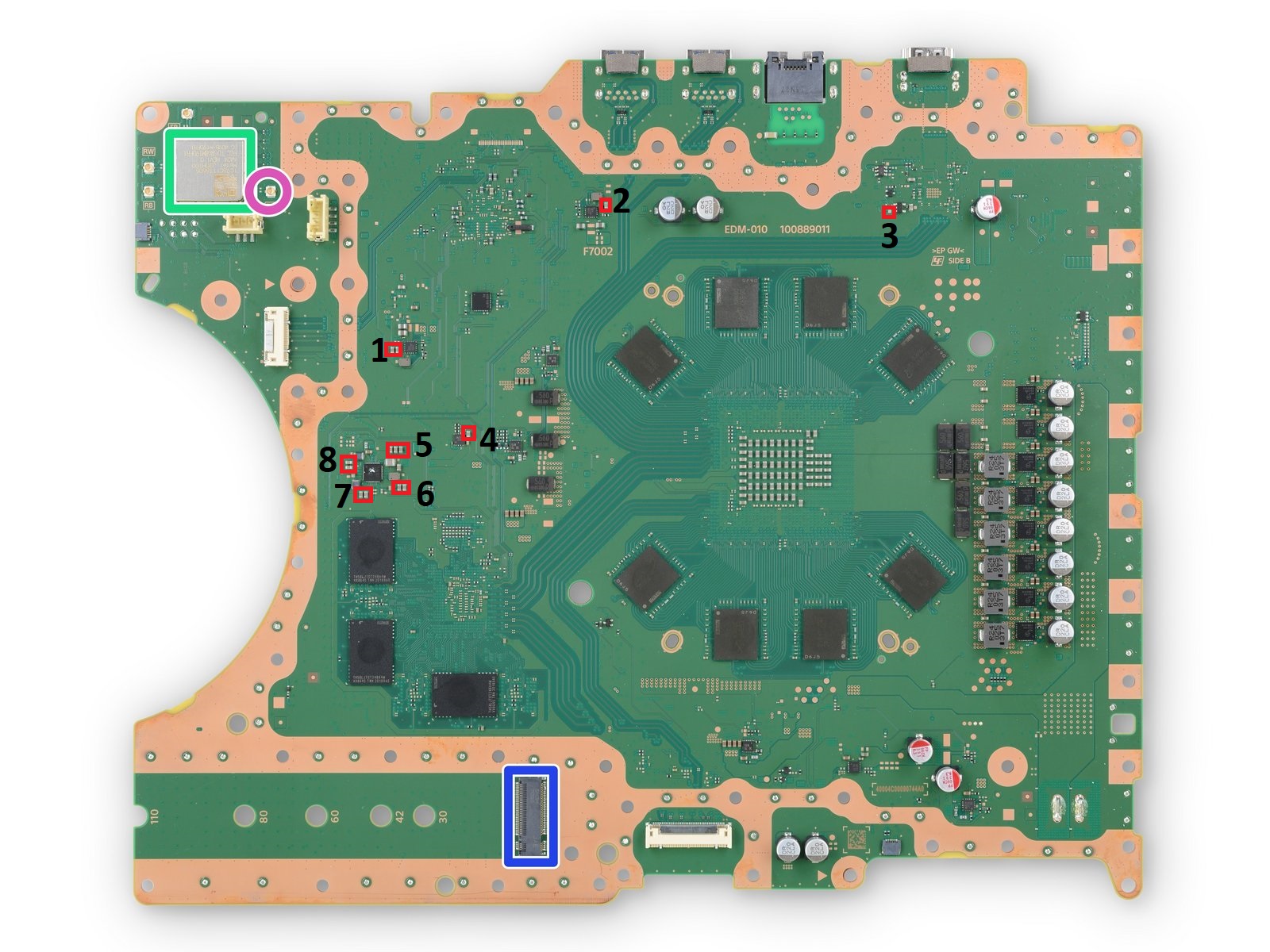

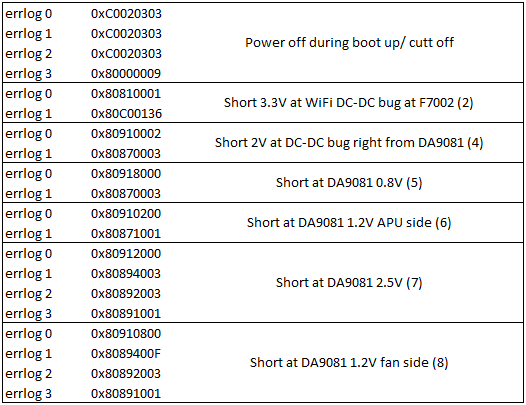

I tested a bit around and shorted some power lines and read out the error codes. Clear the error codes and repeat it two times and test the same at a second ps5 board.

A short on WiFi/BT at the pmic 3.3V line results in the two error codes:

errlog 0: OK 00000000 80810001 166A347C FFFF0042 00000000 217C 0004 FFFF FFFF:BA
errlog 1: OK 00000000 80C00136 166A347C FFFF0042 00000000 217C 0004 FFFF FFFF:CD

The second row is the error code, the third the timestamp


View attachment 407545

View attachment 407546

i have the same error codes 80810001 and 80C00136. What was your fix for this? i can confirm the big cap and the two small ones at number 2 in your photo are shorted to ground. So do i replace all 3 of those components only or is the WIFI module on the top left causing the short and should I replace that first?



[stetofix]

I would check what is getting warm.
It could be one of the caps around the bug converter, the bug converter itself, the wifi ic or on the back of the wifi ic one of the caps.



[slion43]

I would check what is getting warm.
It could be one of the caps around the bug converter, the bug converter itself, the wifi ic or on the back of the wifi ic one of the caps.

Thanks for the advice!! I took a look and i was able to find cap 1 appear to get warm (blue arrow in image) at F7002 vs the other caps (red arrows) that are all short to ground. Will try to replace that first cap that appear to get warm. On the wifi IC caps, there appear to be 7 caps short to ground (see red arrows).

Is it better to replace the wifi ic first from a donor board or replace each cap first and check again? Where specifically can i inject voltage (1volt 3amps?) to check those caps to see if they are getting warm?



[stetofix]

Remove only the blue marked cap and check for a short again.
If the short is gone, there is no need to remove/replace anything else.

All your marked caps are on one line.
So it is normal that all are showing the short, which is caused mostly by one failed component.
It doesn't matter where on this line you inject voltage.

If the short is solved by removing the blue marked cap, I recommend putting back a working cap.
For testing/system start the cap is not needed.



[Valentin1984]

Hi all. I need your help, has anyone encountered error 80800022. Is this possible due to RAM? resistance is 10 ohms at the inductor.



[elladan]

Hi.
|-(OK 00000000 80830060 00000F0E 81000005 00000100 217B 0016 290C 1A4C:F7)
code 80830060
Has anyone come across this?

PS5 turns on, reaches white light and turns off. The power supply was changed.

Addition: replacing all DDR6 memory solved the problem



[gecko702]

Remove only the blue marked cap and check for a short again.
If the short is gone, there is no need to remove/replace anything else.

All your marked caps are on one line.
So it is normal that all are showing the short, which is caused mostly by one failed component.
It doesn't matter where on this line you inject voltage.

If the short is solved by removing the blue marked cap, I recommend putting back a working cap.
For testing/system start the cap is not needed.

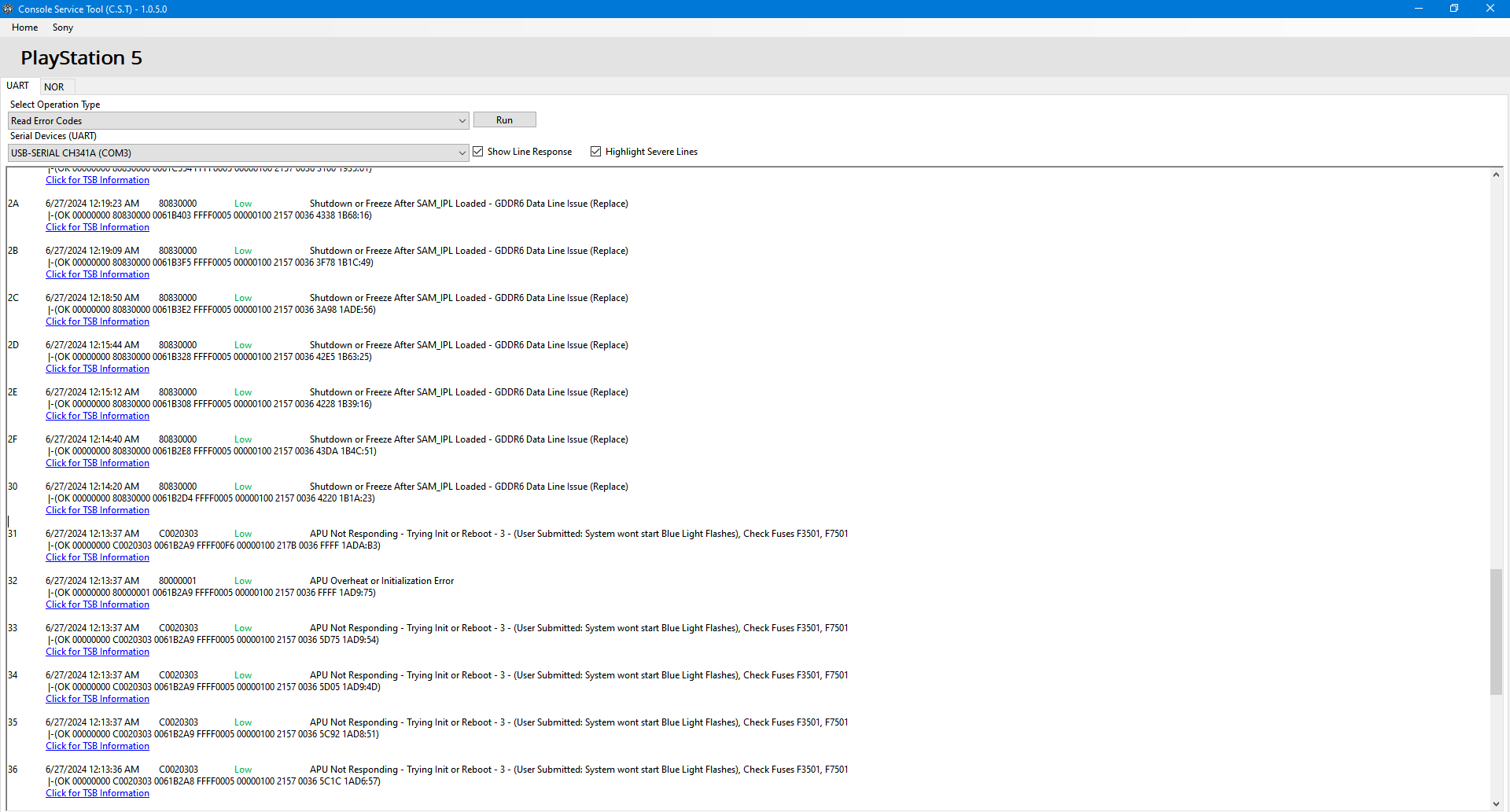

I get all these codes, that one with the fuses is new to me, seems was updated while ago with that description anyways, I checked the fuses and they got continuity, so it should be the F3501 area, which is what is the GDDR6 should be no? or is there another cause? my motherboard is the EDM-010



[bigart78214]

Error code: 80810001
Description: General Power Failure (Peripheral, GDDR6, APU, Data Line Short)
Error code: C00C0002
Description: VRM Controller Failure, Check Mosfet (6414A) Located Side-A, Below Sony Interactive Entertainment Inc. Check Infineon XDPE14286A 16 Phase PWM Controller - Located Side-A, Right of fuse 7001 - Single Beep, 1 second blue light, off

can anybody help me on this error?



[Unknown132565]

Hello everyone,

My ps5 has the blue light of death. I did every trouble shooting method, but it still wouldn’t come to life. I took the ps5 apart and used the uart reader. It gave me the code C0020303 and told me to check the fuses F3501 and F7501. Problem is is that I have no idea on what I should check on the fuses. If anyone could tell me what I should check by sending a screenshot and circling the areas, that would be greatly appreciate. P.S. it would also help if anyone can tell how to check those areas. I am very new to this.

board is an edm-031



[gecko702]

Hello everyone,

My ps5 has the blue light of death. I did every trouble shooting method, but it still wouldn’t come to life. I took the ps5 apart and used the uart reader. It gave me the code C0020303 and told me to check the fuses F3501 and F7501. Problem is is that I have no idea on what I should check on the fuses. If anyone could tell me what I should check by sending a screenshot and circling the areas, that would be greatly appreciate. P.S. it would also help if anyone can tell how to check those areas. I am very new to this.

board is an edm-031

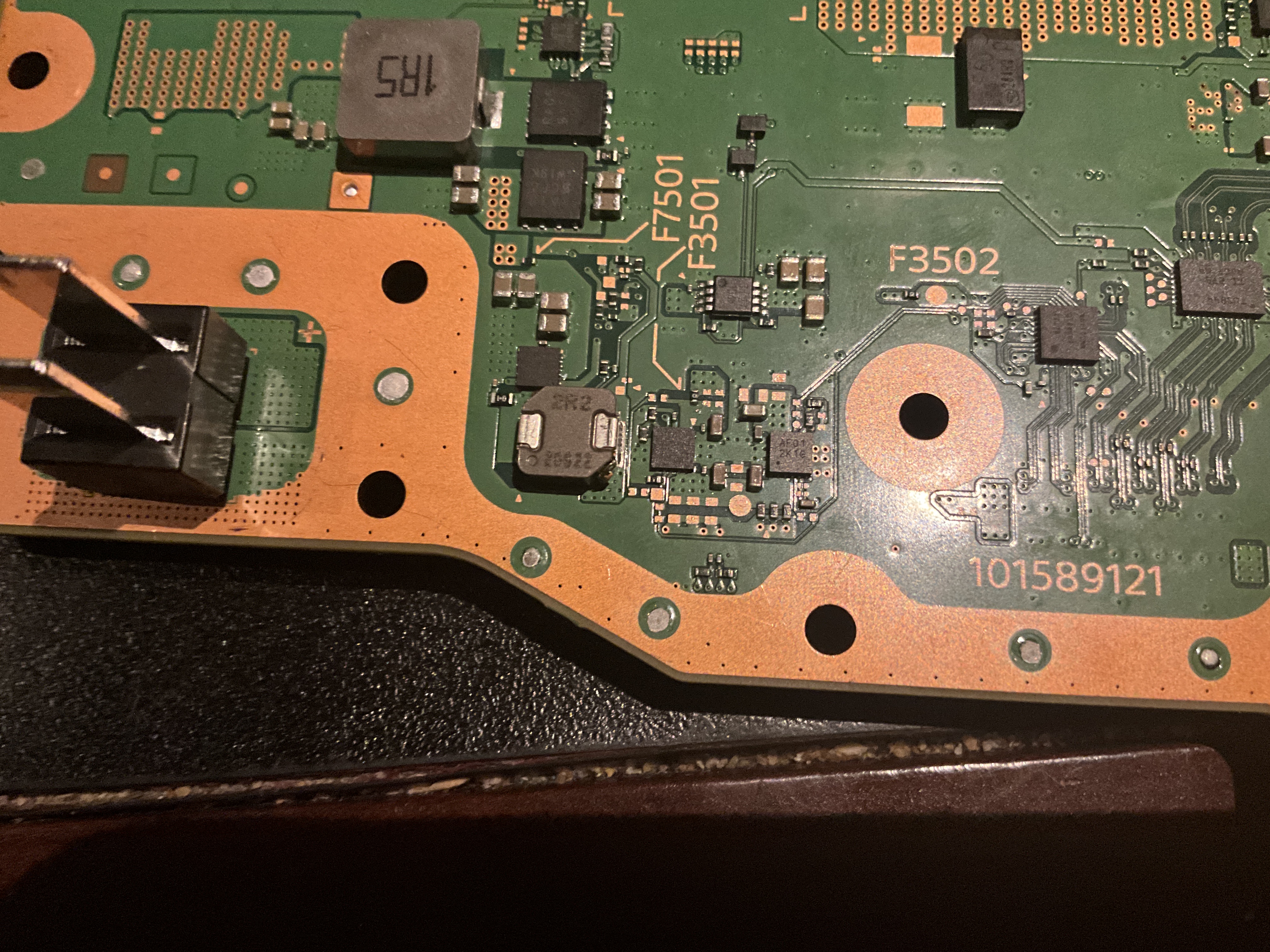

If you follow the arrows those should be the fuses, with a multimeter check the continuity by placing the probes on each end of the fuses , if it beeps there's continuity if not the fuses are short



[Unknown132565]

Thank you so much

if I do find the problem, where do I find the parts?



[gecko702]

Thank you so much

if I do find the problem, where do I find the parts?

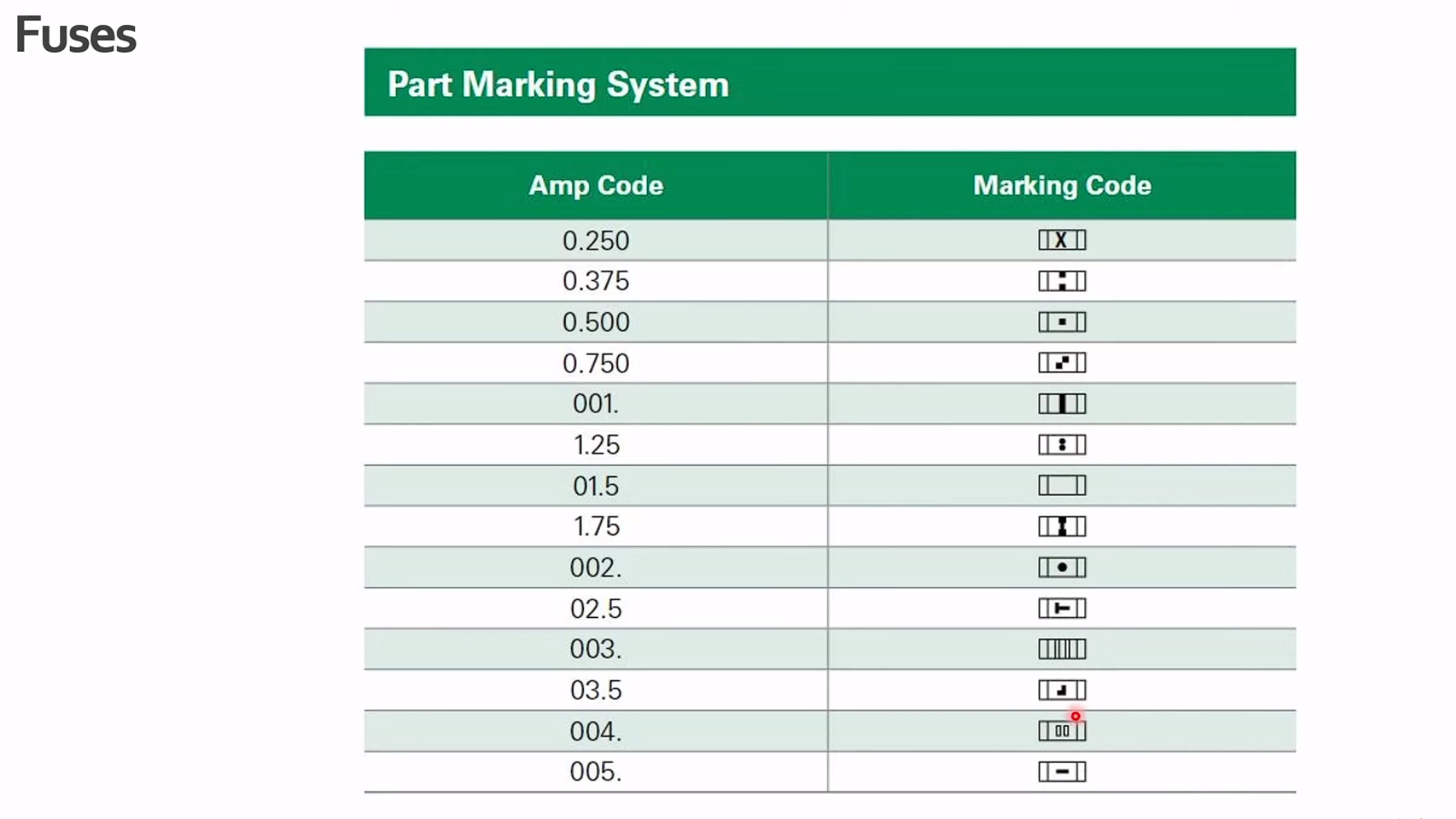

Got this from a PS5 repair video, maybe try digikey but this is for the types of fuses



[Odir13]

Hello, crack, what is the order of the Ram memory to identify them.

Post automatically merged: Aug 9, 2024

Hello, crack, what is the order of the Ram memory to identify them.



[stetofix]

Hello, crack, what is the order of the Ram memory to identify them.

Post automatically merged: Aug 9, 2024

Hello, crack, what is the order of the Ram memory to identify them.



[lofongi]

Hi, I have edm-020 board with uart error:
80801028 Low Known Unknown 80801028 (SSD) - Report Findings
|-(OK 00000000 80801028 174BE2F5. Found low resistance on caps near dialog 0.8k. Normally it's 1.5k. Removed ssd ic. No changes. Does anybody know which component is faulty?



[ostapchikyra]

Error code: 80810001
Description: General Power Failure (Peripheral, GDDR6, APU, Data Line Short)
Error code: C0020303
Description: APU Not Responding - Trying Init or Reboot - 3 - (User Submitted: System wont start Blue Light Flashes)

Where to start checking, maybe someone had it. When power is supplied, autostart 320Ma

Post automatically merged: Aug 22, 2024

Error code: 80810001
Description: General Power Failure (Peripheral, GDDR6, APU, Data Line Short)
Error code: C0020303
Description: APU Not Responding - Trying Init or Reboot - 3 - (User Submitted: System wont start Blue Light Flashes)

Where to start checking, maybe someone had it. When power is supplied, autostart 320Ma



[linuxares]

80810001 is one of the worst errors to get. It's the Somethings wrong sir, code.

Try checking all fuses if a short is around the area. 7003 I think the coder fix one of these caps when he got that error, but I might miss remember
