PS5 UART commands

stetofix · Nov 10, 2023

BwE found a way to access the errorlogs via UART and serial adapter.
I tried it myself and soldered wires to TX, RX, GND and connected them to my ttl adapter.

I see the output:

OK 00000000:3A
$$ [MANU] UART CMD READY:36

most inputs are echo'ing the input and giving this output:

errlog <-input
errlog <-echo
NG 00000000:4E <-output

some inputs are echo'ing the input and giving this output:

ß
ß
NG 00000000:4D

Any ideas what is necessary to bring the sb to accept commands?

stetofix · Nov 21, 2023

Here a link to a tool which enables cmds:
https://github.com/andy-man/ps5-wee-tools/releases/tag/v0.1.5

input: errlog 0
output: OK 00000000 80C00140 0000008D FFFF0005 00000100 2157 0016 46E4 1A80:27

input: errlog 1
output: OK 00000000 80C00140 00000074 FFFF0005 00000100 2157 0016 4BA2 19E0:21

input: errlog 2
output: OK 00000000 80C00140 00000031 FFFF0005 00000100 2157 0016 4C9A 186B:24

input: errlog 3 ... 8
output: OK 00000000 80871001 FFFFFFFF FFFF0042 00000000 2038 0000 FFFF FFFF:1E

Next step: Find the meaning of the error codes.

TheCod3r · Nov 23, 2023

This is something we definitely need to have done ASAP. What I plan to do in the coming weeks is take a fully working board and run UART after removing each RAM IC, SSD IC, controller, encoder, WiFi module and possibly (intentionally) cracking a few solder balls under the APU. I also plan to intentionally short several ICs using bridge wires (such as the TPM, diaglog ICs etc) and log each error as they spit out. Hopefully then we can have a reference point to work with...

FiXiNGA · Dec 3, 2023

I‘m also very interested in the meaning of the error codes for fixing some of my 2sec BLOD EDM020 boards with good voltage readings. On of them where I’m stuck now has only one error:

8080001A

Can somebody help me? For info: I swapped the TPM 2.0.

Thanks and best regards

FiXiNGA · Dec 5, 2023

Seems that they are married.

I swapped with one which has not the same number printed on cause I have no donor with exactly the same available. Since then I got this 8080001A error.

So I switched back to the original TPM but still 2 sec BLOD and TPM Power issues mentioned in the errlog.

myfranco · Dec 5, 2023

TheCod3r said:
This is something we definitely need to have done ASAP. What I plan to do in the coming weeks is take a fully working board and run UART after removing each RAM IC, SSD IC, controller, encoder, WiFi module and possibly (intentionally) cracking a few solder balls under the APU. I also plan to intentionally short several ICs using bridge wires (such as the TPM, diaglog ICs etc) and log each error as they spit out. Hopefully then we can have a reference point to work with...

You're the man. I believe you'll be the expert in that area. I watch your every Youtube video about fixes.

stetofix · Dec 6, 2023

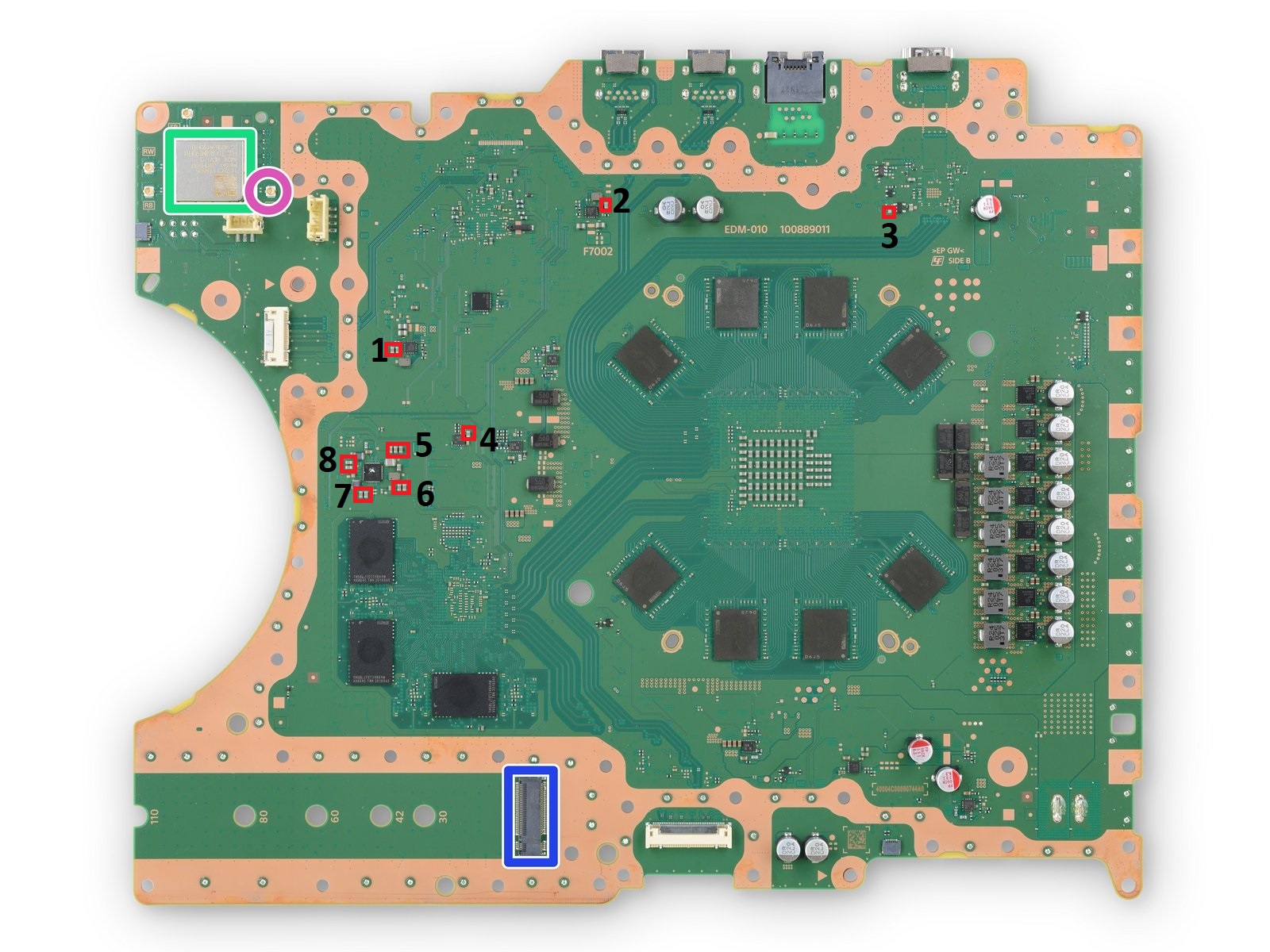

I tested a bit around and shorted some power lines and read out the error codes. Clear the error codes and repeat it two times and test the same at a second ps5 board.

A short on WiFi/BT at the pmic 3.3V line results in the two error codes:

errlog 0: OK 00000000 80810001 166A347C FFFF0042 00000000 217C 0004 FFFF FFFF:BA
errlog 1: OK 00000000 80C00136 166A347C FFFF0042 00000000 217C 0004 FFFF FFFF:CD

The second row is the error code, the third the timestamp

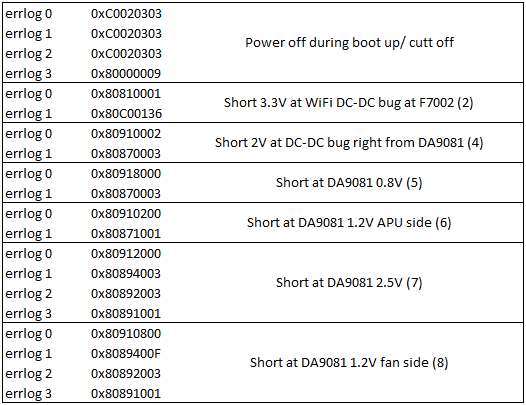

errlog 0	80C00140	Forced power off (10sec Power button)

errlog 0	C0020303	Power off during boot up/ cutt off
errlog 1	C0020303
errlog 2	C0020303
errlog 3	80000009

errlog 0	80810001	Short 3.3V at WiFi DC-DC bug at F7002 (2)
errlog 1	80C00136

errlog 0	80910002	Short 2V at DC-DC bug right from DA9081 (4)
errlog 1	80870003

errlog 0	80918000	Short at DA9081 0.8V (5)
errlog 1	80870003

errlog 0	80910200	Short at DA9081 1.2V APU side (6)
errlog 1	80871001

errlog 0	80912000	Short at DA9081 2.5V (7)
errlog 1	80894003
errlog 2	80892003
errlog 3	80891001

errlog 0	80910800	Short at DA9081 1.2V fan side (8)
errlog 1	8089400F
errlog 2	80892003
errlog 3	80891001

errlog 0	80810001	Short 1.8V at WiFi DC-DC bug at F7002 (1A)
errlog 1	80C00136

elladan · Dec 6, 2023

Hi ALL!
Who knows what the error means
OK 00000000:3A
$$ [MANU] UART CMD READY:36
errorlog 0:BC
NG F0000006:51

I assume that there is no connection between the SSD controller, the NAND and the bridge. I'm interested in your opinion.

stetofix · Dec 6, 2023

elladan said:
Hi ALL!
Who knows what the error means
OK 00000000:3A
$$ [MANU] UART CMD READY:36
errorlog 0:BC
NG F0000006:51

I assume that there is no connection between the SSD controller, the NAND and the bridge. I'm interested in your opinion.

This is no error log code.

NG as return code is for a false/invalid command. A executed command will return OK

Please try 'errlog 0' instead of 'errorlog 0'

elladan · Dec 6, 2023

stetofix said:
This no error log code.

NG as return code is for a false/invalid command. A executed command will return OK

Please try 'errlog 0' instead of 'errorlog 0'

Fine. I'll try and write back. Perhaps I mistyped.

ILuvGames · Dec 6, 2023

TheCod3r said:
This is something we definitely need to have done ASAP. What I plan to do in the coming weeks is take a fully working board and run UART after removing each RAM IC, SSD IC, controller, encoder, WiFi module and possibly (intentionally) cracking a few solder balls under the APU. I also plan to intentionally short several ICs using bridge wires (such as the TPM, diaglog ICs etc) and log each error as they spit out. Hopefully then we can have a reference point to work with...

I coudn't do what you do but your Youtube repair videos are interesting to watch.

elladan · Dec 7, 2023

stetofix said:
This is no error log code.

NG as return code is for a false/invalid command. A executed command will return OK

Please try 'errlog 0' instead of 'errorlog 0'

Thanks to the generally accepted codes on 3 consoles. On one
OK 00000000 808D0002 00000007 FFFF0005 10000100 2157 0016 4884 6BA0:1D
From the video TheCod3r 808D0002 Unknown 10 (TMP).
I understand correctly that the error is TPM Chip

stetofix · Dec 7, 2023

elladan said:
Thanks to the generally accepted codes on 3 consoles. On one
OK 00000000 808D0002 00000007 FFFF0005 10000100 2157 0016 4884 6BA0:1D
From the video TheCod3r 808D0002 Unknown 10 (TMP).
I understand correctly that the error is TPM Chip

I have the same error code list. And no further infos than 'Unknown (TPM)'

Did you check if more error codes are written in the log? (errlog 1, errlog 2, errlog 3,...)
As I wrote before, at shorts I get more than two error codes.

elladan · Dec 7, 2023

stetofix said:
I have the same error code list. And no further infos than 'Unknown (TPM)'

Did you check if more error codes are written in the log? (errlog 1, errlog 2, errlog 3,...)
As I wrote before, at shorts I get more than two error codes.

OK 00000000:3A
$$ [MANU] UART CMD READY:36
errlog 0

B
errlog 0

B
OK 00000000 808D0002 00000132 FFFF0005 10000100 2157 0016 47D7 6B58:26
errlog 1

C
errlog 1

C
OK 00000000 808D0002 00000007 FFFF0005 10000100 2157 0016 4884 6BA0:1D
errlog 2

D
errlog 2

D
OK 00000000 FFFFFFFF FFFFFFFF FFFFFFFF FFFFFFFF FFFF FFFF FFFF FFFF:5A
errlog 3

E
errlog 3

E
OK 00000000 FFFFFFFF FFFFFFFF FFFFFFFF FFFFFFFF FFFF FFFF FFFF FFFF:5A

stetofix · Dec 7, 2023

Here a longer error code list so far.

--
Edit (24/10/06):
Since BwE claims the list was stolen from his work and it is a fake list with only "some" legit error codes,
I marked the known error codes I encountered myself.
*? = Error code seen, but explanation not proven.

Feel free to contact me to complete this list.
--

80000001 APU startup or overheating error
80000008 *? (related: APU power)
80000009 APU unexpected power outage/shutdown failure
80050000 APU VRM power failure (2 phases)
80060000 APU VRM power failure (6 phases)
80068000 *? (related: APU VRM)
80097CE4 - Unknown (APU power)
80800000 Kernel panic shutdown
80800014 TPM 2.0 chip / power failure
8080001A TPM 2.0 chip not native
80800023 *? (related: TM 2.0)
80801101 RAM GDDR6 1 defect
80801102 *? RAM GDDR6 2 defect
80801103 RAM GDDR6 1 2 defect (replace)
80801104 RAM GDDR6 3 defect
80801105 RAM GDDR6 1 3 defect (replace)
80801106 RAM GDDR6 2 3 defect (replace)
80801107 RAM GDDR6 1 2 3 defect (replace)
80801108 RAM GDDR6 4 defect
80801109 *? RAM GDDR6 1 4 defect
8080110A RAM GDDR6 2 4 defect (replace)
8080110B RAM GDDR6 1 2 4 defect (replace)
8080110C RAM GDDR6 3 4 defect (replace)
8080110D RAM GDDR6 1 3 4 defect (replace)
8080110E RAM GDDR6 2 3 4 defect (replace)
8080110F RAM GDDR6 1 2 3 4 defect (replace)
80801110 RAM GDDR6 5 defect
80801111 RAM GDDR6 1 5 defect (replace)
80801112 RAM GDDR6 2 5 defect (replace)
80801113 RAM GDDR6 1 2 5 defect (replace)
80801114 RAM GDDR6 3 5 defect (replace)
80801115 RAM GDDR6 1 3 5 defect (replace)
80801116 RAM GDDR6 2 3 5 defect (replace)
80801117 RAM GDDR6 1 2 3 5 defect (replace)
80801118 RAM GDDR6 4 5 defect (replace)
80801119 RAM GDDR6 1 4 5 defect (replace)
8080111A RAM GDDR6 2 4 5 defect (replace)
8080111B RAM GDDR6 1 2 4 5 defect (replace)
8080111C RAM GDDR6 3 4 5 defect (replace)
8080111D RAM GDDR6 1 3 4 5 defect (replace)
8080111E RAM GDDR6 2 3 4 5 defect (replace)
8080111F RAM GDDR6 1 2 3 4 5 defect (replace)
80801120 RAM GDDR6 6 defect
80801121 RAM GDDR6 1 6 defect (replace)
80801122 RAM GDDR6 2 6 defect (replace)
80801123 RAM GDDR6 1 2 6 defect (replace)
80801124 RAM GDDR6 3 6 defect (replace)
80801125 RAM GDDR6 1 3 6 defect (replace)
80801126 RAM GDDR6 2 3 6 defect (replace)
80801127 RAM GDDR6 1 2 3 6 defect (replace)
80801128 RAM GDDR6 4 6 defect (replace)
80801129 RAM GDDR6 1 4 6 defect (replace)
8080112A RAM GDDR6 2 4 6 defect (replace)
8080112B RAM GDDR6 1 2 4 6 defect (replace)
8080112C RAM GDDR6 3 4 6 defect (replace)
8080112D RAM GDDR6 1 3 4 6 defect (replace)
8080112E RAM GDDR6 2 3 4 6 defect (replace)
8080112F RAM GDDR6 1 2 3 4 6 defect (replace)
80801130 RAM GDDR6 5 6 defect (replace)
80801131 RAM GDDR6 1 5 6 defect (replace)
80801132 RAM GDDR6 2 5 6 defect (replace)
80801133 RAM GDDR6 1 2 5 6 defect (replace)
80801134 RAM GDDR6 3 5 6 defect (replace)
80801135 RAM GDDR6 1 3 5 6 defect (replace)
80801136 RAM GDDR6 2 3 5 6 defect (replace)
80801137 RAM GDDR6 1 2 3 5 6 defect (replace)
80801138 RAM GDDR6 4 5 6 defect (replace)
80801139 RAM GDDR6 1 4 5 6 defect (replace)
8080113A RAM GDDR6 2 4 5 6 defect (replace)
8080113B RAM GDDR6 1 2 4 5 6 defect (replace)
8080113C RAM GDDR6 3 4 5 6 defect (replace)
8080113D RAM GDDR6 1 3 4 5 6 defect (replace)
8080113E RAM GDDR6 2 3 4 5 6 defect (replace)
8080113F RAM GDDR6 1 2 3 4 5 6 defect (replace)
80801140 *? RAM GDDR6 7 defect
80801141 RAM GDDR6 1 7 defect (replace)
80801142 RAM GDDR6 2 7 defect (replace)
80801143 RAM GDDR6 1 2 7 defect (replace)
80801144 RAM GDDR6 3 7 defect (replace)
80801145 RAM GDDR6 1 3 7 defect (replace)
80801146 RAM GDDR6 2 3 7 defect (replace)
80801147 RAM GDDR6 1 2 3 7 defect (replace)
80801148 RAM GDDR6 4 7 defect (replace)
80801149 RAM GDDR6 1 4 7 defect (replace)
8080114A RAM GDDR6 2 4 7 defect (replace)
8080114B RAM GDDR6 1 2 4 7 defect (replace)
8080114C RAM GDDR6 3 4 7 defect (replace)
8080114D RAM GDDR6 1 3 4 7 defect (replace)
8080114E RAM GDDR6 2 3 4 7 defect (replace)
8080114F RAM GDDR6 1 2 3 4 7 defect (replace)
80801150 RAM GDDR6 5 7 defect (replace)
80801151 RAM GDDR6 1 5 7 defect (replace)
80801152 RAM GDDR6 2 5 7 defect (replace)
80801153 RAM GDDR6 1 2 5 7 defect (replace)
80801154 RAM GDDR6 3 5 7 defect (replace)
80801155 RAM GDDR6 1 3 5 7 defect (replace)
80801156 RAM GDDR6 2 3 5 7 defect (replace)
80801157 RAM GDDR6 1 2 3 5 7 defect (replace)
80801158 RAM GDDR6 4 5 7 defect (replace)
80801159 RAM GDDR6 1 4 5 7 defect (replace)
8080115A RAM GDDR6 2 4 5 7 defect (replace)
8080115B RAM GDDR6 1 2 4 5 7 defect (replace)
8080115C RAM GDDR6 3 4 5 7 defect (replace)
8080115D RAM GDDR6 1 3 4 5 7 defect (replace)
8080115E RAM GDDR6 2 3 4 5 7 defect (replace)
8080115F RAM GDDR6 1 2 3 4 5 7 defect (replace)
80801160 RAM GDDR6 6 7 defect (replace)
80801161 RAM GDDR6 1 6 7 defect (replace)
80801162 RAM GDDR6 2 6 7 defect (replace)
80801163 RAM GDDR6 1 2 6 7 defect (replace)
80801164 RAM GDDR6 3 6 7 defect (replace)
80801165 RAM GDDR6 1 3 6 7 defect (replace)
80801166 RAM GDDR6 2 3 6 7 defect (replace)
80801167 RAM GDDR6 1 2 3 6 7 defect (replace)
80801168 RAM GDDR6 4 6 7 defect (replace)
80801169 RAM GDDR6 1 4 6 7 defect (replace)
8080116A RAM GDDR6 2 4 6 7 defect (replace)
8080116B RAM GDDR6 1 2 4 6 7 defect (replace)
8080116C RAM GDDR6 3 4 6 7 defect (replace)
8080116D RAM GDDR6 1 3 4 6 7 defect (replace)
8080116E RAM GDDR6 2 3 4 6 7 defect (replace)
8080116F RAM GDDR6 1 2 3 4 6 7 defect (replace)
80801170 RAM GDDR6 5 6 7 defect (replace)
80801171 RAM GDDR6 1 5 6 7 defect (replace)
80801172 RAM GDDR6 2 5 6 7 defect (replace)
80801173 RAM GDDR6 1 2 5 6 7 defect (replace)
80801174 RAM GDDR6 3 5 6 7 defect (replace)
80801175 RAM GDDR6 1 3 5 6 7 defect (replace)
80801176 RAM GDDR6 2 3 5 6 7 defect (replace)
80801177 RAM GDDR6 1 2 3 5 6 7 defect (replace)
80801178 RAM GDDR6 4 5 6 7 defect (replace)
80801179 RAM GDDR6 1 4 5 6 7 defect (replace)
8080117A RAM GDDR6 2 4 5 6 7 defect (replace)
8080117B RAM GDDR6 1 2 4 5 6 7 defect (replace)
8080117C RAM GDDR6 3 4 5 6 7 defect (replace)
8080117D RAM GDDR6 1 3 4 5 6 7 defect (replace)
8080117E RAM GDDR6 2 3 4 5 6 7 defect (replace)
8080117F RAM GDDR6 1 2 3 4 5 6 7 defect (replace)
80801180 *? RAM GDDR6 8 defect
80801181 RAM GDDR6 1 8 defect (replace)
80801182 RAM GDDR6 2 8 defect (replace)
80801183 RAM GDDR6 1 2 8 defect (replace)
80801184 RAM GDDR6 3 8 defect (replace)
80801185 RAM GDDR6 1 3 8 defect (replace)
80801186 RAM GDDR6 2 3 8 defect (replace)
80801187 RAM GDDR6 1 2 3 8 defect (replace)
80801188 RAM GDDR6 4 8 defect (replace)
80801189 RAM GDDR6 1 4 8 defect (replace)
8080118A RAM GDDR6 2 4 8 defect (replace)
8080118B RAM GDDR6 1 2 4 8 defect (replace)
8080118C RAM GDDR6 3 4 8 defect (replace)
8080118D RAM GDDR6 1 3 4 8 defect (replace)
8080118E RAM GDDR6 2 3 4 8 defect (replace)
8080118F RAM GDDR6 1 2 3 4 8 defect (replace)
80801190 RAM GDDR6 5 8 defect (replace)
80801191 RAM GDDR6 1 5 8 defect (replace)
80801192 RAM GDDR6 2 5 8 defect (replace)
80801193 RAM GDDR6 1 2 5 8 defect (replace)
80801194 RAM GDDR6 3 5 8 defect (replace)
80801195 RAM GDDR6 1 3 5 8 defect (replace)
80801196 RAM GDDR6 2 3 5 8 defect (replace)
80801197 RAM GDDR6 1 2 3 5 8 defect (replace)
80801198 RAM GDDR6 4 5 8 defect (replace)
80801199 RAM GDDR6 1 4 5 8 defect (replace)
8080119A RAM GDDR6 2 4 5 8 defect (replace)
8080119B RAM GDDR6 1 2 4 5 8 defect (replace)
8080119C RAM GDDR6 3 4 5 8 defect (replace)
8080119D RAM GDDR6 1 3 4 5 8 defect (replace)
8080119E RAM GDDR6 2 3 4 5 8 defect (replace)
8080119F RAM GDDR6 1 2 3 4 5 8 defect (replace)
808011A0 RAM GDDR6 6 8 defect (replace)
808011A1 RAM GDDR6 1 6 8 defect (replace)
808011A2 RAM GDDR6 2 6 8 defect (replace)
808011A3 RAM GDDR6 1 2 6 8 defect (replace)
808011A4 RAM GDDR6 3 6 8 defect (replace)
808011A5 RAM GDDR6 1 3 6 8 defect (replace)
808011A6 RAM GDDR6 2 3 6 8 defect (replace)
808011A7 RAM GDDR6 1 2 3 6 8 defect (replace)
808011A8 RAM GDDR6 4 6 8 defect (replace)
808011A9 RAM GDDR6 1 4 6 8 defect (replace)
808011AA RAM GDDR6 2 4 6 8 defect (replace)
808011AB RAM GDDR6 1 2 4 6 8 defect (replace)
808011AC RAM GDDR6 3 4 6 8 defect (replace)
808011AD RAM GDDR6 1 3 4 6 8 defect (replace)
808011AE RAM GDDR6 2 3 4 6 8 defect (replace)
808011AF RAM GDDR6 1 2 3 4 6 8 defect (replace)
808011B0 RAM GDDR6 5 6 8 defect (replace)
808011B1 RAM GDDR6 1 5 6 8 defect (replace)
808011B2 RAM GDDR6 2 5 6 8 defect (replace)
808011B3 RAM GDDR6 1 2 5 6 8 defect (replace)
808011B4 RAM GDDR6 3 5 6 8 defect (replace)
808011B5 RAM GDDR6 1 3 5 6 8 defect (replace)
808011B6 RAM GDDR6 2 3 5 6 8 defect (replace)
808011B7 RAM GDDR6 1 2 3 5 6 8 defect (replace)
808011B8 RAM GDDR6 4 5 6 8 defect (replace)
808011B9 RAM GDDR6 1 4 5 6 8 defect (replace)
808011BA RAM GDDR6 2 4 5 6 8 defect (replace)
808011BB RAM GDDR6 1 2 4 5 6 8 defect (replace)
808011BC RAM GDDR6 3 4 5 6 8 defect (replace)
808011BD RAM GDDR6 1 3 4 5 6 8 defect (replace)
808011BE RAM GDDR6 2 3 4 5 6 8 defect (replace)
808011BF RAM GDDR6 1 2 3 4 5 6 8 defect (replace)
808011C0 RAM GDDR6 7 8 defect (replace)
808011C1 RAM GDDR6 1 7 8 defect (replace)
808011C2 RAM GDDR6 2 7 8 defect (replace)
808011C3 RAM GDDR6 1 2 7 8 defect (replace)
808011C4 RAM GDDR6 3 7 8 defect (replace)
808011C5 RAM GDDR6 1 3 7 8 defect (replace)
808011C6 RAM GDDR6 2 3 7 8 defect (replace)
808011C7 RAM GDDR6 1 2 3 7 8 defect (replace)
808011C8 RAM GDDR6 4 7 8 defect (replace)
808011C9 RAM GDDR6 1 4 7 8 defect (replace)
808011CA RAM GDDR6 2 4 7 8 defect (replace)
808011CB RAM GDDR6 1 2 4 7 8 defect (replace)
808011CC RAM GDDR6 3 4 7 8 defect (replace)
808011CD RAM GDDR6 1 3 4 7 8 defect (replace)
808011CE RAM GDDR6 2 3 4 7 8 defect (replace)
808011CF RAM GDDR6 1 2 3 4 7 8 defect (replace)
808011D0 RAM GDDR6 5 7 8 defect (replace)
808011D1 RAM GDDR6 1 5 7 8 defect (replace)
808011D2 RAM GDDR6 2 5 7 8 defect (replace)
808011D3 RAM GDDR6 1 2 5 7 8 defect (replace)
808011D4 RAM GDDR6 3 5 7 8 defect (replace)
808011D5 RAM GDDR6 1 3 5 7 8 defect (replace)
808011D6 RAM GDDR6 2 3 5 7 8 defect (replace)
808011D7 RAM GDDR6 1 2 3 5 7 8 defect (replace)
808011D8 RAM GDDR6 4 5 7 8 defect (replace)
808011D9 RAM GDDR6 1 4 5 7 8 defect (replace)
808011DA RAM GDDR6 2 4 5 7 8 defect (replace)
808011DB RAM GDDR6 1 2 4 5 7 8 defect (replace)
808011DC RAM GDDR6 3 4 5 7 8 defect (replace)
808011DD RAM GDDR6 1 3 4 5 7 8 defect (replace)
808011DE RAM GDDR6 2 3 4 5 7 8 defect (replace)
808011DF RAM GDDR6 1 2 3 4 5 7 8 defect (replace)
808011E0 RAM GDDR6 6 7 8 defect (replace)
808011E1 RAM GDDR6 1 6 7 8 defect (replace)
808011E2 RAM GDDR6 2 6 7 8 defect (replace)
808011E3 RAM GDDR6 1 2 6 7 8 defect (replace)
808011E4 RAM GDDR6 3 6 7 8 defect (replace)
808011E5 RAM GDDR6 1 3 6 7 8 defect (replace)
808011E6 RAM GDDR6 2 3 6 7 8 defect (replace)
808011E7 RAM GDDR6 1 2 3 6 7 8 defect (replace)
808011E8 RAM GDDR6 4 6 7 8 defect (replace)
808011E9 RAM GDDR6 1 4 6 7 8 defect (replace)
808011EA RAM GDDR6 2 4 6 7 8 defect (replace)
808011EB RAM GDDR6 1 2 4 6 7 8 defect (replace)
808011EC RAM GDDR6 3 4 6 7 8 defect (replace)
808011ED RAM GDDR6 1 3 4 6 7 8 defect (replace)
808011EE RAM GDDR6 2 3 4 6 7 8 defect (replace)
808011EF RAM GDDR6 1 2 3 4 6 7 8 defect (replace)
808011F0 RAM GDDR6 5 6 7 8 defect (replace)
808011F1 RAM GDDR6 1 5 6 7 8 defect (replace)
808011F2 RAM GDDR6 2 5 6 7 8 defect (replace)
808011F3 RAM GDDR6 1 2 5 6 7 8 defect (replace)
808011F4 RAM GDDR6 3 5 6 7 8 defect (replace)
808011F5 RAM GDDR6 1 3 5 6 7 8 defect (replace)
808011F6 RAM GDDR6 2 3 5 6 7 8 defect (replace)
808011F7 RAM GDDR6 1 2 3 5 6 7 8 defect (replace)
808011F8 RAM GDDR6 4 5 6 7 8 defect (replace)
808011F9 RAM GDDR6 1 4 5 6 7 8 defect (replace)
808011FA RAM GDDR6 2 4 5 6 7 8 defect (replace)
808011FB RAM GDDR6 1 2 4 5 6 7 8 defect (replace)
808011FC RAM GDDR6 3 4 5 6 7 8 defect (replace)
808011FD RAM GDDR6 1 3 4 5 6 7 8 defect (replace)
808011FE RAM GDDR6 2 3 4 5 6 7 8 defect (replace)
808011FF *? RAM GDDR6 1 2 3 4 5 6 7 8 defect
80801620 *? (related: RAM) (analog to 808011xx?)
80801630 *? (related: RAM) (analog to 808011xx?)
80801690 *? (related: RAM) (analog to 808011xx?)
808016B0 *? (related: RAM) (analog to 808011xx?)
808016F0 *? (related: RAM) (analog to 808011xx?)
80802001 SSD controller (coprocessor) <-> APU data
80810001 General power failure (periphery, GDDR6, APU, data line shorted)
80830000 *? (related: RAM GDDR6 dataline)
80830018 - Unknown (Power)
808300F0 Secure charger error
808300F1 *? (related: Secure charger error)
80870003 Error after safe loader
80870004 Error after safe loader
80871001 SSD RAM DDR4 error (power failure/short circuit) (DA9081 1.2V Side:apu)
80871054 *? (related: SSD bank/s error)
80871055 SSD bank/s error
80871062 SSD controller Southbridge data line error
808710FF TPM 2.0 data line error (MISO MOSI)
80891001 SSD/DDR4 controller error (power failure/short circuit) (DA9081 ..)
80892003 SSD/DDR4 controller error (power failure/short circuit) (DA9081 ..)
80894003 SSD/DDR4 controller error (power failure/short circuit) (DA9081 2.5V)
8089400A *? (related: SSD/DDR4 controller error)
8089400F SSD/DDR4 controller error (power failure/short circuit) (DA9081 1.2V S:fan)
808940B8 *? (related: SSD bank/s error)
808B00FF XDPE phase pwm controller error (case: Bad XDPE. After replacement working,)
808C2092 *? Power failure WIFI
808B0098 DDR4 error (communication problem)
808C3790 *? Power failure - PWM/Unspecific
808C4E90 *? Power failure - PWM/Unspecific
808D0000 - Unknown (Power)
808D0002 *? (related: TPM)
808E0006 *? (related: TPM)
808E829A - Unknown (TPM)
808E0109 - Unknown (TPM)
808E0005 - Unknown (TPM)
808F0002 TPM 2.0 chip power failure
808F0003 TPM 2.0 chip power failure
80910002 SSD/DDR4 controller error (power failure/short circuit) (504X 2V)
80910200 SSD/DDR4 controller error (power failure/short circuit) (DA9081 1.2V S:apu)
80910800 SSD/DDR4 controller error (power failure/short circuit) (DA9081 1.2V S:fan)
80912000 SSD/DDR4 controller error (power faulure/short circuit) (DA9081 2.5V)
80918000 SSD/DDR4 controller error (power faulure/short circuit) (DA9081 0.8V)
80C0012D - Unknown (Data)
80C00134 SSD banks error
80C00136 WiFi/BT problem/power failure (02x 1.8V))
80C00140 APU is not responding - GDDR6 data line problem
80D002F5 *? Southbridge problem
80D004F5 *? Southbridge problem
80D00402 SSD banks error
86000005 Corrupted NOR
86000006 Corrupted NOR
B0082108 *? (Chip/Data)
B0088108 XDPE phase pwm controller error (case: Bad XDPE. After replacement working,)
C0010303 *? (related: APU)
C0020103 APU is not responding - trying to boot/reboot
C0020203 APU is not responding - trying to boot/reboot
C0020303 APU is not responding
C00C0002 VRM controller failure
C00C0303 *? (related: APU VRM)
C00C8000 - Unknown
C0160203 (Short above F7502)
C0160303 (Short above F7502)
C0810002 HDMI IC problem/power failure
C0810303 HDMI IC problem/data line short circuit/power failure
C0900303 *? (related: WIFI IC problem/data line short circuit/power failure)
C0920002 *? (related: WIFI IC problem/data line short circuit/power failure)
E0000001 Southbridge problem - cannot read errors
E0000002 Southbridge problem - cannot read errors
E0000003 Southbridge problem - cannot read errors
E0000004 Southbridge problem - cannot read errors
E0000005 Southbridge problem - cannot read errors
E0000006 Southbridge problem - cannot read errors
E1200000 XDPE phase pwm controller error VRM 2 phases
E1E00619 *? (related: XDPE)
E1E0061D XDPE phase pwm controller error VRM 2 phases
E1E0191D XDPE phase pwm controller error VRM 2 phases
E2200000 XDPE phase pwm controller error VRM 6 phases
E2E0061D XDPE phase pwm controller error VRM 6 phases
E2E0191D XDPE phase pwm controller error VRM 6 phases
E2E01D06 *? (related: XDPE/VRM)
E3121F70 *? (related: XDPE/VRM)
E3122155 *? (related: XDPE/VRM)
FFFFFFFF No Error

linuxares · Dec 7, 2023

stetofix said:
Ok. So no additional error codes, only 808D0002.
I guess the voltage is reaching the tpm ic.

Post automatically merged: Dec 7, 2023

Here a longer error code list so far..

80000001 APU startup or overheating error
80000009 Unexpected power outage/shutdown failure
80050000 APU VRM power failure (2 phases)
80060000 APU VRM power failure (6 phases)
80097CE4 - Unknown (APU power)
80800000 Kernel panic shutdown
80800014 TPM 2.0 chip / power failure
8080001A Non-native TPM 2.0 chip (after APU boot)
80801101 RAM GDDR6 1 defect (replace)
80801102 RAM GDDR6 2 defect (replace)
80801103 RAM GDDR6 1 2 defect (replace)
80801104 RAM GDDR6 3 defect (replace)
80801105 RAM GDDR6 1 3 defect (replace)
80801106 RAM GDDR6 2 3 defect (replace)
80801107 RAM GDDR6 1 2 3 defect (replace)
80801108 RAM GDDR6 4 defect (replace)
80801109 RAM GDDR6 1 4 defect (replace)
8080110A RAM GDDR6 2 4 defect (replace)
8080110B RAM GDDR6 1 2 4 defect (replace)
8080110C RAM GDDR6 3 4 defect (replace)
8080110D RAM GDDR6 1 3 4 defect (replace)
8080110E RAM GDDR6 2 3 4 defect (replace)
8080110F RAM GDDR6 1 2 3 4 defect (replace)
80801110 RAM GDDR6 5 defect (replace)
80801111 RAM GDDR6 1 5 defect (replace)
80801112 RAM GDDR6 2 5 defect (replace)
80801113 RAM GDDR6 1 2 5 defect (replace)
80801114 RAM GDDR6 3 5 defect (replace)
80801115 RAM GDDR6 1 3 5 defect (replace)
80801116 RAM GDDR6 2 3 5 defect (replace)
80801117 RAM GDDR6 1 2 3 5 defect (replace)
80801118 RAM GDDR6 4 5 defect (replace)
80801119 RAM GDDR6 1 4 5 defect (replace)
8080111A RAM GDDR6 2 4 5 defect (replace)
8080111B RAM GDDR6 1 2 4 5 defect (replace)
8080111C RAM GDDR6 3 4 5 defect (replace)
8080111D RAM GDDR6 1 3 4 5 defect (replace)
8080111E RAM GDDR6 2 3 4 5 defect (replace)
8080111F RAM GDDR6 1 2 3 4 5 defect (replace)
80801120 RAM GDDR6 6 defect (replace)
80801121 RAM GDDR6 1 6 defect (replace)
80801122 RAM GDDR6 2 6 defect (replace)
80801123 RAM GDDR6 1 2 6 defect (replace)
80801124 RAM GDDR6 3 6 defect (replace)
80801125 RAM GDDR6 1 3 6 defect (replace)
80801126 RAM GDDR6 2 3 6 defect (replace)
80801127 RAM GDDR6 1 2 3 6 defect (replace)
80801128 RAM GDDR6 4 6 defect (replace)
80801129 RAM GDDR6 1 4 6 defect (replace)
8080112A RAM GDDR6 2 4 6 defect (replace)
8080112B RAM GDDR6 1 2 4 6 defect (replace)
8080112C RAM GDDR6 3 4 6 defect (replace)
8080112D RAM GDDR6 1 3 4 6 defect (replace)
8080112E RAM GDDR6 2 3 4 6 defect (replace)
8080112F RAM GDDR6 1 2 3 4 6 defect (replace)
80801130 RAM GDDR6 5 6 defect (replace)
80801131 RAM GDDR6 1 5 6 defect (replace)
80801132 RAM GDDR6 2 5 6 defect (replace)
80801133 RAM GDDR6 1 2 5 6 defect (replace)
80801134 RAM GDDR6 3 5 6 defect (replace)
80801135 RAM GDDR6 1 3 5 6 defect (replace)
80801136 RAM GDDR6 2 3 5 6 defect (replace)
80801137 RAM GDDR6 1 2 3 5 6 defect (replace)
80801138 RAM GDDR6 4 5 6 defect (replace)
80801139 RAM GDDR6 1 4 5 6 defect (replace)
8080113A RAM GDDR6 2 4 5 6 defect (replace)
8080113B RAM GDDR6 1 2 4 5 6 defect (replace)
8080113C RAM GDDR6 3 4 5 6 defect (replace)
8080113D RAM GDDR6 1 3 4 5 6 defect (replace)
8080113E RAM GDDR6 2 3 4 5 6 defect (replace)
8080113F RAM GDDR6 1 2 3 4 5 6 defect (replace)
80801140 RAM GDDR6 7 defect (replace)
80801141 RAM GDDR6 1 7 defect (replace)
80801142 RAM GDDR6 2 7 defect (replace)
80801143 RAM GDDR6 1 2 7 defect (replace)
80801144 RAM GDDR6 3 7 defect (replace)
80801145 RAM GDDR6 1 3 7 defect (replace)
80801146 RAM GDDR6 2 3 7 defect (replace)
80801147 RAM GDDR6 1 2 3 7 defect (replace)
80801148 RAM GDDR6 4 7 defect (replace)
80801149 RAM GDDR6 1 4 7 defect (replace)
8080114A RAM GDDR6 2 4 7 defect (replace)
8080114B RAM GDDR6 1 2 4 7 defect (replace)
8080114C RAM GDDR6 3 4 7 defect (replace)
8080114D RAM GDDR6 1 3 4 7 defect (replace)
8080114E RAM GDDR6 2 3 4 7 defect (replace)
8080114F RAM GDDR6 1 2 3 4 7 defect (replace)
80801150 RAM GDDR6 5 7 defect (replace)
80801151 RAM GDDR6 1 5 7 defect (replace)
80801152 RAM GDDR6 2 5 7 defect (replace)
80801153 RAM GDDR6 1 2 5 7 defect (replace)
80801154 RAM GDDR6 3 5 7 defect (replace)
80801155 RAM GDDR6 1 3 5 7 defect (replace)
80801156 RAM GDDR6 2 3 5 7 defect (replace)
80801157 RAM GDDR6 1 2 3 5 7 defect (replace)
80801158 RAM GDDR6 4 5 7 defect (replace)
80801159 RAM GDDR6 1 4 5 7 defect (replace)
8080115A RAM GDDR6 2 4 5 7 defect (replace)
8080115B RAM GDDR6 1 2 4 5 7 defect (replace)
8080115C RAM GDDR6 3 4 5 7 defect (replace)
8080115D RAM GDDR6 1 3 4 5 7 defect (replace)
8080115E RAM GDDR6 2 3 4 5 7 defect (replace)
8080115F RAM GDDR6 1 2 3 4 5 7 defect (replace)
80801160 RAM GDDR6 6 7 defect (replace)
80801161 RAM GDDR6 1 6 7 defect (replace)
80801162 RAM GDDR6 2 6 7 defect (replace)
80801163 RAM GDDR6 1 2 6 7 defect (replace)
80801164 RAM GDDR6 3 6 7 defect (replace)
80801165 RAM GDDR6 1 3 6 7 defect (replace)
80801166 RAM GDDR6 2 3 6 7 defect (replace)
80801167 RAM GDDR6 1 2 3 6 7 defect (replace)
80801168 RAM GDDR6 4 6 7 defect (replace)
80801169 RAM GDDR6 1 4 6 7 defect (replace)
8080116A RAM GDDR6 2 4 6 7 defect (replace)
8080116B RAM GDDR6 1 2 4 6 7 defect (replace)
8080116C RAM GDDR6 3 4 6 7 defect (replace)
8080116D RAM GDDR6 1 3 4 6 7 defect (replace)
8080116E RAM GDDR6 2 3 4 6 7 defect (replace)
8080116F RAM GDDR6 1 2 3 4 6 7 defect (replace)
80801170 RAM GDDR6 5 6 7 defect (replace)
80801171 RAM GDDR6 1 5 6 7 defect (replace)
80801172 RAM GDDR6 2 5 6 7 defect (replace)
80801173 RAM GDDR6 1 2 5 6 7 defect (replace)
80801174 RAM GDDR6 3 5 6 7 defect (replace)
80801175 RAM GDDR6 1 3 5 6 7 defect (replace)
80801176 RAM GDDR6 2 3 5 6 7 defect (replace)
80801177 RAM GDDR6 1 2 3 5 6 7 defect (replace)
80801178 RAM GDDR6 4 5 6 7 defect (replace)
80801179 RAM GDDR6 1 4 5 6 7 defect (replace)
8080117A RAM GDDR6 2 4 5 6 7 defect (replace)
8080117B RAM GDDR6 1 2 4 5 6 7 defect (replace)
8080117C RAM GDDR6 3 4 5 6 7 defect (replace)
8080117D RAM GDDR6 1 3 4 5 6 7 defect (replace)
8080117E RAM GDDR6 2 3 4 5 6 7 defect (replace)
8080117F RAM GDDR6 1 2 3 4 5 6 7 defect (replace)
80801180 RAM GDDR6 8 defect (replace)
80801181 RAM GDDR6 1 8 defect (replace)
80801182 RAM GDDR6 2 8 defect (replace)
80801183 RAM GDDR6 1 2 8 defect (replace)
80801184 RAM GDDR6 3 8 defect (replace)
80801185 RAM GDDR6 1 3 8 defect (replace)
80801186 RAM GDDR6 2 3 8 defect (replace)
80801187 RAM GDDR6 1 2 3 8 defect (replace)
80801188 RAM GDDR6 4 8 defect (replace)
80801189 RAM GDDR6 1 4 8 defect (replace)
8080118A RAM GDDR6 2 4 8 defect (replace)
8080118B RAM GDDR6 1 2 4 8 defect (replace)
8080118C RAM GDDR6 3 4 8 defect (replace)
8080118D RAM GDDR6 1 3 4 8 defect (replace)
8080118E RAM GDDR6 2 3 4 8 defect (replace)
8080118F RAM GDDR6 1 2 3 4 8 defect (replace)
80801190 RAM GDDR6 5 8 defect (replace)
80801191 RAM GDDR6 1 5 8 defect (replace)
80801192 RAM GDDR6 2 5 8 defect (replace)
80801193 RAM GDDR6 1 2 5 8 defect (replace)
80801194 RAM GDDR6 3 5 8 defect (replace)
80801195 RAM GDDR6 1 3 5 8 defect (replace)
80801196 RAM GDDR6 2 3 5 8 defect (replace)
80801197 RAM GDDR6 1 2 3 5 8 defect (replace)
80801198 RAM GDDR6 4 5 8 defect (replace)
80801199 RAM GDDR6 1 4 5 8 defect (replace)
8080119A RAM GDDR6 2 4 5 8 defect (replace)
8080119B RAM GDDR6 1 2 4 5 8 defect (replace)
8080119C RAM GDDR6 3 4 5 8 defect (replace)
8080119D RAM GDDR6 1 3 4 5 8 defect (replace)
8080119E RAM GDDR6 2 3 4 5 8 defect (replace)
8080119F RAM GDDR6 1 2 3 4 5 8 defect (replace)
808011A0 RAM GDDR6 6 8 defect (replace)
808011A1 RAM GDDR6 1 6 8 defect (replace)
808011A2 RAM GDDR6 2 6 8 defect (replace)
808011A3 RAM GDDR6 1 2 6 8 defect (replace)
808011A4 RAM GDDR6 3 6 8 defect (replace)
808011A5 RAM GDDR6 1 3 6 8 defect (replace)
808011A6 RAM GDDR6 2 3 6 8 defect (replace)
808011A7 RAM GDDR6 1 2 3 6 8 defect (replace)
808011A8 RAM GDDR6 4 6 8 defect (replace)
808011A9 RAM GDDR6 1 4 6 8 defect (replace)
808011AA RAM GDDR6 2 4 6 8 defect (replace)
808011AB RAM GDDR6 1 2 4 6 8 defect (replace)
808011AC RAM GDDR6 3 4 6 8 defect (replace)
808011AD RAM GDDR6 1 3 4 6 8 defect (replace)
808011AE RAM GDDR6 2 3 4 6 8 defect (replace)
808011AF RAM GDDR6 1 2 3 4 6 8 defect (replace)
808011B0 RAM GDDR6 5 6 8 defect (replace)
808011B1 RAM GDDR6 1 5 6 8 defect (replace)
808011B2 RAM GDDR6 2 5 6 8 defect (replace)
808011B3 RAM GDDR6 1 2 5 6 8 defect (replace)
808011B4 RAM GDDR6 3 5 6 8 defect (replace)
808011B5 RAM GDDR6 1 3 5 6 8 defect (replace)
808011B6 RAM GDDR6 2 3 5 6 8 defect (replace)
808011B7 RAM GDDR6 1 2 3 5 6 8 defect (replace)
808011B8 RAM GDDR6 4 5 6 8 defect (replace)
808011B9 RAM GDDR6 1 4 5 6 8 defect (replace)
808011BA RAM GDDR6 2 4 5 6 8 defect (replace)
808011BB RAM GDDR6 1 2 4 5 6 8 defect (replace)
808011BC RAM GDDR6 3 4 5 6 8 defect (replace)
808011BD RAM GDDR6 1 3 4 5 6 8 defect (replace)
808011BE RAM GDDR6 2 3 4 5 6 8 defect (replace)
808011BF RAM GDDR6 1 2 3 4 5 6 8 defect (replace)
808011C0 RAM GDDR6 7 8 defect (replace)
808011C1 RAM GDDR6 1 7 8 defect (replace)
808011C2 RAM GDDR6 2 7 8 defect (replace)
808011C3 RAM GDDR6 1 2 7 8 defect (replace)
808011C4 RAM GDDR6 3 7 8 defect (replace)
808011C5 RAM GDDR6 1 3 7 8 defect (replace)
808011C6 RAM GDDR6 2 3 7 8 defect (replace)
808011C7 RAM GDDR6 1 2 3 7 8 defect (replace)
808011C8 RAM GDDR6 4 7 8 defect (replace)
808011C9 RAM GDDR6 1 4 7 8 defect (replace)
808011CA RAM GDDR6 2 4 7 8 defect (replace)
808011CB RAM GDDR6 1 2 4 7 8 defect (replace)
808011CC RAM GDDR6 3 4 7 8 defect (replace)
808011CD RAM GDDR6 1 3 4 7 8 defect (replace)
808011CE RAM GDDR6 2 3 4 7 8 defect (replace)
808011CF RAM GDDR6 1 2 3 4 7 8 defect (replace)
808011D0 RAM GDDR6 5 7 8 defect (replace)
808011D1 RAM GDDR6 1 5 7 8 defect (replace)
808011D2 RAM GDDR6 2 5 7 8 defect (replace)
808011D3 RAM GDDR6 1 2 5 7 8 defect (replace)
808011D4 RAM GDDR6 3 5 7 8 defect (replace)
808011D5 RAM GDDR6 1 3 5 7 8 defect (replace)
808011D6 RAM GDDR6 2 3 5 7 8 defect (replace)
808011D7 RAM GDDR6 1 2 3 5 7 8 defect (replace)
808011D8 RAM GDDR6 4 5 7 8 defect (replace)
808011D9 RAM GDDR6 1 4 5 7 8 defect (replace)
808011DA RAM GDDR6 2 4 5 7 8 defect (replace)
808011DB RAM GDDR6 1 2 4 5 7 8 defect (replace)
808011DC RAM GDDR6 3 4 5 7 8 defect (replace)
808011DD RAM GDDR6 1 3 4 5 7 8 defect (replace)
808011DE RAM GDDR6 2 3 4 5 7 8 defect (replace)
808011DF RAM GDDR6 1 2 3 4 5 7 8 defect (replace)
808011E0 RAM GDDR6 6 7 8 defect (replace)
808011E1 RAM GDDR6 1 6 7 8 defect (replace)
808011E2 RAM GDDR6 2 6 7 8 defect (replace)
808011E3 RAM GDDR6 1 2 6 7 8 defect (replace)
808011E4 RAM GDDR6 3 6 7 8 defect (replace)
808011E5 RAM GDDR6 1 3 6 7 8 defect (replace)
808011E6 RAM GDDR6 2 3 6 7 8 defect (replace)
808011E7 RAM GDDR6 1 2 3 6 7 8 defect (replace)
808011E8 RAM GDDR6 4 6 7 8 defect (replace)
808011E9 RAM GDDR6 1 4 6 7 8 defect (replace)
808011EA RAM GDDR6 2 4 6 7 8 defect (replace)
808011EB RAM GDDR6 1 2 4 6 7 8 defect (replace)
808011EC RAM GDDR6 3 4 6 7 8 defect (replace)
808011ED RAM GDDR6 1 3 4 6 7 8 defect (replace)
808011EE RAM GDDR6 2 3 4 6 7 8 defect (replace)
808011EF RAM GDDR6 1 2 3 4 6 7 8 defect (replace)
808011F0 RAM GDDR6 5 6 7 8 defect (replace)
808011F1 RAM GDDR6 1 5 6 7 8 defect (replace)
808011F2 RAM GDDR6 2 5 6 7 8 defect (replace)
808011F3 RAM GDDR6 1 2 5 6 7 8 defect (replace)
808011F4 RAM GDDR6 3 5 6 7 8 defect (replace)
808011F5 RAM GDDR6 1 3 5 6 7 8 defect (replace)
808011F6 RAM GDDR6 2 3 5 6 7 8 defect (replace)
808011F7 RAM GDDR6 1 2 3 5 6 7 8 defect (replace)
808011F8 RAM GDDR6 4 5 6 7 8 defect (replace)
808011F9 RAM GDDR6 1 4 5 6 7 8 defect (replace)
808011FA RAM GDDR6 2 4 5 6 7 8 defect (replace)
808011FB RAM GDDR6 1 2 4 5 6 7 8 defect (replace)
808011FC RAM GDDR6 3 4 5 6 7 8 defect (replace)
808011FD RAM GDDR6 1 3 4 5 6 7 8 defect (replace)
808011FE RAM GDDR6 2 3 4 5 6 7 8 defect (replace)
808011FF RAM GDDR6 1 2 3 4 5 6 7 8 defect (replace)
80802001 SSD controller (coprocessor) <-> APU data
80810001 General power failure (periphery, GDDR6, APU, data line shorted)
80830000 Shutdown/freeze after loading SAM-IPL: problem with DDR6 dataline (replace)
80830018 - Unknown (Power)
808300F0 Secure charger error
80870003 Error after safe loader
80871001 DDR4 error (power failure/short circuit)
80871055 SSD bank/s error
80871062 SSD controller <-> Syscon data line error (jumper)
80891001 SSD/DDR4 controller error (power failure/short circuit)
80892003 SSD/DDR4 controller error (power failure/short circuit)
80894003 SSD/DDR4 controller error (power failure/short circuit)
8089400F SSD/DDR4 controller error (power failure/short circuit)
808B00FF - Unknown (Power)
808B0098 DDR4 error (communication problem)
808C3790 Power failure - PWM/Unspecific
808C4F90 Power failure - PWM/Unspecific
808D0000 - Unknown (Power)
808D0002 - Unknown (TPM)
808E829A - Unknown (TPM)
808E0109 - Unknown (TPM)
808E0005 - Unknown (TPM)
808F0002 TPM 2.0 chip power failure
808F0003 TPM 2.0 chip power failure
80910002 - Unknown (SSD controller)
80910800 SSD/DDR4 controller error (power failure/short circuit)
80912000 SSD/DDR4 controller error (power faulure/short circuit)
80C0012D - Unknown (Data)
80C00134 SSD banks error
80C00136 WiFi/BT proble/power failure
80C00140 APU Freeze (No Response) - GDDR6 data line problem (replace)
80D00402 SSD banks error
86000005 Corrupted NOR
86000006 Corrupted NOR
B0082108 - Unknown (Chip/Data)
B0088108 - Unknown (Chip/Data)
C0020103 APU is not responding - trying to boot/reboot
C0020203 APU is not responding - trying to boot/reboot
C0020303 APU is not responding - trying to boot/reboot
C00C0002 VRM controller failure
C00C0303 - Unknown
C00C8000 - Unknown
C0810002 HDMI IC problem/power failure
C0810303 HDMI IC problem/data line short circuit/power failure
E0000001 Southbridge problem - cannot read errors
E0000002 Southbridge problem - cannot read errors
E0000003 Southbridge problem - cannot read errors
E0000004 Southbridge problem - cannot read errors
E0000005 Southbridge problem - cannot read errors
E0000006 Southbridge problem - cannot read errors
FFFFFFFF No Error

Amazing work!

elladan · Dec 7, 2023

stetofix said:
Ok. So no additional error codes, only 808D0002.
I guess the voltage is reaching the tpm ic.

Post automatically merged: Dec 7, 2023

I'll check the power supply to this microcircuit and replace it.

Post automatically merged: Dec 8, 2023

with another chip error 8080001A Non-native TPM 2.0 chip (after APU boot)
Apparently there is a connection to the APU

stetofix · Dec 10, 2023

elladan said:
I'll check the power supply to this microcircuit and replace it.

Post automatically merged: Dec 8, 2023

with another chip error 8080001A Non-native TPM 2.0 chip (after APU boot)
Apparently there is a connection to the APU

Yes, this is the second time that a replacement of a TPM ic doesn't work. I also think that the tpm ic is married to the APU.
What is about the original tpm ic?

james-london · Dec 10, 2023

stetofix said:
Ok. So no additional error codes, only 808D0002.
I guess the voltage is reaching the tpm ic.

Post automatically merged: Dec 7, 2023

Here a longer error code list so far.. (Not my own work. Only forwarding)

80000001 APU startup or overheating error
80000009 Unexpected power outage/shutdown failure
80050000 APU VRM power failure (2 phases)
80060000 APU VRM power failure (6 phases)
80097CE4 - Unknown (APU power)
80800000 Kernel panic shutdown
80800014 TPM 2.0 chip / power failure
8080001A Non-native TPM 2.0 chip (after APU boot)
80801101 RAM GDDR6 1 defect (replace)
80801102 RAM GDDR6 2 defect (replace)
80801103 RAM GDDR6 1 2 defect (replace)
80801104 RAM GDDR6 3 defect (replace)
80801105 RAM GDDR6 1 3 defect (replace)
80801106 RAM GDDR6 2 3 defect (replace)
80801107 RAM GDDR6 1 2 3 defect (replace)
80801108 RAM GDDR6 4 defect (replace)
80801109 RAM GDDR6 1 4 defect (replace)
8080110A RAM GDDR6 2 4 defect (replace)
8080110B RAM GDDR6 1 2 4 defect (replace)
8080110C RAM GDDR6 3 4 defect (replace)
8080110D RAM GDDR6 1 3 4 defect (replace)
8080110E RAM GDDR6 2 3 4 defect (replace)
8080110F RAM GDDR6 1 2 3 4 defect (replace)
80801110 RAM GDDR6 5 defect (replace)
80801111 RAM GDDR6 1 5 defect (replace)
80801112 RAM GDDR6 2 5 defect (replace)
80801113 RAM GDDR6 1 2 5 defect (replace)
80801114 RAM GDDR6 3 5 defect (replace)
80801115 RAM GDDR6 1 3 5 defect (replace)
80801116 RAM GDDR6 2 3 5 defect (replace)
80801117 RAM GDDR6 1 2 3 5 defect (replace)
80801118 RAM GDDR6 4 5 defect (replace)
80801119 RAM GDDR6 1 4 5 defect (replace)
8080111A RAM GDDR6 2 4 5 defect (replace)
8080111B RAM GDDR6 1 2 4 5 defect (replace)
8080111C RAM GDDR6 3 4 5 defect (replace)
8080111D RAM GDDR6 1 3 4 5 defect (replace)
8080111E RAM GDDR6 2 3 4 5 defect (replace)
8080111F RAM GDDR6 1 2 3 4 5 defect (replace)
80801120 RAM GDDR6 6 defect (replace)
80801121 RAM GDDR6 1 6 defect (replace)
80801122 RAM GDDR6 2 6 defect (replace)
80801123 RAM GDDR6 1 2 6 defect (replace)
80801124 RAM GDDR6 3 6 defect (replace)
80801125 RAM GDDR6 1 3 6 defect (replace)
80801126 RAM GDDR6 2 3 6 defect (replace)
80801127 RAM GDDR6 1 2 3 6 defect (replace)
80801128 RAM GDDR6 4 6 defect (replace)
80801129 RAM GDDR6 1 4 6 defect (replace)
8080112A RAM GDDR6 2 4 6 defect (replace)
8080112B RAM GDDR6 1 2 4 6 defect (replace)
8080112C RAM GDDR6 3 4 6 defect (replace)
8080112D RAM GDDR6 1 3 4 6 defect (replace)
8080112E RAM GDDR6 2 3 4 6 defect (replace)
8080112F RAM GDDR6 1 2 3 4 6 defect (replace)
80801130 RAM GDDR6 5 6 defect (replace)
80801131 RAM GDDR6 1 5 6 defect (replace)
80801132 RAM GDDR6 2 5 6 defect (replace)
80801133 RAM GDDR6 1 2 5 6 defect (replace)
80801134 RAM GDDR6 3 5 6 defect (replace)
80801135 RAM GDDR6 1 3 5 6 defect (replace)
80801136 RAM GDDR6 2 3 5 6 defect (replace)
80801137 RAM GDDR6 1 2 3 5 6 defect (replace)
80801138 RAM GDDR6 4 5 6 defect (replace)
80801139 RAM GDDR6 1 4 5 6 defect (replace)
8080113A RAM GDDR6 2 4 5 6 defect (replace)
8080113B RAM GDDR6 1 2 4 5 6 defect (replace)
8080113C RAM GDDR6 3 4 5 6 defect (replace)
8080113D RAM GDDR6 1 3 4 5 6 defect (replace)
8080113E RAM GDDR6 2 3 4 5 6 defect (replace)
8080113F RAM GDDR6 1 2 3 4 5 6 defect (replace)
80801140 RAM GDDR6 7 defect (replace)
80801141 RAM GDDR6 1 7 defect (replace)
80801142 RAM GDDR6 2 7 defect (replace)
80801143 RAM GDDR6 1 2 7 defect (replace)
80801144 RAM GDDR6 3 7 defect (replace)
80801145 RAM GDDR6 1 3 7 defect (replace)
80801146 RAM GDDR6 2 3 7 defect (replace)
80801147 RAM GDDR6 1 2 3 7 defect (replace)
80801148 RAM GDDR6 4 7 defect (replace)
80801149 RAM GDDR6 1 4 7 defect (replace)
8080114A RAM GDDR6 2 4 7 defect (replace)
8080114B RAM GDDR6 1 2 4 7 defect (replace)
8080114C RAM GDDR6 3 4 7 defect (replace)
8080114D RAM GDDR6 1 3 4 7 defect (replace)
8080114E RAM GDDR6 2 3 4 7 defect (replace)
8080114F RAM GDDR6 1 2 3 4 7 defect (replace)
80801150 RAM GDDR6 5 7 defect (replace)
80801151 RAM GDDR6 1 5 7 defect (replace)
80801152 RAM GDDR6 2 5 7 defect (replace)
80801153 RAM GDDR6 1 2 5 7 defect (replace)
80801154 RAM GDDR6 3 5 7 defect (replace)
80801155 RAM GDDR6 1 3 5 7 defect (replace)
80801156 RAM GDDR6 2 3 5 7 defect (replace)
80801157 RAM GDDR6 1 2 3 5 7 defect (replace)
80801158 RAM GDDR6 4 5 7 defect (replace)
80801159 RAM GDDR6 1 4 5 7 defect (replace)
8080115A RAM GDDR6 2 4 5 7 defect (replace)
8080115B RAM GDDR6 1 2 4 5 7 defect (replace)
8080115C RAM GDDR6 3 4 5 7 defect (replace)
8080115D RAM GDDR6 1 3 4 5 7 defect (replace)
8080115E RAM GDDR6 2 3 4 5 7 defect (replace)
8080115F RAM GDDR6 1 2 3 4 5 7 defect (replace)
80801160 RAM GDDR6 6 7 defect (replace)
80801161 RAM GDDR6 1 6 7 defect (replace)
80801162 RAM GDDR6 2 6 7 defect (replace)
80801163 RAM GDDR6 1 2 6 7 defect (replace)
80801164 RAM GDDR6 3 6 7 defect (replace)
80801165 RAM GDDR6 1 3 6 7 defect (replace)
80801166 RAM GDDR6 2 3 6 7 defect (replace)
80801167 RAM GDDR6 1 2 3 6 7 defect (replace)
80801168 RAM GDDR6 4 6 7 defect (replace)
80801169 RAM GDDR6 1 4 6 7 defect (replace)
8080116A RAM GDDR6 2 4 6 7 defect (replace)
8080116B RAM GDDR6 1 2 4 6 7 defect (replace)
8080116C RAM GDDR6 3 4 6 7 defect (replace)
8080116D RAM GDDR6 1 3 4 6 7 defect (replace)
8080116E RAM GDDR6 2 3 4 6 7 defect (replace)
8080116F RAM GDDR6 1 2 3 4 6 7 defect (replace)
80801170 RAM GDDR6 5 6 7 defect (replace)
80801171 RAM GDDR6 1 5 6 7 defect (replace)
80801172 RAM GDDR6 2 5 6 7 defect (replace)
80801173 RAM GDDR6 1 2 5 6 7 defect (replace)
80801174 RAM GDDR6 3 5 6 7 defect (replace)
80801175 RAM GDDR6 1 3 5 6 7 defect (replace)
80801176 RAM GDDR6 2 3 5 6 7 defect (replace)
80801177 RAM GDDR6 1 2 3 5 6 7 defect (replace)
80801178 RAM GDDR6 4 5 6 7 defect (replace)
80801179 RAM GDDR6 1 4 5 6 7 defect (replace)
8080117A RAM GDDR6 2 4 5 6 7 defect (replace)
8080117B RAM GDDR6 1 2 4 5 6 7 defect (replace)
8080117C RAM GDDR6 3 4 5 6 7 defect (replace)
8080117D RAM GDDR6 1 3 4 5 6 7 defect (replace)
8080117E RAM GDDR6 2 3 4 5 6 7 defect (replace)
8080117F RAM GDDR6 1 2 3 4 5 6 7 defect (replace)
80801180 RAM GDDR6 8 defect (replace)
80801181 RAM GDDR6 1 8 defect (replace)
80801182 RAM GDDR6 2 8 defect (replace)
80801183 RAM GDDR6 1 2 8 defect (replace)
80801184 RAM GDDR6 3 8 defect (replace)
80801185 RAM GDDR6 1 3 8 defect (replace)
80801186 RAM GDDR6 2 3 8 defect (replace)
80801187 RAM GDDR6 1 2 3 8 defect (replace)
80801188 RAM GDDR6 4 8 defect (replace)
80801189 RAM GDDR6 1 4 8 defect (replace)
8080118A RAM GDDR6 2 4 8 defect (replace)
8080118B RAM GDDR6 1 2 4 8 defect (replace)
8080118C RAM GDDR6 3 4 8 defect (replace)
8080118D RAM GDDR6 1 3 4 8 defect (replace)
8080118E RAM GDDR6 2 3 4 8 defect (replace)
8080118F RAM GDDR6 1 2 3 4 8 defect (replace)
80801190 RAM GDDR6 5 8 defect (replace)
80801191 RAM GDDR6 1 5 8 defect (replace)
80801192 RAM GDDR6 2 5 8 defect (replace)
80801193 RAM GDDR6 1 2 5 8 defect (replace)
80801194 RAM GDDR6 3 5 8 defect (replace)
80801195 RAM GDDR6 1 3 5 8 defect (replace)
80801196 RAM GDDR6 2 3 5 8 defect (replace)
80801197 RAM GDDR6 1 2 3 5 8 defect (replace)
80801198 RAM GDDR6 4 5 8 defect (replace)
80801199 RAM GDDR6 1 4 5 8 defect (replace)
8080119A RAM GDDR6 2 4 5 8 defect (replace)
8080119B RAM GDDR6 1 2 4 5 8 defect (replace)
8080119C RAM GDDR6 3 4 5 8 defect (replace)
8080119D RAM GDDR6 1 3 4 5 8 defect (replace)
8080119E RAM GDDR6 2 3 4 5 8 defect (replace)
8080119F RAM GDDR6 1 2 3 4 5 8 defect (replace)
808011A0 RAM GDDR6 6 8 defect (replace)
808011A1 RAM GDDR6 1 6 8 defect (replace)
808011A2 RAM GDDR6 2 6 8 defect (replace)
808011A3 RAM GDDR6 1 2 6 8 defect (replace)
808011A4 RAM GDDR6 3 6 8 defect (replace)
808011A5 RAM GDDR6 1 3 6 8 defect (replace)
808011A6 RAM GDDR6 2 3 6 8 defect (replace)
808011A7 RAM GDDR6 1 2 3 6 8 defect (replace)
808011A8 RAM GDDR6 4 6 8 defect (replace)
808011A9 RAM GDDR6 1 4 6 8 defect (replace)
808011AA RAM GDDR6 2 4 6 8 defect (replace)
808011AB RAM GDDR6 1 2 4 6 8 defect (replace)
808011AC RAM GDDR6 3 4 6 8 defect (replace)
808011AD RAM GDDR6 1 3 4 6 8 defect (replace)
808011AE RAM GDDR6 2 3 4 6 8 defect (replace)
808011AF RAM GDDR6 1 2 3 4 6 8 defect (replace)
808011B0 RAM GDDR6 5 6 8 defect (replace)
808011B1 RAM GDDR6 1 5 6 8 defect (replace)
808011B2 RAM GDDR6 2 5 6 8 defect (replace)
808011B3 RAM GDDR6 1 2 5 6 8 defect (replace)
808011B4 RAM GDDR6 3 5 6 8 defect (replace)
808011B5 RAM GDDR6 1 3 5 6 8 defect (replace)
808011B6 RAM GDDR6 2 3 5 6 8 defect (replace)
808011B7 RAM GDDR6 1 2 3 5 6 8 defect (replace)
808011B8 RAM GDDR6 4 5 6 8 defect (replace)
808011B9 RAM GDDR6 1 4 5 6 8 defect (replace)
808011BA RAM GDDR6 2 4 5 6 8 defect (replace)
808011BB RAM GDDR6 1 2 4 5 6 8 defect (replace)
808011BC RAM GDDR6 3 4 5 6 8 defect (replace)
808011BD RAM GDDR6 1 3 4 5 6 8 defect (replace)
808011BE RAM GDDR6 2 3 4 5 6 8 defect (replace)
808011BF RAM GDDR6 1 2 3 4 5 6 8 defect (replace)
808011C0 RAM GDDR6 7 8 defect (replace)
808011C1 RAM GDDR6 1 7 8 defect (replace)
808011C2 RAM GDDR6 2 7 8 defect (replace)
808011C3 RAM GDDR6 1 2 7 8 defect (replace)
808011C4 RAM GDDR6 3 7 8 defect (replace)
808011C5 RAM GDDR6 1 3 7 8 defect (replace)
808011C6 RAM GDDR6 2 3 7 8 defect (replace)
808011C7 RAM GDDR6 1 2 3 7 8 defect (replace)
808011C8 RAM GDDR6 4 7 8 defect (replace)
808011C9 RAM GDDR6 1 4 7 8 defect (replace)
808011CA RAM GDDR6 2 4 7 8 defect (replace)
808011CB RAM GDDR6 1 2 4 7 8 defect (replace)
808011CC RAM GDDR6 3 4 7 8 defect (replace)
808011CD RAM GDDR6 1 3 4 7 8 defect (replace)
808011CE RAM GDDR6 2 3 4 7 8 defect (replace)
808011CF RAM GDDR6 1 2 3 4 7 8 defect (replace)
808011D0 RAM GDDR6 5 7 8 defect (replace)
808011D1 RAM GDDR6 1 5 7 8 defect (replace)
808011D2 RAM GDDR6 2 5 7 8 defect (replace)
808011D3 RAM GDDR6 1 2 5 7 8 defect (replace)
808011D4 RAM GDDR6 3 5 7 8 defect (replace)
808011D5 RAM GDDR6 1 3 5 7 8 defect (replace)
808011D6 RAM GDDR6 2 3 5 7 8 defect (replace)
808011D7 RAM GDDR6 1 2 3 5 7 8 defect (replace)
808011D8 RAM GDDR6 4 5 7 8 defect (replace)
808011D9 RAM GDDR6 1 4 5 7 8 defect (replace)
808011DA RAM GDDR6 2 4 5 7 8 defect (replace)
808011DB RAM GDDR6 1 2 4 5 7 8 defect (replace)
808011DC RAM GDDR6 3 4 5 7 8 defect (replace)
808011DD RAM GDDR6 1 3 4 5 7 8 defect (replace)
808011DE RAM GDDR6 2 3 4 5 7 8 defect (replace)
808011DF RAM GDDR6 1 2 3 4 5 7 8 defect (replace)
808011E0 RAM GDDR6 6 7 8 defect (replace)
808011E1 RAM GDDR6 1 6 7 8 defect (replace)
808011E2 RAM GDDR6 2 6 7 8 defect (replace)
808011E3 RAM GDDR6 1 2 6 7 8 defect (replace)
808011E4 RAM GDDR6 3 6 7 8 defect (replace)
808011E5 RAM GDDR6 1 3 6 7 8 defect (replace)
808011E6 RAM GDDR6 2 3 6 7 8 defect (replace)
808011E7 RAM GDDR6 1 2 3 6 7 8 defect (replace)
808011E8 RAM GDDR6 4 6 7 8 defect (replace)
808011E9 RAM GDDR6 1 4 6 7 8 defect (replace)
808011EA RAM GDDR6 2 4 6 7 8 defect (replace)
808011EB RAM GDDR6 1 2 4 6 7 8 defect (replace)
808011EC RAM GDDR6 3 4 6 7 8 defect (replace)
808011ED RAM GDDR6 1 3 4 6 7 8 defect (replace)
808011EE RAM GDDR6 2 3 4 6 7 8 defect (replace)
808011EF RAM GDDR6 1 2 3 4 6 7 8 defect (replace)
808011F0 RAM GDDR6 5 6 7 8 defect (replace)
808011F1 RAM GDDR6 1 5 6 7 8 defect (replace)
808011F2 RAM GDDR6 2 5 6 7 8 defect (replace)
808011F3 RAM GDDR6 1 2 5 6 7 8 defect (replace)
808011F4 RAM GDDR6 3 5 6 7 8 defect (replace)
808011F5 RAM GDDR6 1 3 5 6 7 8 defect (replace)
808011F6 RAM GDDR6 2 3 5 6 7 8 defect (replace)
808011F7 RAM GDDR6 1 2 3 5 6 7 8 defect (replace)
808011F8 RAM GDDR6 4 5 6 7 8 defect (replace)
808011F9 RAM GDDR6 1 4 5 6 7 8 defect (replace)
808011FA RAM GDDR6 2 4 5 6 7 8 defect (replace)
808011FB RAM GDDR6 1 2 4 5 6 7 8 defect (replace)
808011FC RAM GDDR6 3 4 5 6 7 8 defect (replace)
808011FD RAM GDDR6 1 3 4 5 6 7 8 defect (replace)
808011FE RAM GDDR6 2 3 4 5 6 7 8 defect (replace)
808011FF RAM GDDR6 1 2 3 4 5 6 7 8 defect (replace)
80802001 SSD controller (coprocessor) <-> APU data
80810001 General power failure (periphery, GDDR6, APU, data line shorted)
80830000 Shutdown/freeze after loading SAM-IPL: problem with DDR6 dataline (replace)
80830018 - Unknown (Power)
808300F0 Secure charger error
80870003 Error after safe loader
80871001 DDR4 error (power failure/short circuit)
80871055 SSD bank/s error
80871062 SSD controller <-> Syscon data line error (jumper)
80891001 SSD/DDR4 controller error (power failure/short circuit)
80892003 SSD/DDR4 controller error (power failure/short circuit)
80894003 SSD/DDR4 controller error (power failure/short circuit)
8089400F SSD/DDR4 controller error (power failure/short circuit)
808B00FF - Unknown (Power)
808B0098 DDR4 error (communication problem)
808C3790 Power failure - PWM/Unspecific
808C4F90 Power failure - PWM/Unspecific
808D0000 - Unknown (Power)
808D0002 - Unknown (TPM)
808E829A - Unknown (TPM)
808E0109 - Unknown (TPM)
808E0005 - Unknown (TPM)
808F0002 TPM 2.0 chip power failure
808F0003 TPM 2.0 chip power failure
80910002 - Unknown (SSD controller)
80910800 SSD/DDR4 controller error (power failure/short circuit)
80912000 SSD/DDR4 controller error (power faulure/short circuit)
80C0012D - Unknown (Data)
80C00134 SSD banks error
80C00136 WiFi/BT proble/power failure
80C00140 APU Freeze (No Response) - GDDR6 data line problem (replace)
80D00402 SSD banks error
86000005 Corrupted NOR
86000006 Corrupted NOR
B0082108 - Unknown (Chip/Data)
B0088108 - Unknown (Chip/Data)
C0020103 APU is not responding - trying to boot/reboot
C0020203 APU is not responding - trying to boot/reboot
C0020303 APU is not responding - trying to boot/reboot
C00C0002 VRM controller failure
C00C0303 - Unknown
C00C8000 - Unknown
C0810002 HDMI IC problem/power failure
C0810303 HDMI IC problem/data line short circuit/power failure
E0000001 Southbridge problem - cannot read errors
E0000002 Southbridge problem - cannot read errors
E0000003 Southbridge problem - cannot read errors
E0000004 Southbridge problem - cannot read errors
E0000005 Southbridge problem - cannot read errors
E0000006 Southbridge problem - cannot read errors
FFFFFFFF No Error

Thanks for this @stetofix - amazing work

Post automatically merged: Dec 10, 2023

stetofix said:
Ok. So no additional error codes, only 808D0002.
I guess the voltage is reaching the tpm ic.

Post automatically merged: Dec 7, 2023

Here a longer error code list so far.. (Not my own work. Only forwarding)

80000001 APU startup or overheating error
80000009 Unexpected power outage/shutdown failure
80050000 APU VRM power failure (2 phases)
80060000 APU VRM power failure (6 phases)
80097CE4 - Unknown (APU power)
80800000 Kernel panic shutdown
80800014 TPM 2.0 chip / power failure
8080001A Non-native TPM 2.0 chip (after APU boot)
80801101 RAM GDDR6 1 defect (replace)
80801102 RAM GDDR6 2 defect (replace)
80801103 RAM GDDR6 1 2 defect (replace)
80801104 RAM GDDR6 3 defect (replace)
80801105 RAM GDDR6 1 3 defect (replace)
80801106 RAM GDDR6 2 3 defect (replace)
80801107 RAM GDDR6 1 2 3 defect (replace)
80801108 RAM GDDR6 4 defect (replace)
80801109 RAM GDDR6 1 4 defect (replace)
8080110A RAM GDDR6 2 4 defect (replace)
8080110B RAM GDDR6 1 2 4 defect (replace)
8080110C RAM GDDR6 3 4 defect (replace)
8080110D RAM GDDR6 1 3 4 defect (replace)
8080110E RAM GDDR6 2 3 4 defect (replace)
8080110F RAM GDDR6 1 2 3 4 defect (replace)
80801110 RAM GDDR6 5 defect (replace)
80801111 RAM GDDR6 1 5 defect (replace)
80801112 RAM GDDR6 2 5 defect (replace)
80801113 RAM GDDR6 1 2 5 defect (replace)
80801114 RAM GDDR6 3 5 defect (replace)
80801115 RAM GDDR6 1 3 5 defect (replace)
80801116 RAM GDDR6 2 3 5 defect (replace)
80801117 RAM GDDR6 1 2 3 5 defect (replace)
80801118 RAM GDDR6 4 5 defect (replace)
80801119 RAM GDDR6 1 4 5 defect (replace)
8080111A RAM GDDR6 2 4 5 defect (replace)
8080111B RAM GDDR6 1 2 4 5 defect (replace)
8080111C RAM GDDR6 3 4 5 defect (replace)
8080111D RAM GDDR6 1 3 4 5 defect (replace)
8080111E RAM GDDR6 2 3 4 5 defect (replace)
8080111F RAM GDDR6 1 2 3 4 5 defect (replace)
80801120 RAM GDDR6 6 defect (replace)
80801121 RAM GDDR6 1 6 defect (replace)
80801122 RAM GDDR6 2 6 defect (replace)
80801123 RAM GDDR6 1 2 6 defect (replace)
80801124 RAM GDDR6 3 6 defect (replace)
80801125 RAM GDDR6 1 3 6 defect (replace)
80801126 RAM GDDR6 2 3 6 defect (replace)
80801127 RAM GDDR6 1 2 3 6 defect (replace)
80801128 RAM GDDR6 4 6 defect (replace)
80801129 RAM GDDR6 1 4 6 defect (replace)
8080112A RAM GDDR6 2 4 6 defect (replace)
8080112B RAM GDDR6 1 2 4 6 defect (replace)
8080112C RAM GDDR6 3 4 6 defect (replace)
8080112D RAM GDDR6 1 3 4 6 defect (replace)
8080112E RAM GDDR6 2 3 4 6 defect (replace)
8080112F RAM GDDR6 1 2 3 4 6 defect (replace)
80801130 RAM GDDR6 5 6 defect (replace)
80801131 RAM GDDR6 1 5 6 defect (replace)
80801132 RAM GDDR6 2 5 6 defect (replace)
80801133 RAM GDDR6 1 2 5 6 defect (replace)
80801134 RAM GDDR6 3 5 6 defect (replace)
80801135 RAM GDDR6 1 3 5 6 defect (replace)
80801136 RAM GDDR6 2 3 5 6 defect (replace)
80801137 RAM GDDR6 1 2 3 5 6 defect (replace)
80801138 RAM GDDR6 4 5 6 defect (replace)
80801139 RAM GDDR6 1 4 5 6 defect (replace)
8080113A RAM GDDR6 2 4 5 6 defect (replace)
8080113B RAM GDDR6 1 2 4 5 6 defect (replace)
8080113C RAM GDDR6 3 4 5 6 defect (replace)
8080113D RAM GDDR6 1 3 4 5 6 defect (replace)
8080113E RAM GDDR6 2 3 4 5 6 defect (replace)
8080113F RAM GDDR6 1 2 3 4 5 6 defect (replace)
80801140 RAM GDDR6 7 defect (replace)
80801141 RAM GDDR6 1 7 defect (replace)
80801142 RAM GDDR6 2 7 defect (replace)
80801143 RAM GDDR6 1 2 7 defect (replace)
80801144 RAM GDDR6 3 7 defect (replace)
80801145 RAM GDDR6 1 3 7 defect (replace)
80801146 RAM GDDR6 2 3 7 defect (replace)
80801147 RAM GDDR6 1 2 3 7 defect (replace)
80801148 RAM GDDR6 4 7 defect (replace)
80801149 RAM GDDR6 1 4 7 defect (replace)
8080114A RAM GDDR6 2 4 7 defect (replace)
8080114B RAM GDDR6 1 2 4 7 defect (replace)
8080114C RAM GDDR6 3 4 7 defect (replace)
8080114D RAM GDDR6 1 3 4 7 defect (replace)
8080114E RAM GDDR6 2 3 4 7 defect (replace)
8080114F RAM GDDR6 1 2 3 4 7 defect (replace)
80801150 RAM GDDR6 5 7 defect (replace)
80801151 RAM GDDR6 1 5 7 defect (replace)
80801152 RAM GDDR6 2 5 7 defect (replace)
80801153 RAM GDDR6 1 2 5 7 defect (replace)
80801154 RAM GDDR6 3 5 7 defect (replace)
80801155 RAM GDDR6 1 3 5 7 defect (replace)
80801156 RAM GDDR6 2 3 5 7 defect (replace)
80801157 RAM GDDR6 1 2 3 5 7 defect (replace)
80801158 RAM GDDR6 4 5 7 defect (replace)
80801159 RAM GDDR6 1 4 5 7 defect (replace)
8080115A RAM GDDR6 2 4 5 7 defect (replace)
8080115B RAM GDDR6 1 2 4 5 7 defect (replace)
8080115C RAM GDDR6 3 4 5 7 defect (replace)
8080115D RAM GDDR6 1 3 4 5 7 defect (replace)
8080115E RAM GDDR6 2 3 4 5 7 defect (replace)
8080115F RAM GDDR6 1 2 3 4 5 7 defect (replace)
80801160 RAM GDDR6 6 7 defect (replace)
80801161 RAM GDDR6 1 6 7 defect (replace)
80801162 RAM GDDR6 2 6 7 defect (replace)
80801163 RAM GDDR6 1 2 6 7 defect (replace)
80801164 RAM GDDR6 3 6 7 defect (replace)
80801165 RAM GDDR6 1 3 6 7 defect (replace)
80801166 RAM GDDR6 2 3 6 7 defect (replace)
80801167 RAM GDDR6 1 2 3 6 7 defect (replace)
80801168 RAM GDDR6 4 6 7 defect (replace)
80801169 RAM GDDR6 1 4 6 7 defect (replace)
8080116A RAM GDDR6 2 4 6 7 defect (replace)
8080116B RAM GDDR6 1 2 4 6 7 defect (replace)
8080116C RAM GDDR6 3 4 6 7 defect (replace)
8080116D RAM GDDR6 1 3 4 6 7 defect (replace)
8080116E RAM GDDR6 2 3 4 6 7 defect (replace)
8080116F RAM GDDR6 1 2 3 4 6 7 defect (replace)
80801170 RAM GDDR6 5 6 7 defect (replace)
80801171 RAM GDDR6 1 5 6 7 defect (replace)
80801172 RAM GDDR6 2 5 6 7 defect (replace)
80801173 RAM GDDR6 1 2 5 6 7 defect (replace)
80801174 RAM GDDR6 3 5 6 7 defect (replace)
80801175 RAM GDDR6 1 3 5 6 7 defect (replace)
80801176 RAM GDDR6 2 3 5 6 7 defect (replace)
80801177 RAM GDDR6 1 2 3 5 6 7 defect (replace)
80801178 RAM GDDR6 4 5 6 7 defect (replace)
80801179 RAM GDDR6 1 4 5 6 7 defect (replace)
8080117A RAM GDDR6 2 4 5 6 7 defect (replace)
8080117B RAM GDDR6 1 2 4 5 6 7 defect (replace)
8080117C RAM GDDR6 3 4 5 6 7 defect (replace)
8080117D RAM GDDR6 1 3 4 5 6 7 defect (replace)
8080117E RAM GDDR6 2 3 4 5 6 7 defect (replace)
8080117F RAM GDDR6 1 2 3 4 5 6 7 defect (replace)
80801180 RAM GDDR6 8 defect (replace)
80801181 RAM GDDR6 1 8 defect (replace)
80801182 RAM GDDR6 2 8 defect (replace)
80801183 RAM GDDR6 1 2 8 defect (replace)
80801184 RAM GDDR6 3 8 defect (replace)
80801185 RAM GDDR6 1 3 8 defect (replace)
80801186 RAM GDDR6 2 3 8 defect (replace)
80801187 RAM GDDR6 1 2 3 8 defect (replace)
80801188 RAM GDDR6 4 8 defect (replace)
80801189 RAM GDDR6 1 4 8 defect (replace)
8080118A RAM GDDR6 2 4 8 defect (replace)
8080118B RAM GDDR6 1 2 4 8 defect (replace)
8080118C RAM GDDR6 3 4 8 defect (replace)
8080118D RAM GDDR6 1 3 4 8 defect (replace)
8080118E RAM GDDR6 2 3 4 8 defect (replace)
8080118F RAM GDDR6 1 2 3 4 8 defect (replace)
80801190 RAM GDDR6 5 8 defect (replace)
80801191 RAM GDDR6 1 5 8 defect (replace)
80801192 RAM GDDR6 2 5 8 defect (replace)
80801193 RAM GDDR6 1 2 5 8 defect (replace)
80801194 RAM GDDR6 3 5 8 defect (replace)
80801195 RAM GDDR6 1 3 5 8 defect (replace)
80801196 RAM GDDR6 2 3 5 8 defect (replace)
80801197 RAM GDDR6 1 2 3 5 8 defect (replace)
80801198 RAM GDDR6 4 5 8 defect (replace)
80801199 RAM GDDR6 1 4 5 8 defect (replace)
8080119A RAM GDDR6 2 4 5 8 defect (replace)
8080119B RAM GDDR6 1 2 4 5 8 defect (replace)
8080119C RAM GDDR6 3 4 5 8 defect (replace)
8080119D RAM GDDR6 1 3 4 5 8 defect (replace)
8080119E RAM GDDR6 2 3 4 5 8 defect (replace)
8080119F RAM GDDR6 1 2 3 4 5 8 defect (replace)
808011A0 RAM GDDR6 6 8 defect (replace)
808011A1 RAM GDDR6 1 6 8 defect (replace)
808011A2 RAM GDDR6 2 6 8 defect (replace)
808011A3 RAM GDDR6 1 2 6 8 defect (replace)
808011A4 RAM GDDR6 3 6 8 defect (replace)
808011A5 RAM GDDR6 1 3 6 8 defect (replace)
808011A6 RAM GDDR6 2 3 6 8 defect (replace)
808011A7 RAM GDDR6 1 2 3 6 8 defect (replace)
808011A8 RAM GDDR6 4 6 8 defect (replace)
808011A9 RAM GDDR6 1 4 6 8 defect (replace)
808011AA RAM GDDR6 2 4 6 8 defect (replace)
808011AB RAM GDDR6 1 2 4 6 8 defect (replace)
808011AC RAM GDDR6 3 4 6 8 defect (replace)
808011AD RAM GDDR6 1 3 4 6 8 defect (replace)
808011AE RAM GDDR6 2 3 4 6 8 defect (replace)
808011AF RAM GDDR6 1 2 3 4 6 8 defect (replace)
808011B0 RAM GDDR6 5 6 8 defect (replace)
808011B1 RAM GDDR6 1 5 6 8 defect (replace)
808011B2 RAM GDDR6 2 5 6 8 defect (replace)
808011B3 RAM GDDR6 1 2 5 6 8 defect (replace)
808011B4 RAM GDDR6 3 5 6 8 defect (replace)
808011B5 RAM GDDR6 1 3 5 6 8 defect (replace)
808011B6 RAM GDDR6 2 3 5 6 8 defect (replace)
808011B7 RAM GDDR6 1 2 3 5 6 8 defect (replace)
808011B8 RAM GDDR6 4 5 6 8 defect (replace)
808011B9 RAM GDDR6 1 4 5 6 8 defect (replace)
808011BA RAM GDDR6 2 4 5 6 8 defect (replace)
808011BB RAM GDDR6 1 2 4 5 6 8 defect (replace)
808011BC RAM GDDR6 3 4 5 6 8 defect (replace)
808011BD RAM GDDR6 1 3 4 5 6 8 defect (replace)
808011BE RAM GDDR6 2 3 4 5 6 8 defect (replace)
808011BF RAM GDDR6 1 2 3 4 5 6 8 defect (replace)
808011C0 RAM GDDR6 7 8 defect (replace)
808011C1 RAM GDDR6 1 7 8 defect (replace)
808011C2 RAM GDDR6 2 7 8 defect (replace)
808011C3 RAM GDDR6 1 2 7 8 defect (replace)
808011C4 RAM GDDR6 3 7 8 defect (replace)
808011C5 RAM GDDR6 1 3 7 8 defect (replace)
808011C6 RAM GDDR6 2 3 7 8 defect (replace)
808011C7 RAM GDDR6 1 2 3 7 8 defect (replace)
808011C8 RAM GDDR6 4 7 8 defect (replace)
808011C9 RAM GDDR6 1 4 7 8 defect (replace)
808011CA RAM GDDR6 2 4 7 8 defect (replace)
808011CB RAM GDDR6 1 2 4 7 8 defect (replace)
808011CC RAM GDDR6 3 4 7 8 defect (replace)
808011CD RAM GDDR6 1 3 4 7 8 defect (replace)
808011CE RAM GDDR6 2 3 4 7 8 defect (replace)
808011CF RAM GDDR6 1 2 3 4 7 8 defect (replace)
808011D0 RAM GDDR6 5 7 8 defect (replace)
808011D1 RAM GDDR6 1 5 7 8 defect (replace)
808011D2 RAM GDDR6 2 5 7 8 defect (replace)
808011D3 RAM GDDR6 1 2 5 7 8 defect (replace)
808011D4 RAM GDDR6 3 5 7 8 defect (replace)
808011D5 RAM GDDR6 1 3 5 7 8 defect (replace)
808011D6 RAM GDDR6 2 3 5 7 8 defect (replace)
808011D7 RAM GDDR6 1 2 3 5 7 8 defect (replace)
808011D8 RAM GDDR6 4 5 7 8 defect (replace)
808011D9 RAM GDDR6 1 4 5 7 8 defect (replace)
808011DA RAM GDDR6 2 4 5 7 8 defect (replace)
808011DB RAM GDDR6 1 2 4 5 7 8 defect (replace)
808011DC RAM GDDR6 3 4 5 7 8 defect (replace)
808011DD RAM GDDR6 1 3 4 5 7 8 defect (replace)
808011DE RAM GDDR6 2 3 4 5 7 8 defect (replace)
808011DF RAM GDDR6 1 2 3 4 5 7 8 defect (replace)
808011E0 RAM GDDR6 6 7 8 defect (replace)
808011E1 RAM GDDR6 1 6 7 8 defect (replace)
808011E2 RAM GDDR6 2 6 7 8 defect (replace)
808011E3 RAM GDDR6 1 2 6 7 8 defect (replace)
808011E4 RAM GDDR6 3 6 7 8 defect (replace)
808011E5 RAM GDDR6 1 3 6 7 8 defect (replace)
808011E6 RAM GDDR6 2 3 6 7 8 defect (replace)
808011E7 RAM GDDR6 1 2 3 6 7 8 defect (replace)
808011E8 RAM GDDR6 4 6 7 8 defect (replace)
808011E9 RAM GDDR6 1 4 6 7 8 defect (replace)
808011EA RAM GDDR6 2 4 6 7 8 defect (replace)
808011EB RAM GDDR6 1 2 4 6 7 8 defect (replace)
808011EC RAM GDDR6 3 4 6 7 8 defect (replace)
808011ED RAM GDDR6 1 3 4 6 7 8 defect (replace)
808011EE RAM GDDR6 2 3 4 6 7 8 defect (replace)
808011EF RAM GDDR6 1 2 3 4 6 7 8 defect (replace)
808011F0 RAM GDDR6 5 6 7 8 defect (replace)
808011F1 RAM GDDR6 1 5 6 7 8 defect (replace)
808011F2 RAM GDDR6 2 5 6 7 8 defect (replace)
808011F3 RAM GDDR6 1 2 5 6 7 8 defect (replace)
808011F4 RAM GDDR6 3 5 6 7 8 defect (replace)
808011F5 RAM GDDR6 1 3 5 6 7 8 defect (replace)
808011F6 RAM GDDR6 2 3 5 6 7 8 defect (replace)
808011F7 RAM GDDR6 1 2 3 5 6 7 8 defect (replace)
808011F8 RAM GDDR6 4 5 6 7 8 defect (replace)
808011F9 RAM GDDR6 1 4 5 6 7 8 defect (replace)
808011FA RAM GDDR6 2 4 5 6 7 8 defect (replace)
808011FB RAM GDDR6 1 2 4 5 6 7 8 defect (replace)
808011FC RAM GDDR6 3 4 5 6 7 8 defect (replace)
808011FD RAM GDDR6 1 3 4 5 6 7 8 defect (replace)
808011FE RAM GDDR6 2 3 4 5 6 7 8 defect (replace)
808011FF RAM GDDR6 1 2 3 4 5 6 7 8 defect (replace)
80802001 SSD controller (coprocessor) <-> APU data
80810001 General power failure (periphery, GDDR6, APU, data line shorted)
80830000 Shutdown/freeze after loading SAM-IPL: problem with DDR6 dataline (replace)
80830018 - Unknown (Power)
808300F0 Secure charger error
80870003 Error after safe loader
80871001 DDR4 error (power failure/short circuit)
80871055 SSD bank/s error
80871062 SSD controller <-> Syscon data line error (jumper)
80891001 SSD/DDR4 controller error (power failure/short circuit)
80892003 SSD/DDR4 controller error (power failure/short circuit)
80894003 SSD/DDR4 controller error (power failure/short circuit)
8089400F SSD/DDR4 controller error (power failure/short circuit)
808B00FF - Unknown (Power)
808B0098 DDR4 error (communication problem)
808C3790 Power failure - PWM/Unspecific
808C4F90 Power failure - PWM/Unspecific
808D0000 - Unknown (Power)
808D0002 - Unknown (TPM)
808E829A - Unknown (TPM)
808E0109 - Unknown (TPM)
808E0005 - Unknown (TPM)
808F0002 TPM 2.0 chip power failure
808F0003 TPM 2.0 chip power failure
80910002 - Unknown (SSD controller)
80910800 SSD/DDR4 controller error (power failure/short circuit)
80912000 SSD/DDR4 controller error (power faulure/short circuit)
80C0012D - Unknown (Data)
80C00134 SSD banks error
80C00136 WiFi/BT proble/power failure
80C00140 APU Freeze (No Response) - GDDR6 data line problem (replace)
80D00402 SSD banks error
86000005 Corrupted NOR
86000006 Corrupted NOR
B0082108 - Unknown (Chip/Data)
B0088108 - Unknown (Chip/Data)
C0020103 APU is not responding - trying to boot/reboot
C0020203 APU is not responding - trying to boot/reboot
C0020303 APU is not responding - trying to boot/reboot
C00C0002 VRM controller failure
C00C0303 - Unknown
C00C8000 - Unknown
C0810002 HDMI IC problem/power failure
C0810303 HDMI IC problem/data line short circuit/power failure
E0000001 Southbridge problem - cannot read errors
E0000002 Southbridge problem - cannot read errors
E0000003 Southbridge problem - cannot read errors
E0000004 Southbridge problem - cannot read errors
E0000005 Southbridge problem - cannot read errors
E0000006 Southbridge problem - cannot read errors
FFFFFFFF No Error

Hi @stetofix Do you know of a way to identify which RAM module is which on the PS5 motherboard? Just looking at the error codes, for example, "80801182 RAM GDDR6 2 8 defect" it would be great to know how to "count" or identify each module on the motherboard - which is module 2 and module 8 for example?

myfranco · Dec 12, 2023

For those interested;
@BrutalSam_ in Twitter posted UART reader. I can't send link as a new user.

UART reader is out.

PS5 UART commands

Well-Known Member

Well-Known Member

New Member

Active Member

Active Member

Member

Well-Known Member

Attachments

Member

Well-Known Member

Member

The Avatar-less One

Member

Well-Known Member

Member

Well-Known Member

The inadequate, autocratic beast!

Member

Well-Known Member

Member

Member

Similar threads

Popular threads in this forum
