Need help identifying chip on EDM 010

[dandylionking]

Hi everyone, its been a while but i've just go a EDM 010 in with a One beep issue, all voltages are present but under a thermal camera one particular spot near the HDMI encoder chip lights up i've narrowed it down to the circled chip below, ive also attached a video of the thermal camera footage.

Thanks everyone



[Johnny_debt]

Are you getting blue light then off? You can measure resistance to ground on pin 5 and 6 of that IC, that is the output.



[Deleted member 301661]

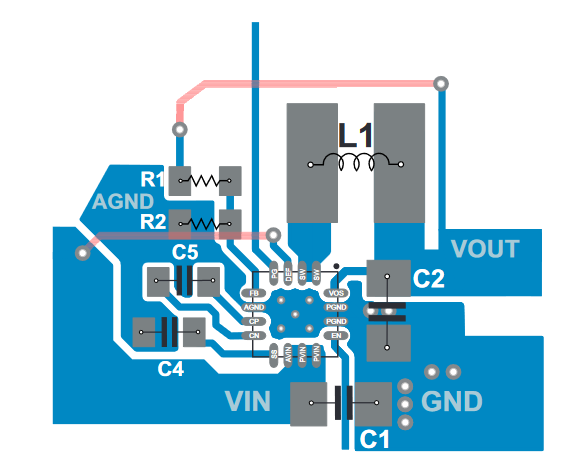

Components surrounding looks like

Could be (wierd number, but it is listed for BOM on PS5): https://www.ti.com/general/docs/sup...6&gotoUrl=https://www.ti.com/lit/gpn/tlv62090
TLV62090RGTT (SBV IC) a voltage regulator step down converter check if input and output mach befor buying for i found it for another PS type under another code name (F7002)
to be sure of the part, mail [email protected] for this company is.
this for i don't see an exact match, it could also be: Replacement Synchronous Buck Controller TI 3219A 5v Regulator For PlayStation 5.



[Ferris1000]

can't remove my previous post.



[jkyoho]

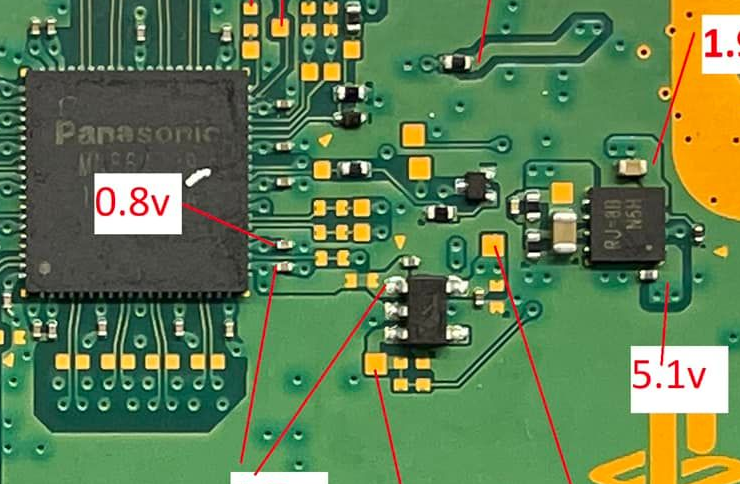

I've seen this kind of M label chip on EDM-020 is replaced by "RJ=XX" label CHIP, which is RT9048A.
They should be interchangable



[dandylionking]

I've seen this kind of M label chip on EDM-020 is replaced by "RJ=XX" label CHIP, which is RT9048A.
They should be interchangable

View attachment 436794

Thanks for the help, only issue now is finding a place selling these chips might have to grab an equivalent



[jkyoho]

Thanks for the help, only issue now is finding a place selling these chips might have to grab an equivalent

https://www.digikey.co.uk/en/produc...W/16376668?s=N4IgTCBcDaIEoBUCcAGALADgIIgLoF8g
