Hacking Hardware Picofly - a HWFLY switch modchip

[urherenow]

Shameless plug… https://gbatemp.net/threads/how-to-spot-a-fake-sandisk-card.629102/



[twins333]

A good test program for fake cards is hw2test which I can recommend:

https://h2testw.org/

Hehe. I used it on a 2tb fake card. it took more than 36 hours to fill it and another 36 hours to test the files written to the sd. The speeds were atrocious. In the end the card only had 8gb of actual space. Needles to say aliexpress refunded me in full. I knew the card was fake, but I still wanted to test it . The power used by the pc running all that time was probably more expensive than the actual card.
Later Edit: I forgot to tell you that the card was xiaomi official microSD card sold by the official xiaomi store. Of course I knew it's fake, since only a couple of brands actually have 2tb sd cards and Xiaomi is not one of them. Still really strange to see the official store sell fake products. And so obvious at that.



[Danook28]

Is there any og xbox original chip on aliexpress can buy or only softmod.

So sorry for ask here.,



[Deleted member 565746]

Is there any og xbox original chip on aliexpress can buy or only softmod.

So sorry for ask here.,

Try TSOP mod, better than cheap modchips amd more easy too "install"



[Danook28]

The rp2040 chip on v1 nicely fit where can put and the case no need ty secrws more to close any info.



[deeps]

The rp2040 chip on v1 nicely fit where can put and the case no need ty secrws more to close any info.

some people put the chip on the outside of the shield and route wires through the fan hole, but I'd recommend just cutting the shield for a nice fit.



[Danook28]

some people put the chip on the outside of the shield and route wires through the fan hole, but I'd recommend just cutting the shield for a nice fit.

Can you tell me how cut like this it is very nice man...



[deeps]

Can you tell me how cut like this it is very nice man...

with a dremel and a metal cutting disc



[abal1000x]

Just want to share experience.
This cable is good (red 40awg)
https://www.aliexpress.com/item/1005005454458676.html

The isolator are not easily melted.
The smallest insulated wire i ever used.
The cons is the price.



[twins333]

Just want to share experience.
This cable is good (red 40awg)
https://www.aliexpress.com/item/1005005454458676.html

The isolator are not easily melted.
The smallest insulated wire i ever used.
The cons is the price.

Hello,
Do you prefer these instead of the enameled ones?



[abal1000x]

Hello,
Do you prefer these instead of the enameled ones?

Yes, if i ignored the prices. The 40awg is the best.
The prices is 20x more than the enameled.

I've use the 34awg, still prefer enameled.
Because the rigidness is slightly higher than the enameled one.

The 40awg, rigidness is as 'soft' as to the enameled one.
But not like the enameled, it have thicker insulation material. So its safer from edge scratch.
I feel safe from ripping the pad. And the insulated material, seems different.
I use 350degrees, and yet, the insulation plastics not melting fast. I could solder to 3seconds, without worry at all.



[twins333]

I will order a few just to have them.



[LuigiGad]

with a dremel and a metal cutting disc

is more than enough



[snaker]

Just want to share experience.
This cable is good (red 40awg)
https://www.aliexpress.com/item/1005005454458676.html

The isolator are not easily melted.
The smallest insulated wire i ever used.
The cons is the price.

Do you have a recomendation for single core that is not easily melted?



[QuiTim]

is more than enough

Yeah, if you are cutting like i did (photo) that is enough, but If you want to cut like deeps did (only a square inside the shield) then you need some more tools because using scissors will bend the metal too much



[LuigiGad]

Yeah, if you are cutting like i did (photo) that is enough, but If you want to cut like deeps did (only a square inside the shield) then you need some more tools because using scissors will bend the metal too much

It is true, with scissors you bend the initial part but with your fingers you return to the initial position. Then eventually when you do 3 or 4 a day you get thrung out and start tearing them with your hands



[morganno]

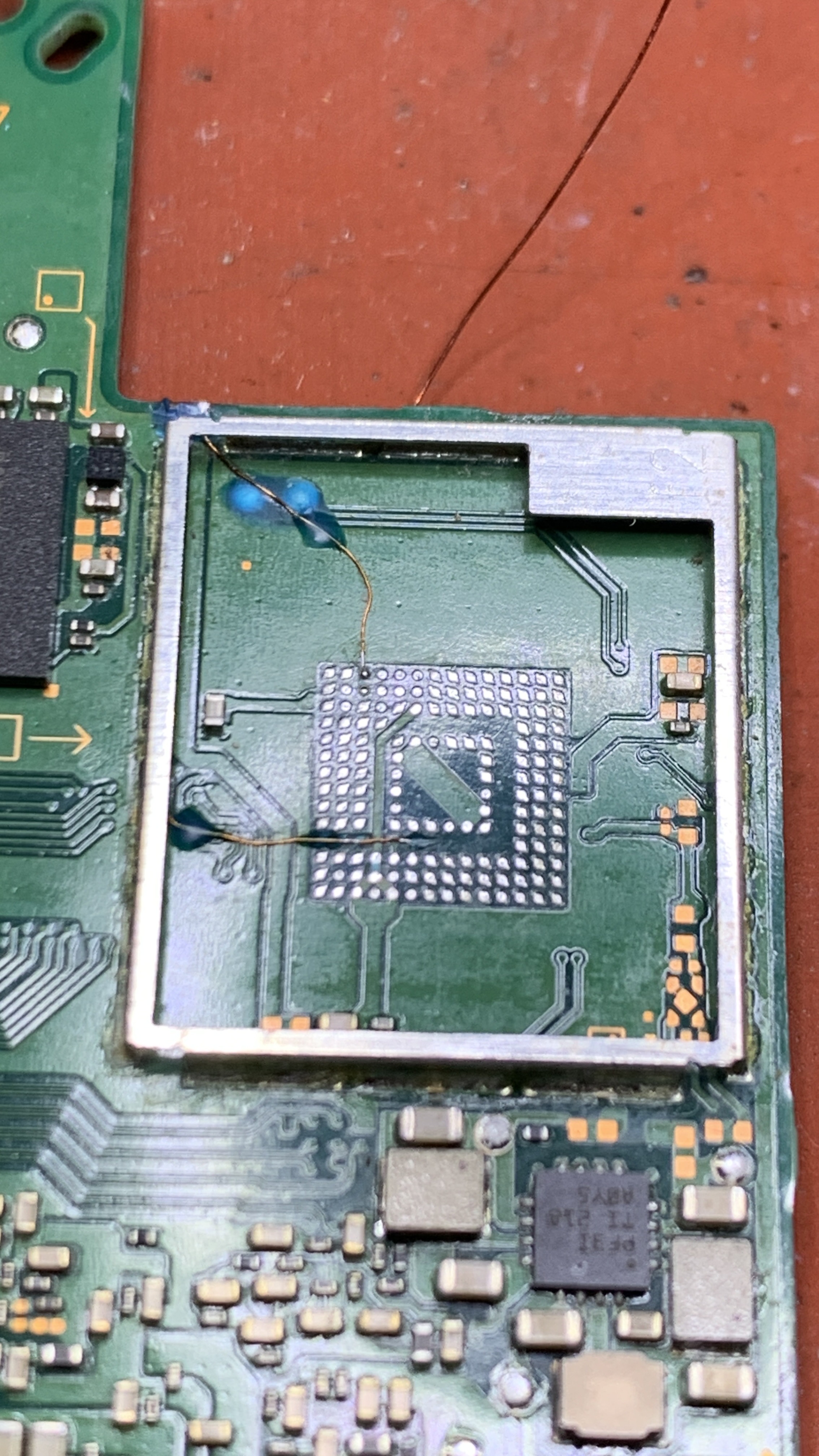

Hi friends, I have a little problem when I do a direct wiring, eMMC for the CLK nothing works the original pico *=* boot I did a continuity test on the AC point under the metal plate, I have well my continuity on my multimeter.



[jkyoho]

Hi friends, I have a little problem when I do a direct wiring, eMMC for the CLK nothing works the original pico *=* boot I did a continuity test on the AC point under the metal plate, I have well my continuity on my multimeter.

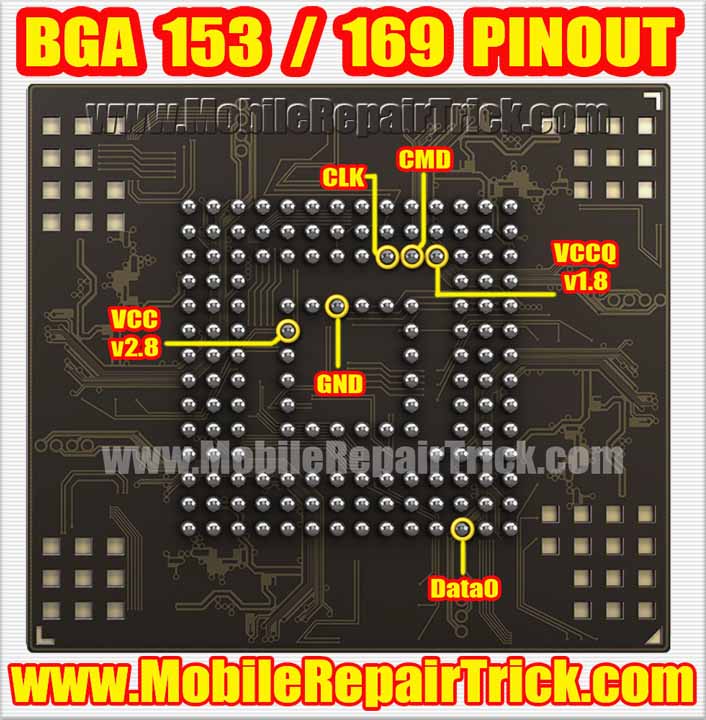

another guy loves dat1 more than dat0?



[morganno]

another guy loves dat1 more than dat0?

Thanks mate, damn I have shit in my eyes. I wanted to innovate and finally I did shit on some crazy thing

It's better this way



[abal1000x]

another guy loves dat1 more than dat0?

I wonder what is the science behind these phenomenon.
Its taking the conscious mind to choose the 4th pin than the 3rd pin.
Even i didn't realize at first, until someone point it out.
My mind also choose the 4th pin.
