Tafty said:
just flashed it and it is doing something...then failing, i dont have a IRFHS8342 installed in this currently, and would have to order one to actually test. i dont know if its worth doing at the minute.
Click to expand...
use you cpu flat cable.

  • Like
Reactions: FruithatMods
Tafty said:
just flashed it and it is doing something...then failing, i dont have a IRFHS8342 installed in this currently, and would have to order one to actually test. i dont know if its worth doing at the minute.
Click to expand...

You need some kind of MOSFET, otherwise it won't make sense. As @Mansi has already said, you may be even able to use the cpu flat cable of the HWFLY/SXCore.
Post automatically merged:

RexSonic said:
What do you need that specific chip for ?
Click to expand...
It's a MOSFET (basically an electrical switch)

  • Like
Reactions: FruithatMods, Mansi, impeeza and 1 other person
RexSonic said:
What do you need that specific chip for ?
Click to expand...
Check the picture. It’s mosfet. Connecting Sink (4) and Drain (5) but controlled with a Gate (3) from the Pico. That way Pico doesn’t have to supply voltage…it’s using system voltage to do the work. Somebody smarter than me correct if I’m wrong.

  • Like
  • Love
Reactions: FruithatMods, impeeza and peteruk
Can anyone decompile the UF2?
Post automatically merged:

Also, I'm wondering why this chip apparently only needs one MOSFET, AFAIK HWFLY and SXCore use two?
This is what I was asking before, one MOSFET controls voltage to the BPMP, but what does the other one control?

  • Like
Reactions: impeeza
OK so I'm allready using the cpu flex for this lite I have a pico installed on.

The only thing that is different from my original install is I don't have chip reset wired up to anything. Any ideas where these need to go

Tafty said:
thats RST i allready have that in the correction location, im talking about on the other side there is 2 for chip reset that arent on the original wiring diagram
Click to expand...
Woops sorry, actually I have no clue why that's there :unsure:
Post automatically merged:

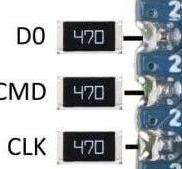

Also, are these things supposed to be resistors (470 ohm?) ?

  • Like
Reactions: impeeza
  • Like
Reactions: peteruk and binkinator
