Hacking Hardware Picofly - a HWFLY switch modchip

[Ganesha0112]

How can I update a pi zero trough toolbox?
The chip don’t have the USB C port



[Gazzza]

hey guys i found this thread and i didn't follow it at all but i'm really intersted in it, someone has done a guide for doing this ?
or i need to read all of this ?
if there isn't a official guide to follow i'll try to do one by myself and maybe share it with the admins
thx to everyone



[Dee87]

How can I update a pi zero trough toolbox?
The chip don’t have the USB C port

place update.bin in sd root folder
open picofly toolbox
update
reboot

Post automatically merged: Apr 8, 2023

hey guys i found this thread and i didn't follow it at all but i'm really intersted in it, someone has done a guide for doing this ?
or i need to read all of this ?
if there isn't a official guide to follow i'll try to do one by myself and maybe share it with the admins
thx to everyone

Picofly AIO Thread

here everythign u ned to know



[iO-bUGGY]

Guys did anyone use 0.10 wire for mod and does it work as I think it's to thin?
Can someone confirm that works.



[Adran_Marit]

place update.bin in sd root folder
open picofly toolbox
update
reboot

Post automatically merged: Apr 8, 2023

Picofly AIO Thread

here everythign u ned to know

dang ninja XD



[Donnie-Burger]

Guys did anyone use 0.10 wire for mod and does it work as I think it's to thin?
Can someone confirm that works.

Works on all models.



[Dee87]

Guys did anyone use 0.10 wire for mod and does it work as I think it's to thin?
Can someone confirm that works.

yes it works for everything except the wires from caps to mosfet if u use wires installing the mosfet



[Flasheure]

I often replace m92t36 so was thinking of using another 3.3v point so to not run wires around m92 incase it ever needs to be replaced

The emmc board has a 3.3v point that I guess sx core and hwfly clones use with the solderless chips
View attachment 363672

That’s what I was wondering, too.
And for the same reasons.
@ follow



[Dee87]

That’s what I was wondering, too.
And for the same reasons.
@ follow

I often replace m92t36 so was thinking of using another 3.3v point so to not run wires around m92 incase it ever needs to be replaced

The emmc board has a 3.3v point that I guess sx core and hwfly clones use with the solderless chips

yes u can also use it from the emmc i have done it on my v2 so no problem there



[BlownUpTurtle]

Is there a way we could incorporate the data lines from the switch to the picofly, and have a sort of update mode so we can flash the pico with the switch usb-c, that way we don’t need to open the switch and re add the usb-c every new update?



[Flasheure]

yes it works for everything except the wires from caps to mosfet if u use wires installing the mosfet

So what do you recommend to connect the caps to the mosfet ?



[Dee87]

So what do you recommend to connect the caps to the mosfet ?

i would recommend using flex cable
or direkt soldering to the caps
wire for caps to mosfett i would say 0.4 or 0.5 i guess



[Arakon]

Guys did anyone use 0.10 wire for mod and does it work as I think it's to thin?
Can someone confirm that works.

I used AWG36 except for 3.3v/GND (AWG30). No issues at all.

Post automatically merged: Apr 8, 2023

Is there a way we could incorporate the data lines from the switch to the picofly, and have a sort of update mode so we can flash the pico with the switch usb-c, that way we don’t need to open the switch and re add the usb-c every new update?

Starting with 2.6 alpha, you can just update the chip using a special payload, no need to use USB.



[seleco]

I used AWG36 except for 3.3v/GND (AWG30). No issues at all.

Post automatically merged: Apr 8, 2023

Starting with 2.6 alpha, you can just update the chip using a special payload, no need to use USB.

MOSFET or flex? If MOSFET with cable or direct to cap?



[Dee87]

MOSFET or flex? If MOSFET with cable or direct to cap?

However u want to do it



[iO-bUGGY]

Can someone tell me the value of the cmd resistor on the OLED?



[Dee87]

Pinout for XIAO2040
@Adran_Marit if u want to add this to

Post automatically merged: Apr 8, 2023

Can someone tell me the value of the cmd resistor on the OLED?

same as the for every other board 47OHM



[Arakon]

MOSFET or flex? If MOSFET with cable or direct to cap?

I used wires to the MOSFET, MOSFET is sitting next to the CPU. See here, before it glued it down: https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/post-10113097



[Dee87]

I used wires to the MOSFET, MOSFET is sitting next to the CPU. See here, before it glued it down: https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/post-10113097

i did it this way
View attachment 2022_0213_201214_002.JPG



[iO-bUGGY]

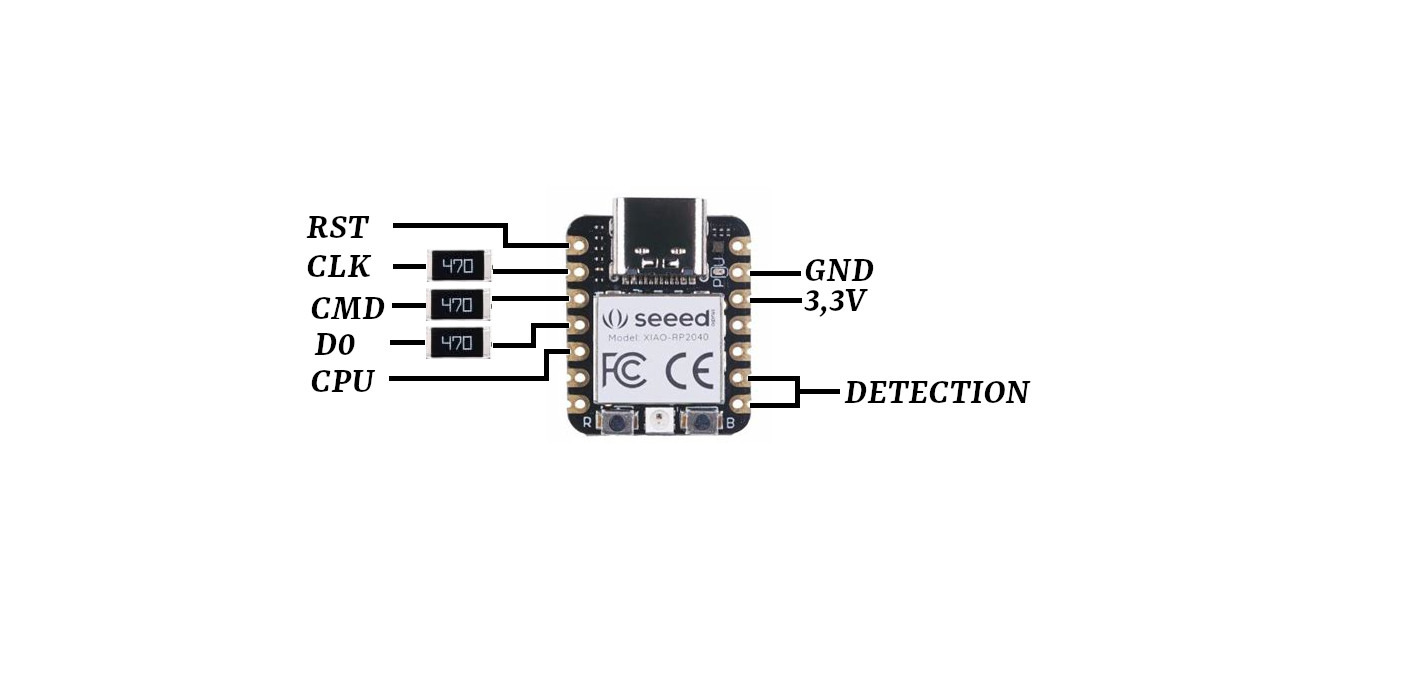

Pinout for XIAO2040
@Adran_Marit if u want to add this to
im gonna try to add itsybitsi and pico later when i have more time
View attachment 363678

Post automatically merged: Apr 8, 2023

same as the for every other board 47OHM

The one on the board side.ot the one on the rp2040 47OHM.
I knocked of the resistor on the board cmd resistor.
