Hacking Hardware Picofly - a HWFLY switch modchip

[kimitoboku101]

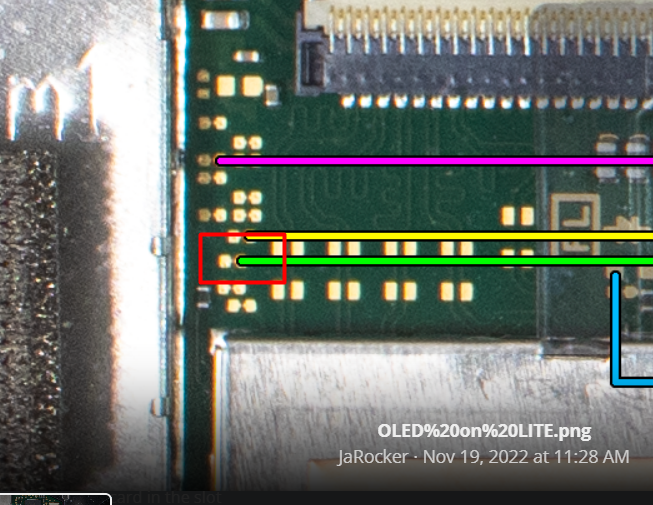

anyone tell me what the another positon of this pin,
my point is broken TT



[BlownUpTurtle]

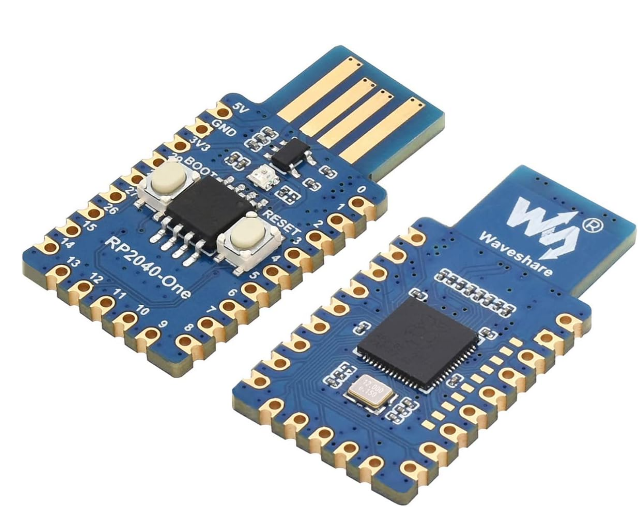

Guys, I think I managed to fit rp2040 in switch lite (cuz I only got lite).
Just need to cut off a little bit from the plastic part between ZR and R button, and from the back cover.
It seems the type-c is just of the same height as the speaker.
And it closed perfectly with the prussure of the screws.

This is pretty awesome!



[rehius]

Also i don’t understand mosfet installation..some pictures show mosfet soldered to both left and right apu and other show mosfet just soldered to left apu cap..does just the left apu cap works? Thank you

yes, only left is OK



[jkyoho]

anyone tell me what the another positon of this pin,
my point is broken TT View attachment 360492

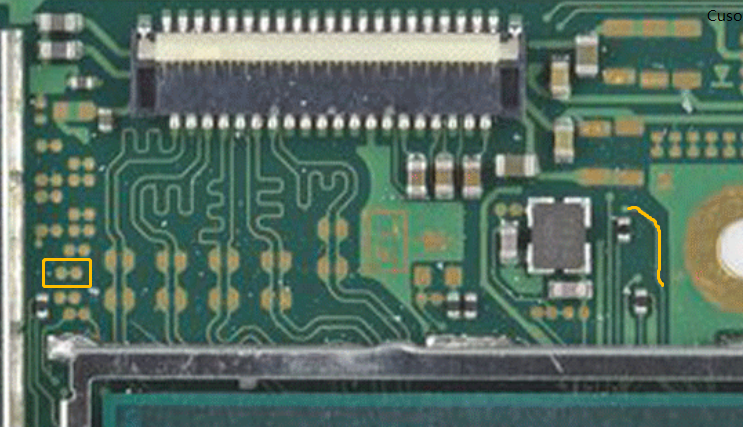

CLK point alternative. Be aware the alt point is not on that resistor but the trace under pcb mask.

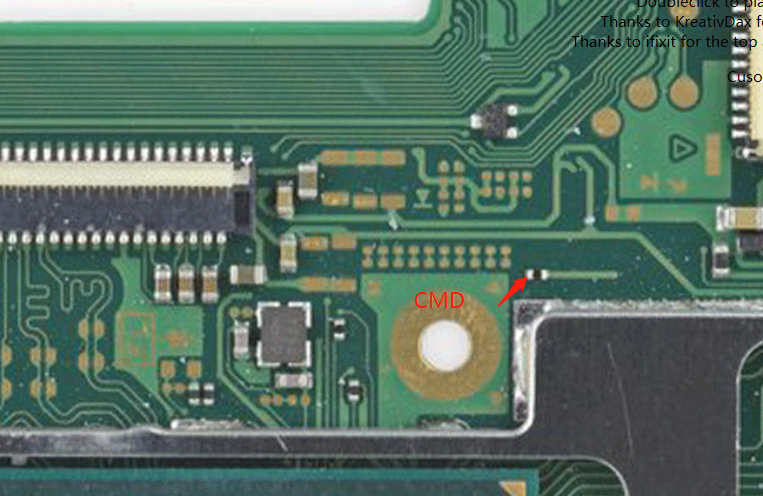

HERE is CMD alternative point. on Left side of resistor(4.7k ohm).



[rehius]

anyone tell me what the another positon of this pin,
my point is broken TT View attachment 360492

I think with these points broken the Switch won't work at all, you have to fix it



[cowboy619]

anyone tell me what the another positon of this pin,
my point is broken TT View attachment 360492

When you break that point the switch is dead fam! You need to repair it



[jkyoho]

When you break that point the switch is dead fam! You need to repair it

Yes, those CMD&clk short test points(o-o) go all the way under the emmc. If those test point trace broken, you lost emmc to CPU communication



[binkinator]

0.5mm pitch confirmed

At first I thought you copy pasted my pic. We must shop at the same stores. LOL!

thanks for confirming! It was kinda hard to measure…lots of slippage!



[billybobxxx]

yes, only left is OK

one last thing the s or the g from mosfet goes to cpu pad of the pico? Thank you!



[linuxares]

@mathew77 want me to remove the poll now? Maybe it's time to update the OP?



[jkyoho]

one last thing the s or the g from mosfet goes to cpu pad of the pico? Thank you!

(G)ate



[Space_Goddess_Samus_Aran]

haha would do it on my OLED Switch.....but cant program nor solder....



[eseldiem]

haha would do it on my OLED Switch.....but cant program nor solder....

Can you pay?



[Space_Goddess_Samus_Aran]

depends how much haha



[billybobxxx]

yes, only left is OK

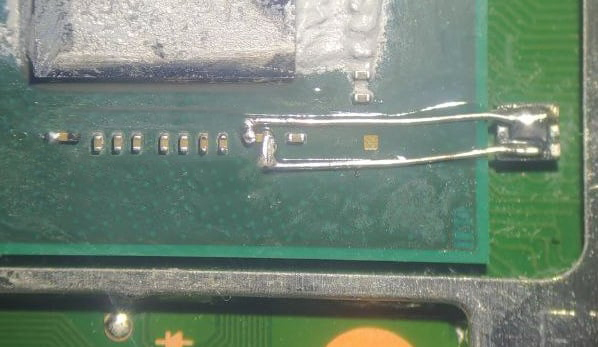

And can i take just the right apu cap to shorten the wire? like this



[Space_Goddess_Samus_Aran]

imagine asking someone doing it for free....

cause i wanna sell my Unpatched modded (banned) switch and mod my oled (using emunand). and wanna sell my other unpatched oled with an Trinket M0 (cant read sd cards).



[jkyoho]

ORDERED USB-male finger style. CHEAPEST one on AMZ since they deliver it tomorrow



[rcpd]

@mathew77 want me to remove the poll now? Maybe it's time to update the OP?

I wouldn’t mind seeing this thread merged with this one: https://gbatemp.net/threads/pikofly-aio-thread.628951/

The original post is direct, on topic, formatted well, and includes everything needed right there without having to dive through 100+ pages of info.



[rehius]

And can i take just the right apu cap to shorten the wire? like this

I have tested only the left one. You can try



[linuxares]

I wouldn’t mind seeing this thread merged with this one: https://gbatemp.net/threads/pikofly-aio-thread.628951/

The original post is direct, on topic, formatted well, and includes everything needed right there without having to dive through 100+ pages of info.

If we merge it will get very messy.

I rather ask Adran if you guys (3 of you?) can also edit the OP. Else he is kind of fast to update but he lives in the future from us.
