Hacking Hardware Picofly - a HWFLY switch modchip

[vittorio]

yes, but the soldering points are different from the ones that appear in the pictures

View attachment 360341

i dont understand the mosfet diagram, it seems diferent in the pics

hi, where can i find it?



[rehius]

Are we closing this thread?

make it picofly, at least



[vittorio]

toshiba with 82 ohm resistor on cmd seems to be better



[linuxares]

I'm just waiting and see what people think. Else I leave the thread open, plus it's @mathew77 thread in the end.



[billybobxxx]

And can i take just the right apu cap to shorten the wire? like this

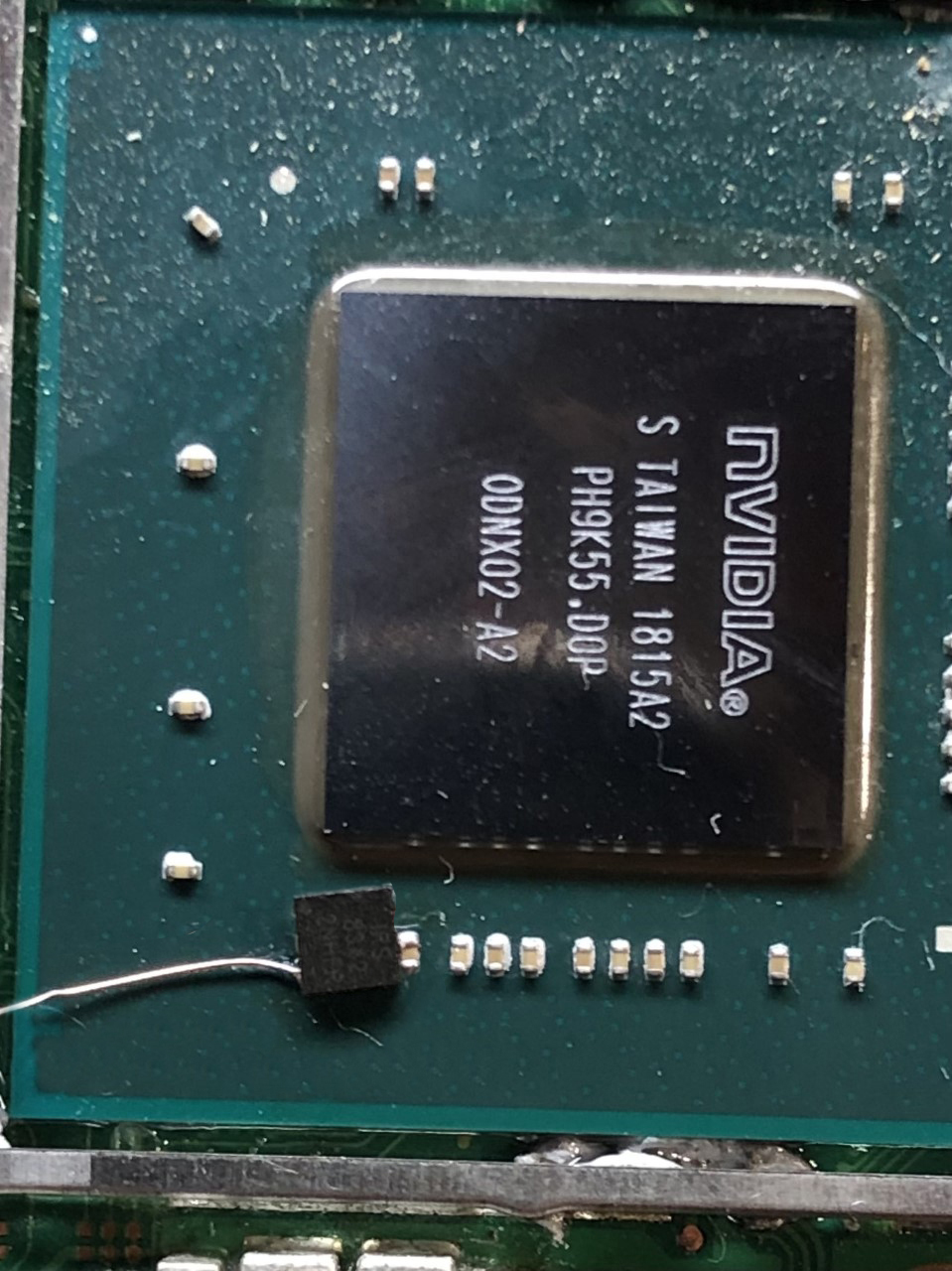

finally i ended up soldering mosfet directly to left capacitor



[linuxares]

finally i ended up soldering mosfet directly to left capacitor

clean looking



[Modzvilleusa]

Test #1 - Erista Patched no resistors - Hekate loads = EMMC in slow mode

I had this issue on an Oled with no resistors.
Measured the cmd resistor and the ohms were off, eventually purple screened. Uninstalled and switch worked fine, Cmd measured correctly.
TLDR - use some damn resistors.



[SylverReZ]

I had this issue on an Oled with no resistors.
Measured the cmd resistor and the ohms were off, eventually purple screened. Uninstalled and switch worked fine, Cmd measured correctly.
TLDR - use some damn resistors.

Are you going to make an installation video at some point?



[linuxares]

I had this issue on an Oled with no resistors.
Measured the cmd resistor and the ohms were off, eventually purple screened. Uninstalled and switch worked fine, Cmd measured correctly.
TLDR - use some damn resistors.

You either join the resistance or you ohm out of luck

EDIT: I'll show myself out



[rcpd]

I'll send you to the gulags!

Do meh nxt bbeh.



[kimitoboku101]

Some body please tell me that value of component
maybe i get Short and now i check that all component is connected from 2 sides of the capacitor TT



[binkinator]

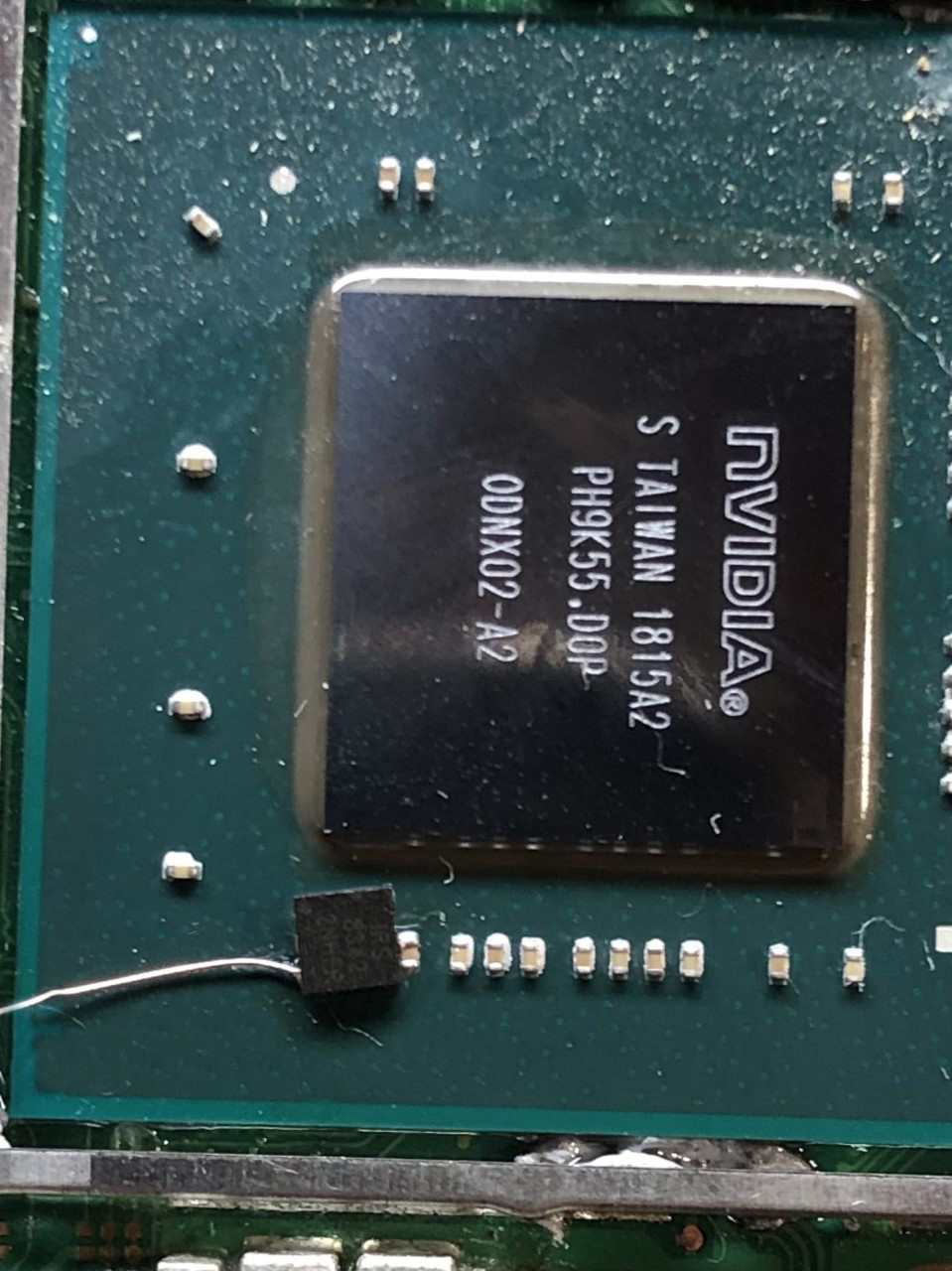

finally i ended up soldering mosfet directly to left capacitor

I like this the best. Direct attach…no fiddly cables.



[_kedo_]

finally i ended up soldering mosfet directly to left capacitor

Please check your soldering. Looks like both drains connected to capacitor.



[billybobxxx]

Please check your soldering. Looks like both drains connected to capacitor.

thank you i have corrected my error! Now capacitor connected to drain and source



[cowboy619]

Is anyone using a ts100 iron? Which tip is recommended and solder thickness?

Not sure when the electric parts will turn up but might aswell get myself prepped

J Tip



[YukiHomura]

the Toshiba EMMC Prob does that apply to older switches or OLED?

i wanna mod my oled but dont have knowledge lmao



[Allen-R]

The 'Atmosphere Unlock' part has been added to the main post
to prevent possible partial / badly unlocked firmwares causing damage to a console.

My congratulations with the security bypass, flynnsmt4!

ℙ 𝕆 𝔾 𝔾 𝔼 ℝ 𝕊 𝔸 𝔽



[Acidz]

pcbs for cores and lites will be released tonight. FULL OPEN SOURCE PCBS. keep a look out



[GGorast]

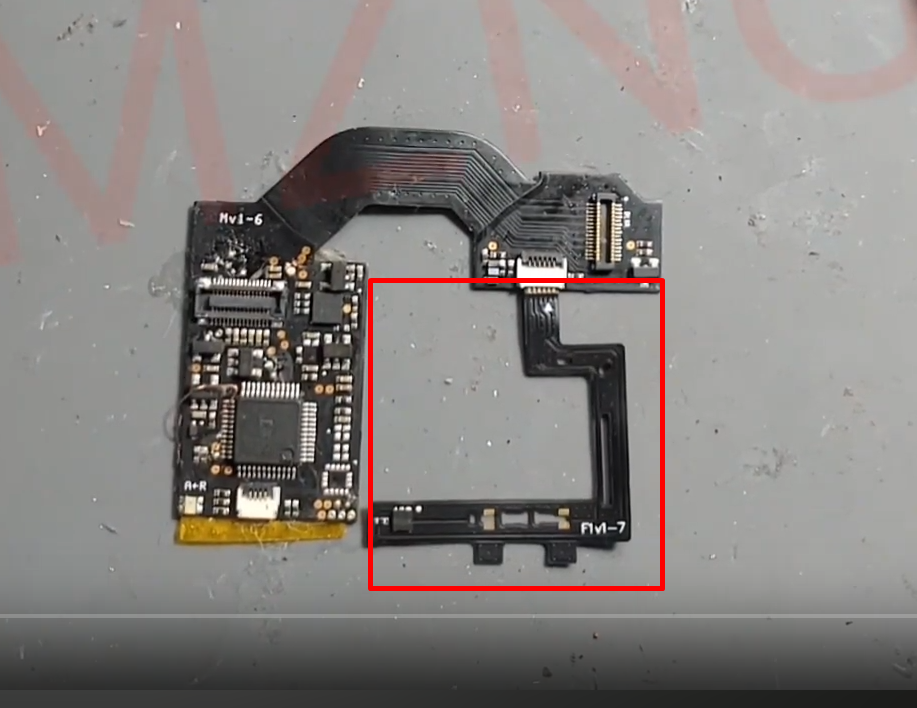

What kind of flat cable is this? Where do I get it from?
tnx



[zebrone]

Im not able to solder just want to know if it runs and where to buy it so i can ask to a friend to see this thread and sokder it on my switch oled.
Anyone can answer to me,please?
