M92T36 or BQ24193

Discussion in 'Switch - Console, Accessories & Hardware' started by nerirififi, Jan 4, 2019.

  1. Agilato

    Agilato GBAtemp Regular

    Member
    2
    Jun 21, 2019
    United States

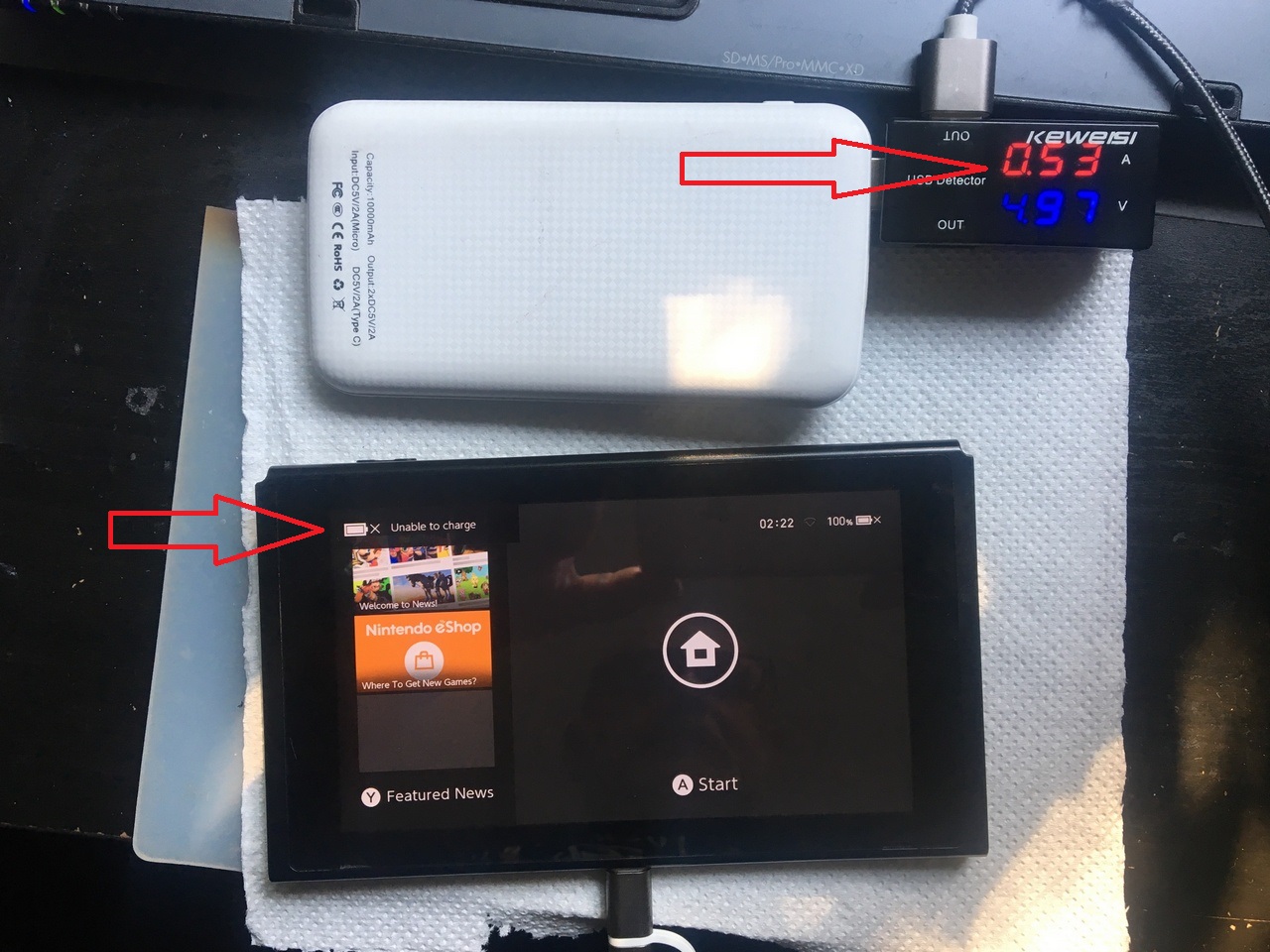

    And this is the reason, just for fun check original power supply output and you would be surprised it's almost like a laptop up to 30-Watts.
    Main reason why ppl. blow their switches by using regular iPhone charger...
    You need PowerBank with fast charge at least, does ur support it?

  2. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    Check the coil on D+ D-

  3. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania
    OK I'll measure tomorrow and come back with info. THX

  4. Agilato

    Agilato GBAtemp Regular

    Member
    2
    Jun 21, 2019
    United States
    "Occam's razor"
    What if your switch is totally ok, do you have opportunity to check your charging devices with other switch?

  5. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania
    Yes Sir, i tried this with other switch and works perfectly.

  6. Agilato

    Agilato GBAtemp Regular

    Member
    2
    Jun 21, 2019
    United States
    You might have some Rat at the board 0.5 amps should heat something. I would use freezer spray or tried to find it on touch.

  7. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania
    I searched carefully and couldn't find anything........

  8. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania
    I checked and it is ok....

  9. Mardare

    Mardare Member

    Newcomer
    1
    Jul 12, 2017
    Romania
    I can't solve the problem. In the dock it charging perfectly but on the usb C cable that neither it nor it organizes in win 7 or 10 and on the switch it appears the message that it cannot charging. I tried several cables on several laptops.......:wacko::cry:
    I measured with the multimeter everywhere I was advised to measure. I didn't find anything right. The only anomaly is at the diode near the usb c port which shows me 5v on both sides although I know it has to 5v with 3v.


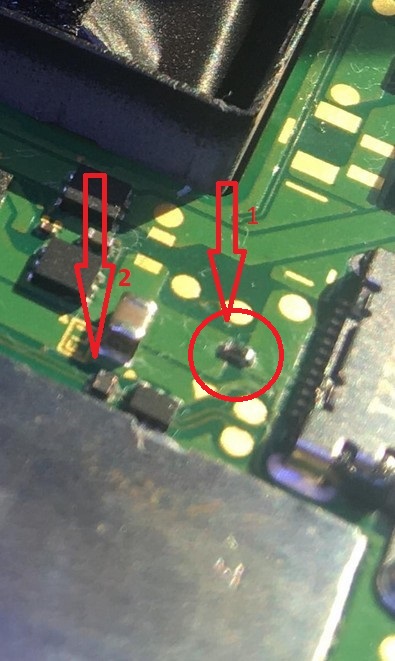

    Attached Files:

    • di.
      File size:
      83.5 KB
      Views:
      0
    Last edited by Mardare, Oct 10, 2019
  10. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    The part closest to the usb port is a fuse not a diode, voltage coming in should be the same on both sides.

    Agilato and FXDX like this.
  11. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania
    Last edited by FXDX, Oct 10, 2019
    edwardsalazar97 likes this.
  12. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    So your plugging your switch in to the usb port of a computer or power bank or what ever else, which all give out 5 volts and because you've got 5 volts on the top of the fuse/diode you think that could be your issue.
    Sorry but i don't think changing that part will make any difference.

    FXDX likes this.
  13. tr1p1ea

    tr1p1ea Member

    Newcomer
    1
    Jun 22, 2017
    Australia
    I had a short on a cap near BQ24193 and thought perhaps it was the chip - the short however is still present once I removed the chip. It is this cap:

    [​IMG]

    Anyone know what this could relate to?

  14. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    Plug the charger in and see if that cap get's hot, don't leave it in for age's though.

    Check in the usb port to make sure all pins are ok

    Last edited by Pintglass, Oct 10, 2019
    FXDX likes this.
  15. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania
    10uF 10v 0805 cap

  16. solac

    solac Member

    Newcomer
    1
    Jun 21, 2009
    hi guys i finally tested my switch with a doc and it does not output anything to the screen. so a little recap i change the usb charge port and the p13usb ic. what do i need to check now ?

    is there anyway to check if there its the usb charge port or the p13usb ic?

    Last edited by solac, Oct 11, 2019
  17. Jiehfeng

    Jiehfeng Netti Netti

    Member
    12
    Aug 15, 2012
    United States
    Noticing, aloof from it all
    Now I feel ripped off again. I had a day one Switch that I sent to repair by a member on this site over at the trading forums, and when he said he was gonna send it back cause he couldn't repair it, he didn't reply after that and never did send it back. Lost my chances of hacking a Switch or repairing it. Sad.

    Agilato and Mardare like this.
  18. Mardare

    Mardare Member

    Newcomer
    1
    Jul 12, 2017
    Romania
    That's really bad news:angry:

    Jiehfeng likes this.
  19. Agilato

    Agilato GBAtemp Regular

    Member
    2
    Jun 21, 2019
    United States
    Check chokes near p13 chip, those are usually got fried with shorted USB-C

    FXDX likes this.
  20. FXDX

    FXDX Member

    Newcomer
    1
    Sep 15, 2019
    Romania

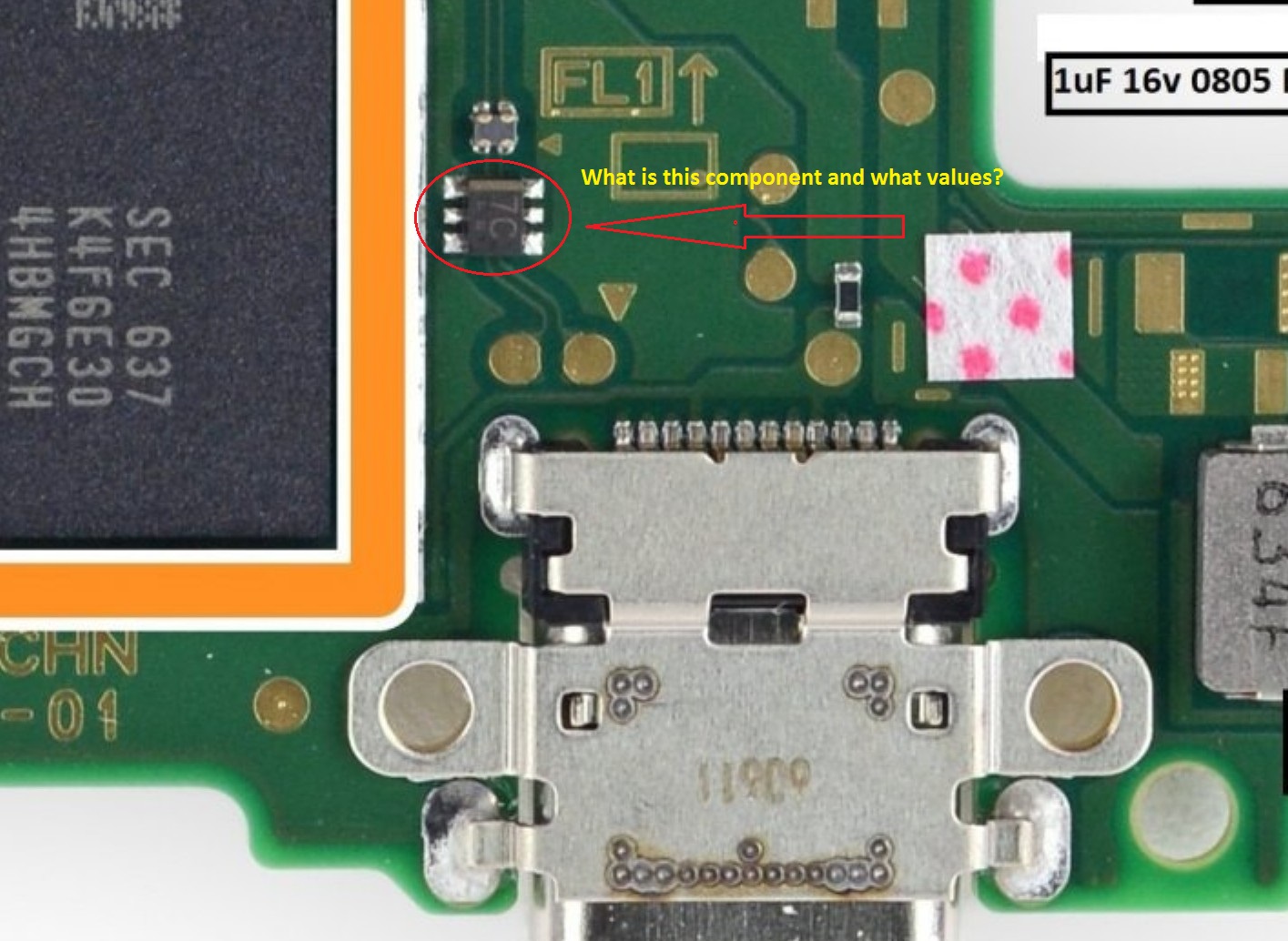

    Does anyone know what this component is and values ? Thx !

    aa.
