Hacking Hardware Picofly - a HWFLY switch modchip

[Dandan0404]

HELLO NEED SOME REFRESHER COURSE

tldr, self modded(using picofly) my OLED switch long time ago and in december 2023 sd card got lost and a day after immediately got deployed , just came back yesterday and i have forgotten most of the software side (hekate,atmosphere,emummc etc)

QUESTIONS:
1. is there a softmod developed from the past year or the MAGswitch i heard about?(its okay if there is no)
2. can someone refresher course me a tldr how to get back to working jailbreak switch? i have a backup folder on my drive which i already complety forgot how to use.
3. can i upgrade to latest firmware even though i didnt do new mods (SDA ,SCL, i know that is old bu when i mod my switch , that still didnt existed)

Thank you



[detilmalala]

HELP PLEASE!!!!!
The clk track was broken on an OLED switch and when I inserted the chip after the first white light, the console no longer turned on in original mode. is there a solution???

Post automatically merged: Jan 12, 2025

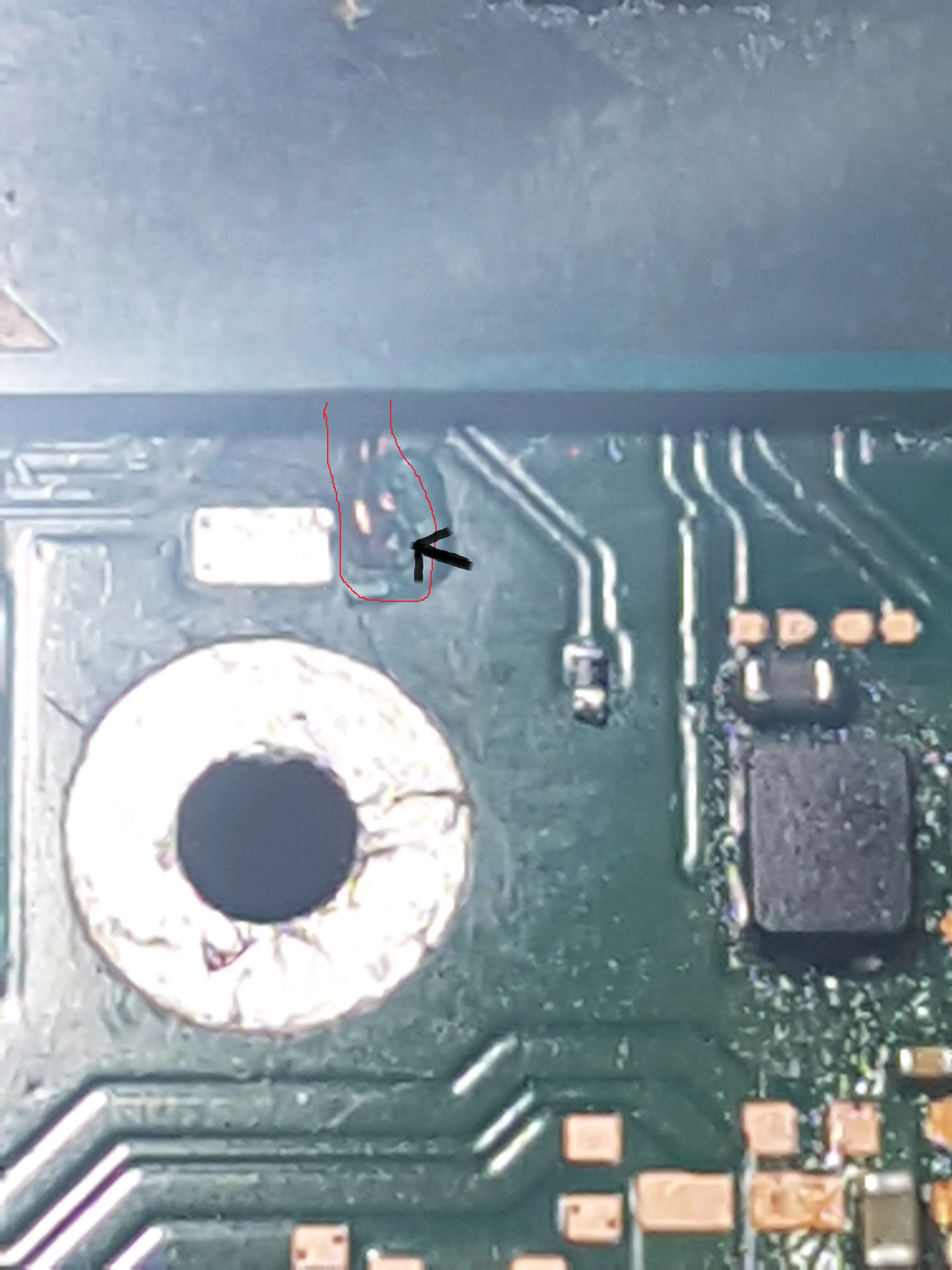

when i started the console picofly was solder here, and now console only boots hekate



[Danook28]

HELP PLEASE!!!!!
The clk track was broken on an OLED switch and when I inserted the chip after the first white light, the console no longer turned on in original mode. is there a solution???

Post automatically merged: Jan 12, 2025

when i started the console picofly was solder here, and now console only boots hekate

add clean pic i well help you.

Post automatically merged: Jan 12, 2025

HELLO NEED SOME REFRESHER COURSE

tldr, self modded(using picofly) my OLED switch long time ago and in december 2023 sd card got lost and a day after immediately got deployed , just came back yesterday and i have forgotten most of the software side (hekate,atmosphere,emummc etc)

QUESTIONS:
1. is there a softmod developed from the past year or the MAGswitch i heard about?(its okay if there is no)
2. can someone refresher course me a tldr how to get back to working jailbreak switch? i have a backup folder on my drive which i already complety forgot how to use.
3. can i upgrade to latest firmware even though i didnt do new mods (SDA ,SCL, i know that is old bu when i mod my switch , that still didnt existed)

Thank you
View attachment 480131



[detilmalala]

add clean pic i well help you.

The green part is where the chip was soldered, the red part means there was no track. When I turn on the console with the chip, after the first white light (I think it injects some code), only blue light from the chip. Now I repaired the clk track but the console does not turn on either original or cfw, only hekate



[Danook28]

The green part is where the chip was soldered, the red part means there was no track. When I turn on the console with the chip, after the first white light (I think it injects some code), only blue light from the chip. Now I repaired the clk track but the console does not turn on either original or cfw, only hekate

View attachment 480224

are you read point before do all this
soldering?????

you now want to boot ofw there are clk point under emmc chip you must soldering it to the clk point it self if it damge much coz the first pic is not clear the next pic is it before damge clk!!




it is risky clk must not ground or will dmge cpu and mod chip so bad...



[abal1000x]

HELLO NEED SOME REFRESHER COURSE

tldr, self modded(using picofly) my OLED switch long time ago and in december 2023 sd card got lost and a day after immediately got deployed , just came back yesterday and i have forgotten most of the software side (hekate,atmosphere,emummc etc)

QUESTIONS:
1. is there a softmod developed from the past year or the MAGswitch i heard about?(its okay if there is no)
2. can someone refresher course me a tldr how to get back to working jailbreak switch? i have a backup folder on my drive which i already complety forgot how to use.
3. can i upgrade to latest firmware even though i didnt do new mods (SDA ,SCL, i know that is old bu when i mod my switch , that still didnt existed)

Thank you
View attachment 480131

https://rentry.co/SwitchHax
https://gbatemp.net/threads/picofly-a-hwfly-switch-modchip.622701/page-813#post-10514474



[detilmalala]

are you read point before do all this
soldering?????

you now want to boot ofw there are clk point under emmc chip you must soldering it to the clk point it self if it damge much coz the first pic is not clear the next pic is it before damge clk!!




it is risky clk must not ground or will dmge cpu and mod chip so bad...

you dont understand, clk trace is restored now, but the console does not work, because the chip injected code when the clk point was cut. I put the console only runs hekate, so clk point now is good



[Danook28]

you dont understand, clk trace is restored now, but the console does not work, because the chip injected code when the clk point was cut. I put the console only runs hekate, so clk point now is good

i understand dont worry. are you fix the console now?



[detilmalala]

i understand dont worry. are you fix the console now?

no, only hekate works. i think its because picofly injected code with the clk point cut the first time i test it



[Danook28]

no, only hekate works. i think its because picofly injected code with the clk point cut the first time i test it

can you read sp1 sp2 point from cpu and back motherboard. also there are dat0 point if it cut make black secreen. also you can read capacitor near charge chip you can know if cpu dead or no.

read all point add value here.



[detilmalala]

can you read sp1 sp2 point from cpu and back motherboard. also there are dat0 point if it cut make black secreen. also you can read capacitor near charge chip you can know if cpu dead or no.

read all point add value here.

can you read sp1 sp2 point from cpu and back motherboard. also there are dat0 point if it cut make black secreen. also you can read capacitor near charge chip you can know if cpu dead or no.

read all point add value here.

it is not a hardware issue, like i said the error existe for the test the chip the first time with the clk cut, i think there is something corrupted



[Danook28]

it is not a hardware issue, like i said the error existe for the test the chip the first time with the clk cut, i think there is something corrupted

when you chose cfw sysnand or stock or emummc what happend. can you backup nand or go to nx nand manger on pc???? prod kyes see is there emmc info in hekate or sd info or ram info???



[detilmalala]

when you chose cfw sysnand or stock or emummc what happend. can you backup nand or go to nx nand manger on pc???? prod kyes see is there emmc info in hekate or sd info or ram info???

maybe this help, note than battery indicator is dead



[LuigiGad]

maybe this help, note than battery indicator is dead

You have hardware damage that has nothing to do with the CLK point



[Danook28]

maybe this help, note than battery indicator is dead

can you back up the nand???



[detilmalala]

can you back up the nand???

I can try to make a backup of the nand. Does anyone know what the picofly does the first time it turns on when it turns on the white light???



[bvang913]

It's trying to glitch the console. Doing so if the clk trace is broken should not do anything. Didn't think this was asked before, but what kind of chip are you using? It's been known that some hwfly style chips can corrupt the emmc.



[detilmalala]

It's trying to glitch the console. Doing so if the clk trace is broken should not do anything. Didn't think this was asked before, but what kind of chip are you using? It's been known that some hwfly style chips can corrupt the emmc.

rp 2040 tiny, the same one I have used hundreds of times, the chip glitches when the blue light is on, but when it turns on the first white light it is doing something else, I think it modifies something somewhere with code...
I already made the complete backup of the nand, what program do I use to find out if it is corrupt or not?



[Danook28]

rp 2040 tiny, the same one I have used hundreds of times, the chip glitches when the blue light is on, but when it turns on the first white light it is doing something else, I think it modifies something somewhere with code...
I already made the complete backup of the nand, what program do I use to find out if it is corrupt or not?

View attachment 480406





View attachment 480405

you have prod keys??? in the nx nand manger you can see console id info??



[detilmalala]

you have prod keys??? in the nx nand manger you can see console id info??

is this right???
