Blue or Cyan?
The blue is like , while cyan is like

Much better if you video on it, so we could understand.

I think its Cyan, means the mosfets problem.

No solid blue then off. No button press just battery plugged in then instant blue.

Post automatically merged: May 8, 2023

No solid blue then off. No button press just battery plugged in then instant blue.

Same if you unsolder cpu pin from rp2040. No change



[abal1000x]

.



[darrin41]

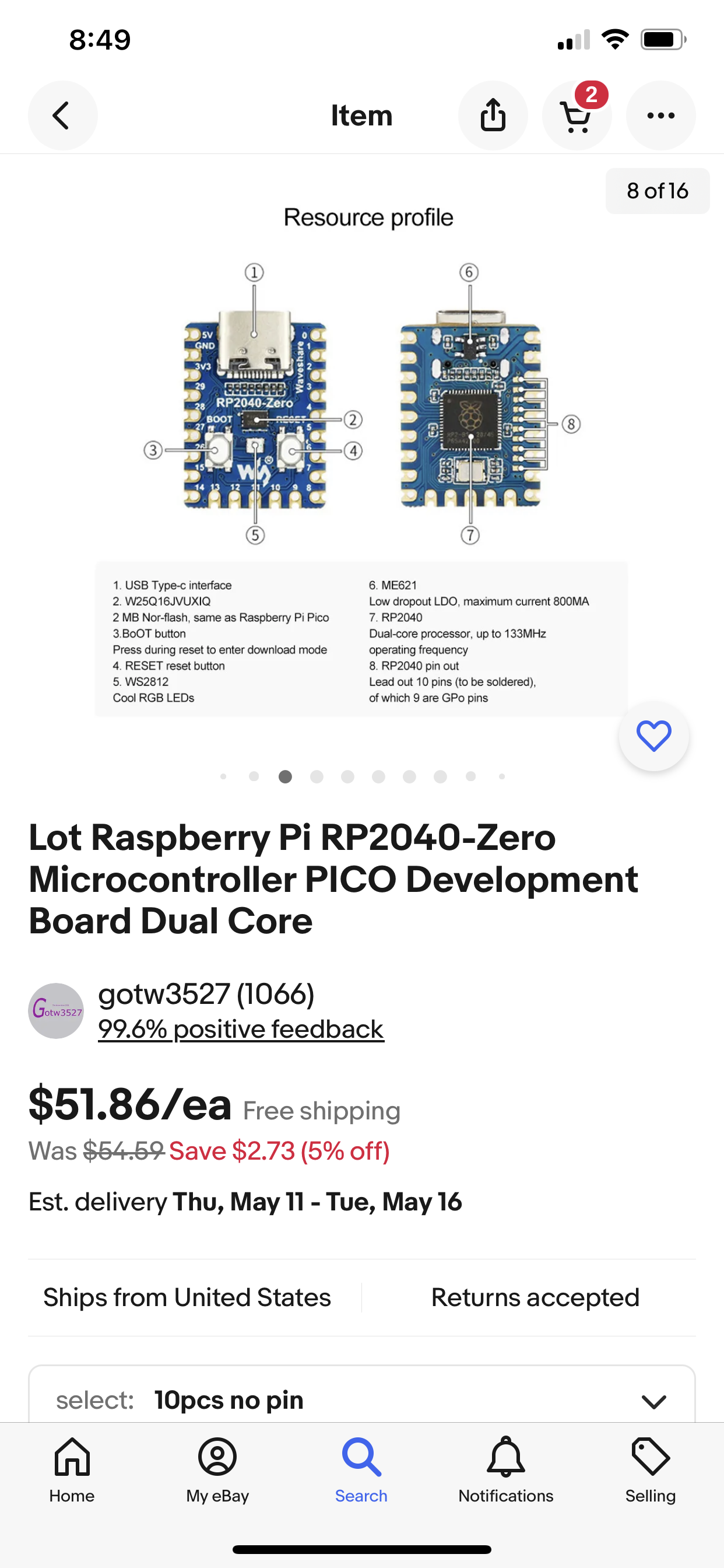

Are these the right chips

Post automatically merged: May 8, 2023

Are these the right chips



[Phantomas77]

No solid blue then off. No button press just battery plugged in then instant blue.

Post automatically merged: May 8, 2023

Same if you unsolder cpu pin from rp2040. No change

Do not unplug the CPU wire from the RP2040 if you don't have soldered a pulldown resistor between Gate and Source.

Read more here

If you want to disable the MOSFETS; desolder the Source or Drain wire.



[Danook28]

The paste is OK.
As abal1000x explaind it quite well, you can get a short beep in the begining when you tough the probe.
Is it a short beep or long? If you keep the multimeter on does it continue beeping?

Yes it keep beeping some capacitor yes some capacitor no... In same side that i add ready pic here.

Can you please use this picture to tell me which capacitor continue to beep?

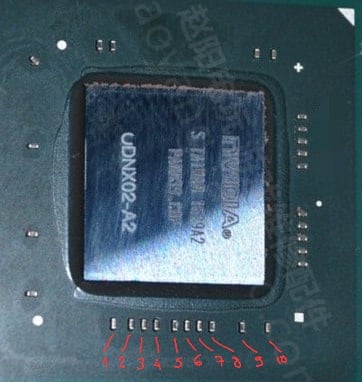

(5) (1)(2) (3)(4)



[QuiTim]

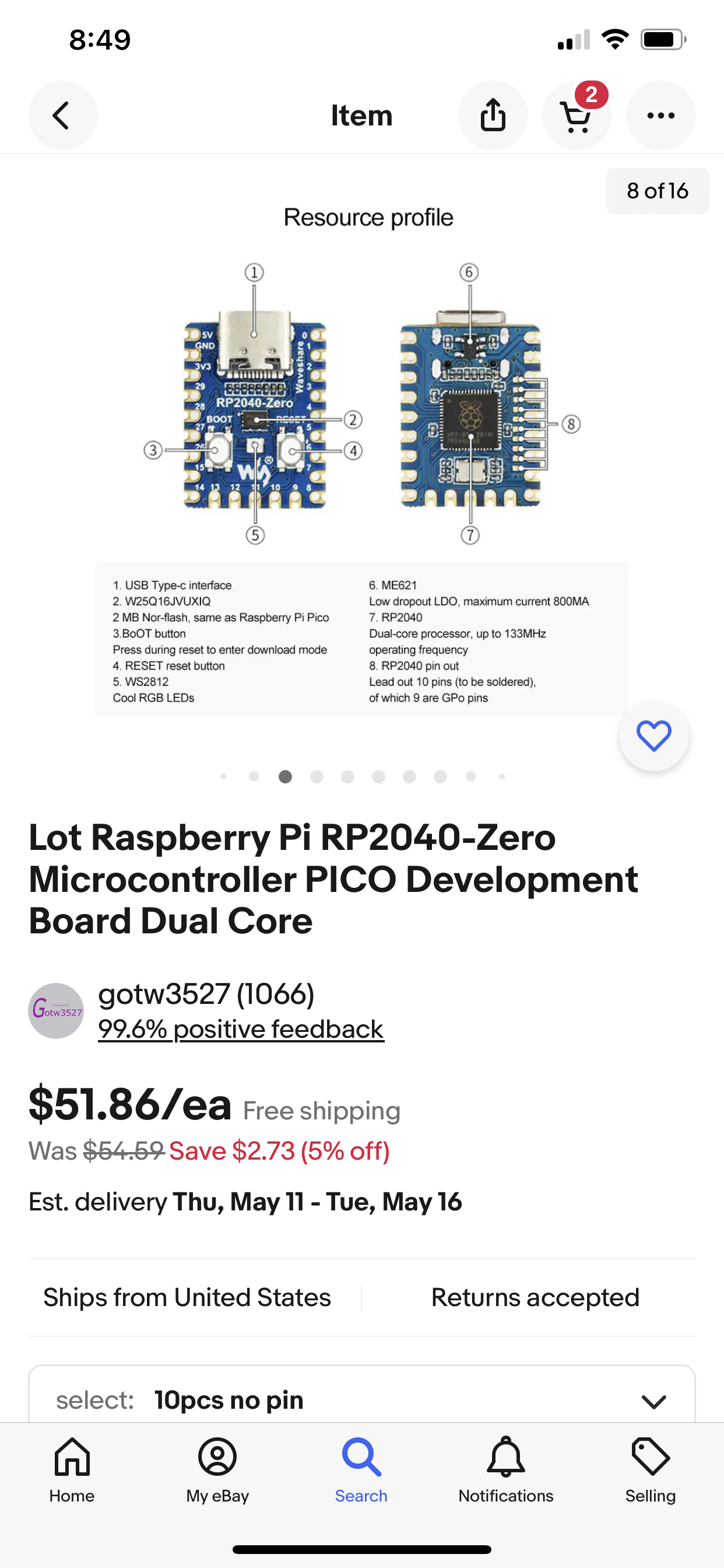

Are these the right chips

Post automatically merged: May 8, 2023

Those are correct, but you can also order these (they are new) which will probably fit better and there is no need to remove buttons and usb port.
https://a.aliexpress.com/_msiMSCC



[AceCuba]

hey guys i cant find the flex on hwfly store anymore , any recomended seller link on amazon or aliexpres for the mariko lite and erista flex cable



[Danook28]

hey guys i cant find the flex on hwfly store anymore , any recomended seller link on amazon or aliexpres for the mariko lite and erista flex cable

Aliexpress not expinsev at all



[QuiTim]

hey guys i cant find the flex on hwfly store anymore , any recomended seller link on amazon or aliexpres for the mariko lite and erista flex cable

Is this working for your country?
https://a.aliexpress.com/_mqZTcbO



[AceCuba]

im from cuba but i got friend i usa that can deliver my the components

Post automatically merged: May 8, 2023

https://es.aliexpress.com/item/1005...35602743473089ea906!12000030735181084!rec!CU!

what about this have nice sells



[QuiTim]

Yes it keep beeping some capacitor yes some capacitor no... In same side that i add ready pic here.

(5) (1)(2) (3)(4)

Ok, if those are beeping continuously then they are damaged.
Remove all of them and see if Switch boots.
Those are 0201 1uF 6.3V capacitors
You can order them here (or some other seller) https://a.aliexpress.com/_mrGPtcM and replace them.

Post automatically merged: May 8, 2023

im from cuba but i got friend i usa that can deliver my the components

Post automatically merged: May 8, 2023

https://es.aliexpress.com/item/1005004849597167.html?spm=a2g0o.detail.1000014.1.495111ace5jDGI&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.40050.281175.0&scm_id=1007.40050.281175.0&scm-url=1007.40050.281175.0&pvid=8243e2cd-a010-412f-a638-cc4a4caf2080&_t=gps-idcDetailBottomMoreOtherSeller,scm-url:1007.40050.281175.0,pvid:8243e2cd-a010-412f-a638-cc4a4caf2080,tpp_buckets:668#2846#8113#1998&pdp_npi=3@dis!USD!1.6!1.6!!!!!@2103244616835602743473089ea906!12000030735181084!rec!CU!

what about this have nice sells

Sure why not. It looks OK



[SeriousC]

If you turn it off (by pressing power then hold for 30seconds, then release), then wait 5seconds, and pressing power again. What is the color shown?

ONLY get led when plugging in battery. This boots OFW and doesnt display led.



[Danook28]

Ok, if those are beeping continuously then they are damaged.
Remove all of them and see if Switch boots.
Those are 0201 1uF 6.3V capacitors
You can order them here (or some other seller) https://a.aliexpress.com/_mrGPtcM and replace them.

Post automatically merged: May 8, 2023

Sure why not. It looks OK

(1uf) oky??? the temperatur for desolder it with hot air..



[abal1000x]

.



[QuiTim]

(1uf) oky??? the temperatur for desolder it with hot air..

Yes 1uf.
You can remove them with iron (it's easy) but to solder the new ones it is better with hot air. Use some lead solder paste (like this one: https://a.aliexpress.com/_mOlGk6U)
and hot iron around 300°



[SkylerTakashi]

I don't know if this is the right place to ask this but Why did they remove the Hwfly from the aliexpress official sellers blue/red? They're selling flex cables only now.



[LogicalMadness]

I don't know if this is the right place to ask this but Why did they remove the Hwfly from the aliexpress official sellers blue/red? They're selling flex cables only now.

Cause NiNjas are running rampant due to ToK leaking :\



[axlcat]

ONLY get led when plugging in battery. This boots OFW and doesnt display led.

Do you connect the 3.3V in the right point?



[QuiTim]

Do you connect the 3.3V in the right point?

I was about to ask the same thing



[789-Benny]

I don't know if this is the right place to ask this but Why did they remove the Hwfly from the aliexpress official sellers blue/red? They're selling flex cables only now.

Cucktendo losing their minds that's why


Just send them a message and they will help you with getting one.
