Hacking Hardware Picofly - a HWFLY switch modchip

[Dee87]

Hello! Currently having this issue:

Pkg1 decryption failed!
BEK is missing!
Failed to launch HOS!
Is this an issue with the chip installation or sd files? How do I fix it?

what fw i bet 2.5 without unlock ?

u need to flah unlock.uf2



[rr8400]

what fw i bet 2.5 without unlock ?

u need to flah unlock.uf2

Yes, I am inded using that one. How do I flash it?



[Dee87]

Yes, I am inded using that one. How do I flash it?

just drop it in the rp2040

Post automatically merged: Apr 11, 2023

or flash 2.61



[rr8400]

just drop it in the rp2040

I used the "2.5 + unlock new.uf2" file. I just dropped it in and installed it.
Should I solder the usb again and reboot it?



[Dee87]

I used the "2.5 + unlock new.uf2" file. I just dropped it in and installed it.
Should I solder the usb again and reboot it?

its defenitly a unlock issue had the same problem



[FreeLander]

do u have a usb meter?
see what it says its gonna give u a good idea what the issue is

if u dont have one i would suggest u get this one

UNI-T UT658​

u dont need to pay someone to teach u youtube is ur friend

Thanks. Found it. Will order now. Assuming that it does get power. Can we shift our attention to the NAND? Since all the work was done on it. Any idea what could happen to a NAND that would prevent it from booting? I reflowed it but no luck.



[rr8400]

its defenitly a unlock issue had the same problem

So, which one of these should I flash? Is it just one or more than one? Sorry for the stupid questions



[Dee87]

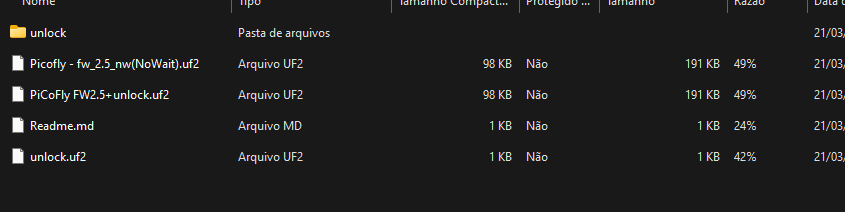

View attachment 364197
So, which one of these should I flash? Is it just one or more than one? Sorry for the stupid questions

flash 2.5_nw unplug raspi and then unlock

if that works flash 2.61

some people had some issues with just flashing 2.61

Post automatically merged: Apr 11, 2023

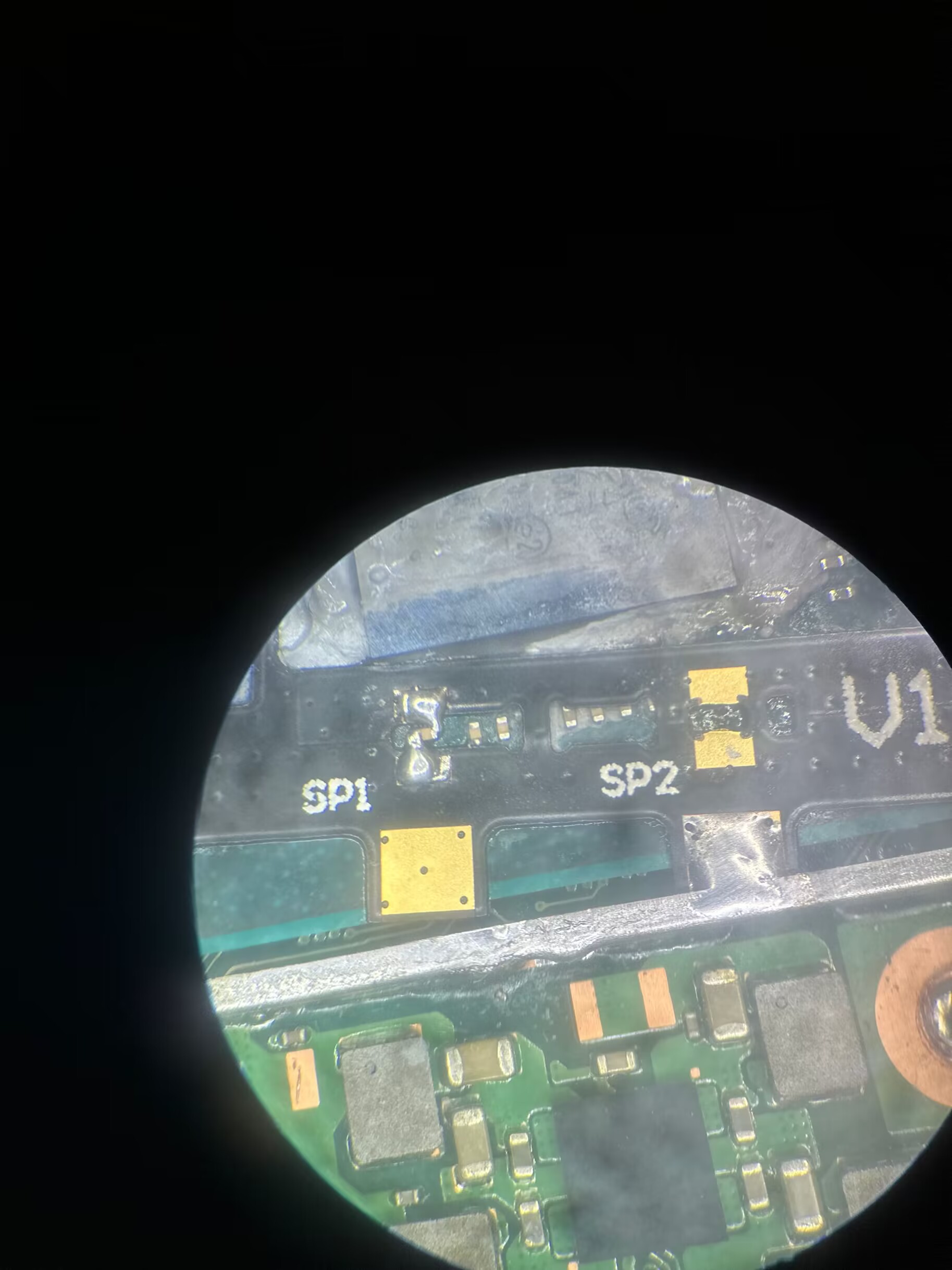

Thanks. Found it. Will order now. Assuming that it does get power. Can we shift our attention to the NAND? Since all the work was done on it. Any idea what could happen to a NAND that would prevent it from booting? I reflowed it but no luck.

why would u reflow it ?

thats the last thing u want to touch.

ClickMe

check this site out it gonna help in the future for trouble shooting

it also explains how u see if u have emmc issues

u can also check his youtube pager



[wwwcqh]

v1 replace v2



[rr8400]

flash 2.5_nw and then unlock

if that works flash 2.61

some people had some issues with just flashing 2.61

Whenever I add something to the RP2040, the computer stops recognizing it. How can I flash the 2.5 and then unlock?



[Dee87]

Whenever I add something to the RP2040, the computer stops recognizing it. How can I flash the 2.5 and then unlock?

That is normal behavior
Push boot button plug rp in
Flash 2.5nw
Redo above and flash unlock

After each flash u should get a red led light if its green u need to set rgb mode



[rr8400]

That is normal behavior
Push boot button plug rp in
Flash 2.5nw
Redo above and flash unlock

After each flash u should get a red led flash if its green u need to set rgb mode

Should the 2.5nw file stay inside after plugging the usb for the first time? I added the 2.5nw and then did as you said but there were only the index and info files. Is it also normal behavior?



[NooBziN]

flash 2.5_nw unplug raspi and then unlock

if that works flash 2.61

some people had some issues with just flashing 2.61

Post automatically merged: Apr 11, 2023

why would u reflow it ?

thats the last thing u want to touch.

ClickMe

check this site out it gonna help in the future for trouble shooting

it also explains how u see if u have emmc issues

u can also check his youtube pager

2.61 bug OFW black screen or freezen need update fix urgency



[Dandan0404]

Which is safer, stick to 2.5, go with 2.6 or 2.61? OR wait for 2.7?(not yet installed since flex cable is still beig delivered)



[abal1000x]

Which is safer, stick to 2.5, go with 2.6 or 2.61? OR wait for 2.7?(not yet installed since flex cable is still beig delivered)

Wait of course since the cable hasn't been arrived.



[Tom8823]

Should the 2.5nw file stay inside after plugging the usb for the first time? I added the 2.5nw and then did as you said but there were only the index and info files. Is it also normal behavior?

Yes, that is normal behavior, after you flash it the window will disappear and you will never see the file there.



[Dee87]

Should the 2.5nw file stay inside after plugging the usb for the first time? I added the 2.5nw and then did as you said but there were only the index and info files. Is it also normal behavior?

Yes that's normal
What color die the led flash after dropping the files Ind the raspi



[abal1000x]

its out of context, i am noob.
i already follow the guide (rentry) for hekate, atmosphere, exosphere, emunand, dbi, backup boot0, boot1, and nand. already read about avoiding banned. already try one tixxe and run.
Are there anything that i need to know more?
Are there something like cheat engine in switch?



[AntonIX]

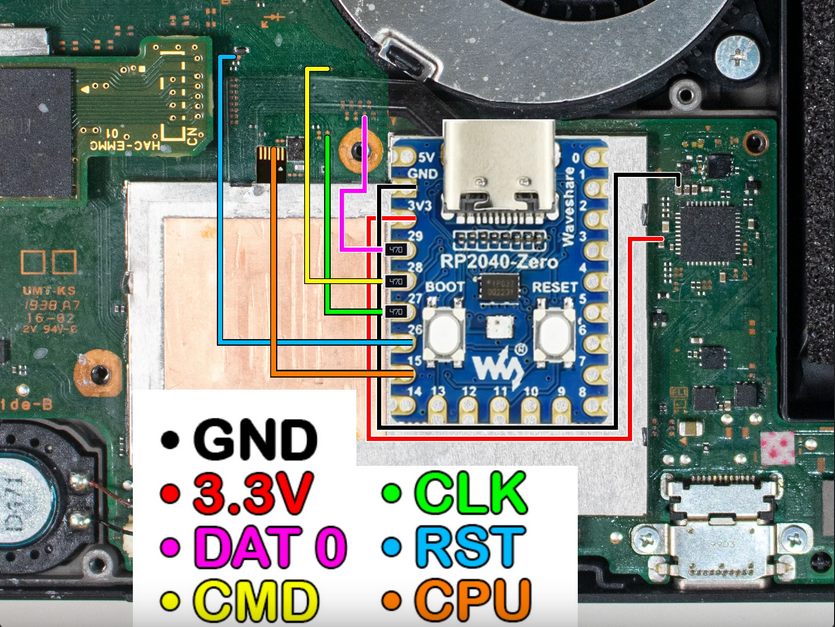

View attachment 362537

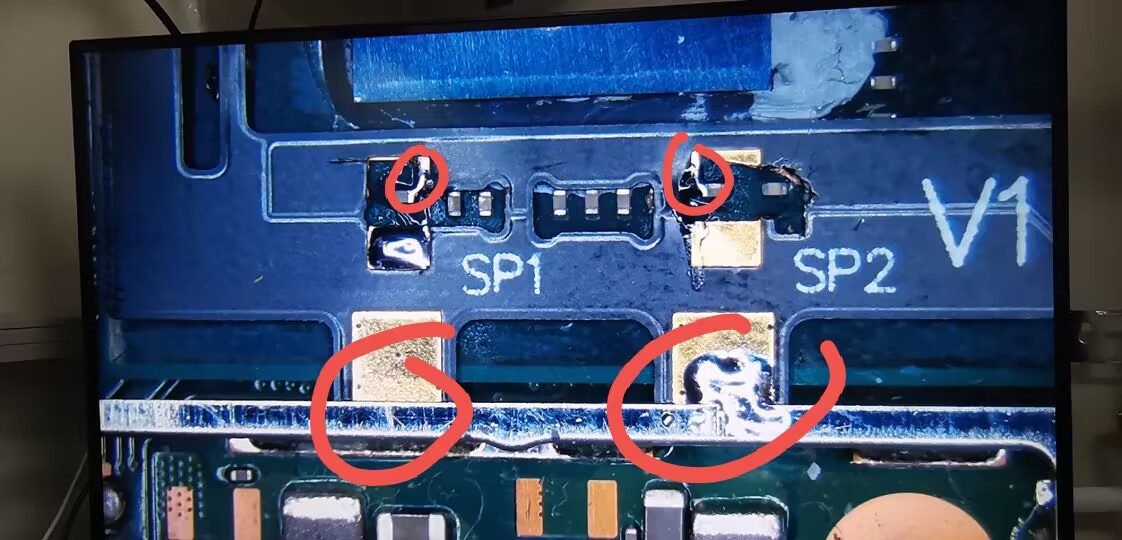

Is there two points to solder on one line for CLK, DAT0 and CMD? Like it is on switch lite?



[linuxares]

People click the "important posts" and stop using old fw you might find on YouTube links.
