Hardware Nintendo Switch and Nintendo Switch Lite Diode Measurements !

[FXDX]

I found these pictures on the internet with Nintendo Switch and Nintendo Switch Lite Diode Measurements.
I decided to post them here to help the community. Thanks a lot to Steve TheMicrosolderist Ybarra and Jeremy Miller, the authors of these pictures, for the hard work and for making them public. I hope it helps us.

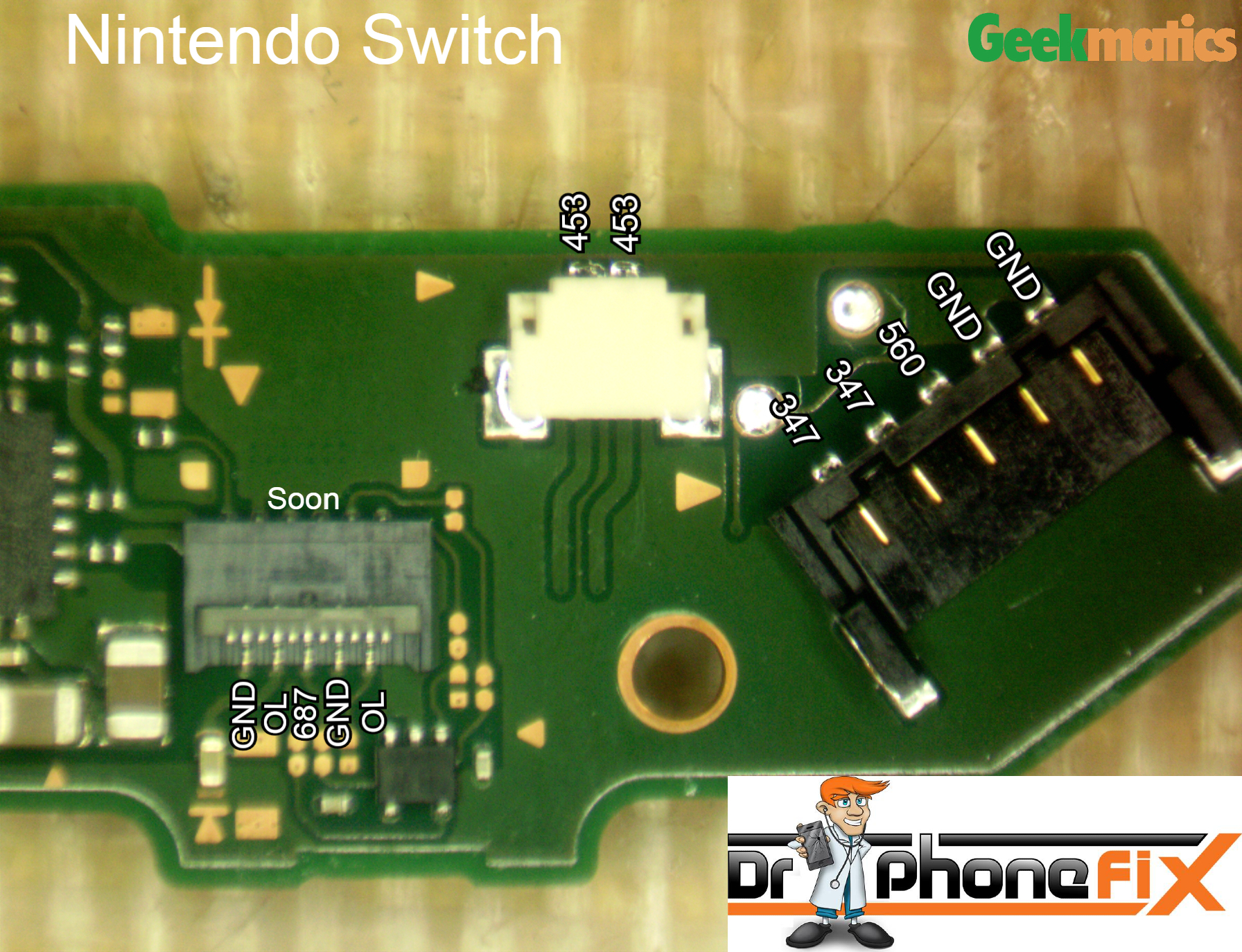

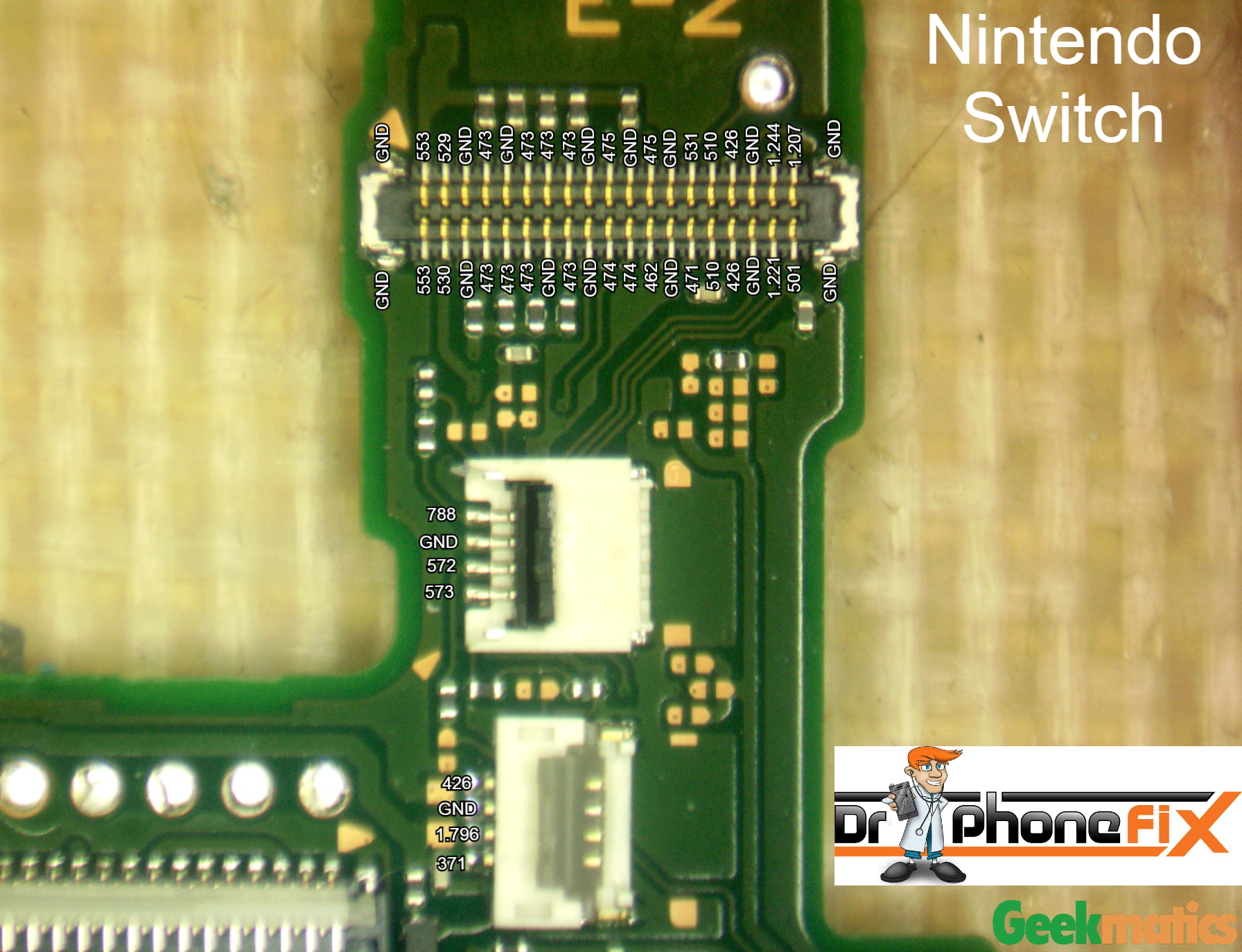

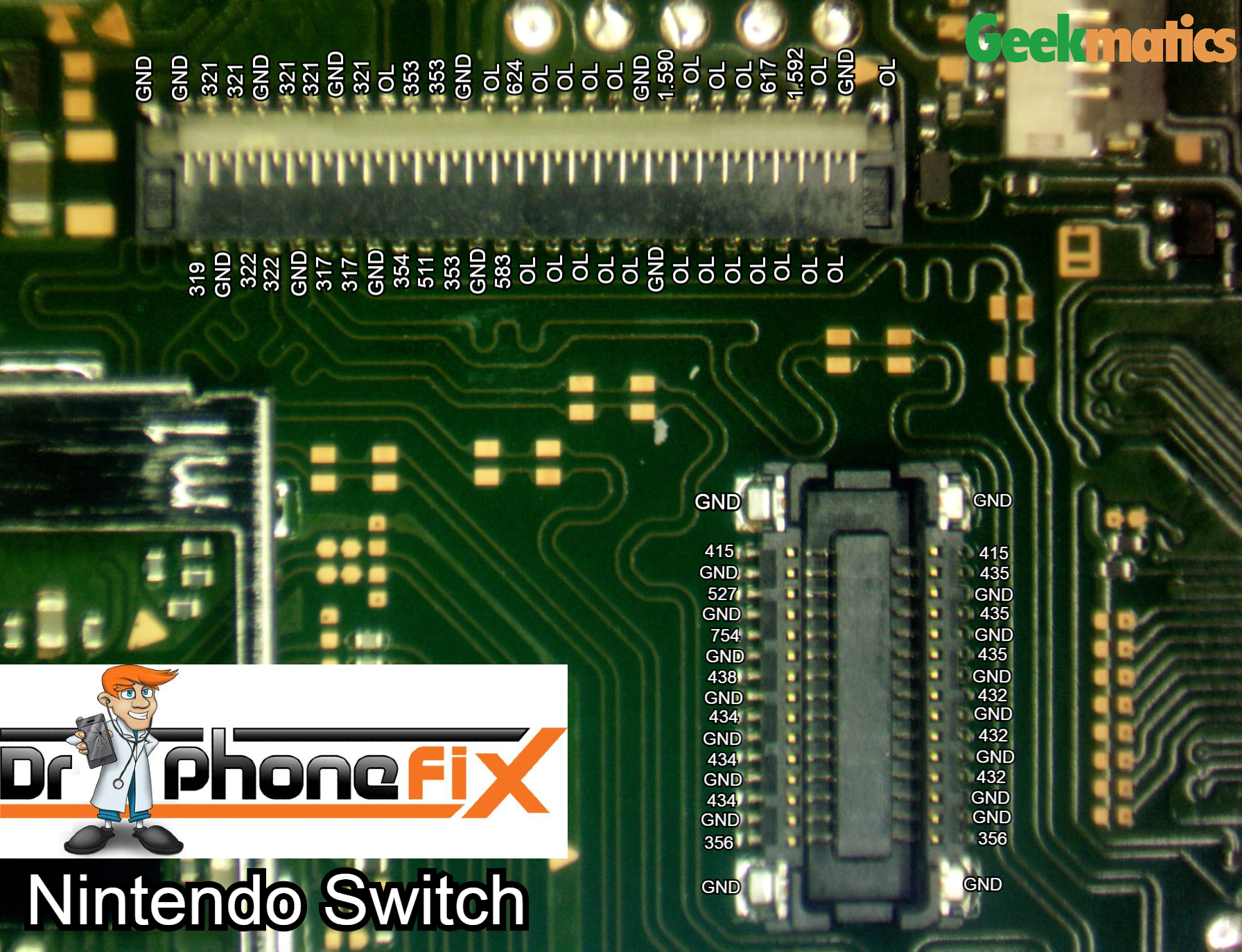

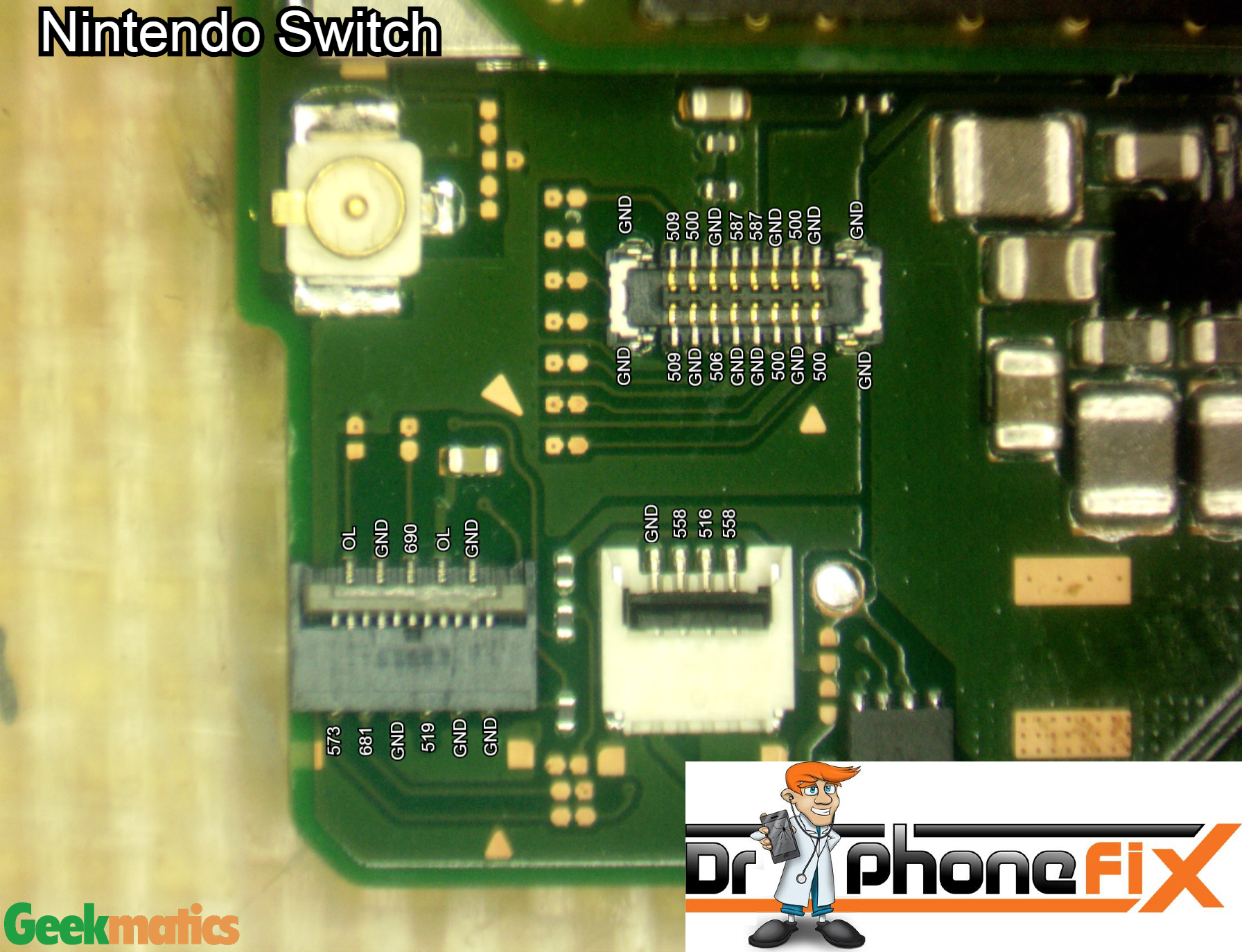

Nintendo Switch Diode Measurements pictures:

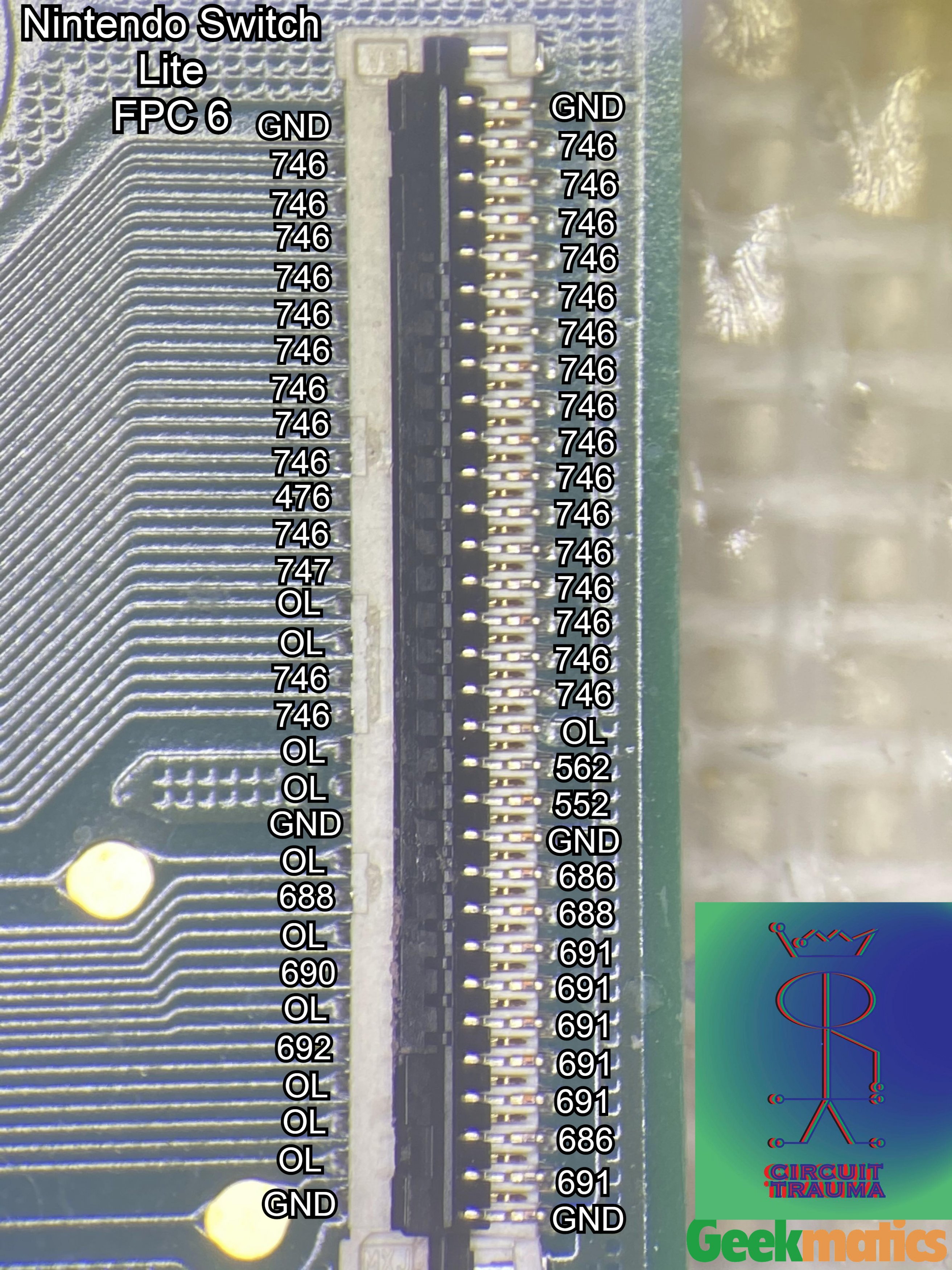

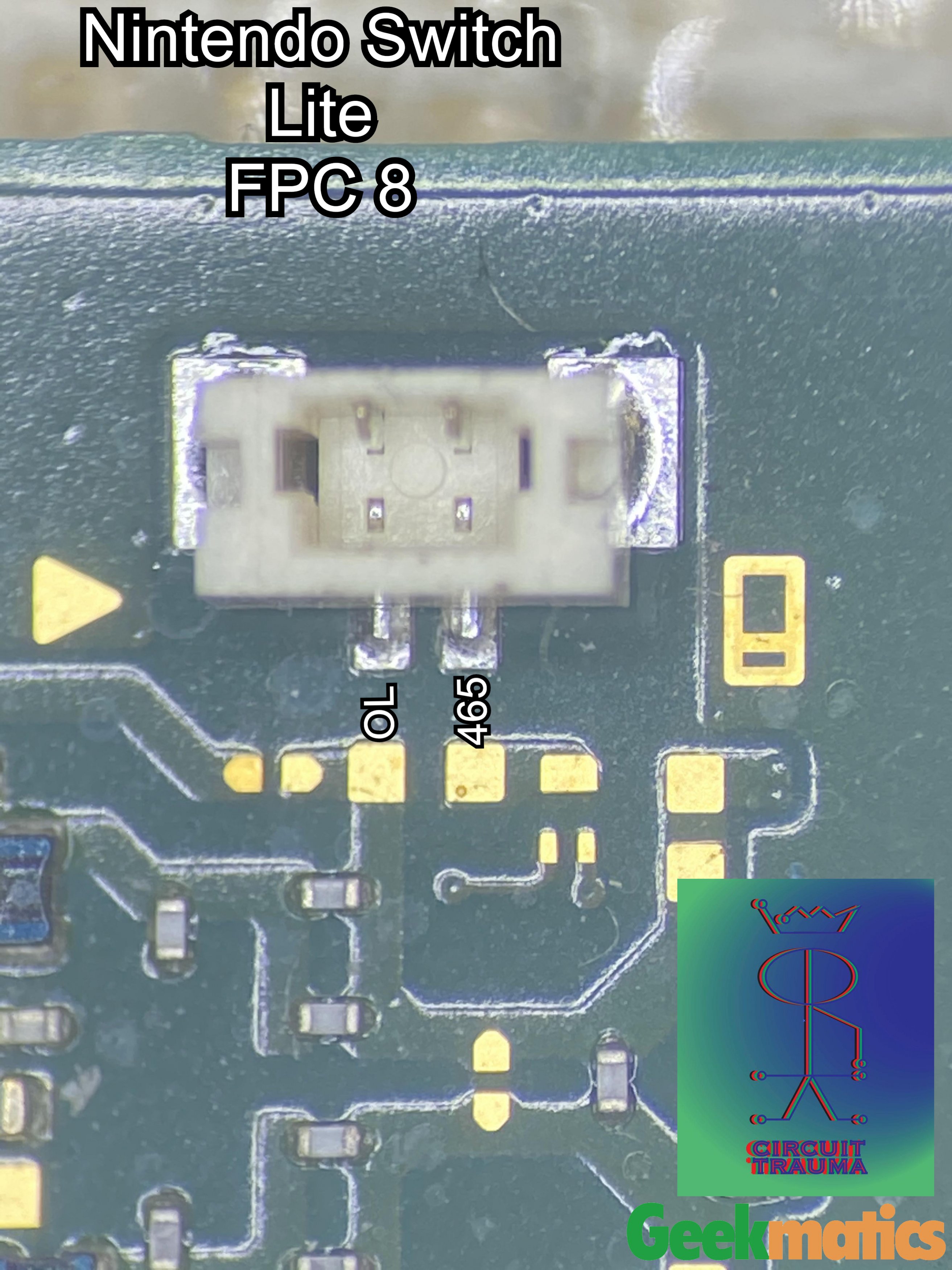

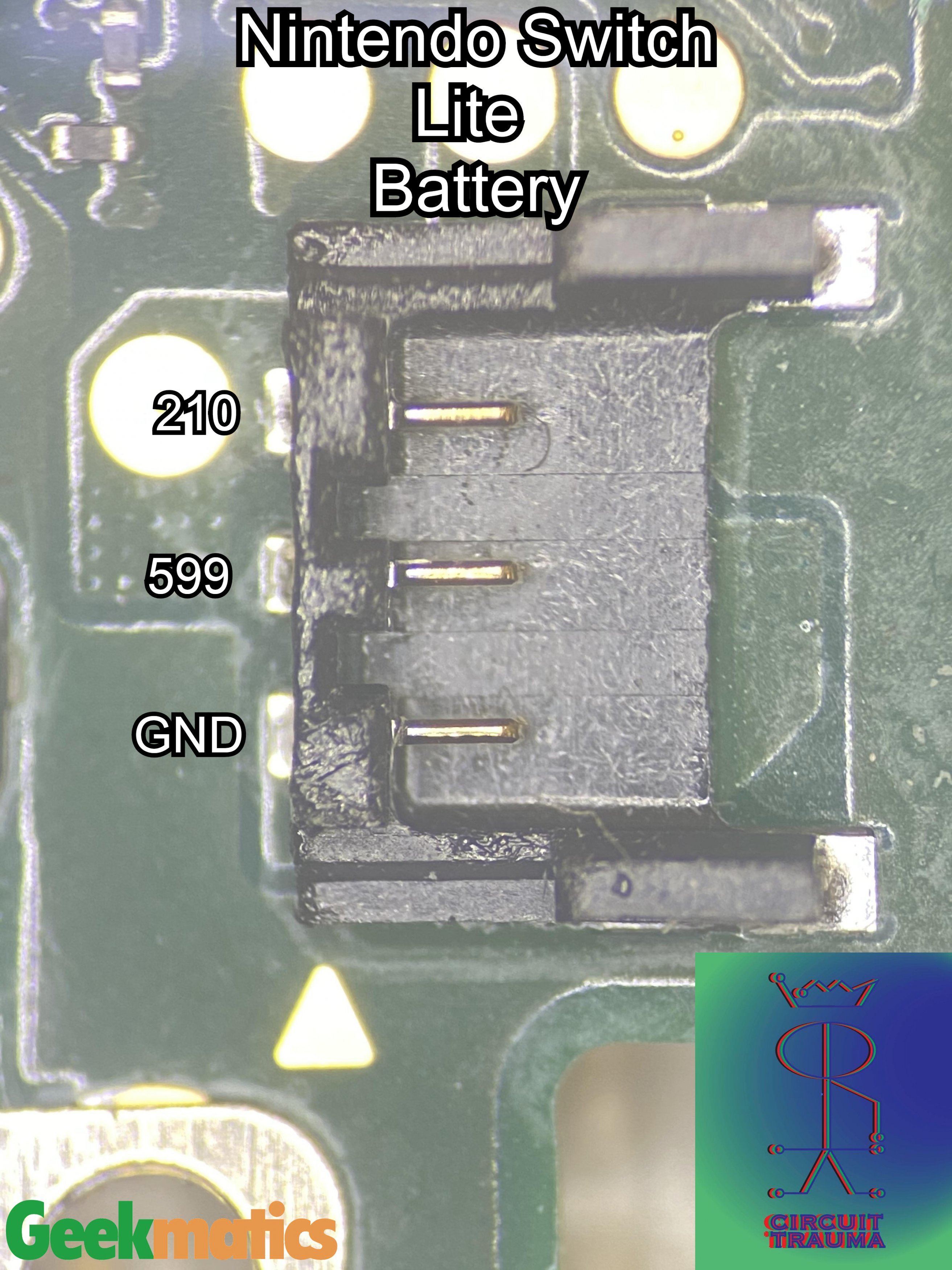

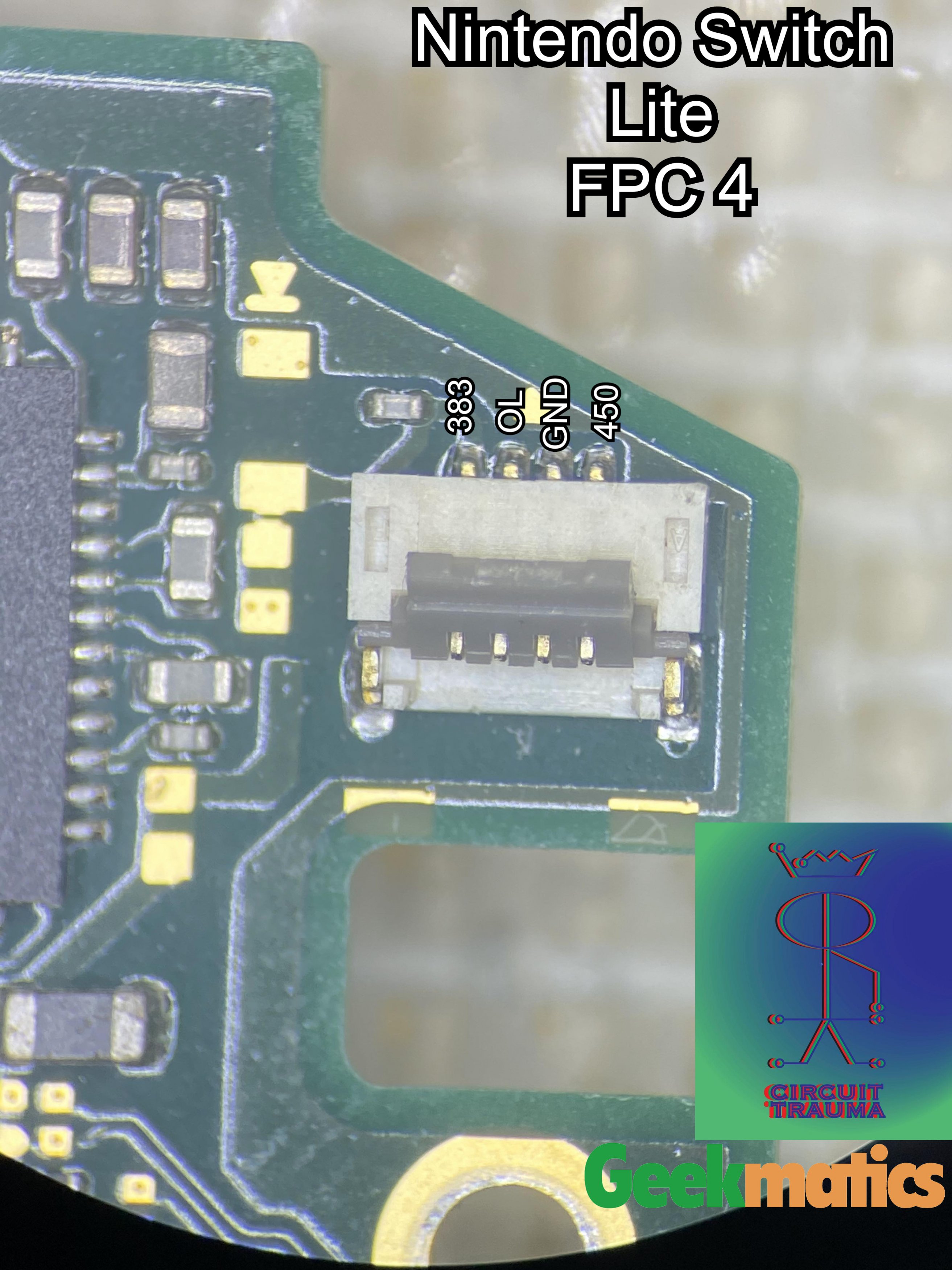

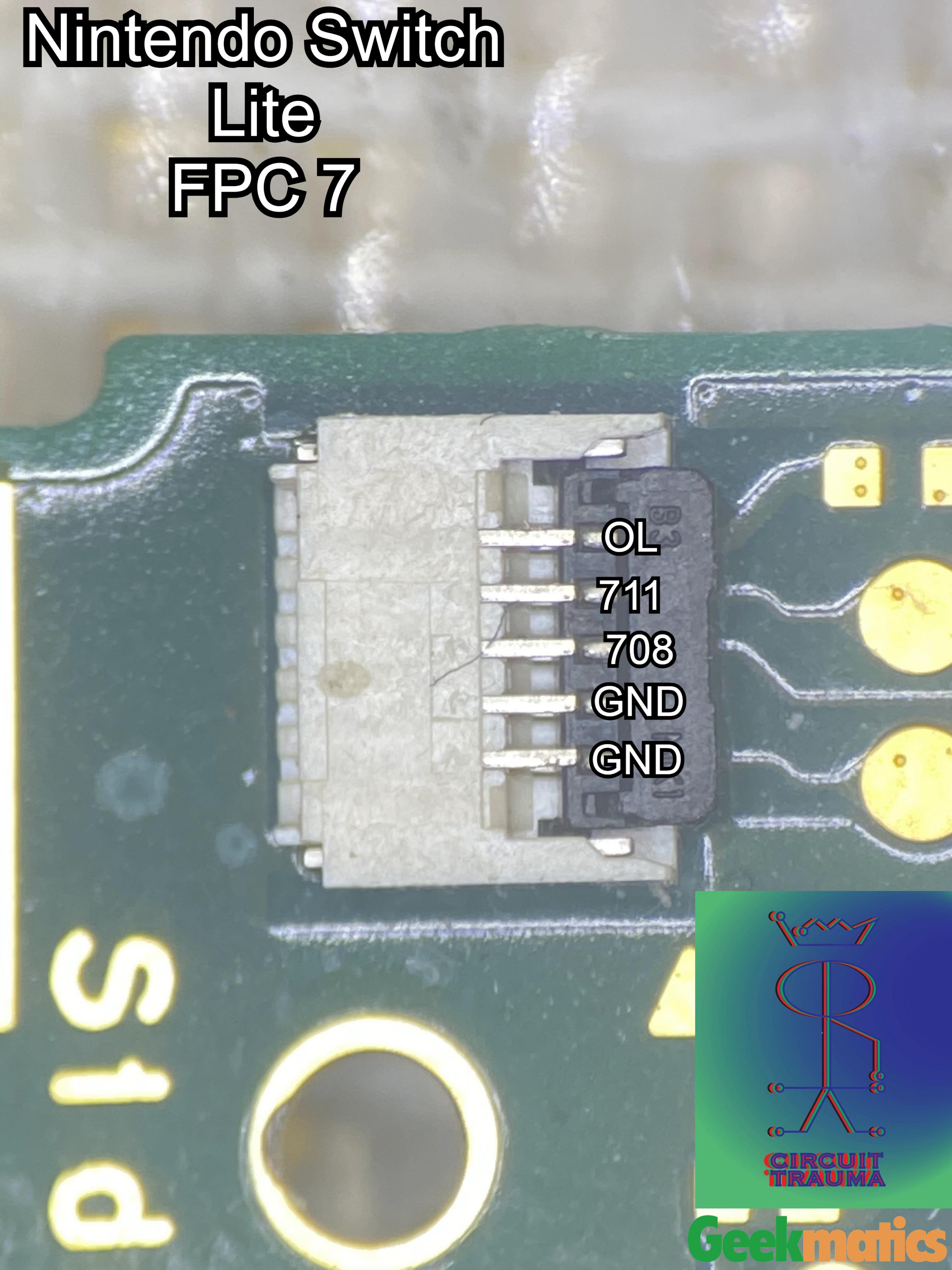

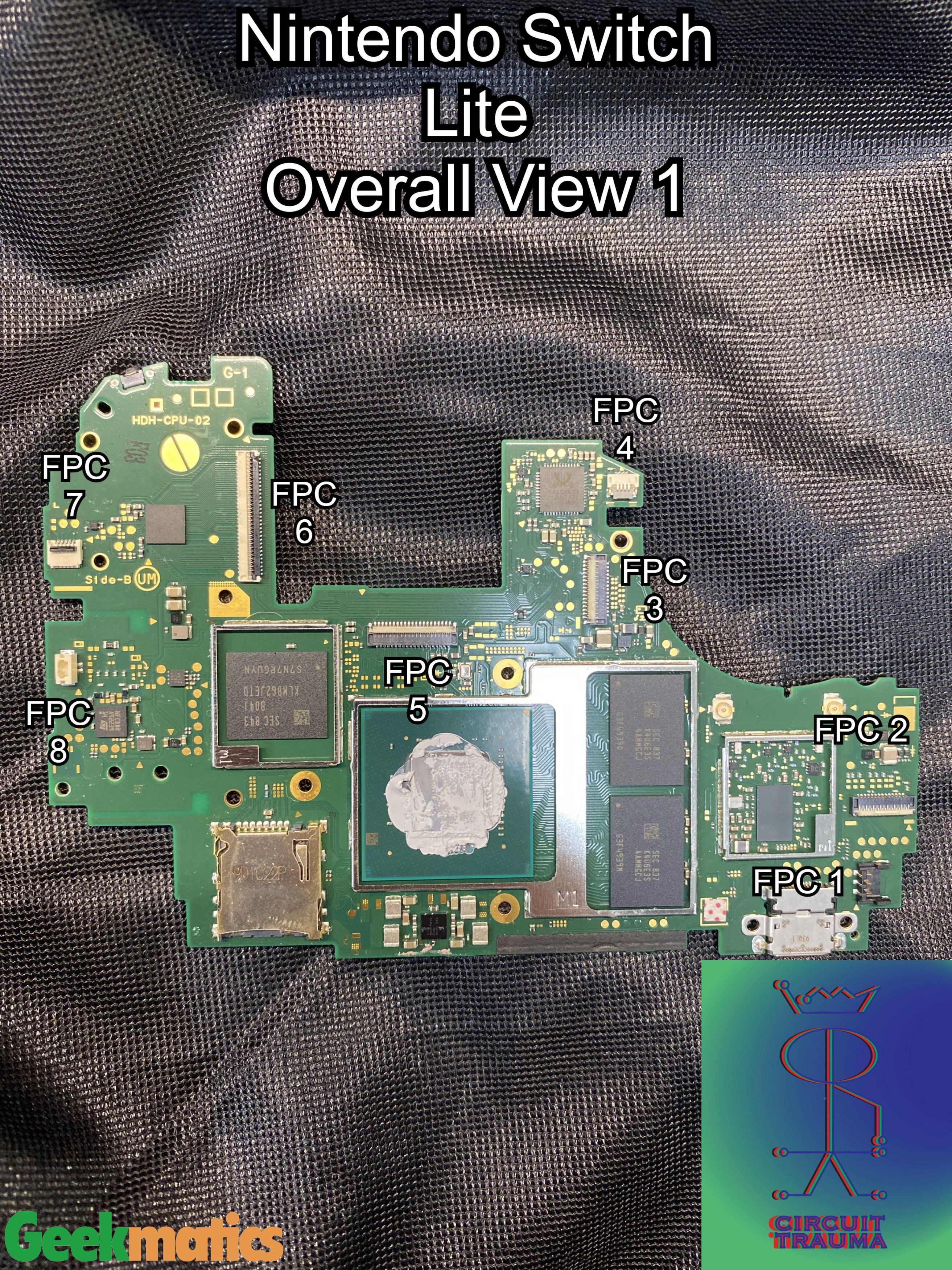

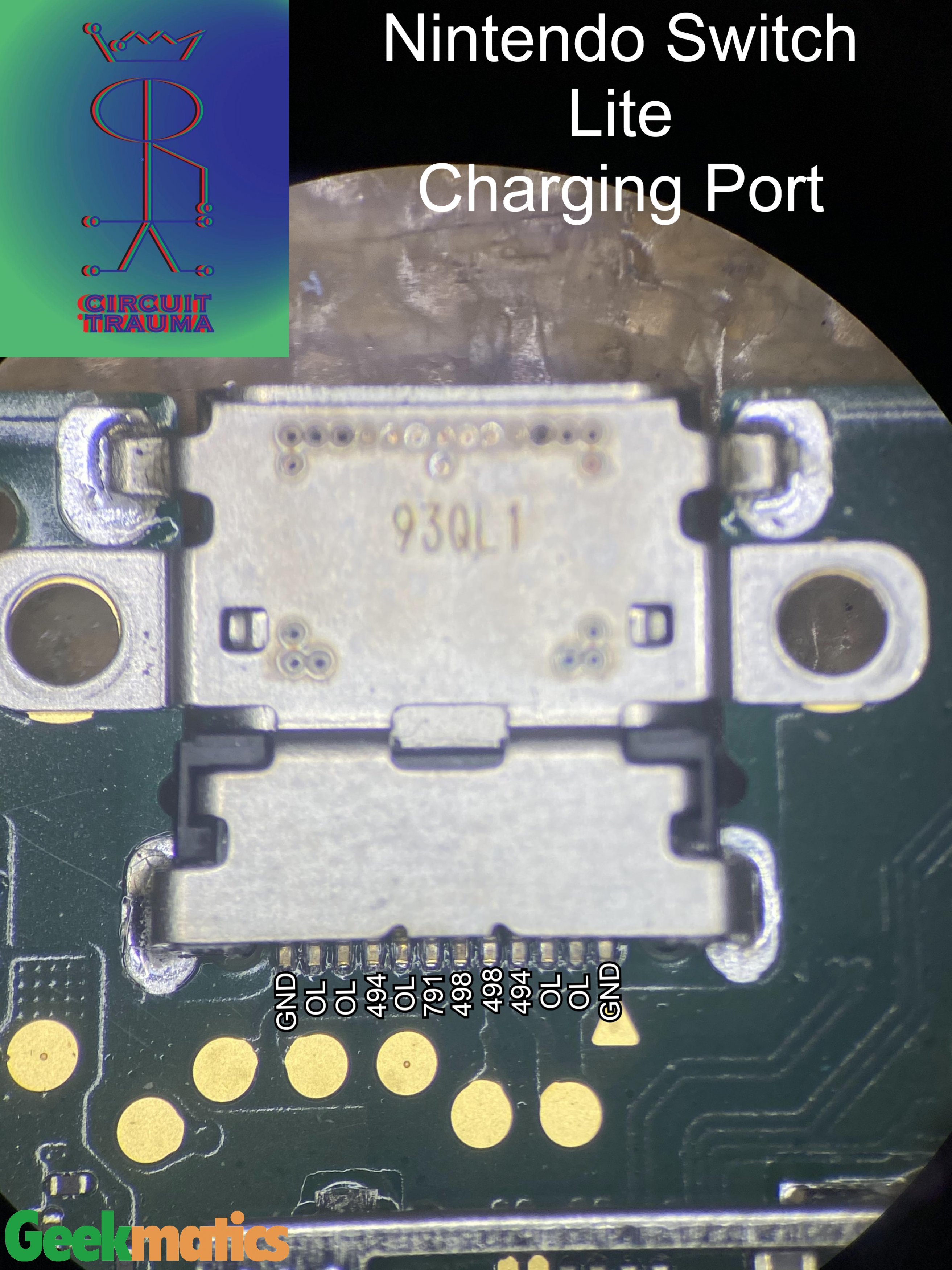

Nintendo Switch Lite Diode Measurements pictures:



[jj56185]

FLUKE？



[andres1234]

thanks



[FXDX]

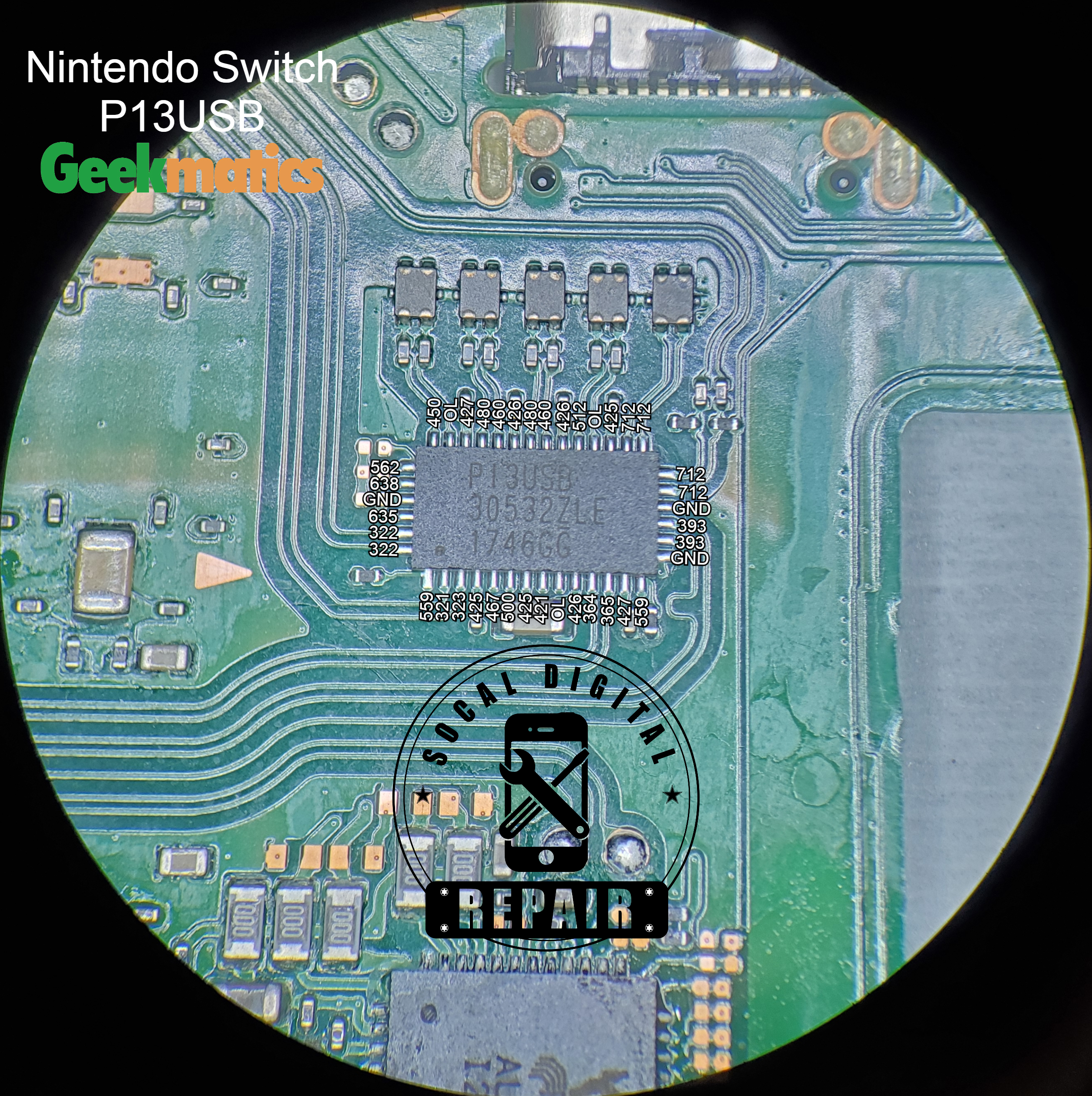

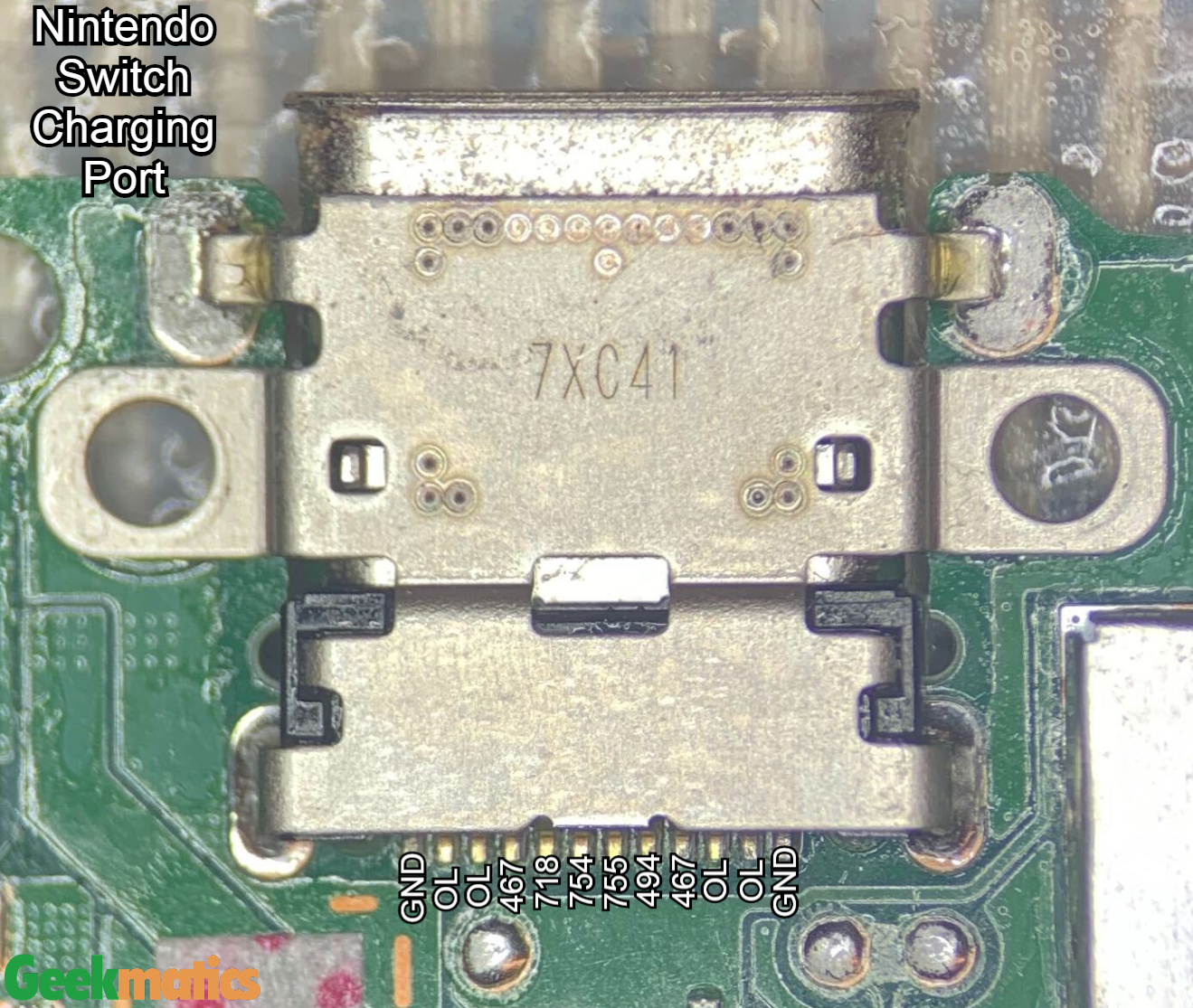

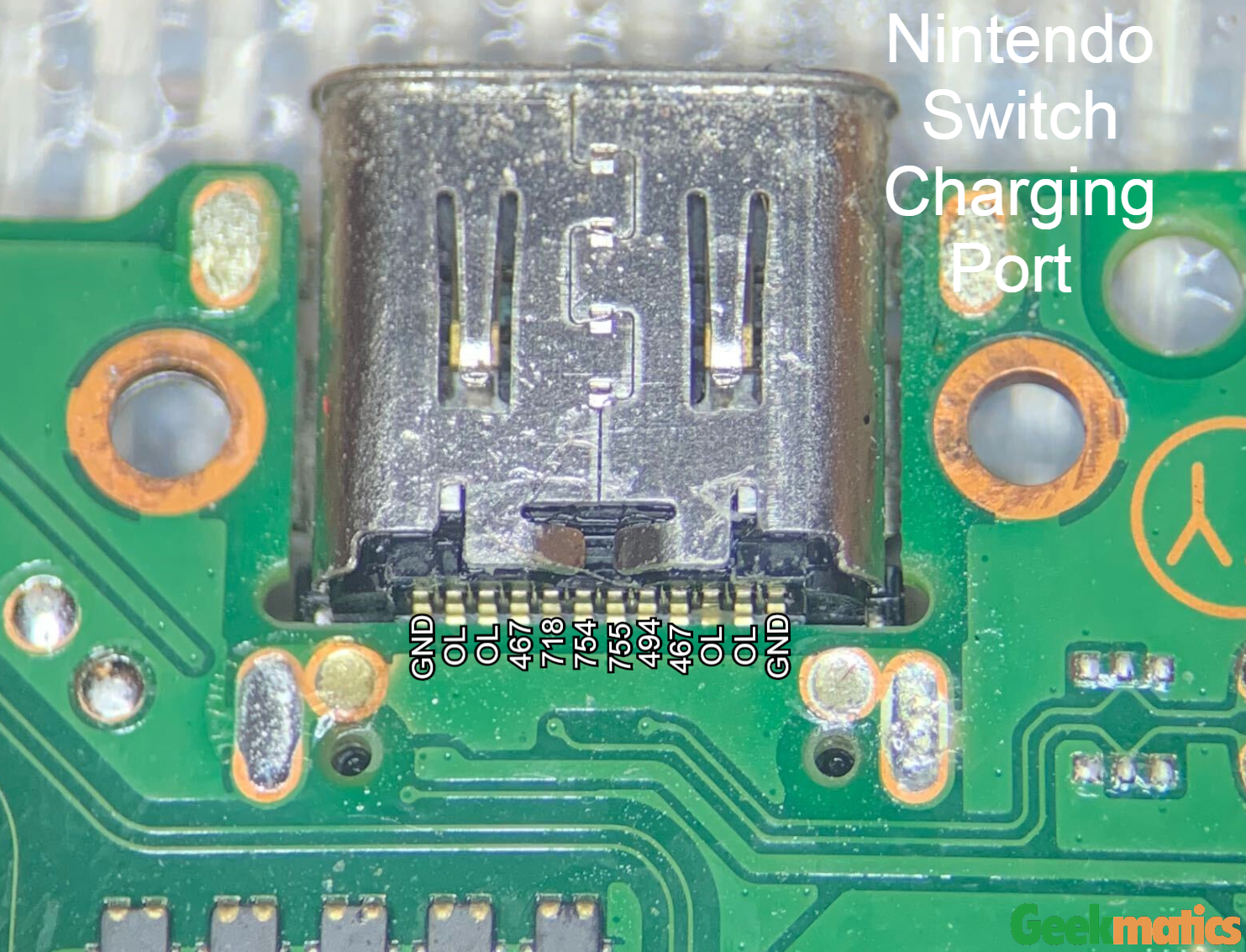

Nintendo Switch P13USB Diode measurements



[JaRocker]

I found these pictures on the internet with Nintendo Switch and Nintendo Switch Lite Diode Measurements.
I decided to post them here to help the community. Thanks a lot to Steve TheMicrosolderist Ybarra and Jeremy Miller, the authors of these pictures, for the hard work and for making them public. I hope it helps us.

Nintendo Switch Diode Measurements pictures:

View attachment 208011 View attachment 208012 View attachment 208013 View attachment 208014 View attachment 208015 View attachment 208016

Nintendo Switch Lite Diode Measurements pictures:

View attachment 208037 View attachment 208038 View attachment 208039 View attachment 208040 View attachment 208041 View attachment 208042 View attachment 208043 View attachment 208044View attachment 208045 View attachment 208046 View attachment 208908

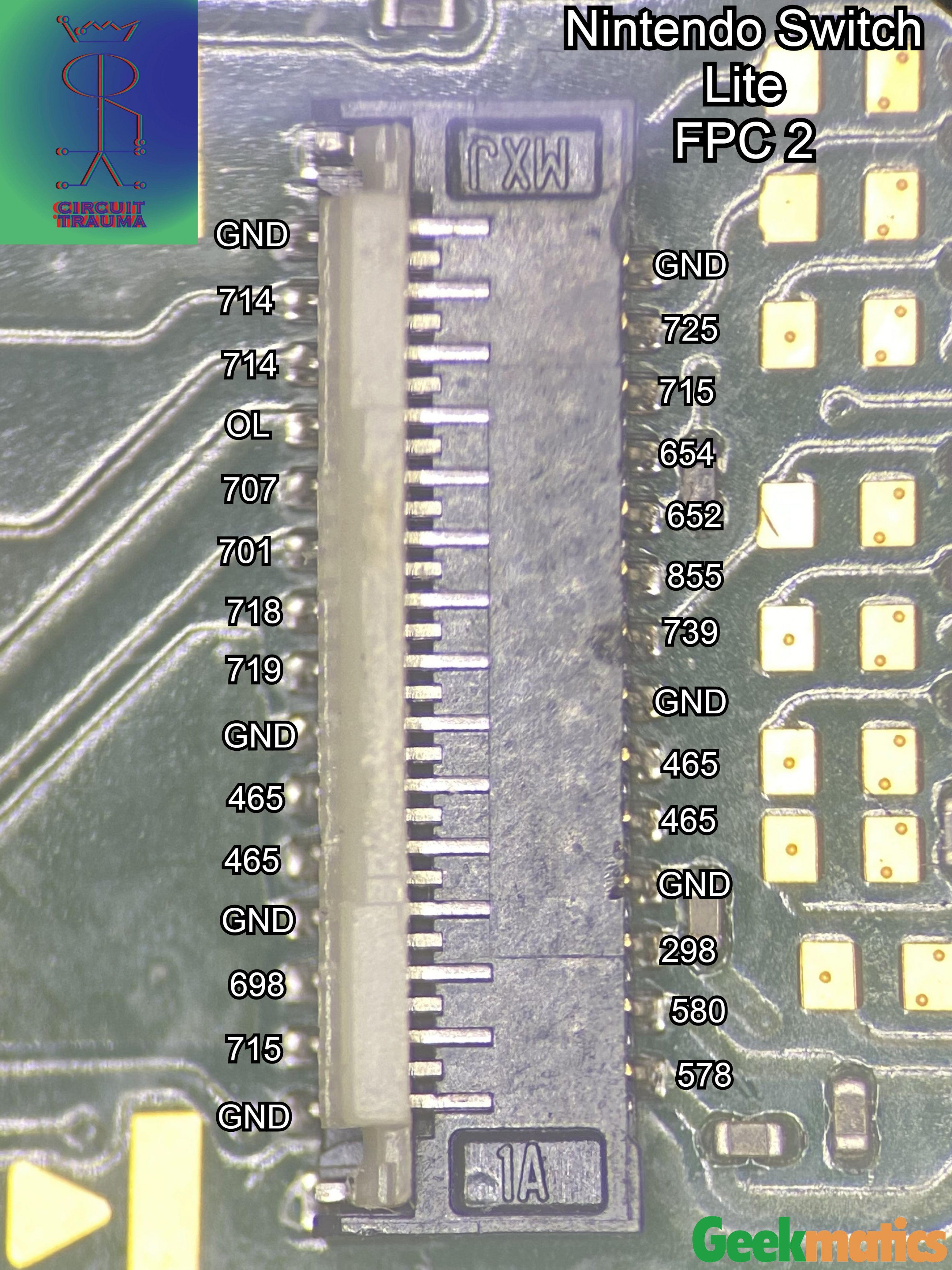

do you know where I can buy the FPC 2 for the switch lite



[FXDX]

do you know where I can buy the FPC 2 for the switch lite

Look carefully in this thread and you will find the information you want.
https://gbatemp.net/threads/compone...-and-main-console.525026/page-14#post-9135853



[JaRocker]

Look carefully in this thread and you will find the information you want.
https://gbatemp.net/threads/compone...-and-main-console.525026/page-14#post-9135853

ok thanks



[JaRocker]

i wasn't able to find it on there



[FXDX]

i wasn't able to find it on there

ask here http://www.actelgame.com/en/



[laotoulyh]

do you know where I can buy the FPC 2 for the switch lite

molex 503300-2910



[Tunes392]

I have blue screen nintedo switch
Reballing done to gpu but still same
I can but in rcm mode but one i choose normal boot goes back to blue screen
Power lines all fine charger
No short

Rams could be problem ?

--------------------- MERGED ---------------------------

You have diode value for gpu so i can know if working good or no



[Sean84]

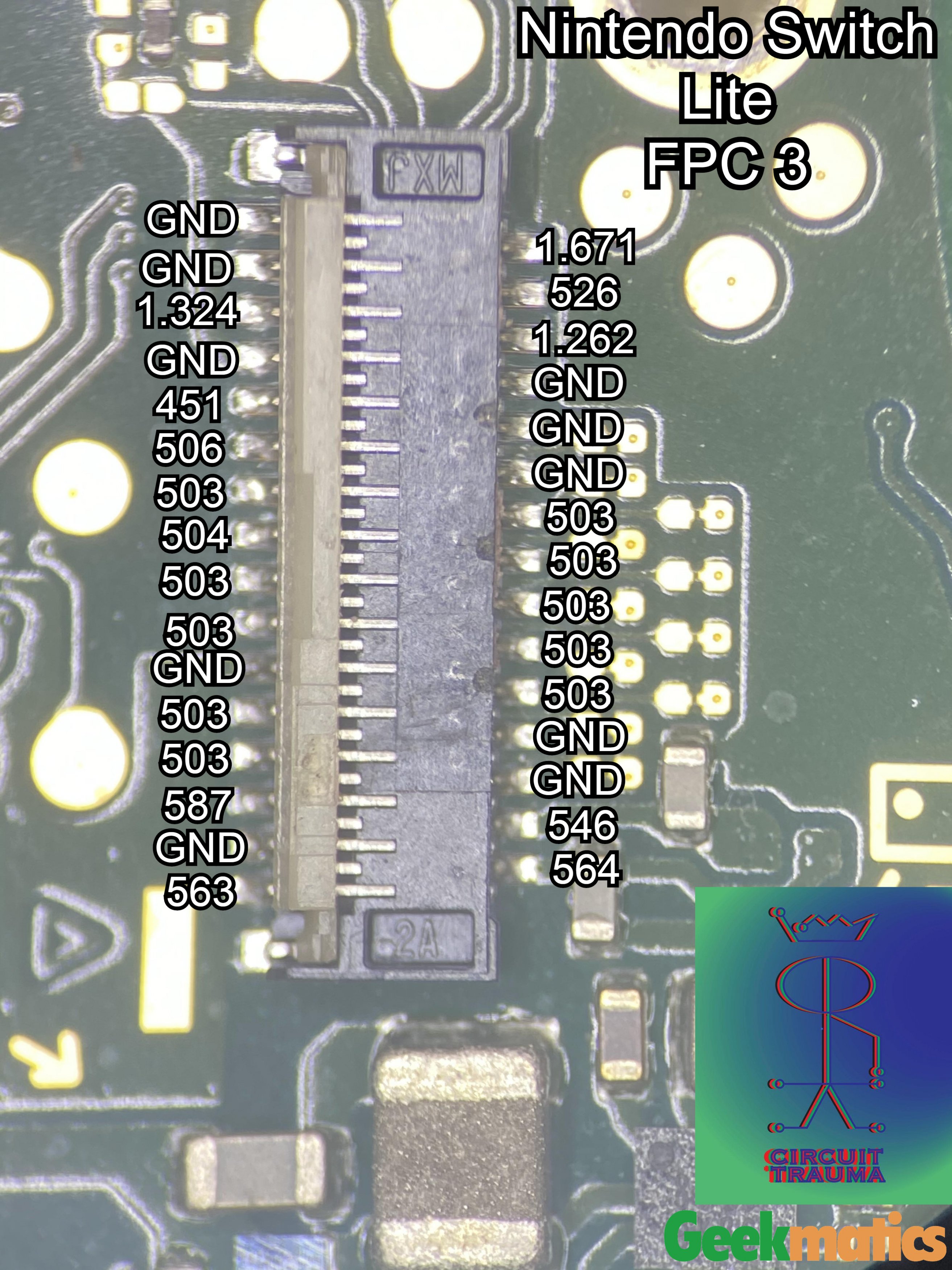

Hi. I realise this is a fairly old post. But can anyone help me please. I am trying to source fpc3 from the diagram. I seem to have lost the flap that secures the card reader ribbon cable. Failing help sourcing one. Can anyone tell me if this is necessary to clamp the connection and get proper contact or is it merely a security catch so it can't fall out?



[FXDX]

I have blue screen nintedo switch
Reballing done to gpu but still same
I can but in rcm mode but one i choose normal boot goes back to blue screen
Power lines all fine charger
No short

Rams could be problem ?

--------------------- MERGED ---------------------------

You have diode value for gpu so i can know if working good or no

Unfortunately I don't have one, but try a RAM reball or eMMC.

--------------------- MERGED ---------------------------

Hi. I realise this is a fairly old post. But can anyone help me please. I am trying to source fpc3 from the diagram. I seem to have lost the flap that secures the card reader ribbon cable. Failing help sourcing one. Can anyone tell me if this is necessary to clamp the connection and get proper contact or is it merely a security catch so it can't fall out?

You need her



[rdlf4]

I'm sorry for posting here and 'resurrecting' this thread, but since it's already here..
My board has some missing components, most of them are placed around BQ24193 IC (Switch LITE).
Here's a picture highlighting them:

I was told to have a look at the BQ24193 documentation from Texas Instruments, and I did. But I just can't make out which cap from which size has which working voltage and capacitance. This Switch Lite has a short, which seems to be gone after the diode (between the big cap and the inductor) was removed. So I don't feel like powering on this device anymore - at least until I have replaced that diode; On Youtube, Northridge fix came across a Switch Lite with the same issue, and it was a no fix because the Fixer couldn't find a replacement for this diode, even after inspecting a regular Switch board. Video link:
In the video's comments section, someone speculated it could be this component: GLZ8C-T1, but my guess is it could be the "GLZ18C", a Zener diode, mentioned here (PAGE 4): https://datasheetspdf.com/pdf-file/1287878/WON-TOP/GLZ6.8C/1 But I need someone's confirmation on that.
Any info on those components I highlighted in the picture above would be much appreciated.

Thanks in advance.



[jkyoho]

This post has few value you need. As of the small diode, some board does not have it at all so I do believe you can skip it

Hi guys! The capacitor circled in red shorts. I'm suspecting that the pcb is shorting given that I removed both, the capacitor and the bq24193 and it's still shorted. I removed the solder from the rails as well but didn't work. Is there any other component that might be responsible for shorting the capacitor?



[rdlf4]

This post has few value you need. As of the small diode, some board does not have it at all so I do believe you can skip it

Thanks for replying. As for the diode I mentioned, it belongs to Switch LITE boards only, which explains why you haven't seen them on regular Switch boards. However, aren't diodes supposed to keep the current from coming back to the source and damage a chip? Isn't it the case for the diode I mentioned? How safe would it be to proceed without it, have you ever tried that on a Switch Lite board?



[Dusten04]

Shit, if you don’t give me at least 50% of the credit for making these images. Ima cry

-Dusten Mahathy
GeekMatics



[rdlf4]

This post has few value you need. As of the small diode, some board does not have it at all so I do believe you can skip it

Could you share the link from this picture? I need to know more about the 805 MLCC capacitor (voltage and capacitance).



[jkyoho]

Could you share the link from this picture? I need to know more about the 805 MLCC capacitor (voltage and capacitance).

Having the BQ datasheet can always look up the reference design.



[Hiniku-Shi]

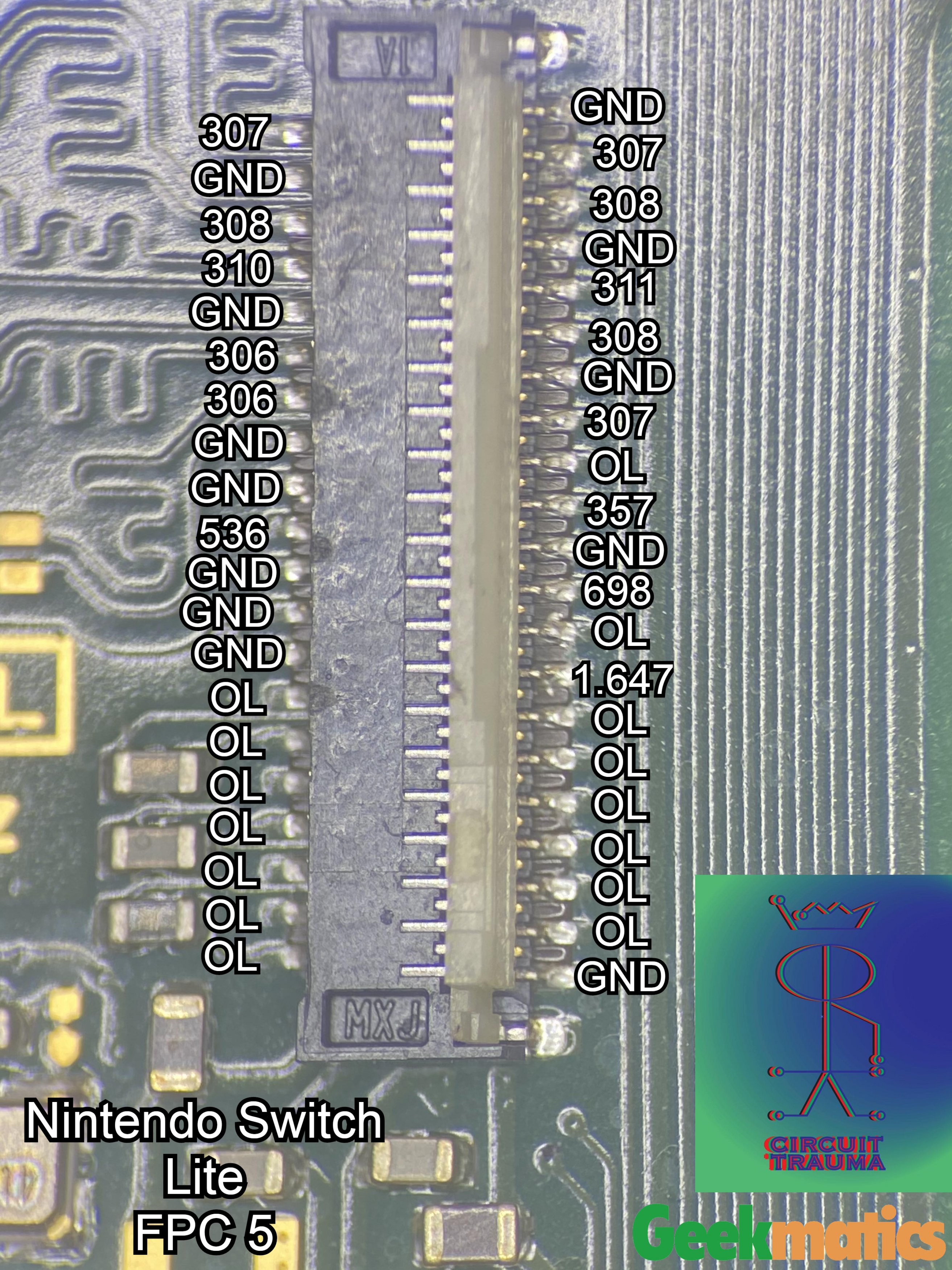

• Que es OL?, tengo una placa que intentaron cambiar el conector fpc 5 y volaron una pista, mas exacto el 2do pad de arriba, (de lado frente a las resistencias), quiero intentar rescatarla y este es el unico diagrama que consegui, pero Quiero saver que es OL, para ver hacia donde debo seguir la continuidad para hacer un puente
