1. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    189
    Country:
    Romania
    Better contact @mattytrog
    I'm pretty sure it has the capacitors if you don't want to risc.
    @AshC95

    Last edited by Modificatorul, Jul 6, 2020
    AshC95 likes this.
  2. AshC95

    AshC95 Newbie
    Newcomer

    Joined:
    Jul 6, 2020
    Messages:
    5
    Country:
    United Kingdom
    Will do, it is the Mariko unit I have too so yeah best get it confirmed first.

  3. AshC95

    AshC95 Newbie
    Newcomer

    Joined:
    Jul 6, 2020
    Messages:
    5
    Country:
    United Kingdom
    Team Xecuter got back to me and you were right about what I needed, so again thank you for the help.

    Modificatorul likes this.
  4. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    189
    Country:
    Romania
    I'm glad to hear that you received confirmation, I wanted you to contact Matt because I was afraid you will ruin the tegra Soc, i hope you solve the problem.

  5. TheJeffChen

    TheJeffChen Newbie
    Newcomer

    Joined:
    Jun 22, 2020
    Messages:
    6
    Country:
    Canada

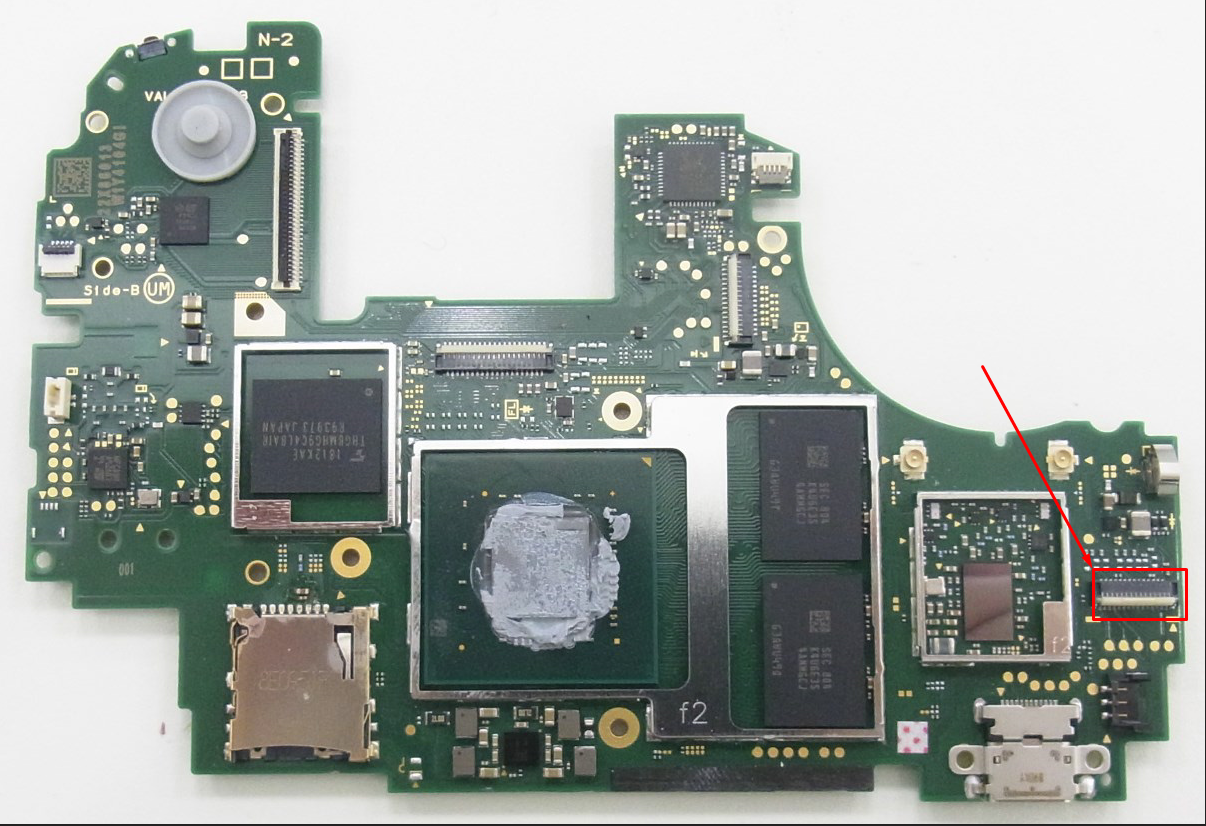

    Can anyone help me with the one pointed by the red arrow?

    I pried the connector in the wrong way and this one is now missing. I tried measuring it on my good switch and it seemed to have no continuity at all, like an open line. However it doesn't look like a capacitor either. I also have not been able to observe any ill effect after missing it.


    Attached Files:

    Last edited by TheJeffChen, Jul 9, 2020
  6. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    189
    Country:
    Romania
    Resistor 0.13 Mohm, size 0201, mesured on board.

    TheJeffChen likes this.
  7. TheJeffChen

    TheJeffChen Newbie
    Newcomer

    Joined:
    Jun 22, 2020
    Messages:
    6
    Country:
    Canada
    Thank you! I don't know what happened to my multimeter. Probably the probes wasn't getting a good contact.

  8. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    189
    Country:
    Romania
    Set your multimeter to resistance and move the dial until you read something , on my crap unit ut50b i gett a reading on this resistor only on 200M range

    Last edited by Modificatorul, Jul 9, 2020
  9. TheJeffChen

    TheJeffChen Newbie
    Newcomer

    Joined:
    Jun 22, 2020
    Messages:
    6
    Country:
    Canada
    My multimeter tops at 2000K. For sure I tried this stop since nothing came up for the others, but couldn't get any reading.

    If it was 0.13M/130K, I should be able to get a reading, right?

  10. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    189
    Country:
    Romania
    yes, @Pintglass if you have time can you messure with your multimeter and confirm is 130 kohm or close, thank you.

  11. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    189
    Country:
    Romania
    Crossfader likes this.
  12. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    14
    Country:
    China
    MAX17050

  13. Switch2020

    Switch2020 Newbie
    Newcomer

    Joined:
    Jul 12, 2020
    Messages:
    6
    Country:
    United States
    Alright friends, I can use your help all here. I replaced the USBPC chip and everything went well. While doing that though, I crushed the plastic battery plug. So, I replaced that and it was a bit illusive to do. Long story short, I did replace it and when I did that, the switch would turn on and run fine for a week. Then, it stopped all together. I checked all the caps, no short and the battery is getting charged just fine with 19+ volt. I plugged the USB ammeter, it doesn’t show that there is any drop in amps needed to turn on the switch. Indicating that the switch isn’t coming on! Any ideas what it might be or what I need to check? Appreciate all the help. Thank you

  14. DrunkenMonk

    DrunkenMonk GBAtemp Fan
    Member

    Joined:
    Sep 30, 2007
    Messages:
    401
    Country:
    United Kingdom
    Does anybody have identification on this component? I tried tracking it down, there's two references to 8316 and 6T59 - so I figured maybe it's the BD8316GWL but the dimensions are wrong and it has 11 pins opposed to the one here which is only 9 pin(?). I found an aliexpress page selling them and I've ordered some, so I can better see those at least when they arrive
    [​IMG]

  15. Kyle90

    Kyle90 Newbie
    Newcomer

    Joined:
    Jun 3, 2020
    Messages:
    2
    Country:
    United States

    Hi,Thanks your reply will try again.

  16. flabbaba

    flabbaba Member
    Newcomer

    Joined:
    Jun 27, 2020
    Messages:
    24
    Country:
    Norway

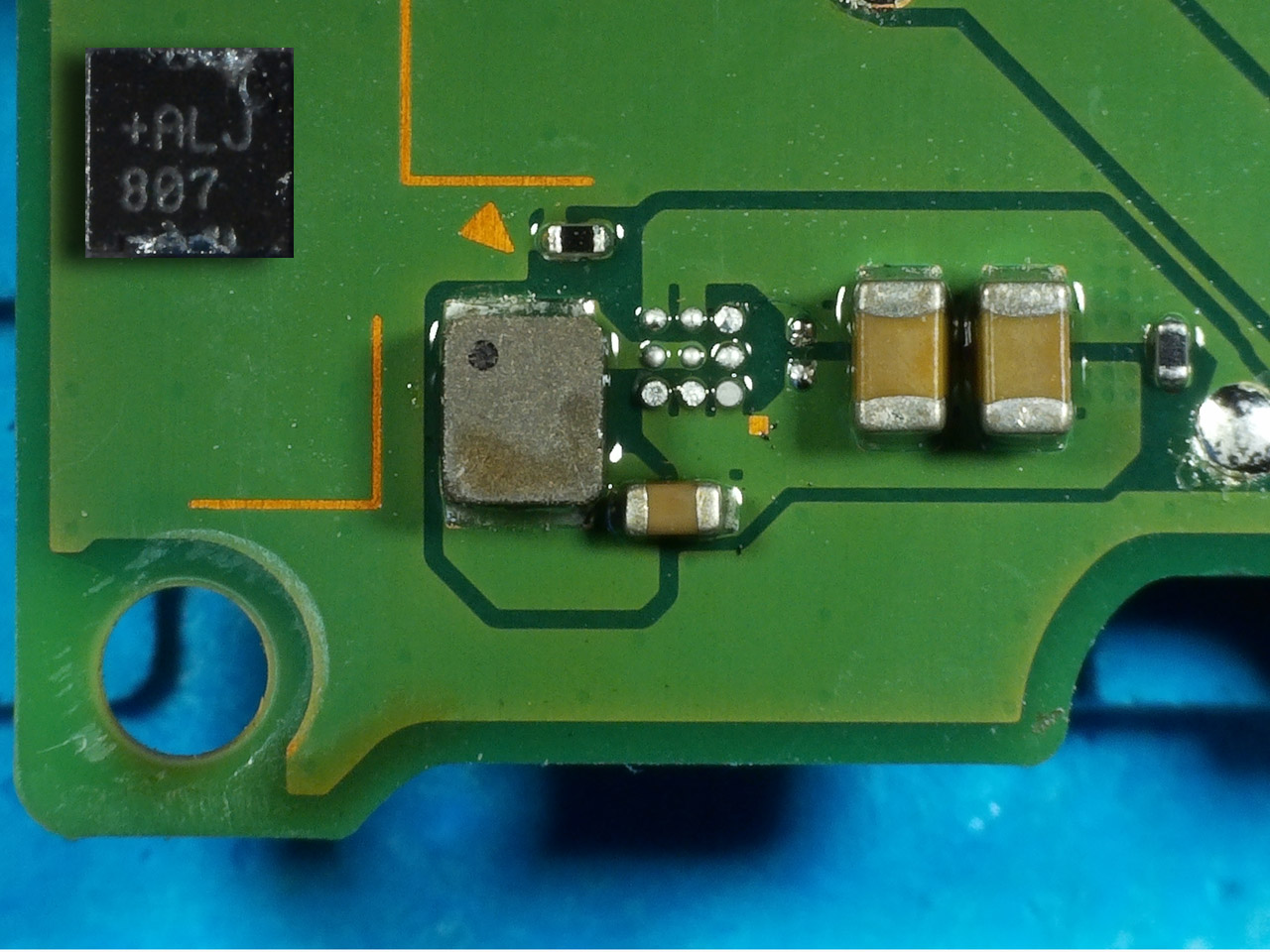

    I doubt it. The other MAX 17050 chip on the board is clearly marked. This one is on the opposite side of the board. Are you sure? On another card of same design, they are named +ALJ920

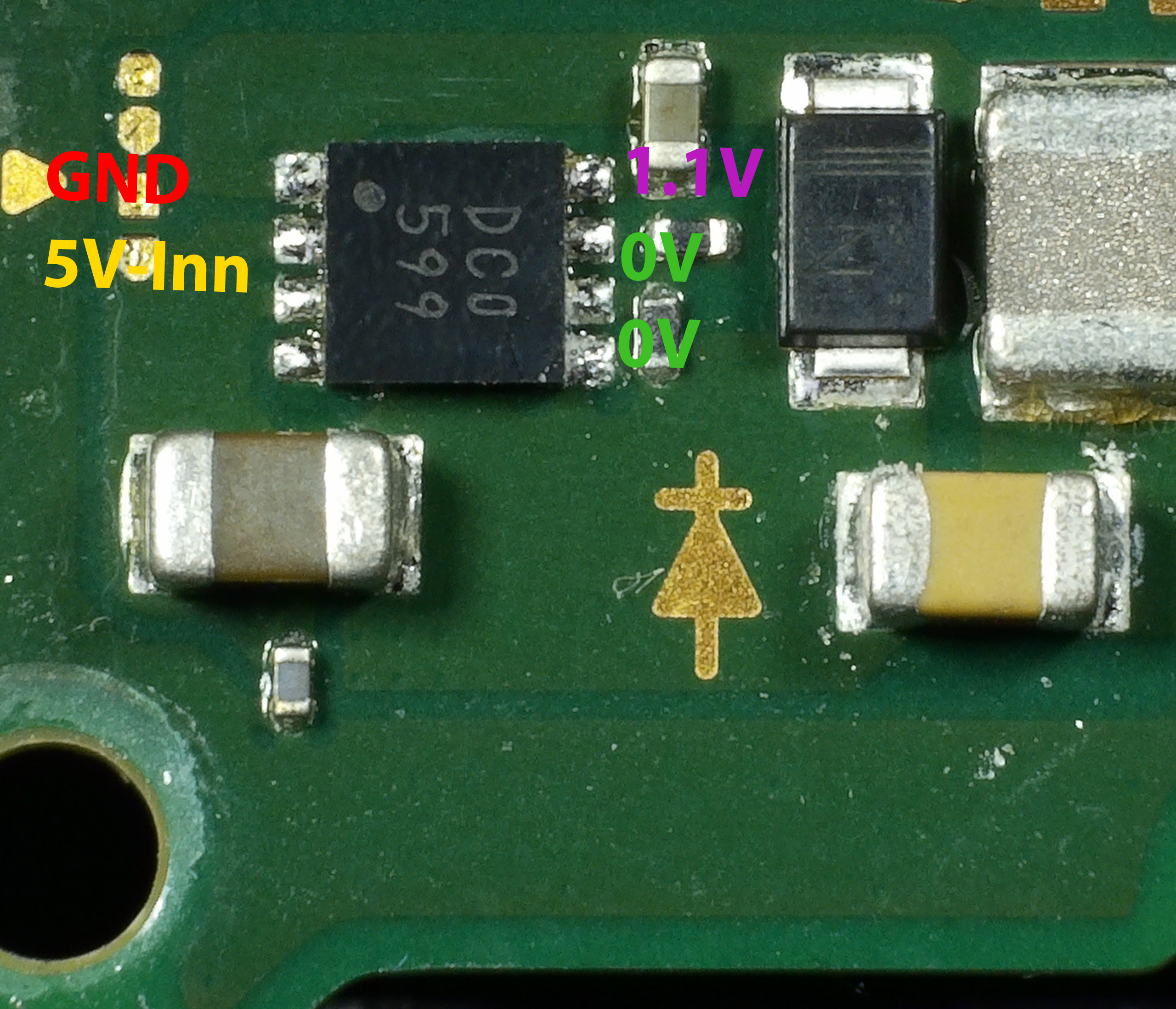

    On a newer board, HAC-CPU-10, this is what they use in its place. Voltages shown are with only 5V USB charger inserted to plain mainboard with no battery or other things connected. Another place suggest som kind of buck/boost converter from Maxim (future Analog Devices).
    . 2016_0303_003402_002.jpg

    Last edited by flabbaba, Jul 19, 2020
  17. AsideX

    AsideX Newbie
    Newcomer

    Joined:
    Sep 19, 2018
    Messages:
    4
    Country:
    Italy

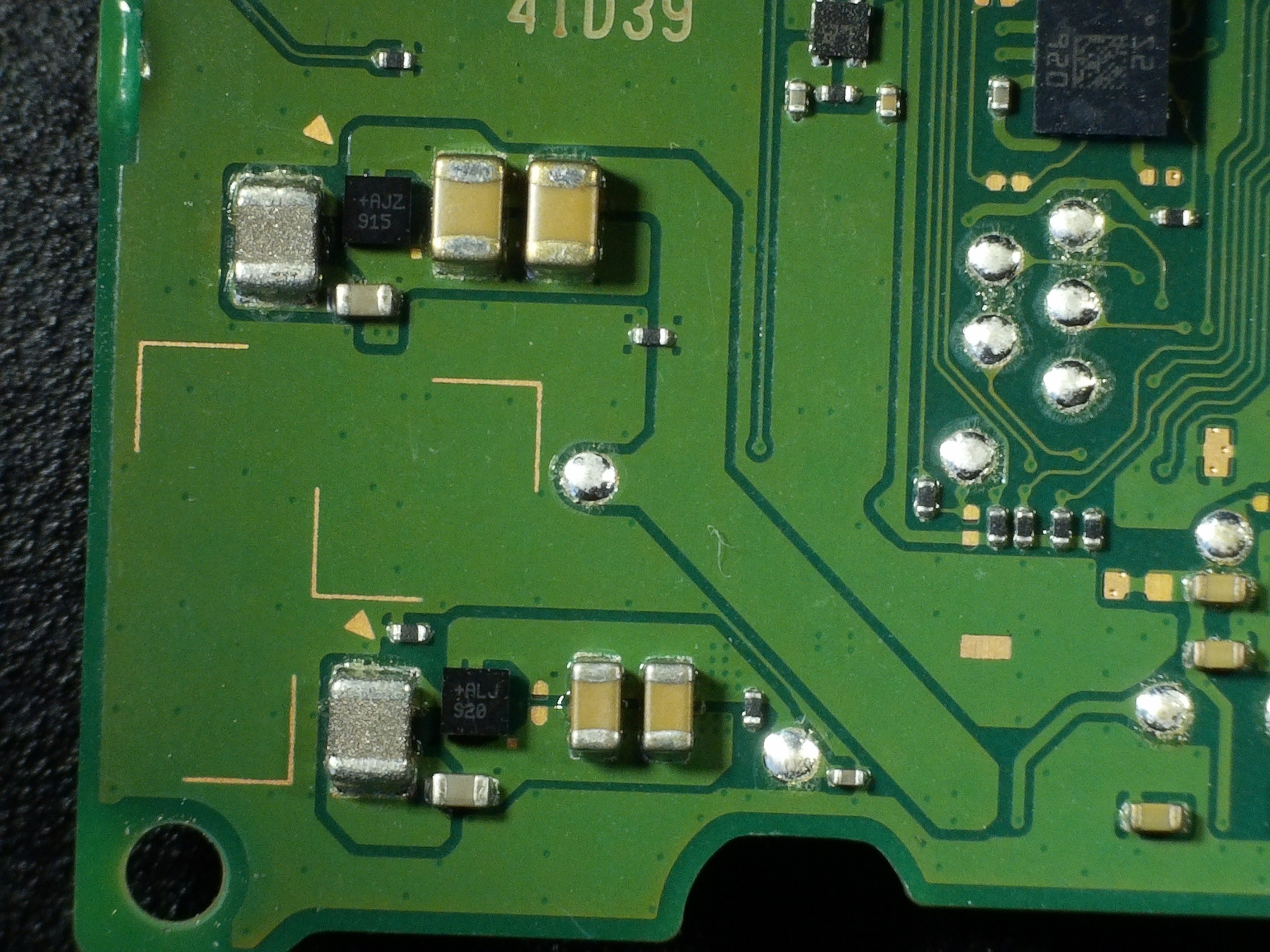

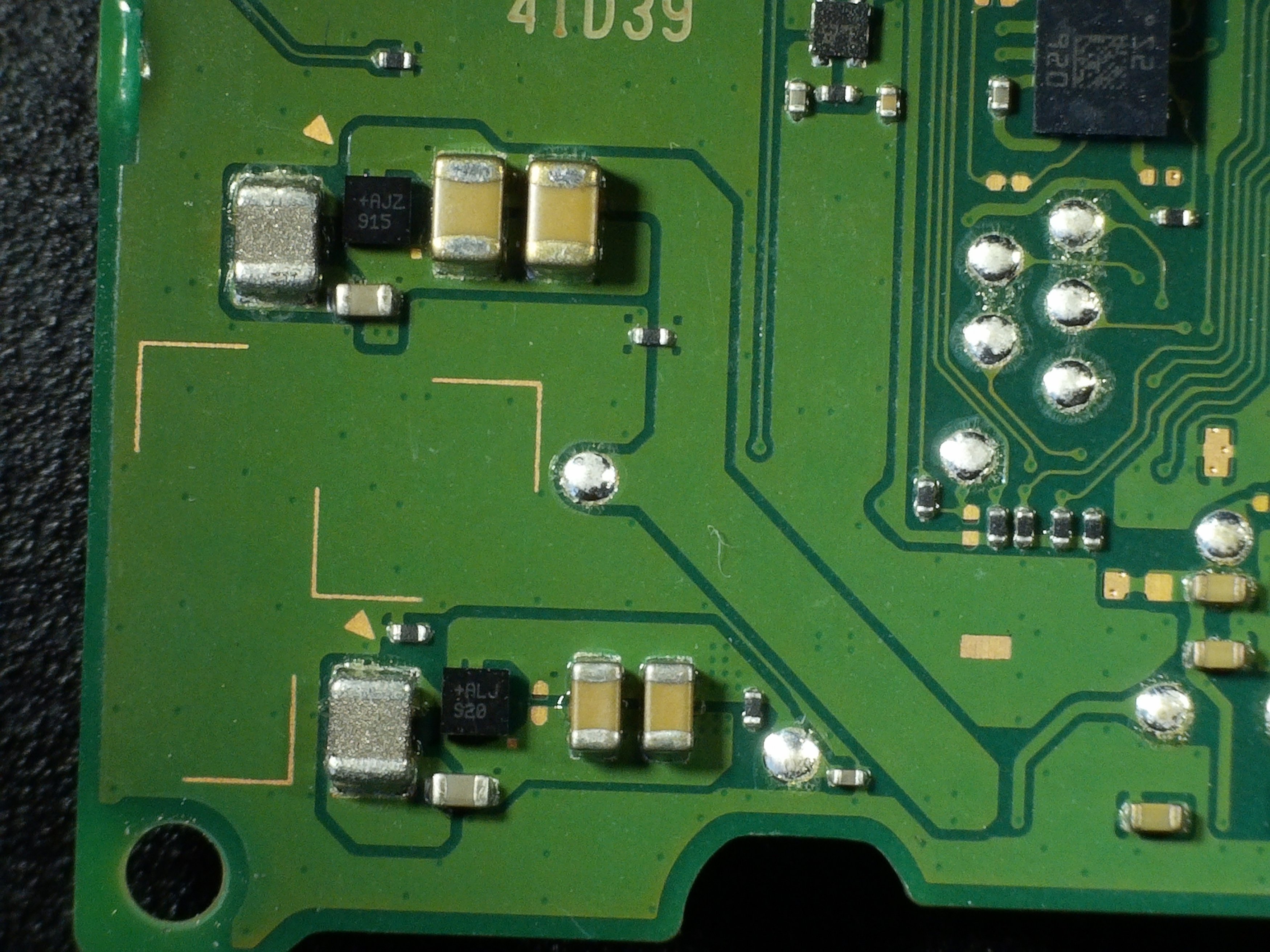

    Does anyone know what this element is and what are its parameters?

  18. laotoulyh

    laotoulyh Member
    Newcomer

    Joined:
    Jul 8, 2020
    Messages:
    14
    Country:
    China
    Oh, sorry, I read it wrong.

    flabbaba likes this.
  19. JaRocker

    JaRocker GBAtemp Regular
    Member

    Joined:
    May 3, 2018
    Messages:
    206
    Country:
    Jamaica
    can someone tell me where i can fin/buy this connector Nintendo_Switch_Lite_FPC_2_Edited (1).jpg Screenshot_6.png
