Hacking INSTINCT-NX Chip

[RedMilan]

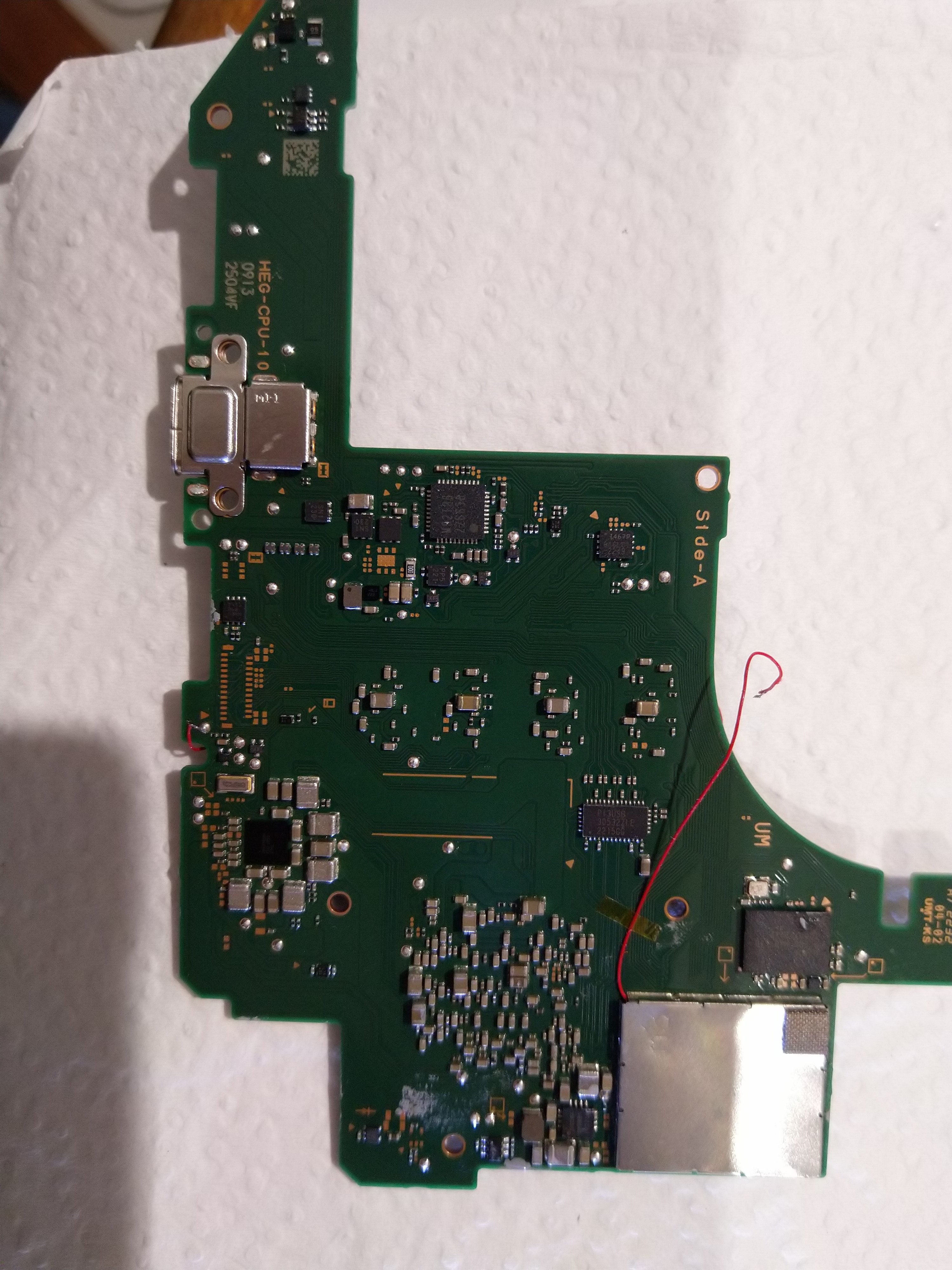

ok ill post a pic of the install and chip
Sorry my phone does not have the best camera, took like 10 photos and this was the best.

I should of waited a bit before I disassembed the chip!

This looks like something is shorted to ground. You mentioned B point no readings? Check if B is bridged to the little resistor near B.



[Hassal]

ok ill post a pic of the install and chip
Sorry my phone does not have the best camera, took like 10 photos and this was the best.

I should of waited a bit before I disassembed the chip!

Have you read the issues revolving around the usage of pads? With those blobs shorts happening isn't out of the question with how bad the pads are.



[CorvusCorax]

Are the soldering pads any better in the black version of the Instinct-NX chip?



[grubgrub]

This looks like something is shorted to ground. You mentioned B point no readings? Check if B is bridged to the little resistor near B.

Thanks, I just checked again, it is not bridged to any resistor.
Its not even giving a reading at the origin point :o



[doom95]

do you get 1.2v, 1.8v and 3.3v respectively out of the 3 regulators (top-right pin for each)?



[grubgrub]

do you get 1.2v, 1.8v and 3.3v respectively out of the 3 regulators (top-right pin for each)?

Apologies, where are the regulators?



[doom95]

on the modchip, the 3 identical looking chips with 3 legs on the left side and 2 on the right. measure on the top right pin for each



[grubgrub]

on the modchip, the 3 identical looking chips with 3 legs on the left side and 2 on the right. measure on the top right pin for each

I put the multimeter in diode mode with black on the ground point and red on the top right legs (the side with the 2 legs):
I got these results:
1) 0.659v
2) 0.946v
3) 0.302v



[doom95]

measure in normal volts mode on those points, not diode or resistance



[grubgrub]

measure in normal volts mode on those points, not diode or resistance

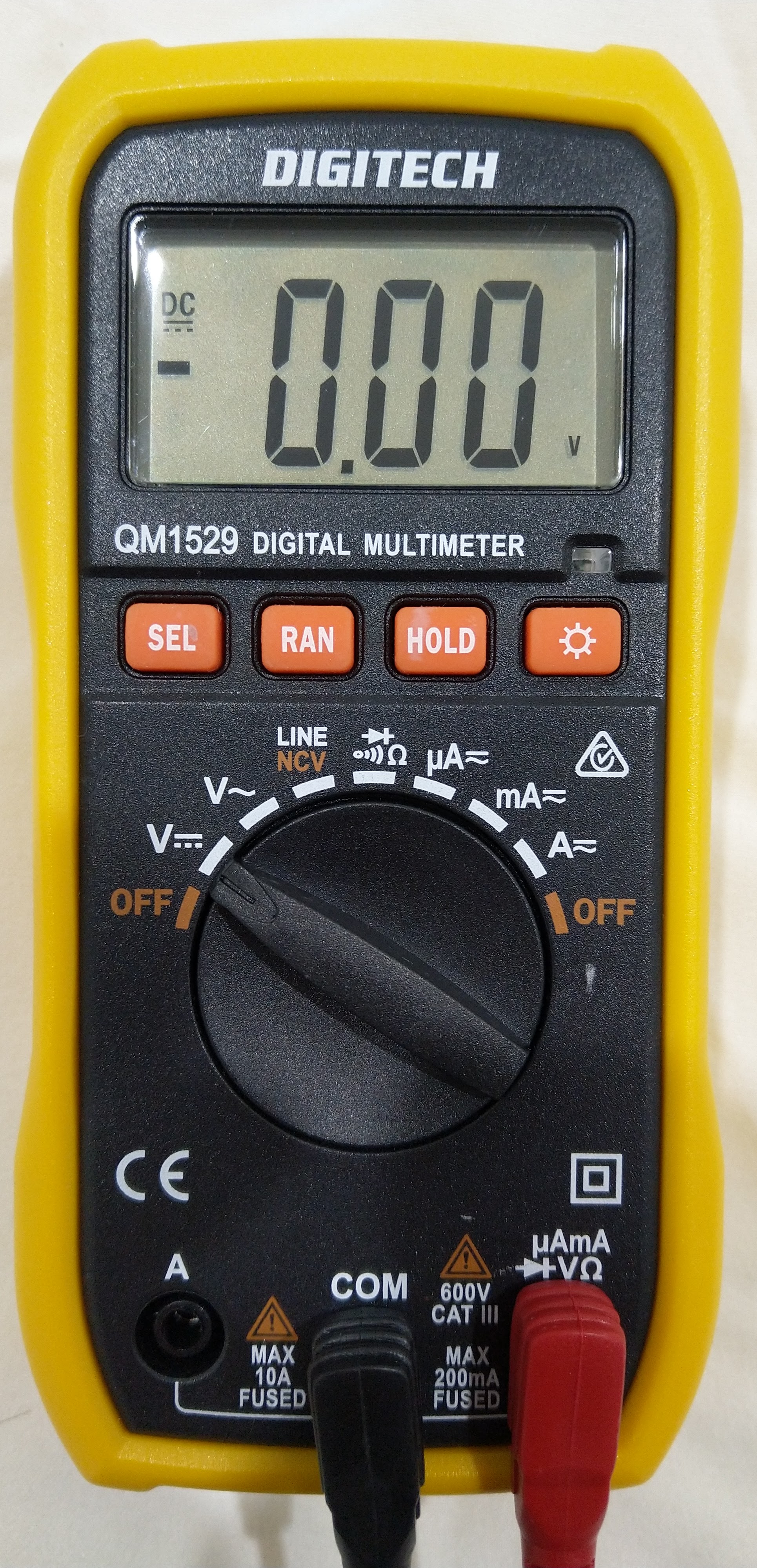

Thanks, here is a pic of my multimeter.
Not too sure what im doing wrong,
1) im getting 0.003mV
2) im getting 0.000mV
3) im getting 0.000mV



[Orochi996]

My switch literally stopped working overnight, the chip flashes Red then purple, then stays White for 2 seconds and turns off, the console Is not booting : /. What does the White led signal?



[ranma99vn]

My switch literally stopped working overnight, the chip flashes Red then purple, then stays White for 2 seconds and turns off, the console Is not booting : /. What does the White led signal?

what is ur switch oled?



[doom95]

Thanks, here is a pic of my multimeter.
Not too sure what im doing wrong,
1) im getting 0.003mV
2) im getting 0.000mV
3) im getting 0.000mV

with the switch and modchip powered up of course



[grubgrub]

with the switch and modchip powered up of course

ahh i see, I earlier removed the modchip
I will put it back together tomorrow
Thank you for your assistance, much appreciated.

I note that with the mod chip removed, the switch does not start in OFW.
Is this because the CPU cable is still attached and is joining the points?



[ranma99vn]

ahh i see, I earlier removed the modchip
I will put it back together tomorrow
Thank you for your assistance, much appreciated.

I note that with the mod chip removed, the switch does not start in OFW.
Is this because the CPU cable is still attached and is joining the points?

after removed n not turn on the switch cant get to excess emmc



[RedMilan]

Thanks, I just checked again, it is not bridged to any resistor.
Its not even giving a reading at the origin point :o

I would try to remove the cable and the solder with a wig. The point B itself need to have around 2.9V.



[Orochi996]

what is ur switch oled?

yeah it's an oled



[grubgrub]

after removed n not turn on the switch cant get to excess emmc

Thanks, so i wont be able to use the switch till the modchip is back on then?



[doom95]

with modchip disabled switch should work fine. probably something is damaged/shorted
