This Tutorial shows you how to Uncensor and Undub Xenoblade Chronicles X EU/US and repack it back into .app Files so you can install them with the Brazilian Install Method so no Loadiine is needed for this at all.

Requirements :
- Time and Patience
- Downloaded/Ripped Versions of both the JP and the EU/US Version of the Game in (.app Format)
- Java
- Mocha CFW, Haxchi CFW or any kind of Signature Patches on your Wii U
- Ability to read this

1. First of all get both GameVersions EU/US and JP as WupInstaller Package with whatever tool you normally use.

2. Download JNUS Tool from this Thread :
https://gbatemp.net/threads/jnustool-nusgrabber-and-cdecrypt-combined.413179/

3. Open the config file with your desired Editor like NotePad++ and put in the Wii U Common Key which i can't provide here in line 2. (Hint use google or similar)

4. Copy both Game Versions into Folders Names tmp_TITLEIDHERE for example tmp_00050000101C4C00 for Xenoblade Chronicles X EU. Do the same for the JP Version.
(Just put in the Numbers for your US Version instead.)

5. Hold Shift While being in the JNUS Folder and open a Command Line Window by rightclicking into Empty space. Click "Open Command Window here" to open CMD.
Type in the following command :

java -jar JNUSTool.jar 0005000012345678 (Insert the Title ID there instead of 12345678)

and press Enter.

6. A Window Should open Showing you the Content of the Game. Mark all 3 Folders with a Tick and Press Download and it's gonna Unpack your Game in Loadiine Format (this takes a while it was arround an Hour for me).

7. Do the Same Process with the 2nd Game Version. (Repeat 4-6 for the other Version)

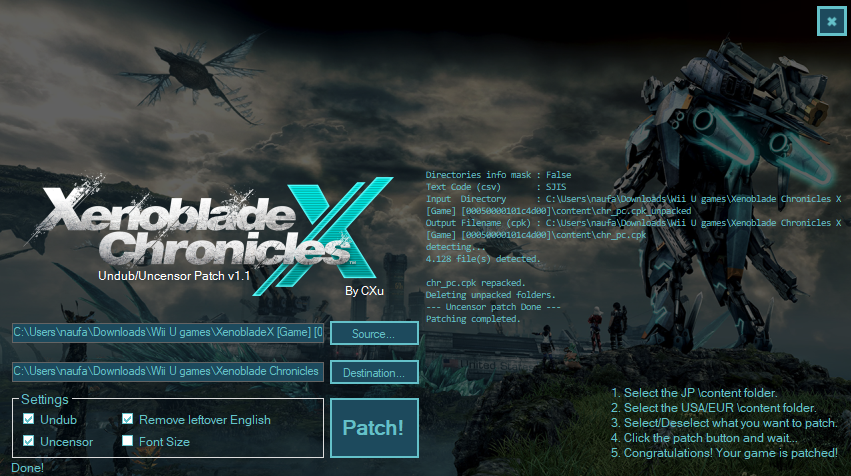

8. Get the Undub Patcher from here :
https://gbatemp.net/threads/xenoblade-chronicle-x-undub.405092/page-20#post-6351997

9. Open the Patcher and set the Source as your JP Version Folder. Important Select the "Content" Folder not the Root. As Destination set the EU/US Version and also set the Content Folder.

10. Select what you want to patch and Click Patch. This is gonna take arround an Hour aswell. When it's done your EU/US Version is already patched and ready to be repacked.



11. Grab the NUSPacker from this Thread :
https://gbatemp.net/threads/nuspacker-pack-files-into-installable-packages.447689/

12. Hold Shift while being in the NUSPacker Folder and open a Command Line Window like before. In the Command Line Window write this :

java -jar NUSPacker.jar -in "inputDir" -out "outputDir" -encryptKeyWith 12345678123456781234567812345678

12.1 Replace "inputdir" with your files location this Time the root folder with "content, "meta" and "code" in it.
12.2 Replace "outputdir" with your desired Folder where it is gonna install your finished Files.
12.3 And replace the Numbers after -encryptKeyWith with the Wii U Common Key again. Again i can't provide that Key here use Google.
12.4 Press Enter



13. Let the Tool do it's magic (can take arround an Hour aswell) and you should have .app files ready to be installed with WupInstaller.


14. Copy the Files to the SD Card and run SigPatches on your Wii U. Boot up WupInstaller after and Install the Game. Don't forget to delete the Old Game before if it's installed. Install the game and make sure you only run the Game with Mocha or Sigpatches on ! Enjoy your Undubbed/Uncensored Game it also works perfectly fine with Patch 1.01E and 1.02U and Online works aswell.


Finished Files ready to install :



If you have any suggestions or questions let me know i try my best to answer them

Shoutout to @Maschell , @CXu , @timogus for their Tools making this possible. !


EDIT: Some people have reported issues with the US Version with that Method. I don't know where it comes from if either User Error or the actual Version but with Wii U's being Region Free now anyways i might recommend going with the EU Version instead to be sure it works since i can confirm that myself.


EDIT 2: I advertise against using the Font Option in the Patcher i've got reports that the game doesn't start then and just blackscreens.



[Amuro-san]

@Amuro-san
Was this question for myself? If so, I don't have the slightest idea.

I was going to ask you something, these files that you made available, just paste and replace them in the game folder extracted in loadiine that is already translated?

they are japanese iso files, videos and audios, I'm putting them here because I couldn't undub (it works to replace the videos, but for some reason the audios don't) so I'm putting them to see if someone mods the US/European version



[zerodown]

they are japanese iso files, videos and audios, I'm putting them here because I couldn't undub (it works to replace the videos, but for some reason the audios don't) so I'm putting them to see if someone mods the US/European version

did you try to do it like in that video i linked? I made the patch as in the video, I downloaded the US and JAP version through the Wii U USB Helper after it finished, I generated the loadiine version and used the CXu patcher, you will need about 70GB of HD, and I even made a backup copy of the version pre-patch giving more than 90GB, but I haven't tested it on cemu yet, transferring the files to an external HD in case it doesn't work, I'll try later.



[Amuro-san]

did you try to do it like in that video i linked? I made the patch as in the video, I downloaded the US and JAP version through the Wii U USB Helper after it finished, I generated the loadiine version and used the CXu patcher, you will need about 70GB of HD, and I even made a backup copy of the version pre-patch giving more than 90GB, but I haven't tested it on cemu yet, transferring the files to an external HD in case it doesn't work, I'll try later.

i tried to follow but it's complicated and he doesn't follow



[zerodown]

i tried to follow but it's complicated and he doesn't follow

If you intend to install for the console and not for the emulator, I have nothing to say. the initial tutorial of this topic was really made to complicate things.
But this was the easiest tutorial I found. ignore all these parts in the topic and just follow the video tutorial:
1.download the Wii U USB Helper, then look for the game, download the dlc and update, finished converting to loadiine.
2. Go to the change region option and do the same process in the Japanese region.
3. after converting the 2 to loadine use the patcher. did not give any error when running the pacher on mine with this one.
I uploaded it to cemu now I'm converting it to WUA. I haven't tested it because my notebook can't handle running the emulator, I'm leaving it ready for when I get the steam deck next year.



[Stario]

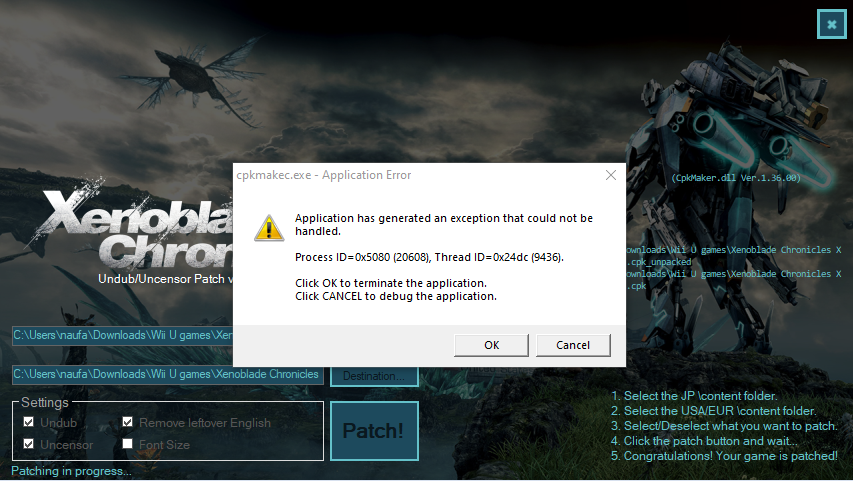

i was having trouble applying the patch instead of using the CXu files: https://gbatemp.net/threads/xenoblade-chronicle-x-undub.405092/page-20#post-6351997 i was trying to use the from the Haevens:
https://gbatemp.net/threads/xenoblade-chronicle-x-undub.405092/
(I thought it was more up to date because it was version 2.1)
But after watching this video:

Spoiler

I saw that the file I was trying to use was not the recommended one (that's why it didn't even run).
and now i finally got to part 11 of NUSPacker, but again i ran into the same problems as in Haevens tutorial, NUSPacker doesn't open, and yes i have java installed.
But since the video

Spoiler

does not show it using NUSPacker, can I simply compress it using Cemu? I don't intend to play on console.

If you're gonna run the game on Cemu you just need to run the patch and the resulting files must been compatible with CEMU.
You don't need to use NUSPacker at all, just run the patcher and install the game (that must be on Loadiine format: code, content and meta folders) as any other game CEMU compatible

Post automatically merged: Nov 18, 2022

If you intend to install for the console and not for the emulator, I have nothing to say. the initial tutorial of this topic was really made to complicate things.
But this was the easiest tutorial I found. ignore all these parts in the topic and just follow the video tutorial:
1.download the Wii U USB Helper, then look for the game, download the dlc and update, finished converting to loadiine.
2. Go to the change region option and do the same process in the Japanese region.
3. after converting the 2 to loadine use the patcher. did not give any error when running the pacher on mine with this one.
I uploaded it to cemu now I'm converting it to WUA. I haven't tested it because my notebook can't handle running the emulator, I'm leaving it ready for when I get the steam deck next year.

There's no need to convert the files to WUA... just use the files you already have (the code content meta)
I already have played the game on CEMU and it works perfectly like that even online.
The main tutorial was clear to understand if you slightly know what you're doing (basic java and terms from the hacks scene) so there's no need to say it was intended to complicate the process because the main steps were just to help people who do not have their games in loadiine format.
I think the problem Amuro-san and Zerodown were having was just due because they forgot the fact that the main post was intended to create the installable Wii U format of the game... so, for CEMU users: just get both versions of the game and run the patcher tool https://gbatemp.net/threads/xenoblade-chronicle-x-undub.405092/page-20#post-6351997.
The result files are already CEMU compatible, so you can play the undub/uncensored game after the process is done.

Post automatically merged: Nov 19, 2022

Oh! Another thing I think is worth to mention for CEMU players that haven't been mentioned on this post... there is a port of most XCX Gecko codes for Cheat Engine to use on CEMU!
It allows us to do most of the things available on the Wii U version of the tool, including the only feature that most people is interested the breast slider for any character.
You'll just need to add the attached custom type codes to be able to read the values.
After adding the codes you can run this Cheat Engine exe

Spoiler

https://www.dropbox.com/s/bygj883occnz5hh/XCX_1.2.2.ct?dl=0

For a step by step guide you can look over the original post on reddit:

Spoiler



[jimkage]

When's the earliest point I can confirm the game is uncensored ?
I confirmed it`s uncensored but the undub has a slight hiccup at the start as soon as you enter the city the director say some stuff in english.



[Sumghai]

I've followed step by step, but I still get the censored version of the game. I'm running aroma and I transferred the sigpatcher in the setup folder, but still nothing.



[Ake]

Well, this is as far as I can seem to get. I have the US and JP versions and followed the steps. I also looked everywhere online and couldn't find one that someone has done already in the last 5 years lol. Anyone who feels like a total winner, feel free to send me a message to help me out!!

This is what I get when I run command:
No cached TMD found.
Getting missing tmd from Server!
No cached ticket found.
getting missing ticket
File not found: http://ccs.cdn.wup.shop.nintendo.net/ccs/download/00050000101C4C00/cetk
No cached FST (00000000) found.
Getting FST from server.
java.lang.IllegalArgumentException: Not a FST. Maybe a wrong key? Don't worry if you only want to download encrypted files!
at de.mas.jnustool.FST.parse(FST.java:91)
at de.mas.jnustool.FST.<init>(FST.java:33)
at de.mas.jnustool.NUSTitle.<init>(NUSTitle.java:185)
at de.mas.jnustool.Starter.main(Starter.java:82)

Title : 00050000101C4C00
TitleID : 00050000101C4C00
Version : 0000000000000001
Encrypted Key : 00000000000000000000000000000000
Decrypted Key : C3A3EF21F8FE7367564E50BB00796E59
Total Size of Content Files : 19618.31 MB
Error: Can't create GUI window without the FST. Please provide a key/title.key. To download the encrpyted files use the -dlEncrypted argument

Got the exact same, anyone fixed this?



[Dellix]

Hi, I followed the guide to patch the EU step by step but the game is half undubbed half not. (The intro cutscene is jap but the first elma dialogue is eng). Any help?



[sacredcrowds]

why not someone with a good soul just patch it and upload it to people that cant do it? Even for some that spell ''do it by yourself'' already came here and take something freerly from someone. So its nonsense this. Go study, google it, stop begging etc... Why not just dont upload it in Gdrive and say nothing. They cant becoz selfish people are in this way.



[Diababloss]

Hello?

This method doesn't seem to work flawlessly as the game... randomly reset while you roam on the world.

Any feedback abou tthis?
