Tilt Switch RCM Hardmod




Tilt It to Hack It: An RCM Hardmod for Your Right Joy-Con

A Collaborative Project by @0xAgon and @ramblecube

Introduction


Nintendo Switch users seeking to use the system’s recovery mode (known as “RCM”) have needed to press two buttons that exist on the system to do so- but a third and final button is not easily accessible. Historically, there have been several options for achieving this final button press, including the use of a “jig” (which can be purchased or even crudely made) or a physical hardmod.


We propose an alternative method that requires no “jig” but is more interactive than a traditional physical hardmod. Simply tilt your right Joy-Con upside-down- no jig!


* See ADDENDUM below for technical details, potential quirks, and project information/background. Remember - this is at your own risk!




Tutorial


Skills Needed
  1. Experience with soldering
    1. Steady hands
  2. Comfort with disassembly

Supplies Needed

  1. SW-200D Tilt Switch (very common, can be found on Amazon [1, 2, 3])
  2. 30 AWG Wire (also common, Amazon [1, 2, 3])
  3. A soldering kit
    1. Soldering iron
    2. Solder
    3. Fume extractor
  4. A Tri-Point Y00 screwdriver (sold on iFixit and Amazon [1,2])
  5. A JIS-000 screwdriver (sold on iFixit and Amazon [1,2])
    1. Phillips 000 can work as well, but it will end up stripping the screw
  6. Wire cutting/stripping tool
  7. (Optional) A pair of tweezers
(Optional) A magnetic parts tray


Goal


In order to accomplish this hardmod, you will need to install a tilt switch into the right Joy-Con.


You will first disassemble the right Joy-Con. Then, you will prepare the tilt switch for installation. Finally, you will install the tilt switch. After that, you can reassemble the controller and test your hardmod.


(1) Disassembling the controller


Prepare your right Joy-Con


First, locate a right Joy-Con that you are comfortable with disassembling and modifying. It is essential that a right Joy-Con is used. This WILL void your warranty.


It is also important that you are using a genuine right-side Nintendo Joy-Con. While this hardmod is almost certainly possible in third-party controllers, this tutorial does not cover them.


Removing the plastic covers and disconnecting the battery


The team at iFixit has prepared an excellent guide for this task.


Complete the steps in the guide, up to and including removing the battery connector. Do not move on to removing the battery cell itself. Leave the cell in place.


Here is the guide: https://www.ifixit.com/Guide/Joy-Con+Battery+Replacement/113634 (Link not working? Try this copy of the guide from the Internet Archive.)


Removing the charging rail


The charging rail should be removed from the back shell for ease of access while soldering. In our case, we are removing the charging rail from the rear shell, but the flat, brown ribbon cables will remain connected to the Joy-Con’s main board.


This can be accomplished by following step 7– and only step 7– of another guide from iFixit. Step 7 of this guide will tell you to use an #000 Phillips screwdriver to remove the screws, but it is preferable to use a JIS-000 screw, as a Phillips head will strip the JIS screws.

Here’s a link to the guide: https://www.ifixit.com/Guide/Left+Joy-Con+Charging+Rail+Replacement/142938 (Link not working? Try this copy of the guide from the Internet Archive.)

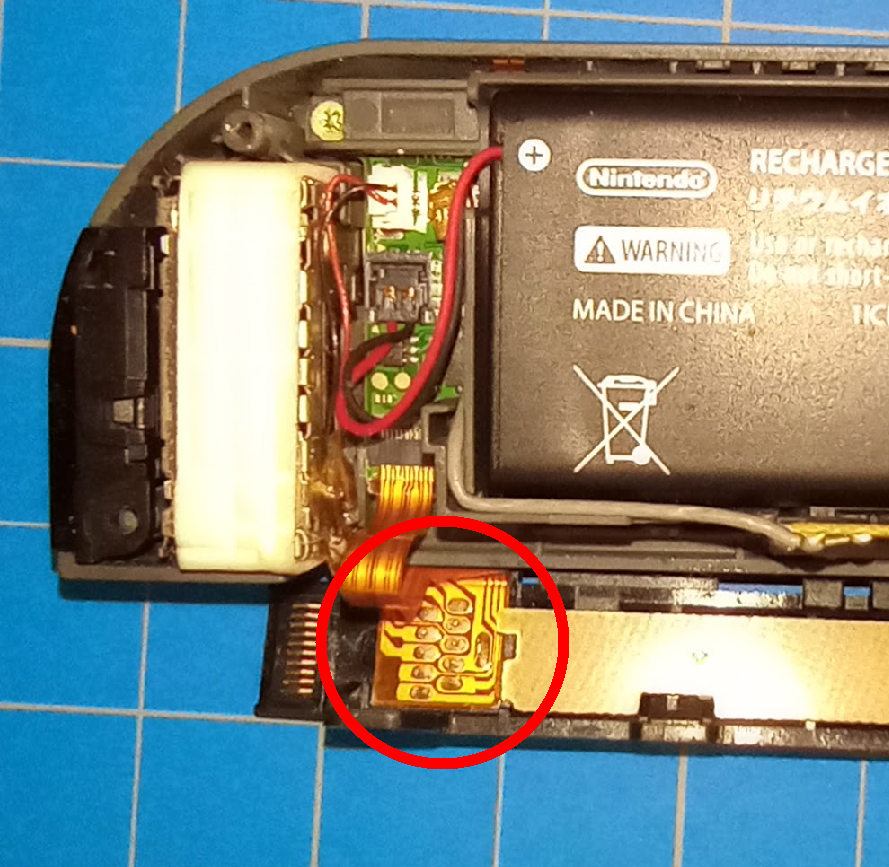

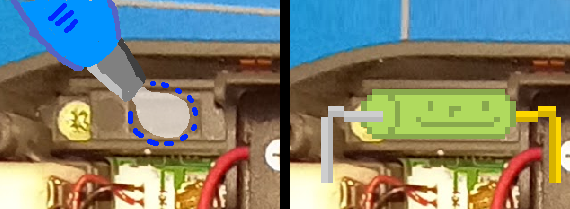

Removing the protective foam from the pin pads


On previously unmodified right Joy-Cons, there is a small square portion of foam covering the pin pads on the charging rail. You will need to remove this foam square. It can be removed by simply pulling it away from the charging rail. Refer to this image, where the foam has already been removed:






(2) Preparing your Tilt Switch


Clipping the Legs


Your tilt switch has two metal legs extruding from it. They need to be clipped so that the tilt switch can fit inside the right Joy-Con.



The legs should be clipped so that about 3mm/0.1in of length remains. The wires you prepare in the next step will wrap around the remaining stubs.

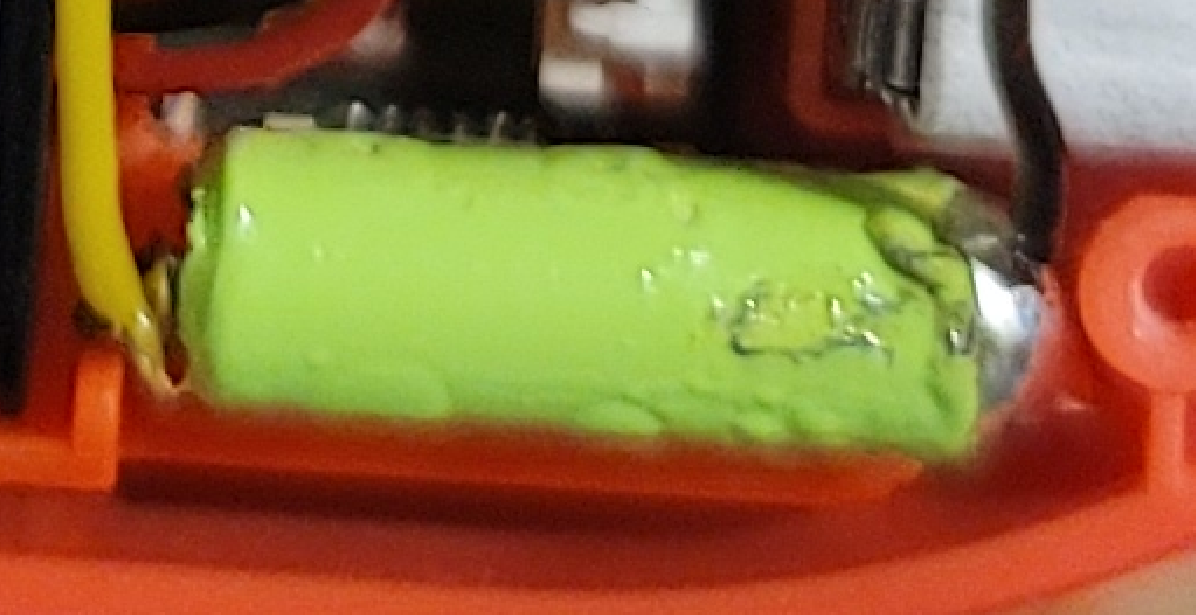

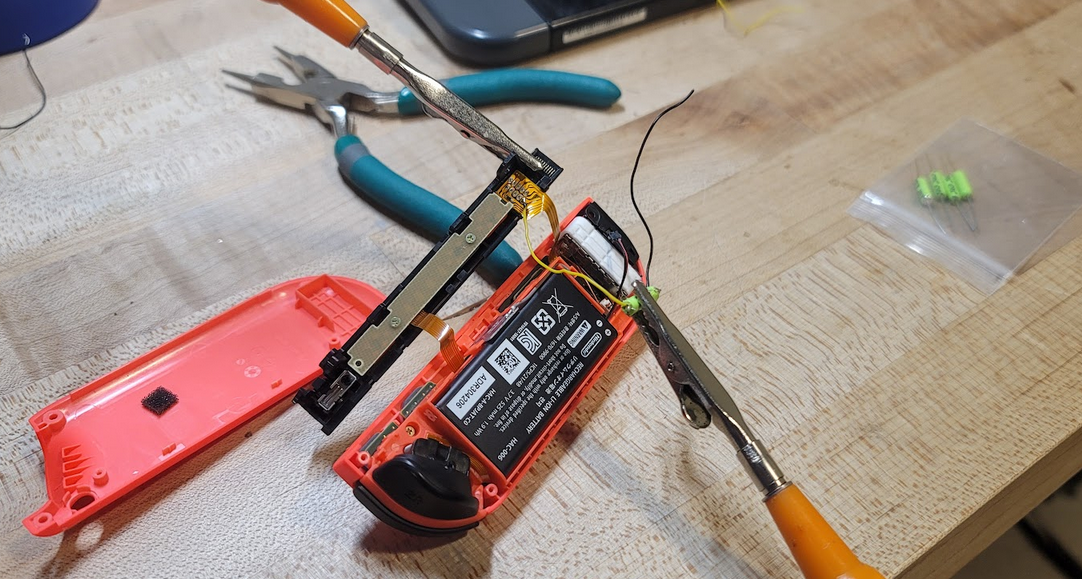

Here is an example image of the tilt switch in a complete hardmod. As you can see, the legs are obscured completely by the solder “blob”. The space constraint for the tilt switch itself is quite tight, so optimizing the leg length is crucial.



Using your wire cutting tool, clip the tilt switch legs to this length.

(3) Preparing your Wires

You will need to cut and prepare two wires using your wire cutting/stripping tool. They should each be about 45mm (1.75in) long.



There is a silver and a gold leg on the tilt switch. When choosing your colors of wire, it is recommended that you choose a similar color scheme. The solder will obscure the original leg colors, so color coding the wire allows the ends to be easily identifiable. In our case, a yellow wire was soldered to the gold leg, and a black wire was soldered to the silver leg.



The ends of the wires should be stripped. This is to allow the wrapping of the bare wire around the legs, which you cut in the previous step.



(4) Wrap and Solder your Wires Around the Tilt Switch Legs

Pick up one of your wires.

Take one of the ends and wrap the exposed metal portion around one leg of your tilt switch.

Make sure you are connecting the correct color wire to the correct color leg.

Using your soldering tools, solder the wrapped wire and the leg together.



Repeat this wrapping and soldering process with your other wire, attaching it to the remaining leg of the tilt switch.


You should now have a tilt switch whose legs have essentially been replaced by two short wires.

(5) Solder your Wires to the Pin Pads


Examine the pin pads that were exposed when you removed the protective foam square.



You will now be soldering the exposed ends of your two wires to these pads. You will solder the first wire’s exposed end to pin 1 (called “ground” or “GND”), and the second wire’s exposed end to pin 10.

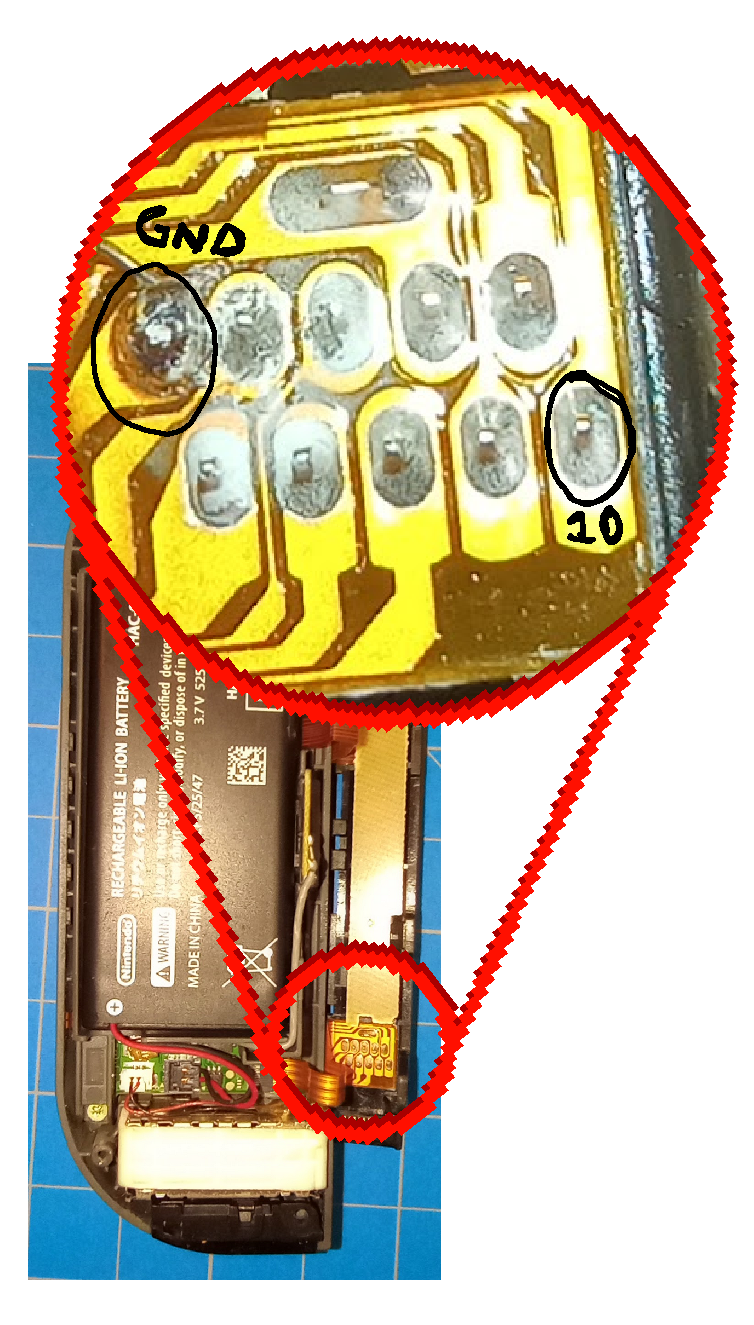

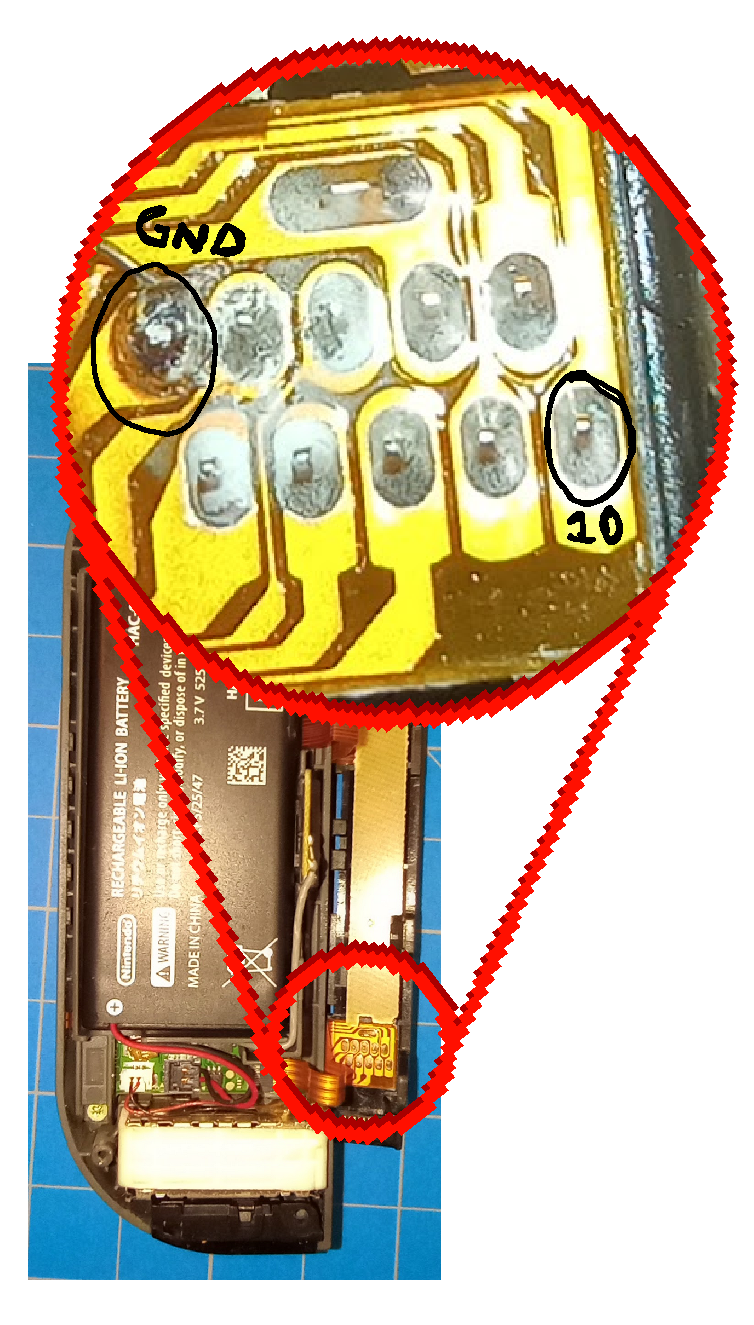

Disclaimer: In our implementation, we connected the yellow wire (gold end) to pin 1, which is ground. As confusing as that is in terms of circuit design, it was done because that wire is closest to pin 1. In order for the whole mod to be in an “upside-down activated” configuration, the gold end of the tilt switch has to go to the top, which naturally places the yellow wire in the position where pin 1 (ground) is the most accessible one. You can make the decision of if the black (bottom) wire should go to ground, but that will require some complex wire management around the pins.



On the left side of this diagram is our implementation, and the right is an alternative that respects the black-to-ground convention.


Securing the wire


It can be difficult to keep the exposed portion of a wire in place while soldering. We found that wrapping the exposed end of the wire around a pin before soldering helped to secure the wire in place.


Routing your wires

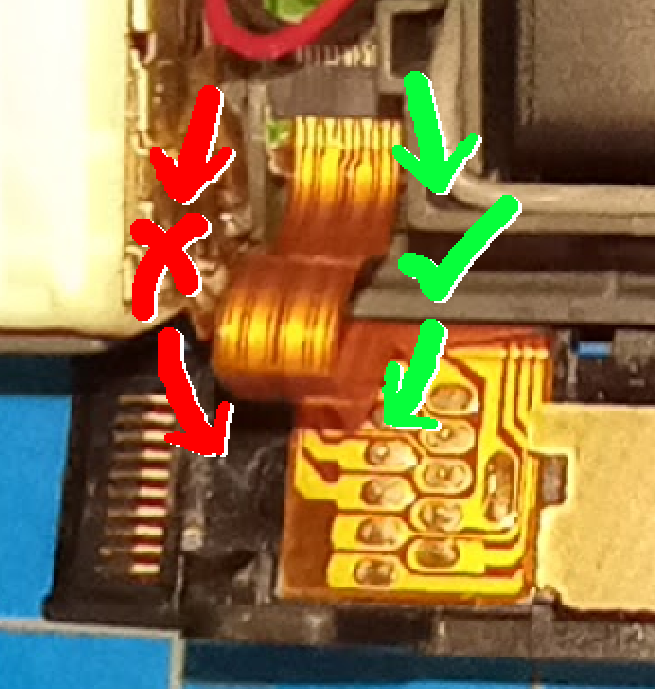

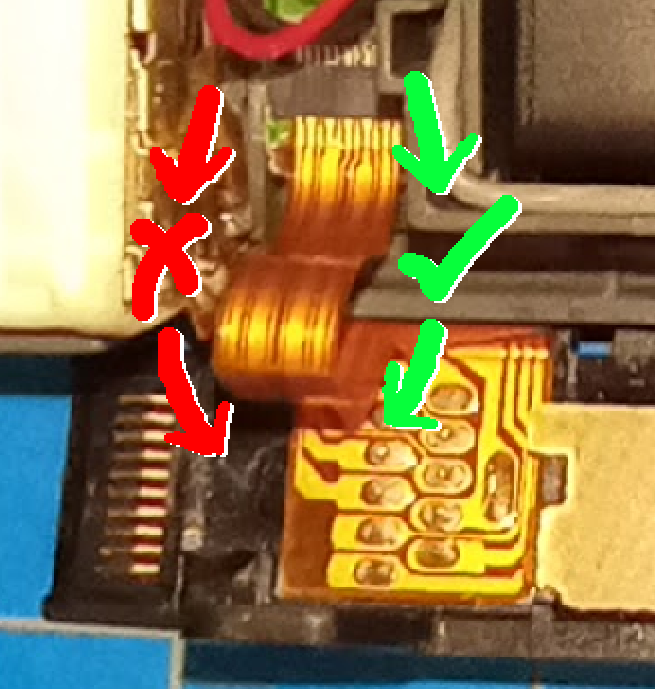

When routing your two wires, it is important to route them around the correct side of the ribbon cable connecting the main board and the charging rail. This is because, when the Joy-Con is reassembled, wires placed on the incorrect side of the ribbon cable will end up sticking out of the Joy-Con shell near the connector pins.



(6) Securing the Tilt Switch

Now the tilt switch should be secured so that it does not move around in the case during gameplay. You could use a small blob of hot glue to secure the tilt switch in place:



IMPORTANT: It is crucial, at this step, to affix the tilt switch so that the gold pin faces the top of the controller, and the silver pin faces the bottom of the controller.

:grog: You’re done! Before reassembling the Joy-Con using the iFixit guide from step 1, you may also choose to cover the pin pads with hot glue to insulate them and to keep your wires from coming off the pins.




Addendum (credit to @0xAgon)


(1) Quirks and implications


Q: Any implications?


As with most other hard mods, this mod also prevents the Joy-Con from working in “attached” mode while the Switch is flipped upside down. Whenever the switch is turned and the mod is activated, the Switch will instantly disconnect the Joy-Con and transition to wireless connection. While this is almost seamless, it can be a hassle since if only the right Joy-Con goes into wireless mode, the left one will no longer recognize the right one as its pair.

In normal usage, this kind of orientation should not happen very often. However, it can occur occasionally when you are playing while lying down, as the ball can freely move up and down the switch. This flaw is inherent to the design, and the modder should keep this quirk in mind.


Also, because there is quite literally a ball in the Joy-Con, the Joy-Con will make rattling sounds when you shake it. It can be good or bad, depending on your taste in musical instruments.


(2) How we got here & how this all works


Q: So what is the mysterious third button after all?


The Switch (both Erista and Mariko) goes into RCM whenever a key combination of volume up and the Tegra home button is held down while it boots. The volume up key is readily accessible – it is the volume button that is right next to the power button. The problem – what prompted us to start this journey – is the Tegra home button, as it is not physically accessible on the switch or the Joy-Cons. The home button you see on the right Joy-Con is the switch home button, not for the Tegra processor.


Q: What can one do to access the home button?


Because of the physical inaccessibility of the Tegra home button, we need to implement a way to produce the same input. The input that a supposed Tegra home button would produce is fairly simple: it brings pin number 10 low. It is usually set high – which is to say that electricity flows through the pin. Pressing the button is represented as the pin being brought low; and we can bring it low ourselves by bridging it to ground. Hence, most jigs, and by extension this hardmod, simulate the button press by bridging pins number 1 and 10 on the right Joy-Con.

The reason why we chose pin 1 is because of the physical layout. It is simply easier to solder them when we get as much space between the pins as possible. It is also one of the combinations that do not need a resistor, which makes the electrical design easier.

(3) Orientation of the Tilt Switch


The tilt switch closes depending on its orientation. The orientation for each position is notated by the positions of the gold and silver legs – if the gold leg is oriented below the silver leg, then the switch is closed.


Q: Why this over existing jigs?

  • Jigs can potentially damage the pins on the switch’s Joy-Con rail.
    • Even if it is not a direct deformation, it still scratches up the rail contact.
    • You would not want this happening, since replacing the switch side rail is quite the process.
  • If successful, you would no longer have to carry a separate jig.
  • The reliability of the contact is as good as it gets
    • Because jigs are always third-party and don't go through quite the same quality control that Nintendo does on the Joy-Cons, the jigs' contacts are not very reliable.
    • This mod uses an actual Joy-Con's rail contact pins in terms of the interface between it and the Switch, so the contact is very reliable.
  • The Joy-Con does not get forced into wireless mode permanently
    • The most common method of hardmodding the Joy-Con is permanently bridging pin 10 to a ground. Since the Switch only takes wireless connections from a Joy-Con that has those pins bridged, it will permanently stay that way.
    • This will in turn prevent the left Joy-Con from recognizing the wireless right one as its pair, which makes playing games in handheld mode challenging if not impossible.

Q: How did we get here?


At first, the most important goal of this project was to design an alternative to jigs, so that one can minimize the damage a bad jig might cause to their switch-side Joy-Con rails. However, that is not to say that there was only one approach to reaching the goal.


We had two different sets of ideas for how to reach the goal and flesh out the product. One was an active approach, and the other was passive – the product of which is described on this document. Although the passive design is much easier to physically make, it was also the least versatile option.


The active approach, on the other hand, was designed to be the “do-it-all”. The planned features were RCM entry by Joy-Con button combination, pushing payloads, and being able to have the payloads updated through bluetooth or similar wireless means. This, however, was met with a huge roadblock: It needed some sort of a microcontroller that could do all these jobs, but the space constraint within the Joy-Con was very hard to work with. This, coupled with the logistic complicity of pushing the payload (which will most likely have to go through the USB-C port anyway), was what ultimately kept us from going down that path.


After we determined it would be hard to realize the active design, we got to brainstorming a unique way to transform a Joy-Con into an inconspicuous and portable alternative to jigs. “Breaking” the security of the switch by flipping the console upside-down seemed like a fun idea, and as you can see, it worked out perfectly.


Still, a big question remains: Is the active design possible? This would be akin to putting a whole payload injector dongle into a Joy-Con. We will most likely have to design a new backshell for the Joy-Con to make space for a microcontroller, a USB port to which the user can attach a USB-C male-male cable to connect to the switch, and some way to piggyback off of the power that the Joy-Con battery.

Here, we would like to request help from the community members who have experience designing payload injector dongles. The difficulty of trying to integrate a payload injector dongle into a Joy-Con is proving to be quite the obstacle, especially because we do not have experience building a dongle in the first place.

Last edited by ramblecube,

ramblecube

Member
OP
Newcomer
Joined
Aug 4, 2020
Messages
10
Trophies
0
XP
147
Country
United States
Sounds a bit risky but well done.
First- thank you! I probably should have made a better title for the post :rofl2:

As for risk, you're right on. Soldering on $80 Joy-Cons makes me nervous. @0xAgon and I felt a little safer by using some helping hands while soldering.

I'm personally using this mod on my right Joy-Con, and I've run into no trouble so far! If you shake the Joy-Con, though, you can hear the little ball in the tilt switch rattle around.
Post automatically merged:

Actually- mods/staff, if you're listening... "Tilt Switch RCM Hardmod" might be a better title for this post- I'm realizing my post title is both cheeky and un-searchable. "Tutorial", "Hacking", and "Hardware" would make for good prefixes as well.

Thank you for your hard work sweeping the forums. :bow:

  • Like
Reactions: SylverReZ

The Real Jdbye

*is birb*
Member
Joined
Mar 17, 2010
Messages
23,819
Trophies
5
Location
Space
XP
14,797
Country
Norway
That's a clever use of a tilt sensor. People were using magnetic reed switches, but who has a magnet with them at all times? Unless your phone case is magnetic, I guess. But I've tried using a magnetic phone case to trigger the sleep mode Switch on a 3DS, it wasn't terribly reliable.
Just have to be careful not to turn your Joycon upside down while its firmware is updating. Since having the pins bridged during a firmware update apparently semibricks the Joycon.
Post automatically merged:

Sounds a bit risky but well done.
The pads are relatively big (although they are close together) and the part is only a few dollars to replace if it does break (these fail all the time anyway, I've had to replace the Joycon rails on 2 of my cousins Switches, the ribbon cable got damaged somehow on one and liquid damage ruined the other)
I can totally imagine someone who has never soldered before getting their iron way too hot and melting right through that thin flex PCB though.

Last edited by The Real Jdbye,
  • Like
Reactions: ramblecube

Dust2dust

Well-Known Member
Member
Joined
Jun 17, 2010
Messages
2,646
Trophies
2
XP
5,215
Country
Canada
A well written tutorial, congratulations! You should probably ask a mod to tag it properly as a tutorial and change the title, if needed. I don't think I'd use it myself, as my right joy-con is already modded to my satisfaction, but still good stuff for people thinking of switching to a hardmod instead of those flimsy jigs.


0xAgon

New Member
Newbie
Joined
Jun 17, 2023
Messages
4
Trophies
0
XP
59
Country
United States
You can just ground it through pin 9. This seems like a lot of work.

Or you can also use pin 7 with a resistor.
Thanks for the feedback! Although pin 9 and 10 are the easiest to solder and join together, our logic with choosing pin 1 and 10 was that it would make soldering wires onto the pins easier. We are not trying to join them together, since we are putting in a tilt switch between those two pins. We can get a lot of wiggle room between pin 1 and 10 so that even if you mess up with the drops of solder, the chance of those two pins being bridged together is very low. The more room we have for the wires to go in, the better. We wouldn't like pin 10 always being low (without respect to the tilt switch), so we should avoid direct bridging as much as possible.


ramblecube

Member
OP
Newcomer
Joined
Aug 4, 2020
Messages
10
Trophies
0
XP
147
Country
United States
A well written tutorial, congratulations! You should probably ask a mod to tag it properly as a tutorial and change the title, if needed. I don't think I'd use it myself, as my right joy-con is already modded to my satisfaction, but still good stuff for people thinking of switching to a hardmod instead of those flimsy jigs.

Thanks for your feedback, we're happy to share :toot:

I just made a report to the mods to get that title changed- hopefully that doesn't get our post deleted. :wacko:


impeeza

¡Kabito!
Member
Joined
Apr 5, 2011
Messages
8,259
Trophies
4
Age
46
Location
At my chair.
XP
28,476
Country
Colombia

View attachment 379078

Tilt It to Hack It: An RCM Hardmod for Your Right Joy-Con

A Collaborative Project by @0xAgon and @ramblecube

Introduction


Nintendo Switch users seeking to use the system’s recovery mode (known as “RCM”) have needed to press two buttons that exist on the system to do so- but a third and final button is not easily accessible. Historically, there have been several options for achieving this final button press, including the use of a “jig” (which can be purchased or even crudely made) or a physical hardmod.


We propose an alternative method that requires no “jig” but is more interactive than a traditional physical hardmod. Simply tilt your right Joy-Con upside-down- no jig!


* See ADDENDUM below for technical details, potential quirks, and project information/background. Remember - this is at your own risk!




Tutorial


Skills Needed
  1. Experience with soldering
    1. Steady hands
  2. Comfort with disassembly

Supplies Needed

  1. SW-200D Tilt Switch (very common, can be found on Amazon [1, 2, 3])
  2. 30 AWG Wire (also common, Amazon [1, 2, 3])
  3. A soldering kit
    1. Soldering iron
    2. Solder
    3. Fume extractor
  4. A Tri-Point Y00 screwdriver (sold on iFixit and Amazon [1,2])
  5. A JIS-000 screwdriver (sold on iFixit and Amazon [1,2])
    1. Phillips 000 can work as well, but it will end up stripping the screw
  6. Wire cutting/stripping tool
  7. (Optional) A pair of tweezers
(Optional) A magnetic parts tray


Goal


In order to accomplish this hardmod, you will need to install a tilt switch into the right Joy-Con.


You will first disassemble the right Joy-Con. Then, you will prepare the tilt switch for installation. Finally, you will install the tilt switch. After that, you can reassemble the controller and test your hardmod.


(1) Disassembling the controller


Prepare your right Joy-Con


First, locate a right Joy-Con that you are comfortable with disassembling and modifying. It is essential that a right Joy-Con is used. This WILL void your warranty.


It is also important that you are using a genuine right-side Nintendo Joy-Con. While this hardmod is almost certainly possible in third-party controllers, this tutorial does not cover them.


Removing the plastic covers and disconnecting the battery


The team at iFixit has prepared an excellent guide for this task.


Complete the steps in the guide, up to and including removing the battery connector. Do not move on to removing the battery cell itself. Leave the cell in place.


Here is the guide: https://www.ifixit.com/Guide/Joy-Con+Battery+Replacement/113634 (Link not working? Try this copy of the guide from the Internet Archive.)


Removing the charging rail


The charging rail should be removed from the back shell for ease of access while soldering. In our case, we are removing the charging rail from the rear shell, but the flat, brown ribbon cables will remain connected to the Joy-Con’s main board.


This can be accomplished by following step 7– and only step 7– of another guide from iFixit. Step 7 of this guide will tell you to use an #000 Phillips screwdriver to remove the screws, but it is preferable to use a JIS-000 screw, as a Phillips head will strip the JIS screws.

Here’s a link to the guide: https://www.ifixit.com/Guide/Left+Joy-Con+Charging+Rail+Replacement/142938 (Link not working? Try this copy of the guide from the Internet Archive.)


Removing the protective foam from the pin pads


On previously unmodified right Joy-Cons, there is a small square portion of foam covering the pin pads on the charging rail. You will need to remove this foam square. It can be removed by simply pulling it away from the charging rail. Refer to this image, where the foam has already been removed:



View attachment 379080


(2) Preparing your Tilt Switch


Clipping the Legs


Your tilt switch has two metal legs extruding from it. They need to be clipped so that the tilt switch can fit inside the right Joy-Con.

View attachment 379081

The legs should be clipped so that about 3mm/0.1in of length remains. The wires you prepare in the next step will wrap around the remaining stubs.

View attachment 379082

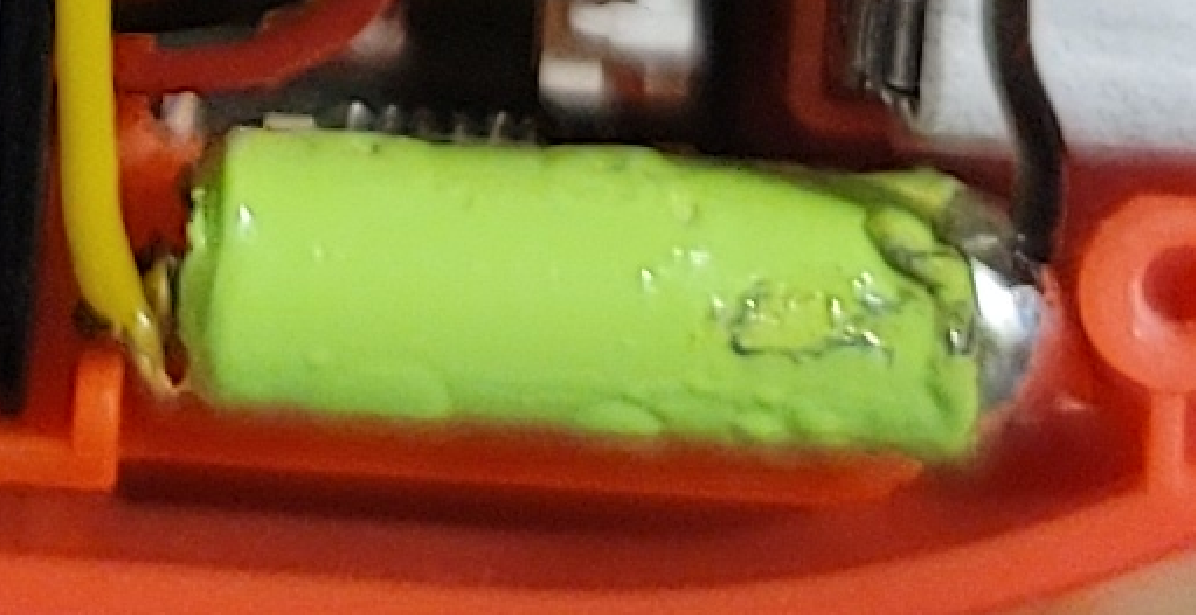

Here is an example image of the tilt switch in a complete hardmod. As you can see, the legs are obscured completely by the solder “blob”. The space constraint for the tilt switch itself is quite tight, so optimizing the leg length is crucial.

View attachment 379083

Using your wire cutting tool, clip the tilt switch legs to this length.

(3) Preparing your Wires

You will need to cut and prepare two wires using your wire cutting/stripping tool. They should each be about 45mm (1.75in) long.

View attachment 379084

There is a silver and a gold leg on the tilt switch. When choosing your colors of wire, it is recommended that you choose a similar color scheme. The solder will obscure the original leg colors, so color coding the wire allows the ends to be easily identifiable. In our case, a yellow wire was soldered to the gold leg, and a black wire was soldered to the silver leg.

View attachment 379085

The ends of the wires should be stripped. This is to allow the wrapping of the bare wire around the legs, which you cut in the previous step.

View attachment 379086

(4) Wrap and Solder your Wires Around the Tilt Switch Legs

Pick up one of your wires.

Take one of the ends and wrap the exposed metal portion around one leg of your tilt switch.

Make sure you are connecting the correct color wire to the correct color leg.

Using your soldering tools, solder the wrapped wire and the leg together.

View attachment 379087

Repeat this wrapping and soldering process with your other wire, attaching it to the remaining leg of the tilt switch.


You should now have a tilt switch whose legs have essentially been replaced by two short wires.

(5) Solder your Wires to the Pin Pads


Examine the pin pads that were exposed when you removed the protective foam square.

View attachment 379088

You will now be soldering the exposed ends of your two wires to these pads. You will solder the first wire’s exposed end to pin 1 (called “ground” or “GND”), and the second wire’s exposed end to pin 10.

View attachment 379089

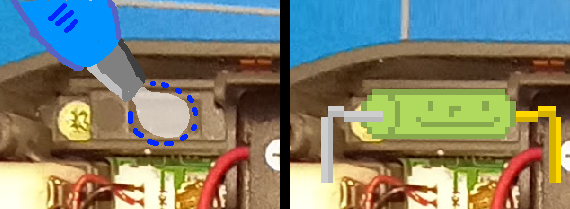

Disclaimer: In our implementation, we connected the yellow wire (gold end) to pin 1, which is ground. As confusing as that is in terms of circuit design, it was done because that wire is closest to pin 1. In order for the whole mod to be in an “upside-down activated” configuration, the gold end of the tilt switch has to go to the top, which naturally places the yellow wire in the position where pin 1 (ground) is the most accessible one. You can make the decision of if the black (bottom) wire should go to ground, but that will require some complex wire management around the pins.

View attachment 379090

On the left side of this diagram is our implementation, and the right is an alternative that respects the black-to-ground convention.


Securing the wire

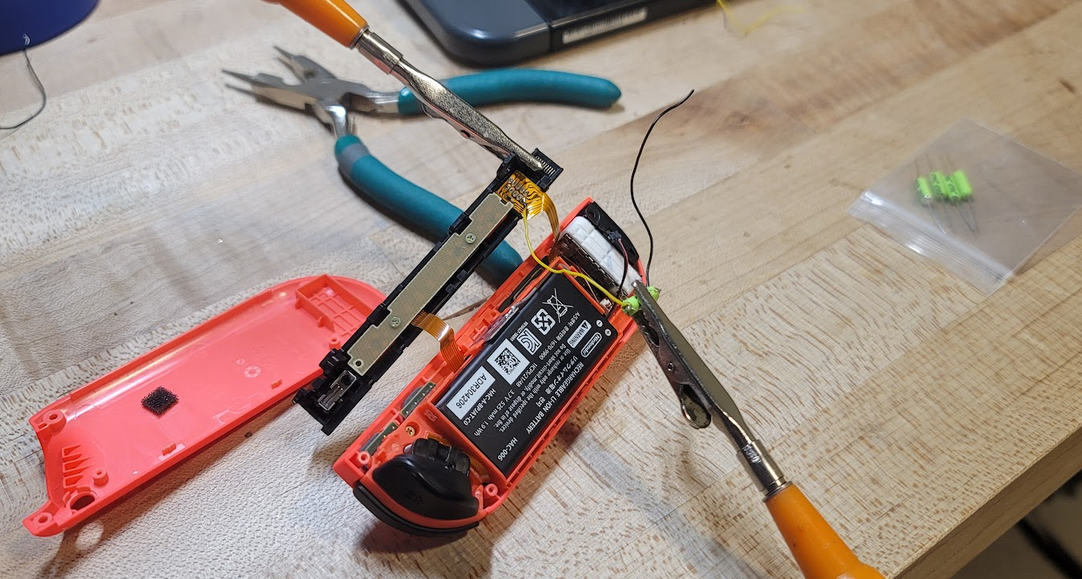

It can be difficult to keep the exposed portion of a wire in place while soldering. We found that wrapping the exposed end of the wire around a pin before soldering helped to secure the wire in place.


Routing your wires

When routing your two wires, it is important to route them around the correct side of the ribbon cable connecting the main board and the charging rail. This is because, when the Joy-Con is reassembled, wires placed on the incorrect side of the ribbon cable will end up sticking out of the Joy-Con shell near the connector pins.

View attachment 379091

(6) Securing the Tilt Switch

Now the tilt switch should be secured so that it does not move around in the case during gameplay. You could use a small blob of hot glue to secure the tilt switch in place:

View attachment 379092

IMPORTANT: It is crucial, at this step, to affix the tilt switch so that the gold pin faces the top of the controller, and the silver pin faces the bottom of the controller.

:grog: You’re done! Before reassembling the Joy-Con using the iFixit guide from step 1, you may also choose to cover the pin pads with hot glue to insulate them and to keep your wires from coming off the pins.




Addendum (credit to @0xAgon)


(1) Quirks and implications


Q: Any implications?


As with most other hard mods, this mod also prevents the Joy-Con from working in “attached” mode while the Switch is flipped upside down. Whenever the switch is turned and the mod is activated, the Switch will instantly disconnect the Joy-Con and transition to wireless connection. While this is almost seamless, it can be a hassle since if only the right Joy-Con goes into wireless mode, the left one will no longer recognize the right one as its pair.

In normal usage, this kind of orientation should not happen very often. However, it can occur occasionally when you are playing while lying down, as the ball can freely move up and down the switch. This flaw is inherent to the design, and the modder should keep this quirk in mind.


Also, because there is quite literally a ball in the Joy-Con, the Joy-Con will make rattling sounds when you shake it. It can be good or bad, depending on your taste in musical instruments.


(2) How we got here & how this all works


Q: So what is the mysterious third button after all?


The Switch (both Erista and Mariko) goes into RCM whenever a key combination of volume up and the Tegra home button is held down while it boots. The volume up key is readily accessible – it is the volume button that is right next to the power button. The problem – what prompted us to start this journey – is the Tegra home button, as it is not physically accessible on the switch or the Joy-Cons. The home button you see on the right Joy-Con is the switch home button, not for the Tegra processor.


Q: What can one do to access the home button?


Because of the physical inaccessibility of the Tegra home button, we need to implement a way to produce the same input. The input that a supposed Tegra home button would produce is fairly simple: it brings pin number 10 low. It is usually set high – which is to say that electricity flows through the pin. Pressing the button is represented as the pin being brought low; and we can bring it low ourselves by bridging it to ground. Hence, most jigs, and by extension this hardmod, simulate the button press by bridging pins number 1 and 10 on the right Joy-Con.

The reason why we chose pin 1 is because of the physical layout. It is simply easier to solder them when we get as much space between the pins as possible. It is also one of the combinations that do not need a resistor, which makes the electrical design easier.

(3) Orientation of the Tilt Switch


The tilt switch closes depending on its orientation. The orientation for each position is notated by the positions of the gold and silver legs – if the gold leg is oriented below the silver leg, then the switch is closed.


Q: Why this over existing jigs?

  • Jigs can potentially damage the pins on the switch’s Joy-Con rail.
    • Even if it is not a direct deformation, it still scratches up the rail contact.
    • You would not want this happening, since replacing the switch side rail is quite the process.
  • If successful, you would no longer have to carry a separate jig.
  • The reliability of the contact is as good as it gets
    • Because jigs are always third-party and don't go through quite the same quality control that Nintendo does on the Joy-Cons, the jigs' contacts are not very reliable.
    • This mod uses an actual Joy-Con's rail contact pins in terms of the interface between it and the Switch, so the contact is very reliable.
  • The Joy-Con does not get forced into wireless mode permanently
    • The most common method of hardmodding the Joy-Con is permanently bridging pin 10 to a ground. Since the Switch only takes wireless connections from a Joy-Con that has those pins bridged, it will permanently stay that way.
    • This will in turn prevent the left Joy-Con from recognizing the wireless right one as its pair, which makes playing games in handheld mode challenging if not impossible.

Q: How did we get here?


At first, the most important goal of this project was to design an alternative to jigs, so that one can minimize the damage a bad jig might cause to their switch-side Joy-Con rails. However, that is not to say that there was only one approach to reaching the goal.


We had two different sets of ideas for how to reach the goal and flesh out the product. One was an active approach, and the other was passive – the product of which is described on this document. Although the passive design is much easier to physically make, it was also the least versatile option.


The active approach, on the other hand, was designed to be the “do-it-all”. The planned features were RCM entry by Joy-Con button combination, pushing payloads, and being able to have the payloads updated through bluetooth or similar wireless means. This, however, was met with a huge roadblock: It needed some sort of a microcontroller that could do all these jobs, but the space constraint within the Joy-Con was very hard to work with. This, coupled with the logistic complicity of pushing the payload (which will most likely have to go through the USB-C port anyway), was what ultimately kept us from going down that path.


After we determined it would be hard to realize the active design, we got to brainstorming a unique way to transform a Joy-Con into an inconspicuous and portable alternative to jigs. “Breaking” the security of the switch by flipping the console upside-down seemed like a fun idea, and as you can see, it worked out perfectly.


Still, a big question remains: Is the active design possible? This would be akin to putting a whole payload injector dongle into a Joy-Con. We will most likely have to design a new backshell for the Joy-Con to make space for a microcontroller, a USB port to which the user can attach a USB-C male-male cable to connect to the switch, and some way to piggyback off of the power that the Joy-Con battery.

Here, we would like to request help from the community members who have experience designing payload injector dongles. The difficulty of trying to integrate a payload injector dongle into a Joy-Con is proving to be quite the obstacle, especially because we do not have experience building a dongle in the first place.
I do prefer to change the tilt switch by a reel switch this way the "home" button will not keep pressing whe using the console. And you only need an external magnet, a little bit 3ds nostalgic.😝
Post automatically merged:

You can just ground it through pin 9. This seems like a lot of work.

Or you can also use pin 7 with a resistor.
This way you Can burn something on console and/or discharge the battery of joycon and console quicker.

  • Like
Reactions: ramblecube

randy_w

Well-Known Member
Member
Joined
Feb 27, 2021
Messages
829
Trophies
0
Age
34
XP
1,574
Country
United States
Well that brings back memories.. Did something similar to my unpatched v1 before, instead of using tilt switch, I followed a reddit guide and glued two wires to joycon release button, so it will act as an "RCM button". Also experimented with SMD tactile switch/capacitor/reed switch, until I discovered SAMD21 based internal payload injectors (RCMx86/Trinket M0). Shout out to mattytrog for his awesome FUSEE_SUITE!

Anyway, got rid of all my unpatched v1 consoles last year, but good to see people still experimenting with the OG v1.
Only one question though, iirc if I activate the button the right joycon would get disconnected, and switch would interrupt the game and show the change grip/order screen. Might be a bit annoying if you playing in handheld mode.

  • Like
Reactions: ramblecube

0xAgon

New Member
Newbie
Joined
Jun 17, 2023
Messages
4
Trophies
0
XP
59
Country
United States
Well that brings back memories.. Did something similar to my unpatched v1 before, instead of using tilt switch, I followed a reddit guide and glued two wires to joycon release button, so it will act as an "RCM button". Also experimented with SMD tactile switch/capacitor/reed switch, until I discovered SAMD21 based internal payload injectors (RCMx86/Trinket M0). Shout out to mattytrog for his awesome FUSEE_SUITE!

Anyway, got rid of all my unpatched v1 consoles last year, but good to see people still experimenting with the OG v1.
Only one question though, iirc if I activate the button the right joycon would get disconnected, and switch would interrupt the game and show the change grip/order screen. Might be a bit annoying if you playing in handheld mode.
Thank you for the kind words! Keen observation as well. However, that implication is already noted in the "(1) Quirks and implications" section of the addendum at the bottom of the article. I appreciate your feedback nonetheless, and hope more people notice the addendum with your comment!


randy_w

Well-Known Member
Member
Joined
Feb 27, 2021
Messages
829
Trophies
0
Age
34
XP
1,574
Country
United States
Thank you for the kind words! Keen observation as well. However, that implication is already noted in the "(1) Quirks and implications" section of the addendum at the bottom of the article. I appreciate your feedback nonetheless, and hope more people notice the addendum with your comment!
Oh mb, didn't read that part.

Iirc some said connecting pin 10 to 7 through a resistor instead of grounding it would avoid the joycon disconnection problem in HOS, not sure if you tested it.


ramblecube

Member
OP
Newcomer
Joined
Aug 4, 2020
Messages
10
Trophies
0
XP
147
Country
United States
I do prefer to change the tilt switch by a reel switch this way the "home" button will not keep pressing whe using the console. And you only need an external magnet, a little bit 3ds nostalgic.😝
Post automatically merged:


This way you Can burn something on console and/or discharge the battery of joycon and console quicker.

I get that! I too was a 3DS tinkerer. I always wanted to try magnethax, especially after hearing the legendary tale of the Wii's tweezer attack. @0xAgon thought that the tilt switch would fit nicely into the funny-exploit-method category. Thanks for your feedback! :switch:
Post automatically merged:

Oh mb, didn't read that part.

Iirc some said connecting pin 10 to 7 through a resistor instead of grounding it would avoid the joycon disconnection problem in HOS, not sure if you tested it.

Interesting! If this is indeed a way around the disconnection issue, it would make a welcome addition to the tutorial. Are you able to share where you learned this? Thanks!


Site & Scene News

Popular threads in this forum

General chit-chat
Help Users
  • Sicklyboy @ Sicklyboy:
    idfk what the deal is with my windows 10 install but it is unusably slow these days
  • Xdqwerty @ Xdqwerty:
    @Sicklyboy, Should I play Pokémon TCG Live? My phone can't run TCG pocket, it seems tcg live isnt that popular compared to it and idk the differences between each game
  • Sicklyboy @ Sicklyboy:
    @Xdqwerty, I'm not sure 🤔 I haven't played it and am not that familiar with the TCG Live version. I just looked at the site for it though and the first thing I noticed is that it seems that it uses the full Pokemon TCG rule set? At least based on the fact that the cards they show have resistance and weakness values
  • Sicklyboy @ Sicklyboy:
    In TCG Pocket it uses a much simpler, trimmed down rule set that makes games go really fast but can get a littel boring tbh
  • Xdqwerty @ Xdqwerty:
    @Sicklyboy, sort of like Yu gi oh duel links and Master duel?
  • Sicklyboy @ Sicklyboy:
    All that to say - I'm not familiar with TCG Live but it looks a little more advanced than TCG Pocket, and that's kinda cool. Actually may look into it myself now
  • Sicklyboy @ Sicklyboy:
    @Xdqwerty, I haven't played either of those 😭
  • Xdqwerty @ Xdqwerty:
    In which duel links uses a simplified versión and Master duel uses the full rules? @Sicklyboy
  • Xdqwerty @ Xdqwerty:
    Oh sorry
  • Sicklyboy @ Sicklyboy:
    All good! The last Yugioh game I played was Eternal Duelist Soul on the GBA lmaooo
  • Sicklyboy @ Sicklyboy:
    When it was new 😭😭😭
  • Sicklyboy @ Sicklyboy:
    TCG Pocket, the cards only have weaknesses, no resistance, and so far only have one single attack and possibly one passive ability
  • Sicklyboy @ Sicklyboy:
    Hey @Xdqwerty , just wondering, what do you mean by your phone can't run TCG Pocket? Is Google Play Store saying your device is not compatible? If so, you might be able to try sideloading the APK and running it that way https://www.apkmirror.com/apk/the-p...okemon-tcg-pocket-1-0-9-android-apk-download/
  • Sicklyboy @ Sicklyboy:
    If you go into security options on your phone there should be an option to "allow installing from unknown sources" or something to that effect, then when you download the APK you can tap it and it will install manually
  • Xdqwerty @ Xdqwerty:
    @Sicklyboy, yup, Google play store says it won't work
  • Sicklyboy @ Sicklyboy:
    Sideloading it from APKmirror maaaaaa
    y work for you then 👀
  • Xdqwerty @ Xdqwerty:
    @Sicklyboy, someone on Reddit told me this btw:
  • Xdqwerty @ Xdqwerty:
    TCG live is an online version of the actual TCG. The primary way to unlock cards is to buy the physical cards as there is no monetization at all. You can still get cards without but much less.Like I said it's the actual game. Pocket is a much simplified version.Live has 60 card decks vs 20 from PocketAnother major difference is Winning in Live you have prize cards. Where after you draw your iirc 8 cards you put 6 cards off to the side. You get these cards into your hand by defeating pokemon once you reclaim all 6 you win.Further difference is the need to have energy cards in your deck. Meaning you are limited in how much energy you have.Live is also more prone to crashes & bugs. Like I said the service has absolutely zero monetization so less incentive to fix bugs when it works pretty good 80% of the time (exaggeration)Pocket is about collecting Live is for battles.Pocket matches last like 10 minutes Live is easily 20.
    +1
  • Sicklyboy @ Sicklyboy:
    oh man I totally forgot about the size difference of the decks
  • Sicklyboy @ Sicklyboy:
    Sucks that the main way to get cards in game is to buy cards IRL though :(
  • K3Nv2 @ K3Nv2:
    Some live streamer made $12k in just 45mins was for a good cause at least
  • Sicklyboy @ Sicklyboy:
    I wanna make 12k in 45 minutes, I'm a good cause :(
  • K3Nv2 @ K3Nv2:
    I'd probably make 25k cause I'm a bad cause
  • Xdqwerty @ Xdqwerty:
    @Sicklyboy, and yeah i'm trying to log into TCG Live but it doesnt let me (might be due to shit wifi connection though, might try tommorrow)
    Psionic Roshambo @ Psionic Roshambo: https://youtu.be/8nwH8IVyHWw?si=SVaGDWRgAv7jDpKe
