Things you have fixed/modded recently

[SylverReZ]

Getting my PCBs fabricated from JLCPCB (not sponsored).



[lwiz]

New battery for 1st generation DS3. Easy to open, very hard and fiddly to get back together. If the controller hadn't tested true on pressure sensitivity and gyro, I'd probably had left the project altogether.



[SylverReZ]

Chipped PS2 SCPH-70000 with Mars Pro and Mega Drive with an installed region switch mod.



[lwiz]

Still looking for OG Xbox to come my way with minimum of personal effort . Still have Trinity X360 waiting for RGH (mainly due lack of availability of good soldering station, which will be remedied.)



[SylverReZ]

Still looking for OG Xbox to come my way with minimum of personal effort . Still have Trinity X360 waiting for RGH (mainly due lack of availability of good soldering station, which will be remedied.)

Xbox 1.0 and 1.1s are easy to come by if you can find pics of them with an early manufacturing date. I've picked up two, both are already chipped.



[lwiz]

Xbox 1.0 and 1.1s are easy to come by if you can find pics of them with an early manufacturing date. I've picked up two, both are already chipped.

Yeah - I'm in a position where those could arrive for recycling - "Guys we need every and all consoles that come our way in order to test the game discs before selling..." to quote myself So it's more of a game of waiting for now.



[emcintosh]

Fixed a softlock in Heaven's Vault, thanks to research by NumsgiI on Reddit.

In this game you move between locations by sailing along one-way rivers. I turned down a slow branch and found my position was being reset every few seconds.

I was able to get at the save file with Checkpoint and force my location back to the starting planet, crucially removing the same number of characters that I added, from a description elsewhere in the save file so it would be the same length. There seems to be some sort of validation that checks for this.



[SylverReZ]

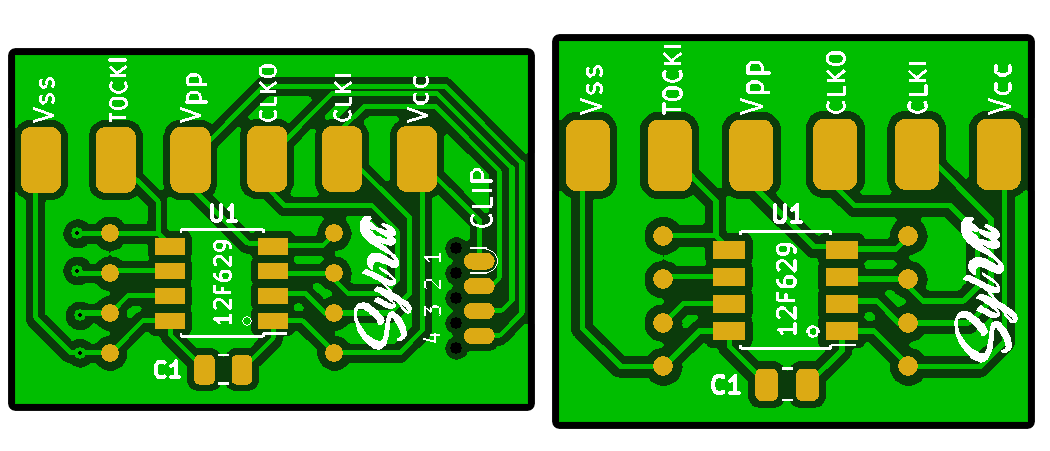

The SylVii is my Wii modchip that I was currently working on yesterday. It comes as two different versions - one with IC clip pads and one without. This makes it easy to program the chip without clipping onto the IC, thus risking damage to the pins. The next version will have both GameCube and Wii compatibility, so you don't want to install the chip into your Wii, then you can use the chip as a XenoGC drivechip in your GC.



[SylverReZ]

-snip-



[Kioku]

Xbox 1.0 and 1.1s are easy to come by if you can find pics of them with an early manufacturing date. I've picked up two, both are already chipped.

Still have to be careful with that. People swap parts all of the time. I bought a Halo edition box with a 1.0 mobo transplanted. It wasn’t pretty…



[SylverReZ]

Still have to be careful with that. People swap parts all of the time. I bought a Halo edition box with a 1.0 mobo transplanted. It wasn’t pretty…

Could you elaborate on what you mean? But, to be fair, I find the v1.1s to be reliable on my end.



[rcpd]

Could you elaborate on what you mean? But, to be fair, I find the v1.1s to be reliable on my end.

I know exactly what he means because I also bought a “limited edition” Halo Xbox that was mobo swapped with a standard 1.0 mainboard. From the outside you couldn’t tell the console had been touched, but as soon as I opened it to clean and replace thermal paste, I saw how bad it really was. The 1.0 mainboard just wasn’t designed for the Halo shell. The Halo shell was made for the 1.2, 1.4, and 1.6 mainboards. Particularly the 1.2/1.4 consoles were better because they used the Conexent encoder for video instead of the (in my opinion) shitter Microsoft designed one.

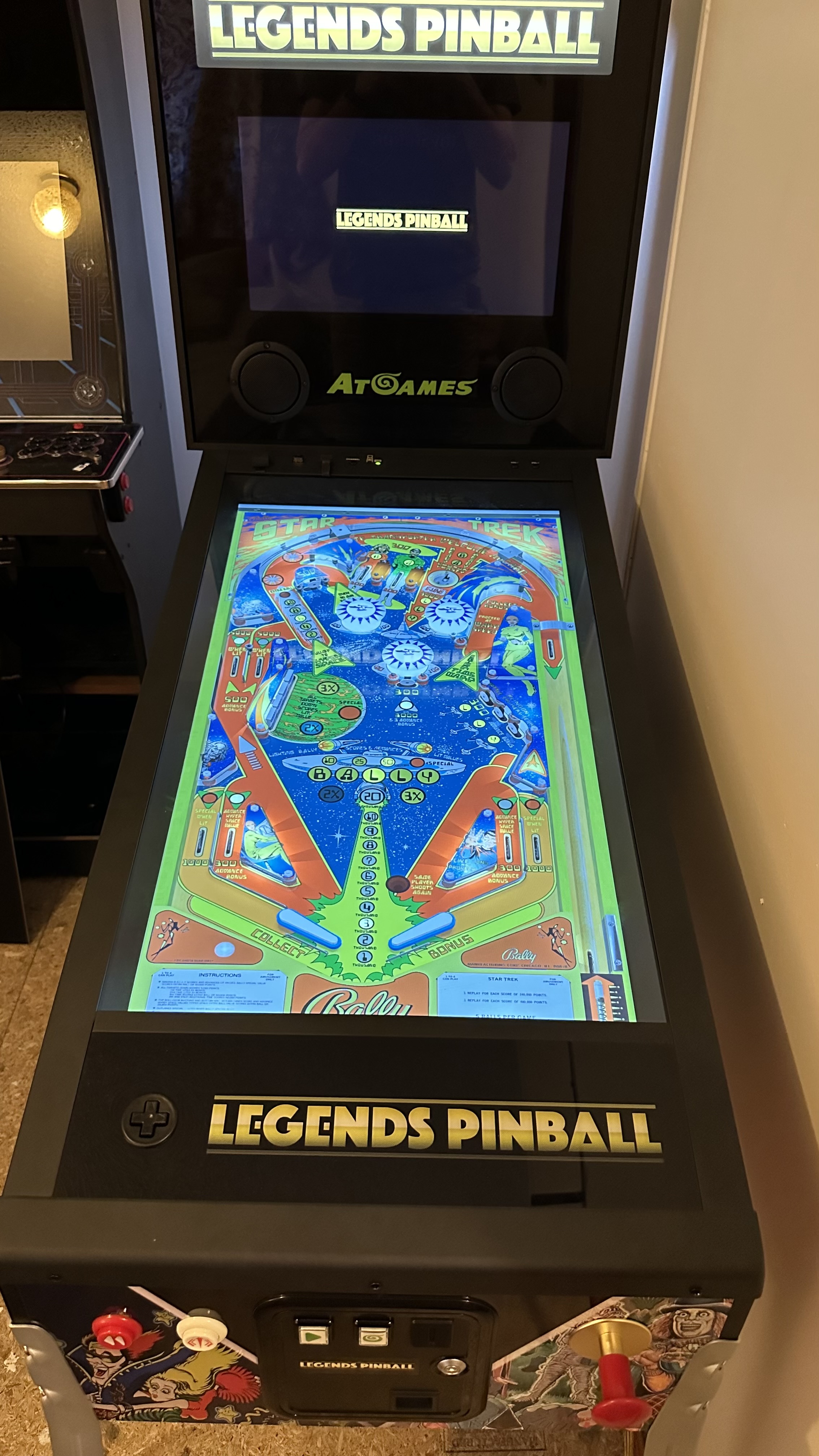

To stay on topic here is my virtual pinball machine I’ve modded with flat cables so they’re not so visible.



[danwellby]

In terms of repaired, Preformed the resistor trick (2x50 ohm resistors as I didn't have a 100 ohm one on hand) on a intel atom based synology ds415+ nas and nailed down the fault on a ds414 it seems to be faulty hdd daughter board testing the hdd board from the ds415+ seems to allow it to work while it's own board causes it to cut out immediately from what I assume to be a short somewhere on it



[Kioku]

Could you elaborate on what you mean? But, to be fair, I find the v1.1s to be reliable on my end.

According to the date on the sticker, my system should have been a 1.4 at least, I received a 1.0.



[SylverReZ]



[nasune]

Spoiler

Made one of those FeRAM carts for the Super Nintendo with this SMW romhack as the game. As far as I can tell, everything works like a charm (please ignore the weird, stretched out, screenshot, The setup used to capture it was not particularly stable which meant that there was no time to tweak it and make it 4:3). The resistors (R1-4) were not needed in this case,since it's one game rather than a multigame cart (plus I'm not using a LED, which means R5 can be skipped), and cleanup comes as soon as I get some IPA.
Just need to print a shell at some point but I'm currently waiting for the current color (orange) to be depleted so that I can use either black, white, transparent (if I go with a resin printer) or glow in the dark (not sure which one yet).



[SylverReZ]



[eyeliner]

This gamepad that I bought years ago (surely more than 10).
It is a very competent gamepad, I can guarantee about that. It has weight to it, the plastic is good quality and even has a counter weight to compensate the rumble motor present on the right side. They don't make them like this anymore.

The press of the right analog never worked.

That changed today. I had to really gut it out, and replaced the button you see in the picture by one that came out of a toaster that was doing it's job way too well.

I also repaired my washing machine with one of those buttons, as for some reason it gave out.

So long toaster, your insides will live on in other devices.



[SylverReZ]

For a fun challenge, I decided to install a D2D V2.0 modchip into one of my spare Wiis I had lying around. 7 wires had to be soldered to the motherboard.



[SylverReZ]

Currently working on a modchip for the Original Xbox. It's based on the "cheapmod" variety involving an LPC flash which was discovered after 29-wire mods existed.
