Switch OLED teardown V1/V2

[doom95]

The capacitor came off? No biggie. Just use a larger cap near the fan connector instead.



[lenselijer]

Have you guys seen this?
<edited>

Apparently it's a "new" HWFLY for OLEDs.

Is this a brand new chip, or just the new cable set?
Can you share the picture with us?



[heinrich_frei]

This picture



[doom95]

Available for purchase yet?



[Hadobedo]

Is there any way to test if the HWFLY modchip works/powers on without having to wire the entire chip up? I messed up my first install (no lights on modchip, no boot on console) and am gonna attempt on a 2nd Switch OLED, but I don't want to go through the hassle of all the wiring just to have a dud.

Thanks in advance for any input and happy holidays!



[de9ed]

Is there any way to test if the HWFLY modchip works/powers on without having to wire the entire chip up? I messed up my first install (no lights on modchip, no boot on console) and am gonna attempt on a 2nd Switch OLED, but I don't want to go through the hassle of all the wiring just to have a dud.

Thanks in advance for any input and happy holidays!

plug in the USB adapter to the computer, the green light should turn on. I personally have not encountered any dead modchip yet. *Touch wood*

good luck on the install and happy holidays



[Hadobedo]

plug in the USB adapter to the computer, the green light should turn on. I personally have not encountered any dead modchip yet. *Touch wood*

good luck on the install and happy holidays

Plugged it in and got green light thanks, and you too!



[XFazer]

Hi.. Newcomer here

Need help or guide for the New Oled Mchip.
Bought it from online Shop. Tq.



[doom95]

Look for sthetix' guide, best there is. Should be even easier for you since you have the very latest revision which makes the CPU points no longer in need of running wires.



[FR0ZN]

Hi.. Newcomer here

Need help or guide for the New Oled Mchip.
Bought it from online Shop. Tq.

Where did you buy this?



[XFazer]

Where did you buy this?

Shopee MY. The shipment was from China. And this one a bit cheaper than v1/v2 or Lite variant.



[TheUnknownOne]

Shopee MY. The shipment was from China. And this one a bit cheaper than v1/v2 or Lite variant.

Was it 90usd? I just ordered one for my oled



[doom95]

Do they ship outside Malaysia?



[iolo57]

Do they ship outside Malaysia?

You can find the chip on aliexpress sold by the same retailer here:

https://www.aliexpress.com/item/1005003698689759.html?spm=a2g0s.imconversation.0.0.78233e5fvrPqa3



[grubgrub]

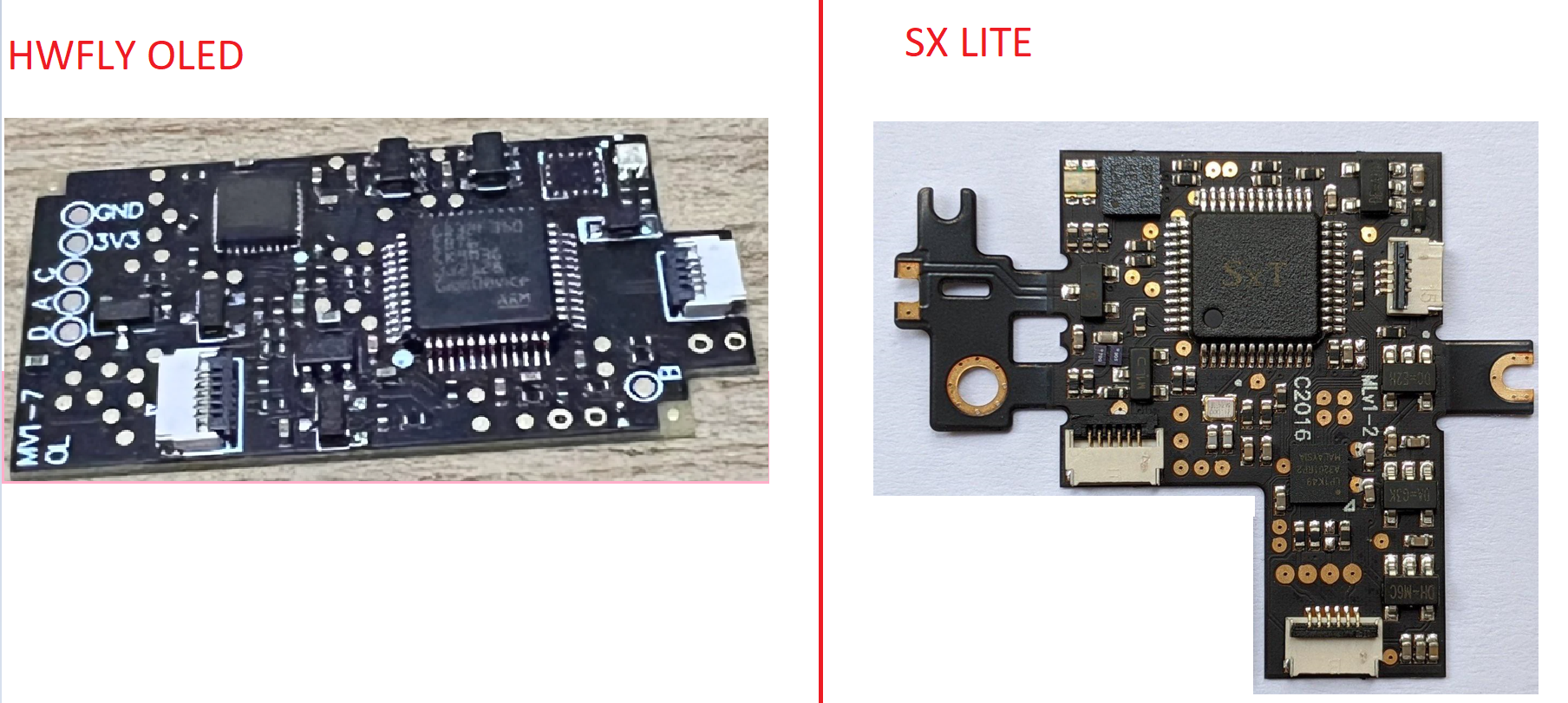

The new mod chip has a few differences to the SX Lite
It looks potentially smaller than the SX/HWFLY and there is 1 less connection port.
Looks like there is more space to solder on to the HWFLY OLED board.
Also a bit cheaper for the HWFLY OLED @ $90 VS HWFLY SX Lite @ $156



[doom95]

Nah, the B is on the bottom right corner.



[hippy dave]

Curious if the new one has the latest version of Spacecraft, it must do right?



[iolo57]

Curious if the new one has the latest version of Spacecraft, it must do right?

I hope so, moreover the fpga is different, it would be a GW1N-LV1QN32C6/I5.
That should make it easier to upgrade if it is not restricted.



[Bradle6]

Alot cheaper than the hwfly lite I ordered couple weeks ago this will be good to save money for my 2nd install



[kerelenko]

Finally got mine done thanks to @de9ed for completing the mod. Currently downloading my games from the eshop.
