Switch OLED teardown V1/V2

grubgrub

Well-Known Member
OP
Member
Joined
Jun 14, 2015
Messages
287
Trophies
0
Age
42
XP
1,213
Country
New Zealand
Was hoping to do an easy motherboard swap from the V1 unit.
But there are a few changes internally from the video :'(


These are the ones i noted






sith

Well-Known Member
Member
Joined
Apr 10, 2007
Messages
132
Trophies
1
XP
1,131
Country
United States
wow didnt realize the redbox was so different from the V0, yeah thats not looking like an easy frankenstein, and I would guess it would have a different screen ribbon..

  • Like
Reactions: Guggimon

sith

Well-Known Member
Member
Joined
Apr 10, 2007
Messages
132
Trophies
1
XP
1,131
Country
United States
Switch OLED body is larger than previous models. How can the old MB be too big?
sure the case is a bit bigger but the layout is totally rearranged. You can clearly see they have extra room for the big stand hinges and a much bigger sub-board on the right, also looks like emmc is integrated now too so no XS mod-chip possible..

  • Like
Reactions: Guggimon

grubgrub

Well-Known Member
OP
Member
Joined
Jun 14, 2015
Messages
287
Trophies
0
Age
42
XP
1,213
Country
New Zealand
I'd get rid of the big stand and hammer the old MB into the new body. :D

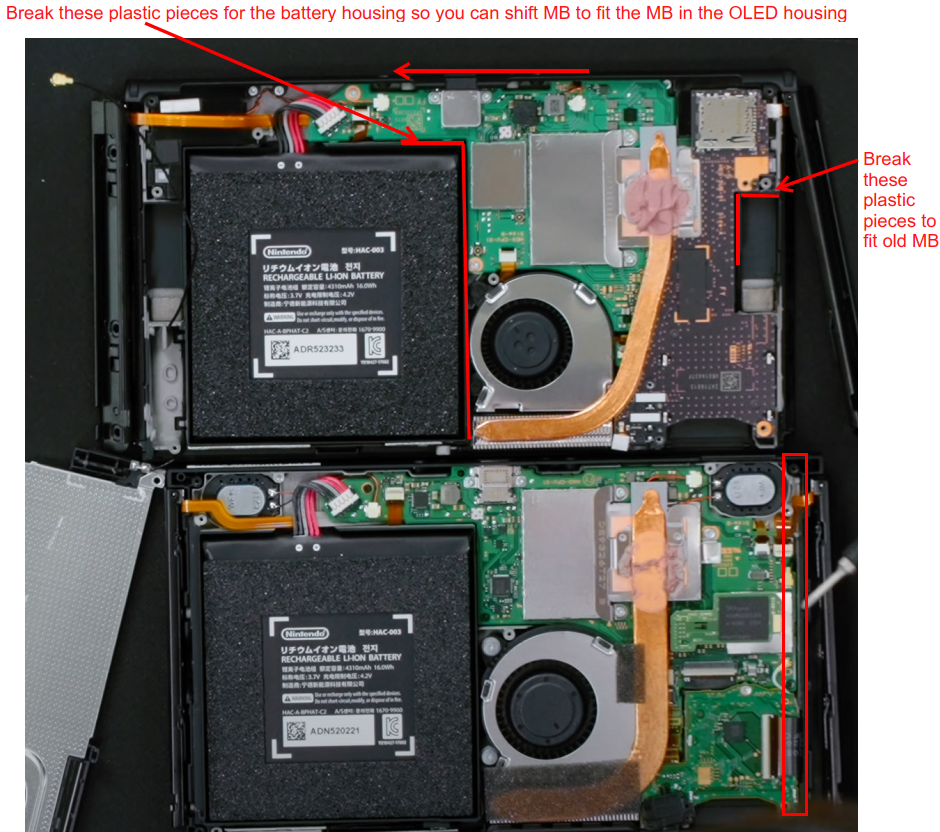

The MB can sort of fit if modifications are made.
like If the hinges are removed, breaking some plastic pieces for the battery housing.
Not too sure how to get the microsd to move places, maybe can keep it internal somehow

But it all depends if V1 MB will even display on the OLED



peteruk

Well-Known Member
Member
Joined
Jun 26, 2015
Messages
2,899
Trophies
1
XP
6,496
Country
United Kingdom
Hmmm, y'all have got me thinking now, or at least fantasising. Find some very clever electronics installer (I know a couple) and have them transfer all the internals or the minimum stuff across to the new OLED.

Wonder how that would mess with my internal trinket though.


CompSciOrBust

¯\_(ツ)_/¯
Member
Joined
Sep 9, 2019
Messages
822
Trophies
0
Location
Switch scene
Website
github.com
XP
2,229
Country
Korea, North
sure the case is a bit bigger but the layout is totally rearranged. You can clearly see they have extra room for the big stand hinges and a much bigger sub-board on the right, also looks like emmc is integrated now too so no XS mod-chip possible..
Emmc was soldered to the board on the lite, all we need to do is figure out the read and write pads. Worst case scenario is desoldering the nand, modifying it, then reballing it. Whether or not glitching works is another question.


HollowGrams

Well-Known Member
Member
Joined
Nov 27, 2020
Messages
628
Trophies
0
Age
42
XP
648
Country
United States
Emmc was soldered to the board on the lite, all we need to do is figure out the read and write pads. Worst case scenario is desoldering the nand, modifying it, then reballing it. Whether or not glitching works is another question.

If glitching works a SX Lite approach will be needed since nand is soldered to board. Meanning Core or HWFLY wont work since nand module needs to clip in,


Hepklep

Active Member
Newcomer
Joined
Aug 16, 2015
Messages
28
Trophies
0
XP
220
Country
Are we maybe thinking about this the wrong way? My personal goal is to fit the OLED screen to my V1 switch and I'm not really interested in the rest of the gubbins. So with that, my interest is mainly on the placement of the ribbon cable to the screen/digitiser and if they are the same connector. With that all that wold be needed is to take a dremel to the front facia or wait for an ebay special to come along. I'll be watching for teardowns of the coming weeks that are from someone more reliable that this youtuber.


grubgrub

Well-Known Member
OP
Member
Joined
Jun 14, 2015
Messages
287
Trophies
0
Age
42
XP
1,213
Country
New Zealand
Are we maybe thinking about this the wrong way? My personal goal is to fit the OLED screen to my V1 switch and I'm not really interested in the rest of the gubbins. So with that, my interest is mainly on the placement of the ribbon cable to the screen/digitiser and if they are the same connector. With that all that wold be needed is to take a dremel to the front facia or wait for an ebay special to come along. I'll be watching for teardowns of the coming weeks that are from someone more reliable that this youtuber.

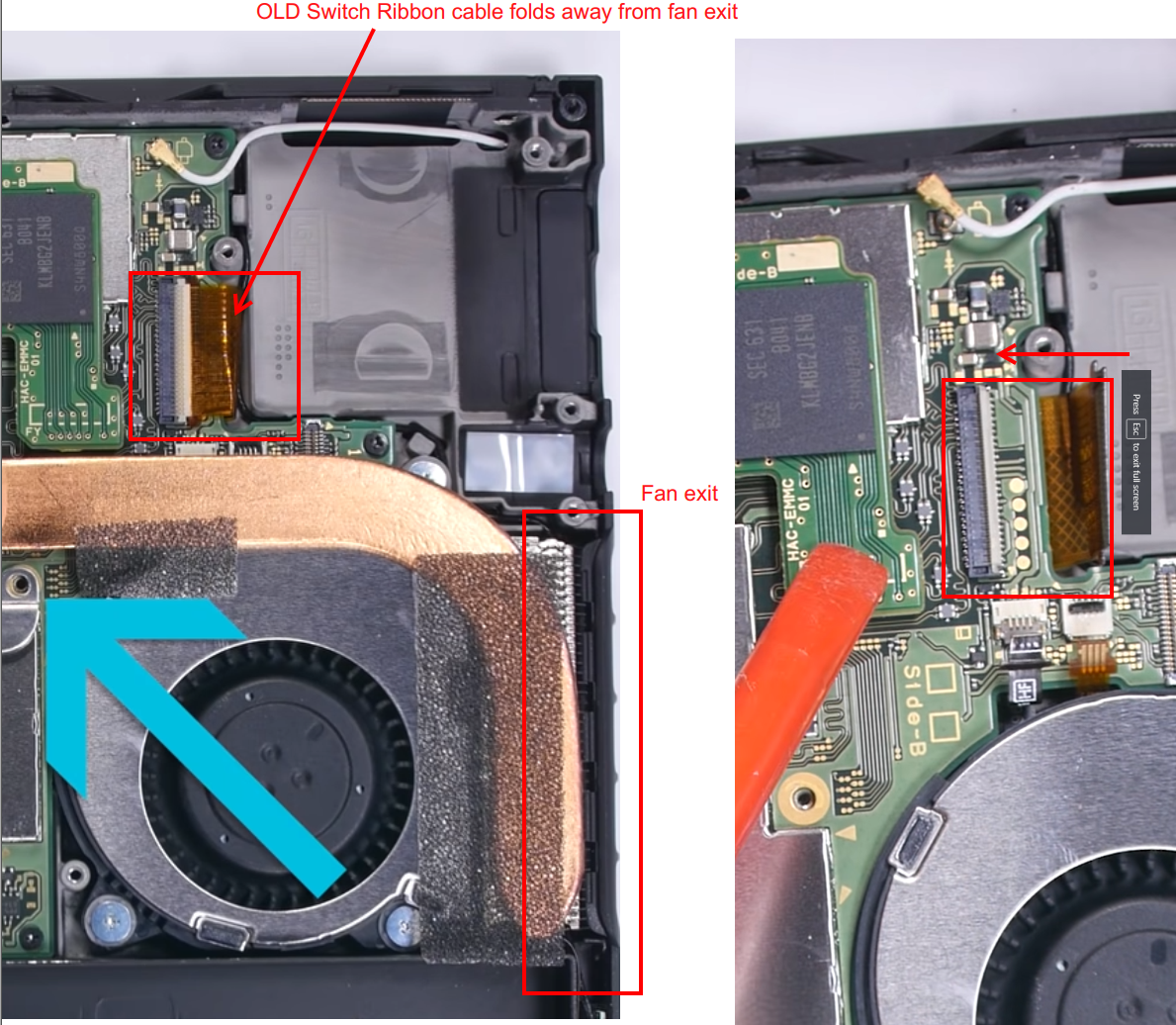

The ribbon cable for the screen seems to fold in different directions in the OLED switch







fvig2001

Well-Known Member
Member
Joined
Aug 21, 2006
Messages
772
Trophies
1
XP
2,305
Country
Philippines
Sucks that NAND is perma soldered. The OLED would have been the weird fan's tricked out Switch. At least they fixed the SD card but made it probably harder to replace.

Goes back to a dream of a more portable dock with a power bank and a portable 15.6 1080p/4k monitor lol
