Switch OLED teardown V1/V2

MarkSummers

Member
Newcomer
Joined
Oct 12, 2021
Messages
8
Trophies
0
Age
73
XP
38
Country
United States
Yes, you can do the install but I'm sure there will be a better guide with altivernative solder points that don't require to lift the eMMC.

Also another thing that might cause problems, is the current public build of Hekate - all the working versions running on OLED switches, seem to be non public builds, handed out by CTCaer.

probably its only dat0 thats missing theres probably a test point somewhere just didnt bother fully checking

I thought this initially as well, but given how point D on the board is very obscure, they were digging around quite a bit. I'm not holding my breath the emmc's Dat0 (Point C) comes out anywhere except a pin under the APU. Using one of these may require lifting the eMMC.

I've never done anything with an SX core chip. Does the eMMC need to be restored to the board to function? I thought it held a partial locker of system keys on it that would be needed to run atmosphere and such.


HenryMin

Well-Known Member
Member
Joined
Jun 19, 2020
Messages
141
Trophies
0
XP
1,136
Country
Korea, South
I've never done anything with an SX core chip. Does the eMMC need to be restored to the board to function? I thought it held a partial locker of system keys on it that would be needed to run atmosphere and such.
You always need emmc on the board if you installed the modchip.
The modchip reads emmc timing, somehow glitch tegra, and run payload in emmc bct.

  • Like
Reactions: MarkSummers

lenselijer

Well-Known Member
Member
Joined
Mar 27, 2006
Messages
1,532
Trophies
1
XP
839
Country
Netherlands

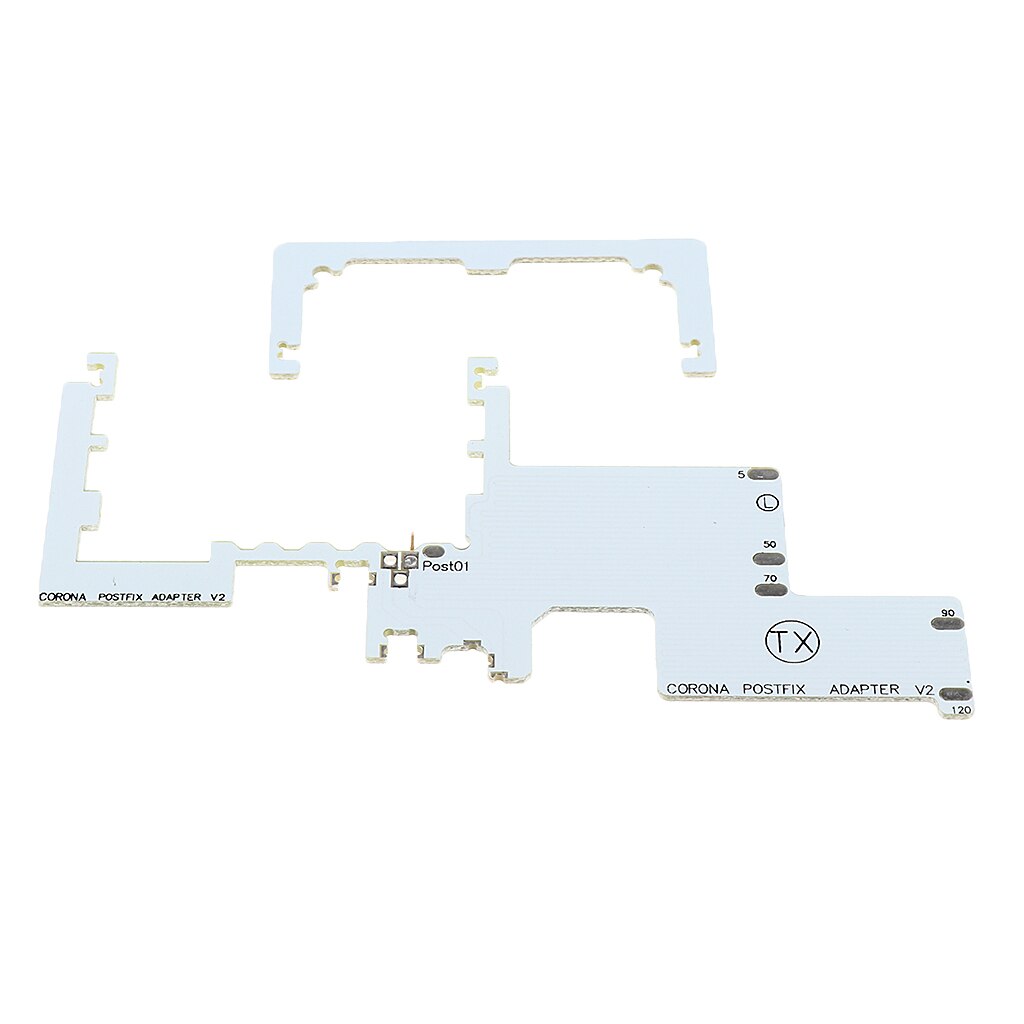

The D point reminds me of the Xbox 360 days with the corona postfix adapter :)


FR0ZN

Well-Known Member
Member
Joined
Nov 2, 2013
Messages
1,362
Trophies
1
Age
37
XP
3,818
Country
United States
I don't know if such thin pogopins exist :/
You also have to consider how deep the BGA starts on the eMMC in comparison to the APU on the 360, the required pin is not on the edge of the substrate.


  • Like
Reactions: sean222 and susi91

susi91

Well-Known Member
Member
Joined
Sep 13, 2018
Messages
338
Trophies
0
XP
1,327
Country
Germany
You also have to consider how deep the BGA starts on the eMMC in comparison to the APU on the 360, the required pin is not on the edge of the substrate.

Wow, solder the eMMC to the board is really a clever move from ninty.
But I guess there should be a pull-up resistor for the DAT0 line/trace somewhere on the board, most likely near the APU, also useable for C


FR0ZN

Well-Known Member
Member
Joined
Nov 2, 2013
Messages
1,362
Trophies
1
Age
37
XP
3,818
Country
United States
Wow, solder the eMMC to the board is really a clever move from ninty.
But I guess there should be a pull-up resistor for the DAT0 line/trace somewhere on the board, most likely near the APU, also useable for C
I hope so, on the Switch Lite there were two points exposed on the top layer of the PCB where you could hook it.
The problem with the OLED model is that the eMMC and SoC are on each side of the PCB, so chances are high they are connected only between the layers.

  • Like
Reactions: susi91

Horizoncrosser

Well-Known Member
Newcomer
Joined
Oct 9, 2021
Messages
56
Trophies
0
Age
23
XP
98
Country
United Kingdom
Does anyone know what the solder points would be for the SX lite chip. If yes is their like a diagram/picture with the annotated points. The thing is theirs a great deal for a lite chip from a local person and I kinda want to use that as I have said before. It's just everyone has done installs with sx cores.


x021

Member
Newcomer
Joined
May 10, 2021
Messages
5
Trophies
0
Age
28
XP
64
Country
United States
Does anyone know what the solder points would be for the SX lite chip. If yes is their like a diagram/picture with the annotated points. The thing is theirs a great deal for a lite chip from a local person and I kinda want to use that as I have said before. It's just everyone has done installs with sx cores.


TheUnknownOne

Well-Known Member
Newcomer
Joined
May 29, 2021
Messages
86
Trophies
0
Age
36
XP
323
Country
United States

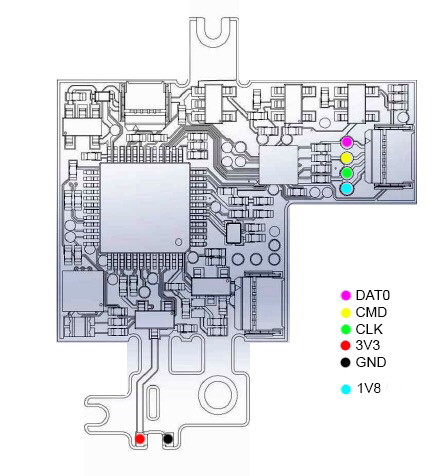

View attachment 279668
I made install layout picture based on the Chinese guide
Use it at your own risk.
This is insane. I do alot of repairs and am highly experienced with a heat rework station, this entire process is fairly simple except the bga chip Dat0 point if I have the term right is definitely not worth the risk unless somehow an alt point is found. But I'm guessing that's been prodded a bunch to try and find it.

Am I right in reading the caps need to be bridged?
