Switch-OC-Suite

[cucholix]

Hmm.. i checked forcing docked on handheld, but hadn;t actually checked the other way.
only one profile is applied at a time, so i guess changing charging profile should work

Forced handheld mode displays Official Charger when the Switch is docked, and handheld clocks transfer correctly.



[meha]

from my sys-clk-oc log:
[2023-05-23 10:46:27.877] Parsed cust config from "/atmosphere/kips/loader.kip"

from my current hekate_ipl.ini:
{------ Atmosphere ------}
[CFW on MicroSD Card]
fss0=atmosphere/package3
kip1patch=nosigchk
kip1=atmosphere/kips/loader.kip
cal0blank=1
emummcforce=1
icon=bootloader/res/emummc_fss0_boot.bmp

and I still get:
[2023-05-23 17:20:04.458] [mgr] Memory override change: 1862.0 MHz
[2023-05-23 17:20:04.490] [mgr] Memory clock set : 1862.4 MHz
[2023-05-23 17:20:04.511] [mgr] Cannot set Memory clock to 1862.4 MHz

Post automatically merged: May 23, 2023

OK for everyone who might still be struggling on their arista switch with 1862 not actually applying I fixed it by placing a copy of my hekate_ipl.ini file in both the bootloader root folder AND the bootloader/ini folder which also had a copy of hekate_ini.ipl in it. replacing it with a copy of the one in the root seems to have resolved my issue even though the cys-clk-oc logs said it was loading the kip just fine.

the sys-clk just reads the frequency from the kip file, so it doesn't mean the patch is actually being applied.
well hope this solves issue for not working users



[cucholix]

@meha I build a custom atmosphere from source so the output loader.kip is not supported in the online configurator. Do I need copy over (overwrite if needed) the files in Atmosphere/stratosphere/loader/source from your repository and build atmosphere?



[meha]

@meha I build a custom atmosphere from source so the output loader.kip is not supported in the online configurator. Do I need copy over (overwrite if needed) the files in Atmosphere/stratosphere/loader/source from your repository and build atmosphere?

I don't know what changes you made, but in that case yes you have to build loader.kip yourself.
refer to build guide on github for that



[cucholix]

It's a good practice leave the loader.kip path like this

kip1=atmosphere/kips/*

That way it will only load the loader.kip if present, and won't crash atmosphere in case it can't find the file or it doesn't exist. It's also useful as it loads all the .kip present in the folder (in case you have other .kip).



[SABL3Y3]

advanced configuration for memory coming soonView attachment 373102

in next update, users with good binning will be able to push up to 2400 ram and increase performance a lot

Is that on a erista? Also ETA?



[SpoiledAsh]

I cannot for the life of me get this to work. I've done clean installs of everything. AMS 1.5.3 with the corresponding loader and sd0ut folder downloads. Made the edit to the hekate ini file. Did everything I can think of multiple times

On Mariko switch with modchip.



[meha]

I cannot for the life of me get this to work. I've done clean installs of everything. AMS 1.5.3 with the corresponding loader and sd0ut folder downloads. Made the edit to the hekate ini file. Did everything I can think of multiple times

On Mariko switch with modchip.

well can you go to /config/sys-clk-oc/ and open log file and tell me what it says?
it seems that you have the same problem as someone before, in which manually creating (or copy existing one from /config/sys-clk/config.ini) fixed the problem

Post automatically merged: May 26, 2023

Is that on a erista? Also ETA?

sorry erista not yet. it's for mariko.

I plan to release new version with AMS 1.5.4 release



[cucholix]

Are my speedos good enough to handle 1996 ram OC? Mine is Erista



[ppkantorski]

nice to see your progress. keep up the good work



[TeleTubby666]

advanced configuration for memory coming soonView attachment 373102

in next update, users with good binning will be able to push up to 2400 ram and increase performance a lot

Where can I find that tool? I’d like to do some comparisons.

Thank you!



[linuxares]

Where can I find that tool? I’d like to do some comparisons.

Thank you!

Scroll up two posts.



[SABL3Y3]

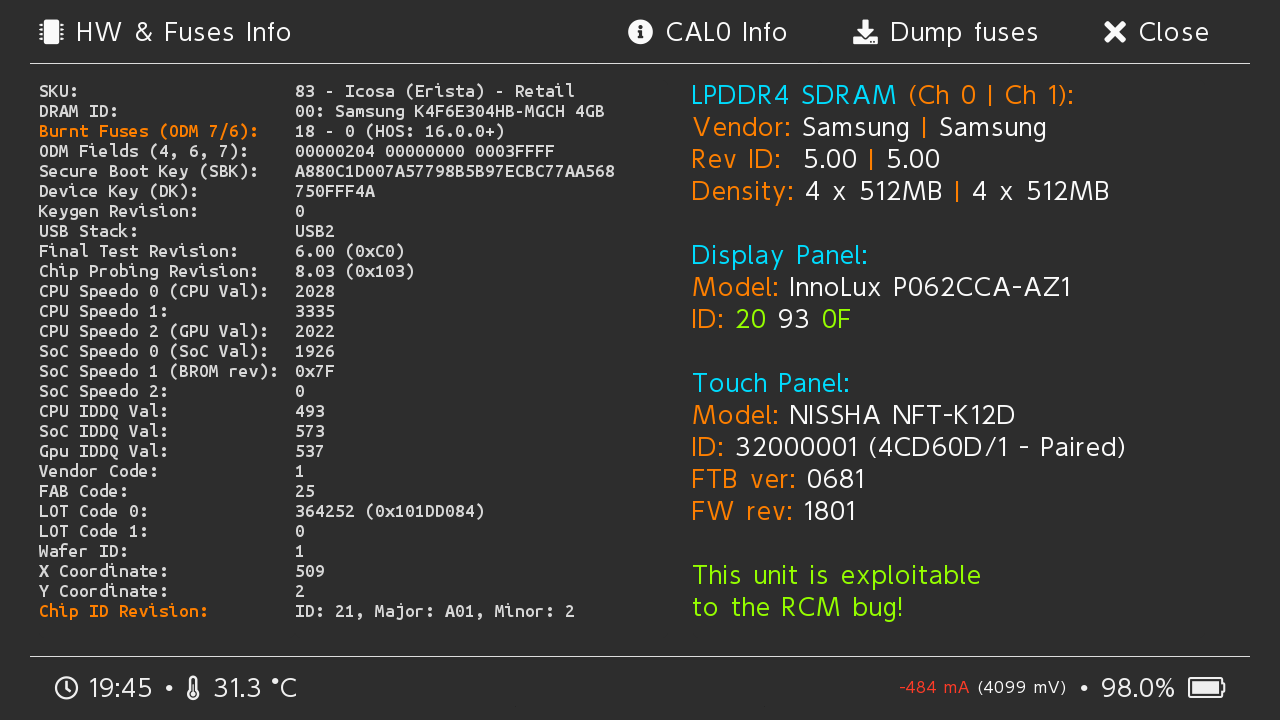

View attachment 373885
Are my speedos good enough to handle 1996 ram OC? Mine is Erista

Probably. My erista can do:

CPU 2091
GPU 921
RAM 2150

No crashes with this config. It did crash when I attempted to push 2200Mhz on the ram a few times.



[AngryCinnabon]

How do my speedos look?



[Medel87]

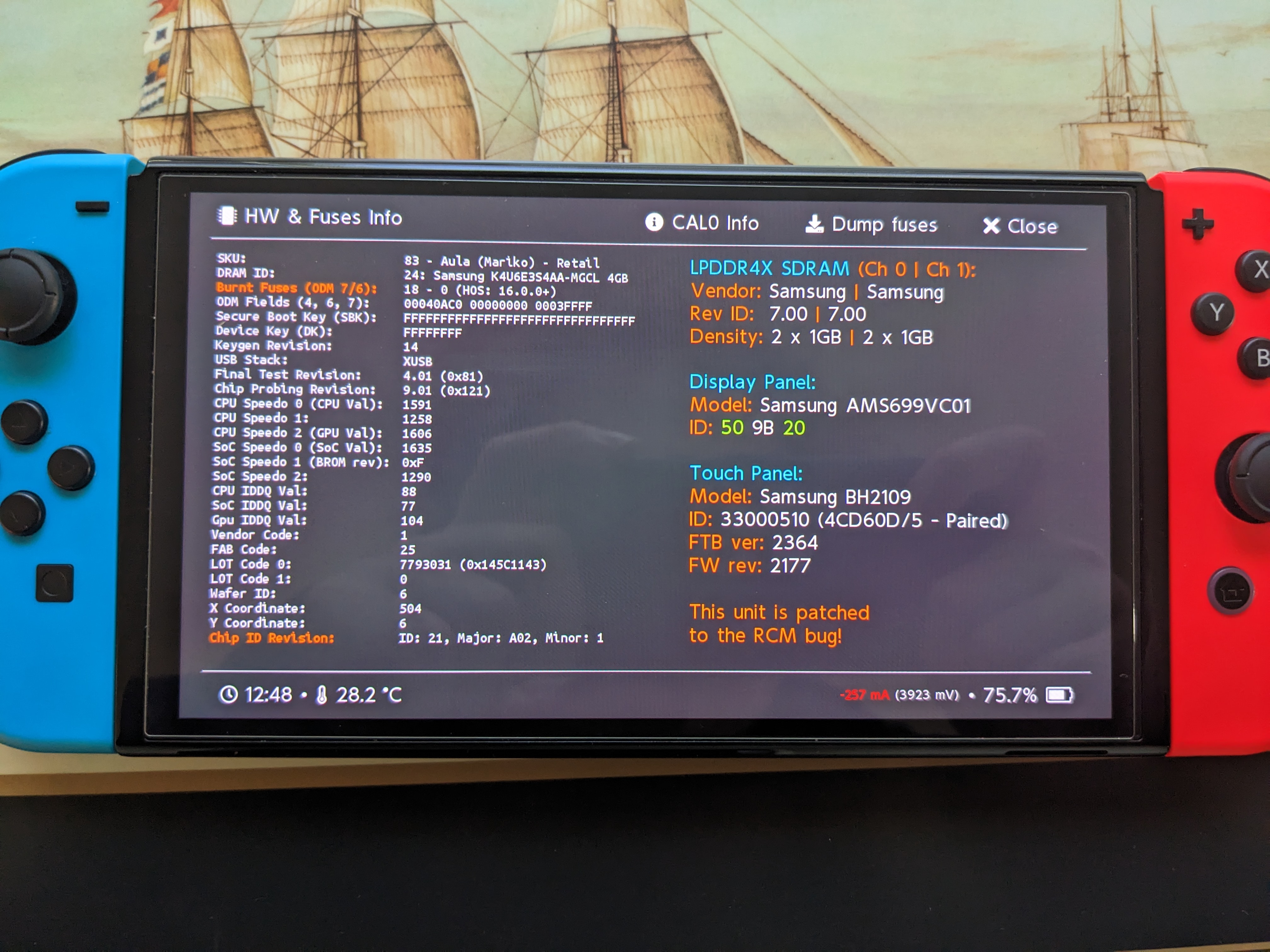

View attachment 374041

How do my speedos look?

Bad I think



[AngryCinnabon]

Bad I think

Rip, thanks anyways.



[SpoiledAsh]

well can you go to /config/sys-clk-oc/ and open log file and tell me what it says?
it seems that you have the same problem as someone before, in which manually creating (or copy existing one from /config/sys-clk/config.ini) fixed the problem

Post automatically merged: May 26, 2023

sorry erista not yet. it's for mariko.

I plan to release new version with AMS 1.5.4 release

Thanks for the reply. I checked and the log.flag file is empty.

I tried copying the config.ini from sys-clk to sys-clk-oc and I'm still having the same issue. :/



[cucholix]

I cannot for the life of me get this to work. I've done clean installs of everything. AMS 1.5.3 with the corresponding loader and sd0ut folder downloads. Made the edit to the hekate ini file. Did everything I can think of multiple times

On Mariko switch with modchip.

Check your atmosphere/contents/ folder it should have 00FF0000636C6BFF folder, then restart your console.



[SpoiledAsh]

Check your atmosphere/contents/ folder it should have 00FF0000636C6BFF folder, then restart your console.

I did another fresh reinstall of atmosphere and the mod and it just worked this time! Not sure what was going on, but very happy to finally have it working



[TeleTubby666]

Scroll up two posts.

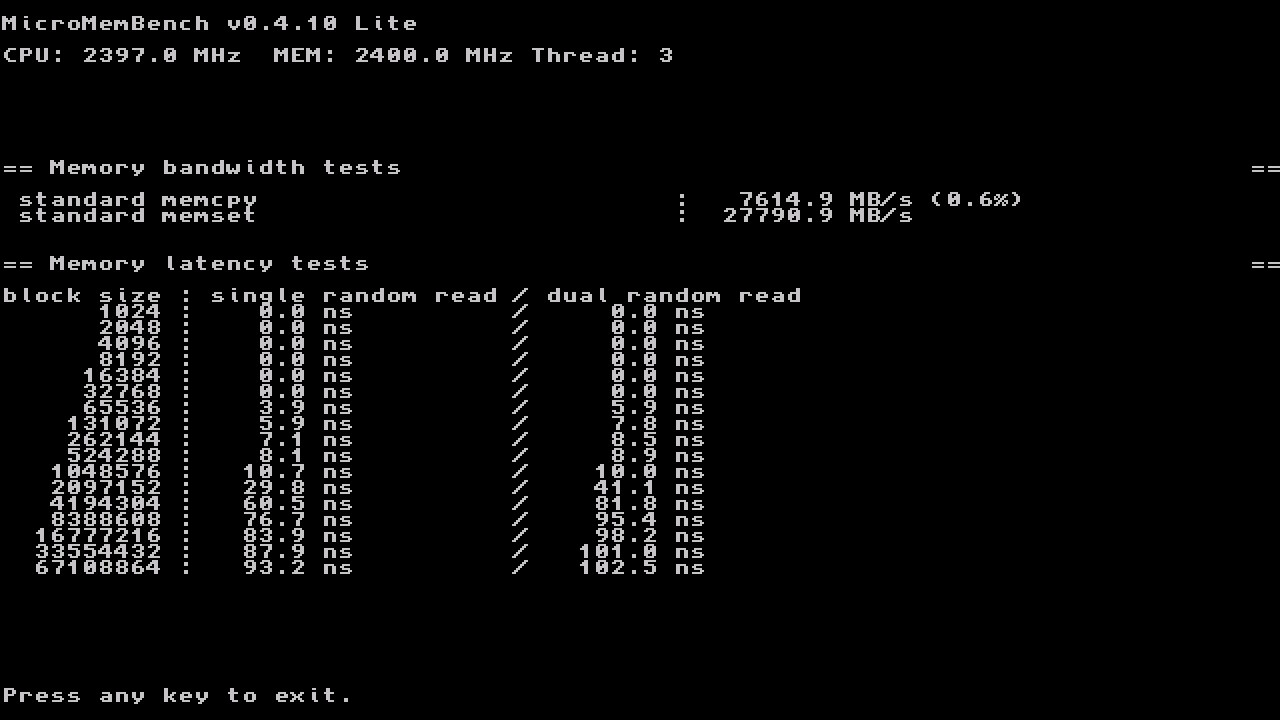

I am talking about that membench tool
