Picofly AIO Thread

[pbanj]

Look through this thread and picofly thread. You'll see different people saying their switches weren't turning on after installing those chips. Others have said maybe they're frying the emmc? Yes they can work, but like I said they're kind of hit or miss

so if something goes wrong with the installation the switch will be dead?
also what about the Waveshare RP2040-one?

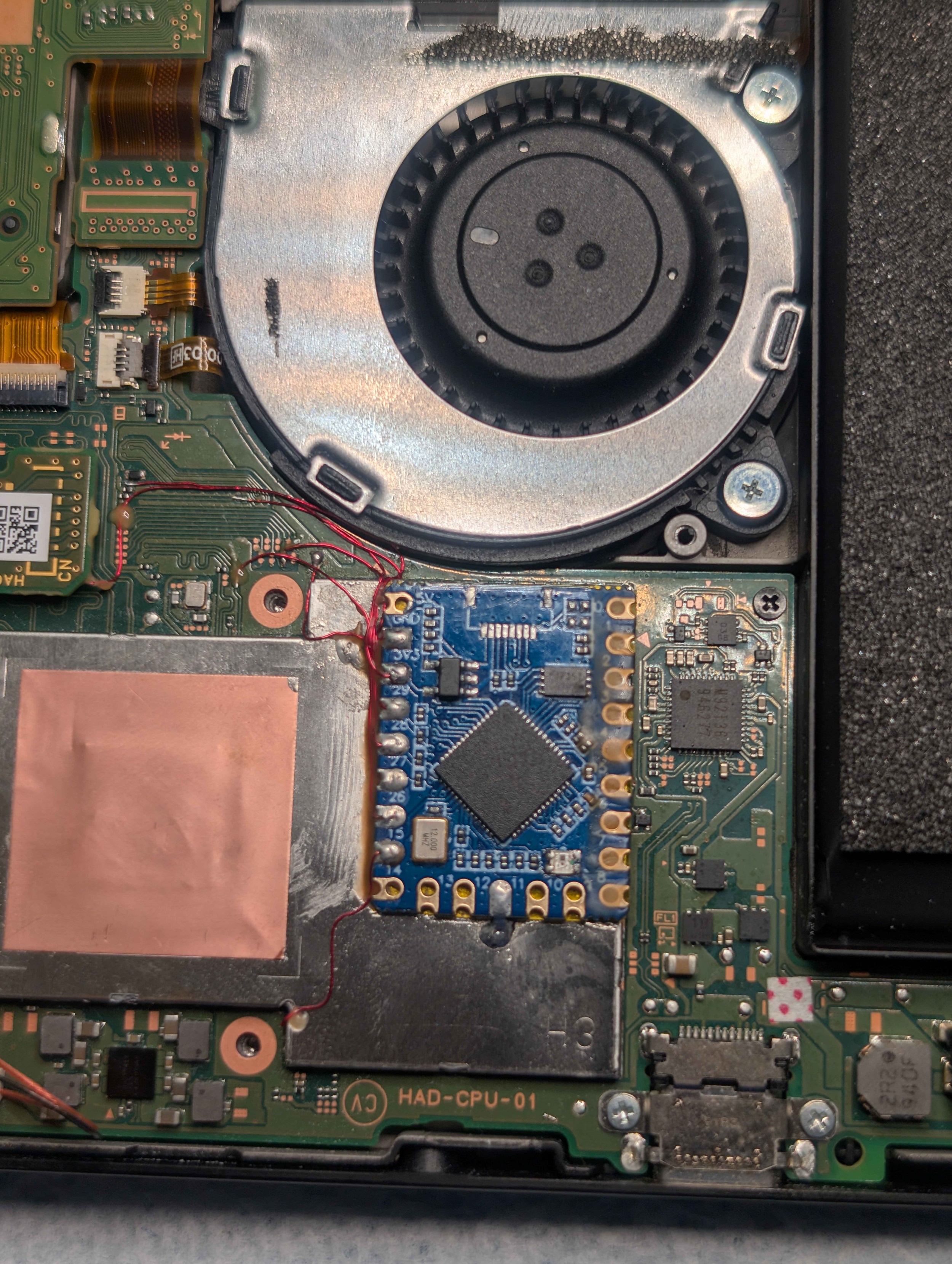

i have switched to only using the rp2040-tiny. i started running into issues with the "picofly" chips. i cut pin 11 so i can use it as a second anchor point.



[ancylow]

Hi, I'm stuck with an OLED, I hope you can help me.
When installing the chip it gives error *=* (No eMMC block 0 read (eMMC init failure?) and it boots normally in OFW. The diode values are all good. I've tried 3 different chips and 2 DAT0 adapters. I've carefully checked the CLK and CMD solders, which are the most delicate, and they look good. I'm running out of ideas. Could it be that the V2 flex I use for the CPU is damaged? Thanks



[Danook28]

Hi, I'm stuck with an OLED, I hope you can help me.
When installing the chip it gives error *=* (No eMMC block 0 read (eMMC init failure?) and it boots normally in OFW. The diode values are all good. I've tried 3 different chips and 2 DAT0 adapters. I've carefully checked the CLK and CMD solders, which are the most delicate, and they look good. I'm running out of ideas. Could it be that the V2 flex I use for the CPU is damaged? Thanks

Use kimkaze mathed only. Working. And it is not easy to do that with out skill some time the chip is not empty use firmware for it if it not picoflay chip and same hwfly chip. Befor use it. Use laptop and see video how add firmware to chip.



[ancylow]

Use kimkaze mathed only. Working. And it is not easy to do that with out skill some time the chip is not empty use firmware for it if it not picoflay chip and same hwfly chip. Befor use it. Use laptop and see video how add firmware to chip.

Thanks for your answer. Problem was that was using Fw 2.81 and that version is not good. Flashed with 2.80 from rehius and everything is fine



[cicci084]

Hello, I've been missing for a while.
I received a switch, there is a chip based on picofly (rp2040).
It only starts in emummc.
Disassembling it I found this chip (never seen before, but it seems plug and play, convenient).
Inserting the mmc into the original socket, it starts normally.
Can I check something or do I have to install a new chip?
Thanks for your ideas.



[Deleted member 301661]

DAMGE

?



[jkyoho]

Hello, I've been missing for a while.
I received a switch, there is a chip based on picofly (rp2040).
It only starts in emummc.
Disassembling it I found this chip (never seen before, but it seems plug and play, convenient).
Inserting the mmc into the original socket, it starts normally.
Can I check something or do I have to install a new chip?
Thanks for your ideas.

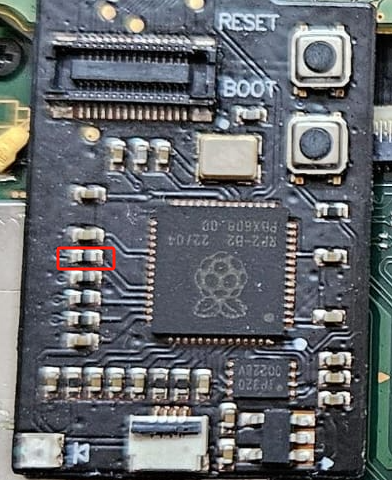

Bridge this 47ohm RST resistor with wire or solder and try again



[cicci084]

Bridge this 47ohm RST resistor with wire or solder and try again

thx, at what point do I connect this?



[jkyoho]

thx, at what point do I connect this?

Bridge the resistor from left to right, making it from 47 ohm to 0 ohm



[cicci084]

Are you telling me to make a bridge?
Or am I stupid?



[nachbarino]

I need help! I got my rp2040 today and I wanted to flash it, but it didn't get detected by my PC. The led is blue long and 2-3 times yellow. I need help! Is my chip pre flashed?



[deeps]

I need help! I got my rp2040 today and I wanted to flash it, but it didn't get detected by my PC. The led is blue long and 2-3 times yellow. I need help! Is my chip pre flashed?

yes, it's pre-flashed. If you want to flash it yourself, hold the boot button on the chip while connecting usb and it will pop up



[nachbarino]

So it's not openable bc it's pre flashed? Can I just plug the device in?



[deeps]

So it's not openable bc it's pre flashed? Can I just plug the device in?

Yes, and yes.



[nachbarino]

Yes, and yes.

Thank u. Tomorrow I'm soldering it on my motherboard.



[cicci084]

Bridge the resistor from left to right, making it from 47 ohm to 0 ohm

am I not at risk of damaging the mmc?



[nachbarino]

This is a Pikofly AIO Thread/Tutorial.
This information has been pulled from other threads and forums on this site, I haven't done anything except compile it in this one thread.
All credit goes to those who worked on all the relevant information and stuff.

First things First; I not not endorse piracy and those who released the firmware don't either so this is for home-brew use only.

DOING THIS MODIFCATION TO YOUR SWITCH MAY CAUSE PERMANENT DAMGE. I RECOMMEND YOU HAVE THIS DONE BY A PROFESSIONAL INSTALLER

DISCLAIMER! Me or any of the other temp members who helped make this happen can not be held liable to any damage you cause your console in attempting to mod it. Professional installation is recommended for this mod.

Just because a mod is cheap doesn't mean it's easy. - Trust me I learnt the hard way - Adran 2023

Picofly install Guide - Credits to @lightninjay

FW Changelog - Note All Further firmwares will be in root firmware folder of GitHub

General InformationInstallation overviewImagesCredits

1.


   RequirementsWorking ModelsError and LED CodesBoard Pinout ListHintsFAQ's

   1.

      • RP2040-Zero
      • SMD 0805 47 to 50 ohm Resistors
      • Mosfet (IRFHS8342 MOSFET) or cpu flex cable - I personally recommend - (v1 for v1, v2 flex for v2 mariko etc etc but yes you can use a v2 with a v1 flex and vice versa it just needs modding)
      • switch (duh)
      • Wire
      • RP2040 Firmware (Do not flash firmware from the archive folder unless advised to)
   2.
      - Erista Unpatched (Toshiba, Samsung)
      - Erista Patched (SanDisk, Samsung)
      - OLED (SK Hynix)
      - OLED (Samsung)
      - Mariko (Samsung)
      - Lite (SK Hynix)
      - Lite (Samsung)

   3.




   4.
      !!!!PinOut for Other Boards!!!! (resistors / mosfets are still required)



   5.


   6.




2.


3.


   Mosfet ImagesSolder Points

   1.







   2.















4.



Changelog:
Added fw 2.70+ error codes
Added Oled i2c image.
Yo ho yo ho a mcfly life for me

Spoiler

29-april-2023
Hardware sources added
16-April 2023

Updated Raspberry Pi Pico Pinout

14-April-2023
Added more pinouts
Added install guide
Added Confirmed Models

8-April-2023
Added FW 2.61 and changelog

7-Apr-2023
- Fixed size Mistake
- Added Firmware 2.6Alpha
-added Firmware 2.6a changelod and more board support pinout.

29-mar-2023
- Added link to Toshiba Firmware for rp2040
- Added alternative mosfets
- Added Erista (patched) diagram

P.S More formatting and information to come

I'm new what is a mosfet what flex cable?



[cicci084]

Bridge this 47ohm RST resistor with wire or solder and try again

Good morning everyone, doing this bridge, it started working again. Should I leave it like this or should I replace the resistor?
Thanks for now.



[jkyoho]

does not matter, you can remove that resistor and bridge the pads or use 0 ohm resistor if you have one.



[bvang913]

I'm new what is a mosfet what flex cable?

Not trying to be rude, but if you read the guide it tells you everything. As well as the hundreds of videos of installs on YouTube. You've been asking the same thing over and over with different posts for the past week. If it's too hard to comprehend, maybe this mod isn't for you. Your questions have been answered by multiple people.
