Hacking Hardware Picofly - a HWFLY switch modchip

[Tembokbesi]

normal

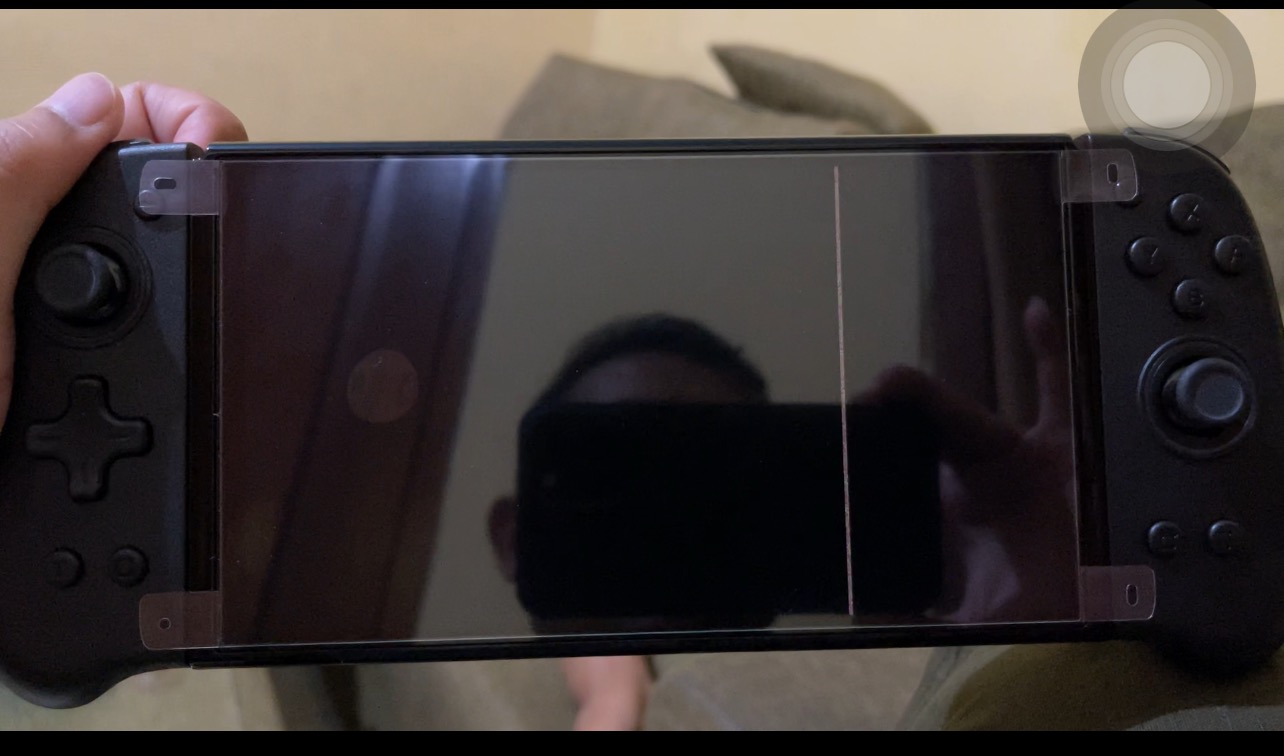

i have 2 oled with instinct but the older oled 2023 dont have this issue and the new one 2024 oled has, what happened?



[LuigiGad]

Hi. It is normal? Im using intinct nx v6
View attachment 435732View attachment 435731

It happened to me on 2 OLEDs with picofly RP2040-ZERO



[Danook28]

When I enter the EMUMC partition, the official system and Syscfw system I watch the screen show two white color lines time appearance logo atmosphere logo and show the official Netindo screen logo and does not appear something checked Points and check DAT0 cleaning Motherboard Nothing There is nothing but this thing is not separated if you separate the CPU Point wire in the RP2040 CHIP widget ... Please answer this error in Boot Chip.

Cfw ofw emummc 18.0.1 hats pack 17.0.3

I have video.. You can see one line frist inter emummc and after logo atmosphere...



[malgamer]

please clean your oled display ribbon and connector



[psycho-neon]

When I enter the EMUMC partition, the official system and Syscfw system I watch the screen show two white color lines....

If you go and check previous messages they already mentioned that it is normal.



[Tembokbesi]

If you go and check previous messages they already mentioned that it is normal.

yes but I want to know why this happens because not everyone experiences it even with same chip or not



[abal1000x]

yes but I want to know why this happens because not everyone experiences it even with same chip or not

If you want to know, then you need to buy some Logic Analyzer or Oscilloscope then you need to find a way to clip pin in the oled connector, and find some unusual signal. Then you trace back what line produce those unusual signal, it will ended on some ic or resistor or capacitor. You test one by one, maybe by removing it, and check whether the unusual signal produce or not. Then you found your 'reason'.

For me, thats wasting time. As long as its work, and not interfering with me enjoying the game, then all is good.



[Danook28]

please clean your oled display ribbon and connector

I will try and see.

Nothing change same.



[Jkop]

Does anyone know where to get the new kamikaze flex picofly? I checked all over ali



[Dk2022]

Does anyone know where to get the new kamikaze flex picofly? I checked all over ali

This flex?



[Jkop]

This flex?

Yup that one



[Dk2022]

Yup that one

i am too search for it.



[raksmey1231]

Does anyone know where to get the new kamikaze flex picofly? I checked all over ali

【闲鱼】https://m.tb.cn/h.gXdBz56?tk=1cY2WGu4I2R MF1643 「快来捡漏【switch oled，改良加大电阻，完美使用，不烧字库，】」
点击链接直接打开



[Nephiel]

It doesn't seem any easier or cheaper than just running wire. So what's the benefit? Is it faster?

To me it just looks like an easy way to accidentally rip DAT0 point.



[Viktorsilva]

It doesn't seem any easier or cheaper than just running wire. So what's the benefit? Is it faster?

To me it just looks like an easy way to accidentally rip DAT0 point.

Lollll, i was just thinking the same thing . it is a lot easier to do it with a thin wire. Done more then 30 kamikaze with just a stripped thin wire without any trouble.



[zzzzdav]

Does anyone know if there is a new version of the chips? maybe with easier installation.



[Dk2022]

Is it possible to close the Nintendo Switch OLED with the installation of RP2040 Zero, without cutting the shield?



[bvang913]

Is it possible to close the Nintendo Switch OLED with the installation of RP2040 Zero, without cutting the shield?

It doesn't need cutting on the OLED. Fits perfectly next to the heatsink on top of the ram.



[Dk2022]

It doesn't need cutting on the OLED. Fits perfectly next to the heatsink on top of the ram.

Thank you, guy.



[LuigiGad]

yes but I want to know why this happens because not everyone experiences it even with same chip or not

It doesn't depend on the modchip, in my case (RP2040-zero) I thought it was the modchip that was the problem and I replaced it but nothing has changed.
Among other tests, I also removed it and the console no longer showed the line.
Of course I checked the flat video as well... perfect. In my opinion it's a bug in the code on the video refresh because it appears when the video is reset on the screen
