Is there any other possible reason when the error is *== ? I tried to replace the cmd line wire, rework on it but giving the same error.

The device can boot on ofw though. Its a Lite.



[jkyoho]

Is there any other possible reason when the error is *== ? I tried to replace the cmd line wire, rework on it but giving the same error.

The device can boot on ofw though. Its a Lite.

100 ohm dat0 resistor? try higher resistor value on dat0



[psycho-neon]

100 ohm dat0 resistor? try higher resistor value on dat0

I didn't try using 100ohm on dat0 yet. I tried on cmd line though same output. Let me make 100ohm for dat0.



[superxoi]

I didn't try using 100ohm on dat0 yet. I tried on cmd line though same output. Let me make 100ohm for dat0.

That same error took me 1 hour and turned out it was the chip itself.



[psycho-neon]

That same error took me 1 hours and turned out it was the chip itself.

I will consider the chip as well thank you for the input.



[FreeLander]

I'd appreciate any intake on this:
I Modded an OLED with reballing and the back mosfet method. I got a glitch and was able to dump a full backup on hekate. eMMc info intact.
The issue is that it does not boot to OFW. I get the Nintendo logo then black screen. No Switch logo. It's also a black screen on CFW.
I reballed again, same issue. All readings are fine.


It boots normally when the modchip is removed.

It's a weird issue, I haven't got anything like it.



[jkyoho]

I'd appreciate any intake on this:
I Modded an OLED with reballing and the back mosfet method. I got a glitch and was able to dump a full backup on hekate. eMMc info intact.
The issue is that it does not boot to OFW. I get the Nintendo logo then black screen. No Switch logo. It's also a black screen on CFW.
I reballed again, same issue. All readings are fine.


It boots normally when the modchip is removed.

It's a weird issue, I haven't got anything like it.

what resistor on dat0 from the chip/rp2040? change it to 100 ohm or higher



[FreeLander]

what resistor on dat0 from the chip/rp2040? change it to 100 ohm or higher

You really are the real deal. Thanks. I'm used to adding a resistor when I get "slow emmc" error, this was a new learning curve for me. Thanks again.



[psycho-neon]

That same error took me 1 hour and turned out it was the chip itself.

Turns out it was my mistake that made it a bad chip upon inspection I notice that I knocked off one of the 47ohm resistor on the tiny rp2040. Silly me. Thank you!



[Myst0gan]

Yesterday I've watched a vid on YT, where the dude was saying most of the time, the caps are used in electronic as filter, to reduce the noise... So my question is, could I use caps on picofly instead of the 47 ohm resistors??
I am guessing that the resistors are used also to reduce noise, since 47 ohm is too low to reduce current

I am asking just because of curiosity, I have no knowledge about engineering an electronic board or similar



[jkyoho]

Yesterday I've watched a vid on YT, where the dude was saying most of the time, the caps are used in electronic as filter, to reduce the noise... So my question is, could I use caps on picofly instead of the 47 ohm resistors??
I am guessing that the resistors are used also to reduce noise, since 47 ohm is too low to reduce current

I am asking just because of curiosity, I have no knowledge about engineering an electronic board or similar

try your self



[ItzMeGab]

It's a capacitor for the LDO which is only used when you use the usb port. If your chip is flashed already you're good

Thank you



[Dee87]

You really are the real deal. Thanks. I'm used to adding a resistor when I get "slow emmc" error, this was a new learning curve for me. Thanks again.

Come on bro u been long enough here to know the answer to that Xd



[Nephiel]

Yesterday I've watched a vid on YT, where the dude was saying most of the time, the caps are used in electronic as filter, to reduce the noise... So my question is, could I use caps on picofly instead of the 47 ohm resistors??
I am guessing that the resistors are used also to reduce noise, since 47 ohm is too low to reduce current

I am asking just because of curiosity, I have no knowledge about engineering an electronic board or similar

I only have a meager understanding of how this stuff works, but I'd advise not to try that with any board you care about. Resistors and capacitors are quite different things.



[superxoi]

I have already made a new thread but no one answer yet so pardon me for trying my luck here. i have received an oled switch which can not detect the right joycon. Have used another joycon and changed the rail even changed the socket in vain. I measured all the resistor surrounding the socket but it normal value too. Do anyone happend to solve this problem before please enlighten me. Thank in advance.



[jkyoho]

I have already made a new thread but no one answer yet so pardon me for trying my luck here. i have received an oled switch which can not detect the right joycon. Have used another joycon and changed the rail even changed the socket in vain. I measured all the resistor surrounding the socket but it normal value too. Do anyone happend to solve this problem before please enlighten me. Thank in advance.

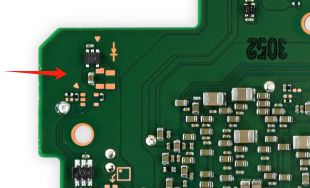

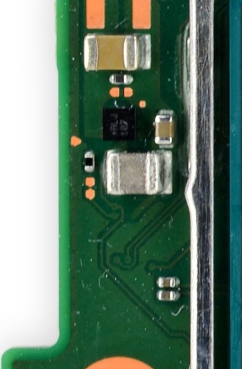

check these 2 area



[karatefeet]

I have already made a new thread but no one answer yet so pardon me for trying my luck here. i have received an oled switch which can not detect the right joycon. Have used another joycon and changed the rail even changed the socket in vain. I measured all the resistor surrounding the socket but it normal value too. Do anyone happend to solve this problem before please enlighten me. Thank in advance.

Check for a cut trace right by the latch of the metal shield. It happens when you pry too hard, ask me how I know lol. I'll reply to your post.



[superxoi]

check these 2 area

I have already checked the area in your 2nd pic. I will check the first pic area now. Thank for your help.

Post automatically merged: Jan 24, 2024

Check for a cut trace right by the latch of the metal shield. It happens when you pry too hard, ask me how I know lol. I'll reply to your post.

Some time the right joycon could connect but no sound no indicator then disconnected again. It so weird. I will check for cut traces too? Thank.



[karatefeet]

Some time the right joycon could connect but no sound no indicator then disconnected again. It so weird. I will check for cut traces too? Thank.

I had the EXACT same symptoms, sometimes worked with no animation. Drove me crazy checking everything. Only fixed it months later when someone posted the solution on another forum.



[superxoi]

Check for a cut trace right by the latch of the metal shield. It happens when you pry too hard, ask me how I know lol. I'll reply to your post.

Fixed. Thank you bro. It was exactly as you described.
