Hacking Hardware Picofly - a HWFLY switch modchip

[Adran_Marit]

do you think modding v2 is easier?

More points to recover from I suppose...

V1 launch is easiest



[Spore2]

In my case it was accidentally physically damaged during the modchip installation.

Since it boots into the IPL, the basic things like eMMC and CPU should be working. Looks like the power circuit is damaged somewhere

Oh, you mean power issues that prevent the sd card from being read?

In my case it was accidentally physically damaged during the modchip installation.

Since it boots into the IPL, the basic things like eMMC and CPU should be working. Looks like the power circuit is damaged somewhere

measured 1.8 vs on one of the test points. My guess is no 3.2 v. Any way I could rig this by feeding it 3.2v from elsewhere?



[vittorio]

Just installed the rp2040 custom board on my lite and it works great except for a few hiccups.
I managed to fix these issues in case someone runs into:
The boot and rst buttons are a bit high on the lite, they can be removed.
The LDO (the chip in the red box in the picture) has to be removed or it would break and cause problems, after a day of playing the console suddenly gets stuck and the CPU buzzed and it wouldn't power on, I thought the CPU was dead, but everything went back to normal after removing the LDO, looks like reverse current killed it.

what firmware did you put?



[rehius]

Oh, you mean power issues that prevent the sd card from being read?

no, I mean your power IC might not be able to feed CPU enough so the hardware cannot be completely inited. it is hard to measure such issues, so I suggested just to analyze the power IC and capacitors visually



[hippy dave]

Now would u look at this
ClickmePlease

Kits are a nice idea, but several hundred percent markup on the Zero board seems a little over the top.



[Kiuxn]

In my case it was accidentally physically damaged during the modchip installation.

Since it boots into the IPL, the basic things like eMMC and CPU should be working. Looks like the power circuit is damaged somewhere

lite. It can start IPL, hecate, but emmc cannot be read (with slow error) and cannot start CFW and OFW. Is this the same problem?



[rehius]

lite. It can start IPL, hecate, but emmc cannot be read (with slow error) and cannot start CFW and OFW. Is this the same problem?

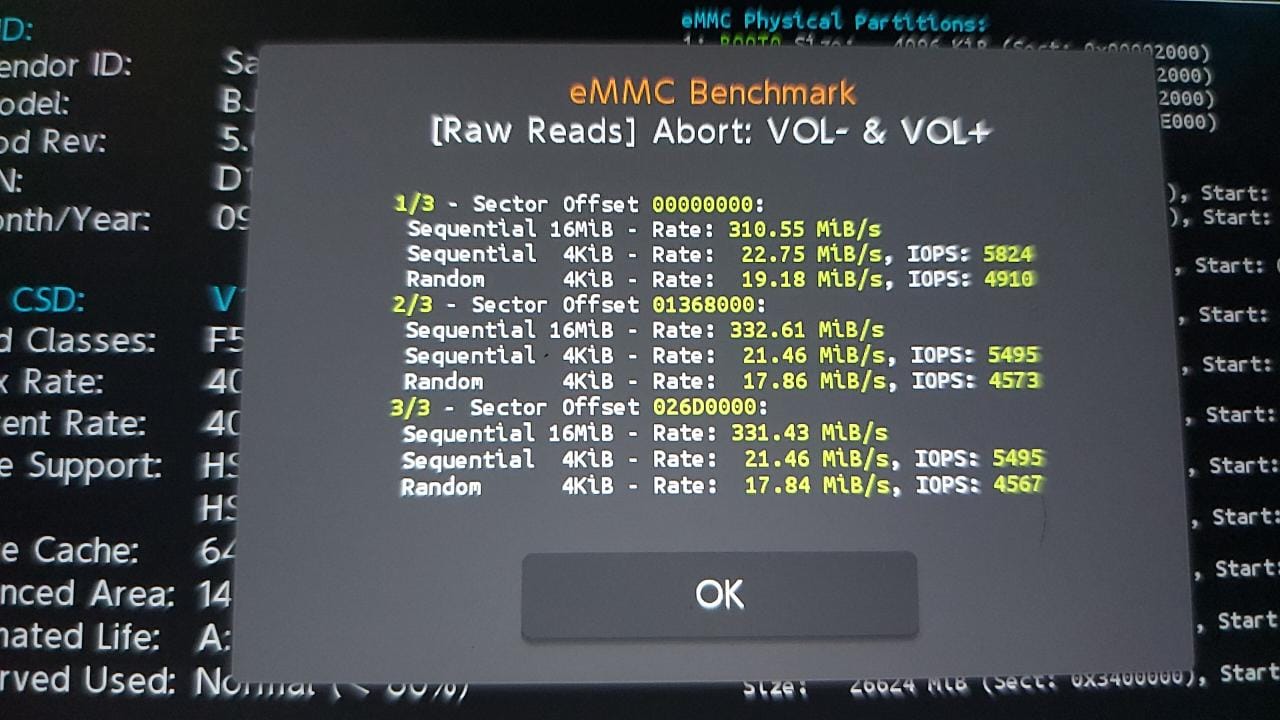

No. "slow eMMC mode" = eMMC lines interference.

might be caused by not cleaned flux, bad soldering, lack of resistors, too long wires



[haipro287]

No. "slow eMMC mode" = eMMC lines interference.

might be caused by not cleaned flux, bad soldering, lack of resistors, too long wires

Sorry for bothering you, any positive sign on cyan led issue?



[Danook28]

Can fit Flex Cable v2 on v1 nintendo switch or no... If no well buy v1 Flex...



[NooBziN]

there is a small range that works

47ohm - 51 ohm shouldn't have any issues

I see many people with slow emmc when this happens, you can put 2 Dat0 470+470 = 94 ohms that doesn't even give a problem solves slow emmc



[JackFrostSMT]

I see the diagram for the xiao, but the other thread says bridge pins 1 and 2, however the diagram indicates bridging pins 7 and 8 according to the label on the xiao
Edit: nvm ignore my dumbass, i see on an online pinout that the D numbers are whats printed and the P numbers are actual pins



[luantty2]

what firmware did you put?

2.65



[sq_mys]

I am interested in reading through the source code. I have tried decompiling the fw_2.65.uf2 by using uf2conv to create a bin file and then decompiling it with objdump. This did not work. I have also tried loading the uf2 files using the online editors but those have failed to work aswell. Anyone have any other ideas?



[KeeperCP1]

How is this still active?



[RexSonic]

How is this still active?

Why would it not be ?



[KeeperCP1]

I don't know. Probably because this post was made in order for OP to know if the modchip they got is fake or not, but ended up not knowing because none of the answers are related to the fake or not question?



[lightninjay]

I don't know. Probably because this post was made in order for OP to know if the modchip they got is fake or not, but ended up not knowing because none of the answers are related to the fake or not question?

LMAO, do you not know if it's real or fake?



[RexSonic]

I don't know. Probably because this post was made in order for OP to know if the modchip they got is fake or not, but ended up not knowing because none of the answers are related to the fake or not question?

It is the real deal



[KeeperCP1]

LMAO, do you not know if it's real or fake?

Do YOU even know?



[lightninjay]

Do YOU even know?

Ummm, I compiled the definitive guide and hacked two switches with it, so I HOPE it's real!
