Darkspade said:
its worth a shot

Click to expand...


I can give it a go, what wire am I making longer?
Post automatically merged:

Ok quick update, left it pulsing blue for around 3 mins... then it went white and went a second time for 3 minutes, left it pulsing blue, then it went red and switched off.

Never booted to OFW both times.

That might help?
If you can get what cables need to be longer I can try that.

Last edited by RiotRetroGaming,
DonZott

DonZott

Member
Newcomer
Level 1
Joined
Mar 26, 2023
Messages
11
Trophies
0
XP
42
Country
Belgium
RiotRetroGaming said:
I can give it a go, what wire am I making longer?
Post automatically merged:

Ok quick update, left it pulsing blue for around 3 mins... then it went white and turned off.
Second time for 3 minutes, left it pulsing blue, then it went red and switched off.

Never booted to OFW both times.

That might help?
If you can get what cables need to be longer I can try that.
Click to expand...
Looking at the video, if it's the blue cable that's used to make it longer then it looks like it's the CMD line.

  • Like
Reactions: RiotRetroGaming
khuong

khuong

Well-Known Member
Member
Level 15
Joined
Jul 18, 2018
Messages
1,164
Trophies
1
Age
43
XP
4,799
Country
Canada
JackFrostSMT said:
Would also explain why my regular Pico didn't work. Is there a quick way to check flash id?
Post automatically merged:


Oh and here are my other points
Click to expand...

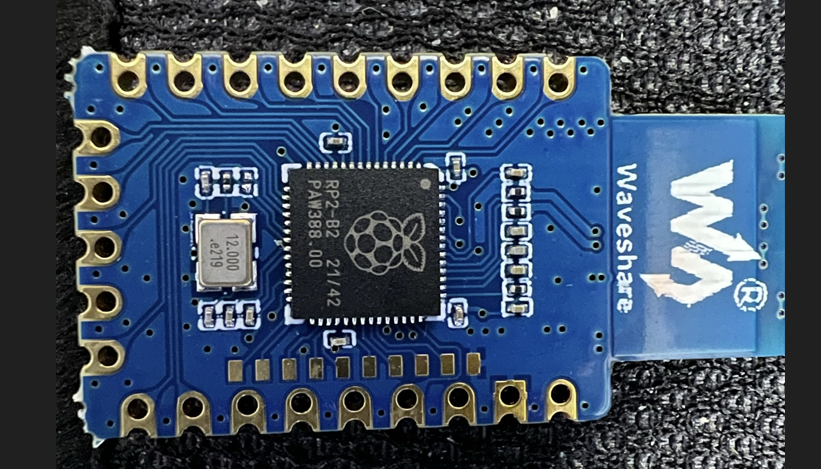

On the chip itself, it tells you the revision...


  • Like
Reactions: chronoss and impeeza
khuong

khuong

Well-Known Member
Member
Level 15
Joined
Jul 18, 2018
Messages
1,164
Trophies
1
Age
43
XP
4,799
Country
Canada
JackFrostSMT said:
Oh yea mine is a B2 like yours. I chopped the usb on mine though.... sooooo rip
Can always solder to it if need be
Click to expand...

I plan on hooking up the D+/- to the usb-c (on switch) and see if/when like the trinket, allow you to boot into it to reflash if need be :)

You get the ONE working? I have a bunch of ONES and ZEROS.. so it doesn't matter to me, just hate desoldering/soldering USB-C Connectors

  • Love
Reactions: binkinator
JackFrostSMT

JackFrostSMT

Well-Known Member
Member
Level 3
Joined
Jan 18, 2017
Messages
102
Trophies
0
Age
27
XP
256
Country
United States
khuong said:
I plan on hooking up the D+/- to the usb-c (on switch) and see if/when like the trinket, allow you to boot into it to reflash if need be :)

You get the ONE working? I have a bunch of ONES and ZEROS.. so it doesn't matter to me, just hate desoldering/soldering USB-C Connectors
Click to expand...
Im gonna wait until either I get the zero I ordered or if 2.6 comes out soon to retry my one

Dandan0404

Dandan0404

Well-Known Member
Member
Level 2
Joined
Mar 25, 2023
Messages
109
Trophies
0
Age
22
XP
136
Country
Philippines
Hello, I need help before sending it to a technician. gonna summarize what i learned. please correct me if im wrong.

gonna install picofly

PRE-install:
-reformat 256gb card to Fat32
-put HATS pack by sthetix on clean formatted FAT32 sd card (PC +card reader)
-flash pico with 2.5+ unlock.uf (the 4mb size one) by Vittorio
-desolder buttons and USB C in pico
-flex cable solder ONLY THE 2 MIDDLE or 3RD AND FOURTH pins

INSTALLATION: (since no proper video of picofly)-gonna follow stehthix MOD kit installation while refering to the picture and modsvilleusa picofly video

POST-install:
-if all goes properly, i should immediately boot to hekate and access atmosphere right?


Attachments

  • OLED-DIAGRAM.jpg
    5.4 MB · Views: 18
  • Like
  • Love
Reactions: superxoi, chronoss, xstationbr and 1 other person
JackFrostSMT

JackFrostSMT

Well-Known Member
Member
Level 3
Joined
Jan 18, 2017
Messages
102
Trophies
0
Age
27
XP
256
Country
United States
Dandan0404 said:
Hello, I need help before sending it to a technician. gonna summarize what i learned. please correct me if im wrong.

gonna install picofly

PRE-install:
-reformat 256gb card to Fat32
-put HATS pack by sthetix on clean formatted FAT32 sd card (PC +card reader)
-flash pico with 2.5+ unlock.uf (the 4mb size one) by Vittorio
-desolder buttons and USB C in pico
-flex cable solder ONLY THE 2 MIDDLE or 3RD AND FOURTH pins

INSTALLATION: (since no proper video of picofly)-gonna follow stehthix MOD kit installation while refering to the picture and modsvilleusa picofly video

POST-install:
-if all goes properly, i should immediately boot to hekate and access atmosphere right?
Click to expand...
Pretty much. Only thing I personally don't like are the premade "packs" with everything ready. Idk if I'm just a purist but I liked having hekate and atmosphere straight from github with nothing else crammed in there.

I'd also advise doing a sysnand backup the second you boot into hekate for the cleanest possible backup.

Dandan0404

Dandan0404

Well-Known Member
Member
Level 2
Joined
Mar 25, 2023
Messages
109
Trophies
0
Age
22
XP
136
Country
Philippines
JackFrostSMT said:
Pretty much. Only thing I personally don't like are the premade "packs" with everything ready. Idk if I'm just a purist but I liked having hekate and atmosphere straight from github with nothing else crammed in there.

I'd also advise doing a sysnand backup the second you boot into hekate for the cleanest possible backup.
Click to expand...
oh okay thank you thank you. for safety im gonna follow sthethix HATS pack but once more picofly installation videos. ill probably change to a NON premade pack. Thank you for the reply sir :) much appreciated
