How to change Wii U software internal resolution?

Discussion in 'Wii U - Hacking & Backup Loaders' started by Goku Junior, Feb 22, 2016.

  1. Goku Junior
    OP

    Goku Junior GBAtemp Advanced Fan

    Member
    951
    288
    Dec 27, 2013
    Argentina
    Buenos Aires, Argentina
    Hi to all!, thanks for reading! I opened this thread to ask about Wii U Software internal resolution, how to change it by any other one...
    If you don't understand what i'm saying exactly I will put an example:
    We have New Super Mario Bros U, according to Digital Foundry it runs at native 1280x720, now I would like to change that resolution to another one, let's say 1920x1080, how can I do that?

    Of course It's not possible legally, we need to look into the internal files of the game, I have asked this before and this is all the information I have:

    So, If I understand correctly he says that the Resolution stuff is in the game .rpx (I'm using Nintendo Land, not NSMBU, that was just an example, but I think all games .rpx have the resolution stuff in the same place)

    I didn't understand very well this part, but it seems we can also edit the frame rate of a game!
    I extracted OSv11 from Nintendo servers and got a lot of .rpl files, including the graphics one like gx2.rpl and coreinit.rpl, but I don't have any idea what to do with them :( ...


    That's all the information I have about this, I tried a lot but i can't do anything, maybe someone that has a lot better skills than me can help with this :)

    Last edited by Goku Junior, Feb 23, 2016
  2. Kakkoii

    Kakkoii Old fart

    Member
    621
    282
    Sep 14, 2007
    Canada
  3. Goku Junior
    OP

    Goku Junior GBAtemp Advanced Fan

    Member
    951
    288
    Dec 27, 2013
    Argentina
    Buenos Aires, Argentina
    Thanks for your answer!, I'm currently downloading Cafe SDK 2.13.12, I now have rpl2elf.exe, I just need
    makerpl64.exe!
    A now going to the IDA part... I tried that before but it doesn't work, IDA doesn't even recognize Wii U's rpx/rpl files... (Yes, I'm using @aerosoul94 Wii u loader, but it doesn't work for me)

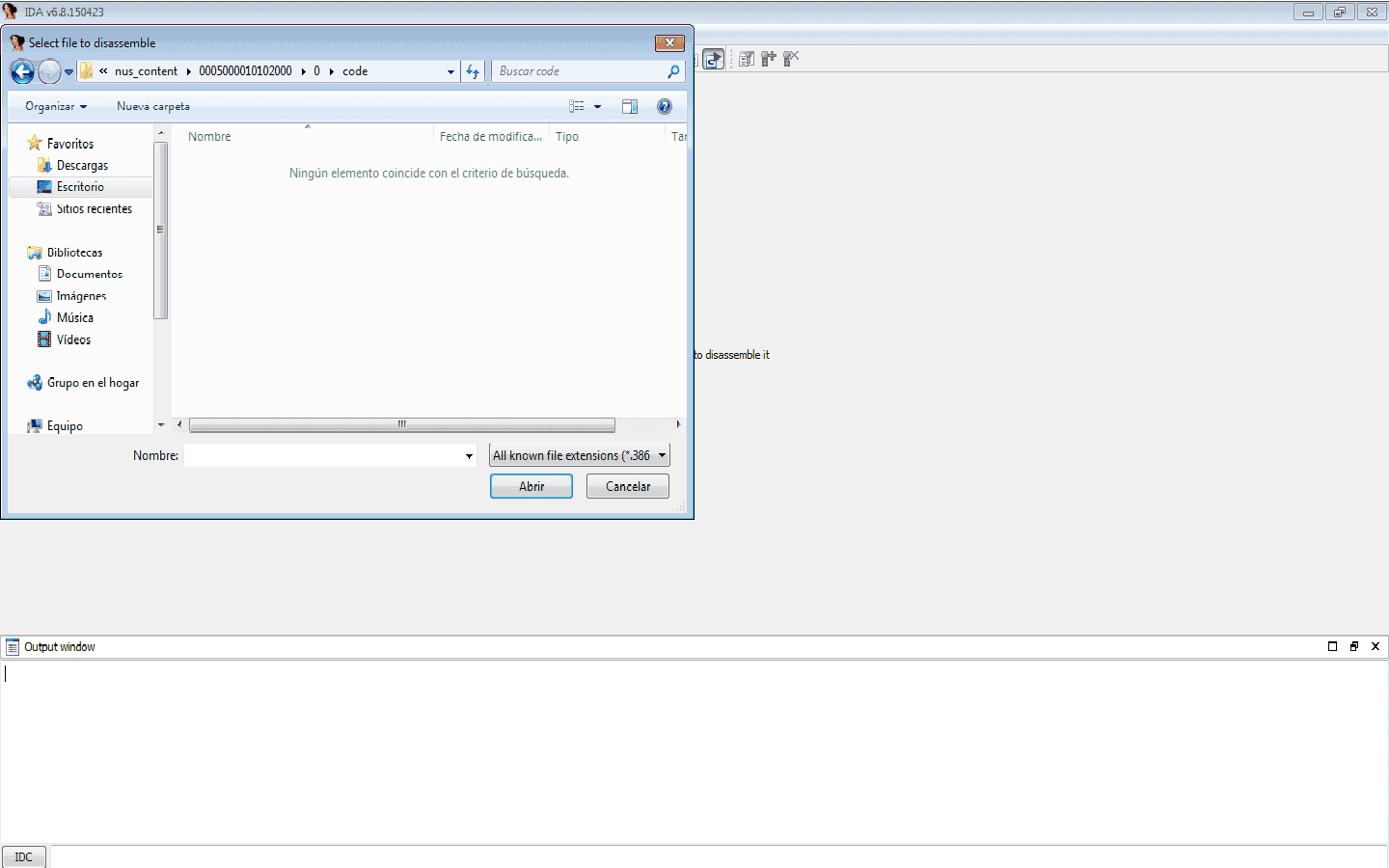

    Here is a screenshot: Sin título.png

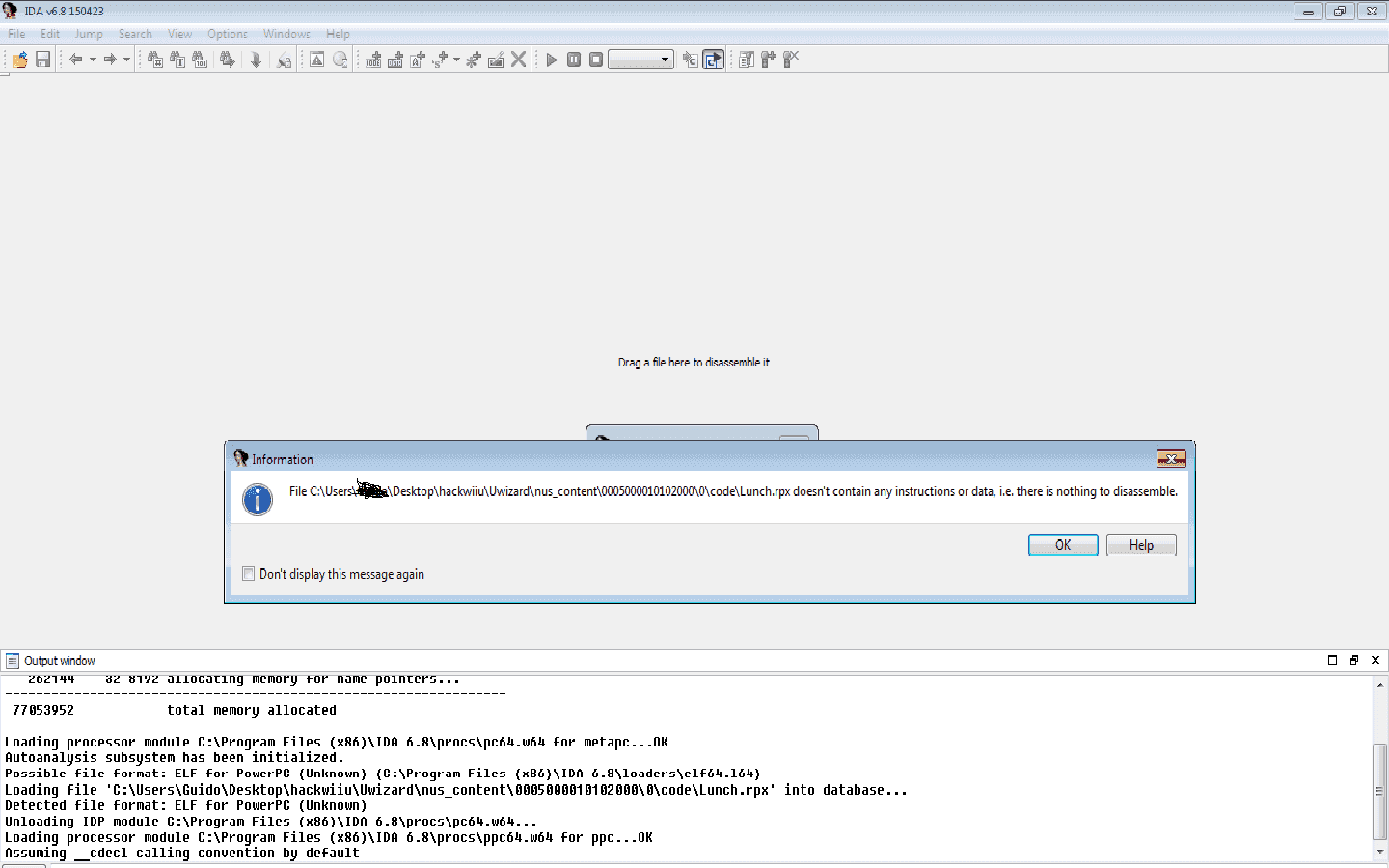

    And if I force IDA to open the .rpx file it will show a lot of errors and finally will say this: 0sin titulo 2.png

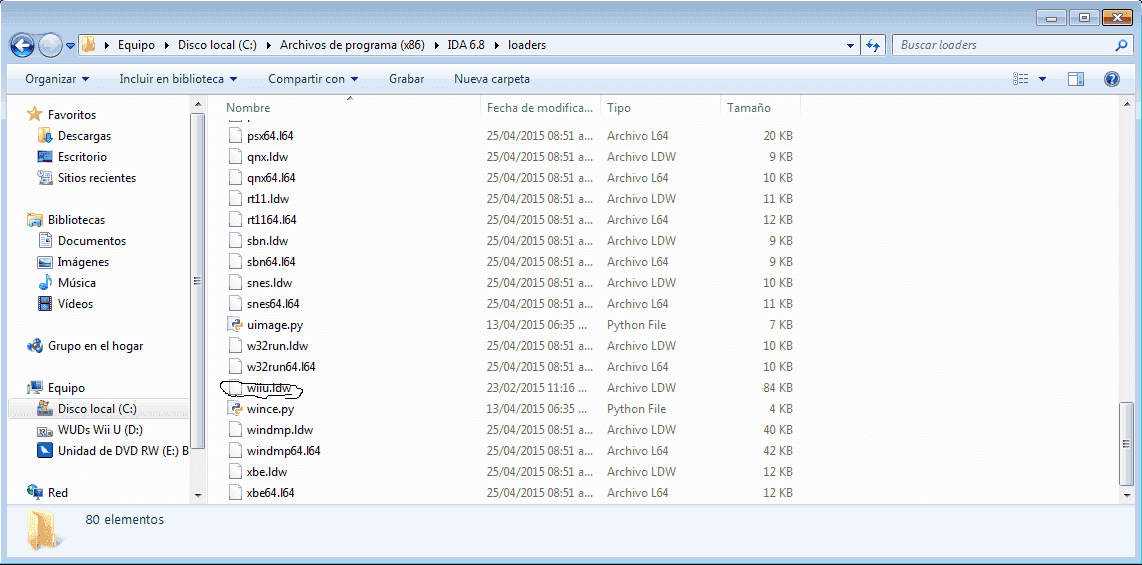

    I think the IDA Wii U Loader is installed fine: Sin títuloida.png

    What's wrong :( ...? Thanks for reading!

  4. Kakkoii

    Kakkoii Old fart

    Member
    621
    282
    Sep 14, 2007
    Canada
    Use rpl2elf and open the elf with the IDA.
    makerrpl64 will be in the sdk.

  5. OriginalHamster

    OriginalHamster UStealthy

    Member
    3,381
    642
    Nov 2, 2008
    Cote d'Ivoire
    That would need rework the textures because all the assets are fixed in a certain resolution, no?

  6. Kakkoii

    Kakkoii Old fart

    Member
    621
    282
    Sep 14, 2007
    Canada
    Textures are sampled for each pixel on the screen that lay over the piece of geometry that has that texture. A texture that is the same size on screen at 720p isn't going to look any blurrier being the same size on a 1080p screen, in fact, due to sampling quality increase, it will look slightly better.
    It's when you want to make better use of that resolution, or scale up or look closer at a texture in a game that you want higher resolution textures for those assets. But regardless, simply rendering the game at a higher resolution will reduce the aliasing (jaggies) around rendered geometry, which is a good enough benefit itself.

    So while it helps to have higher res textures to take advantage of the higher resolution, it is not needed.

    Last edited by Kakkoii, Feb 23, 2016
  7. Goku Junior
    OP

    Goku Junior GBAtemp Advanced Fan

    Member
    951
    288
    Dec 27, 2013
    Argentina
    Buenos Aires, Argentina
    OK, so I converted the RPX file to .elf , IDA now launches it (With some errors, but it shows data), It asked me if I should use it like a PPC type or a binary one, I choose PPC since the Wii U CPU is PPC (I Hope it is right)

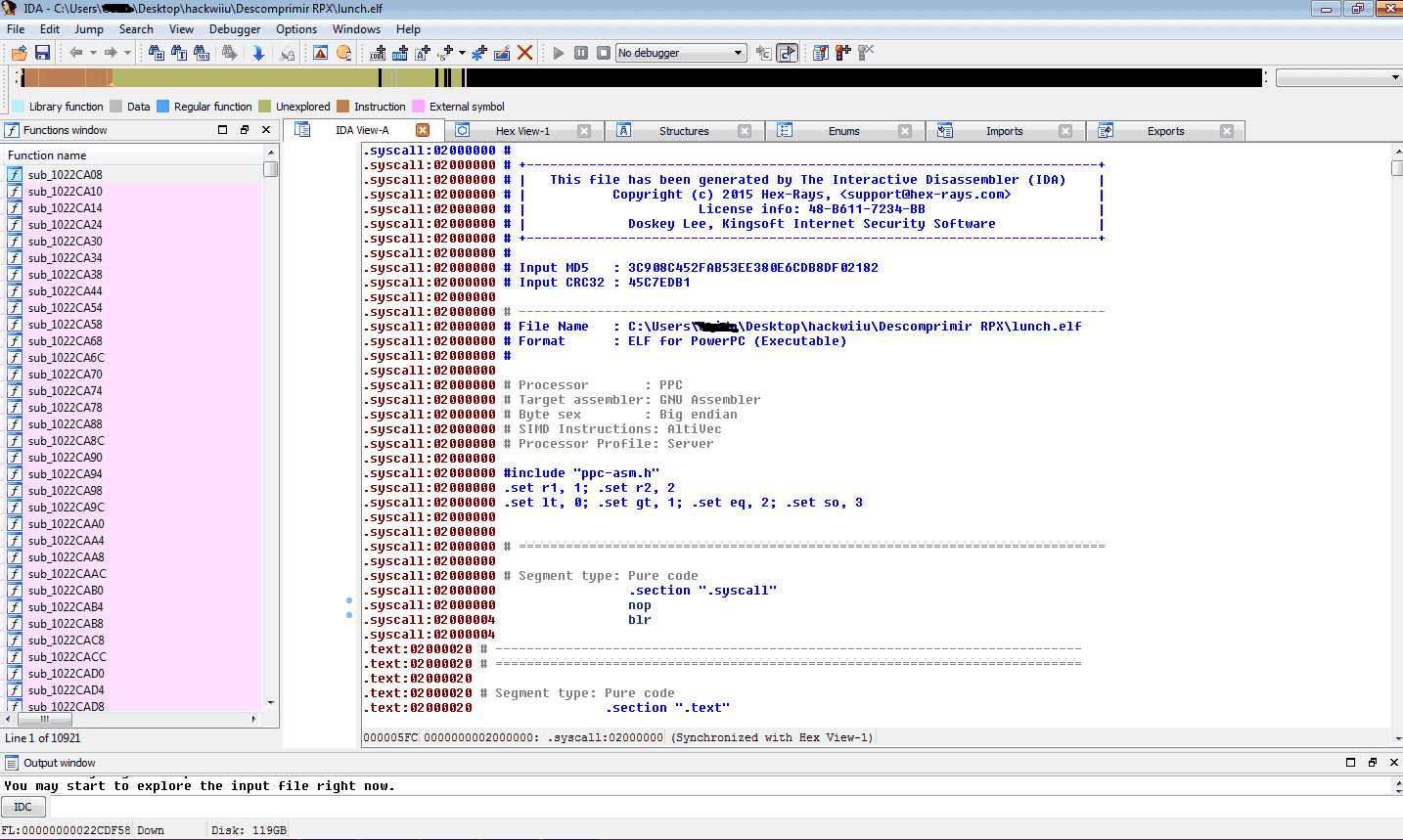

    This is IDA now: Sin título.png
    What should I do now? :)

    EDIT: I think the thing is fine, I searched the word "Nintendo" and find some text related from Nintendo SDK :D (However no luck in the resolution part...)

    Last edited by Goku Junior, Feb 24, 2016
  8. Kakkoii

    Kakkoii Old fart

    Member
    621
    282
    Sep 14, 2007
    Canada
    You didn't install the WiiU IDA plugin properly then, a "Wii U" option should show up when you choose to open the file. Launch the 32bit version of IDA, not 64bit. And the .ldw file should be in C:\Program Files (x86)\IDA 6.5\loaders\

  9. Goku Junior
    OP

    Goku Junior GBAtemp Advanced Fan

    Member
    951
    288
    Dec 27, 2013
    Argentina
    Buenos Aires, Argentina
    Hm, the wiiu.ldw is in "C:\Program Files (x86)\IDA 6.8\loaders", I think it is correctly installed, however I was lauching the 64Bit version all the time, I will try with 32bit now...
    EDIT: Are you reffering at this, right? Sin título.png @Kakkoii

    Last edited by Goku Junior, Feb 24, 2016
  10. Kakkoii

    Kakkoii Old fart

    Member
    621
    282
    Sep 14, 2007
    Canada
    Yep that option.

  11. Goku Junior
    OP

    Goku Junior GBAtemp Advanced Fan

    Member
    951
    288
    Dec 27, 2013
    Argentina
    Buenos Aires, Argentina

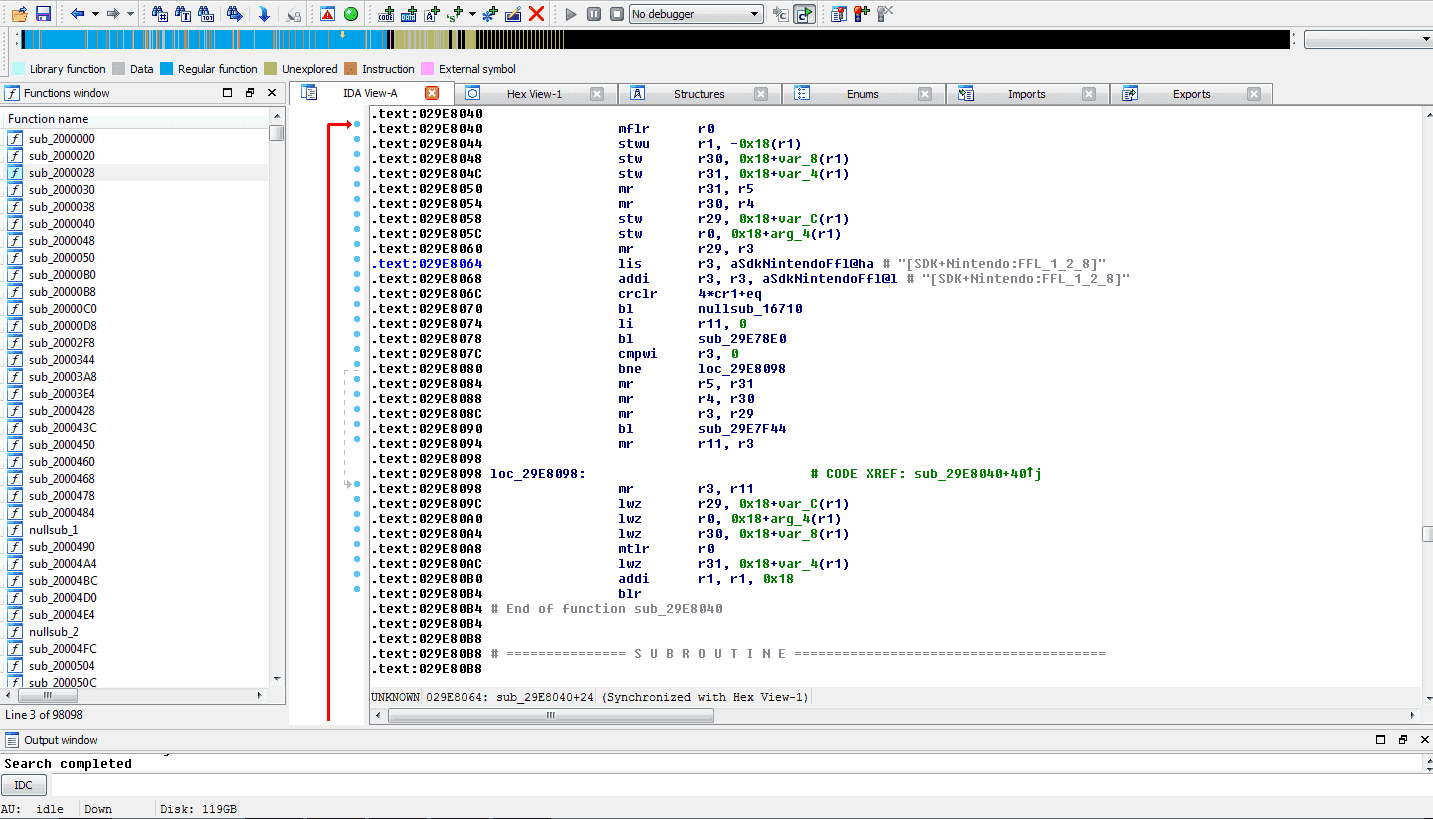

    OK!, It seems now it's all working correctly!, however I didn't find anything about the resolution of the game, I tried to search by the terms "720" "1280" or even writing "Resolution" but I didn't found anything :( , Curiously I searched for "Nintendo" and this was all I found: Sin título.png
    Do you know where to search the resolution part? (I think we are pretty near of it :) )

  12. Kakkoii

    Kakkoii Old fart

    Member
    621
    282
    Sep 14, 2007
    Canada
    GX2SetTVScale ,GX2CalcTVSize, GX2SetTVBuffer are the functions you want to look at, most likely the first one. But tbh I think this is far beyond the scope of your modding knowledge considering the types of questions you've had to ask and problems faced already. IDA won't modify the file for you. It's beyond my scope too, so you'd have to ask someone else.

    Goku Junior likes this.
  13. Goku Junior
    OP

    Goku Junior GBAtemp Advanced Fan

    Member
    951
    288
    Dec 27, 2013
    Argentina
    Buenos Aires, Argentina
    OK!, thanks for all! I will check these functions!, I know little to nothing about all of this, but I really want to change these things for fun and to see how the console reacts to these changes (FPS drops, better resolution with less jaggies and all of that), thanks again! and I hope someone with more skills try to help us so we can finally get this working! :) .

    EDIT: By the way, I found this!
    Sin título.png

    EDIT2: I was searching in internet for the Rendering values and I have found this!: Sin título.png

    Last edited by Goku Junior, Feb 24, 2016
