Help needed identifying missing component on Nintendo Switch OLED motherboard (no Internet connection)

  • Thread starter Thread starter ewirlys
  • Start date Start date
  • Views Views 728
  • Replies Replies 4

ewirlys

New Member
Newbie
Joined
Feb 21, 2025
Messages
2
Reaction score
0
Trophies
0
Age
22
XP
18
Country
France
Hey there,

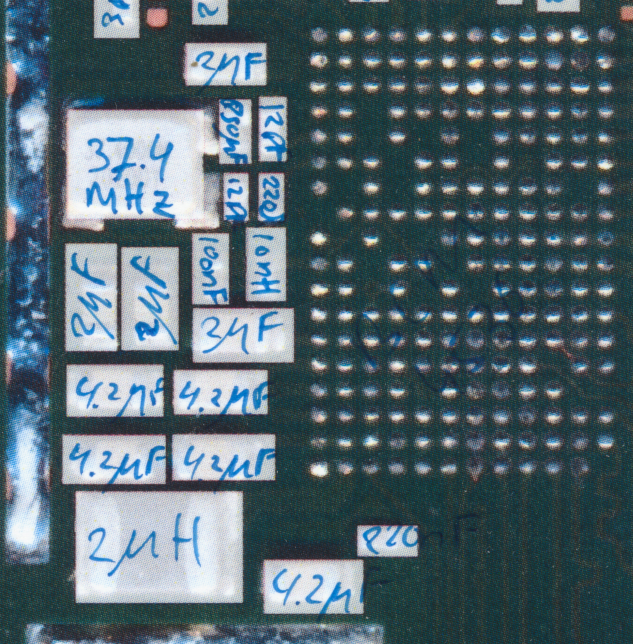

I'm replacing the wifi module chip on the switch oled motherboard, and in the process, I had 2 capacities who got away... (circled in blue on the photo)
I wonder what's their reference that way I can replace them,

Thanks for your help,
Cheers

A quick test on a board I have laying around, the cap on the left measured 5.2k ohm and the cap on the right fluctuated between 1.0 and 0.9 ohm.
