EDM-020 cap value near F7501

  • Thread starter Thread starter Inbd
  • Start date Start date
  • Views Views 1,771
  • Replies Replies 2

Inbd

New Member
Newbie
Joined
May 31, 2024
Messages
2
Reaction score
0
Trophies
0
Age
43
XP
38
Country
United States
Hello,

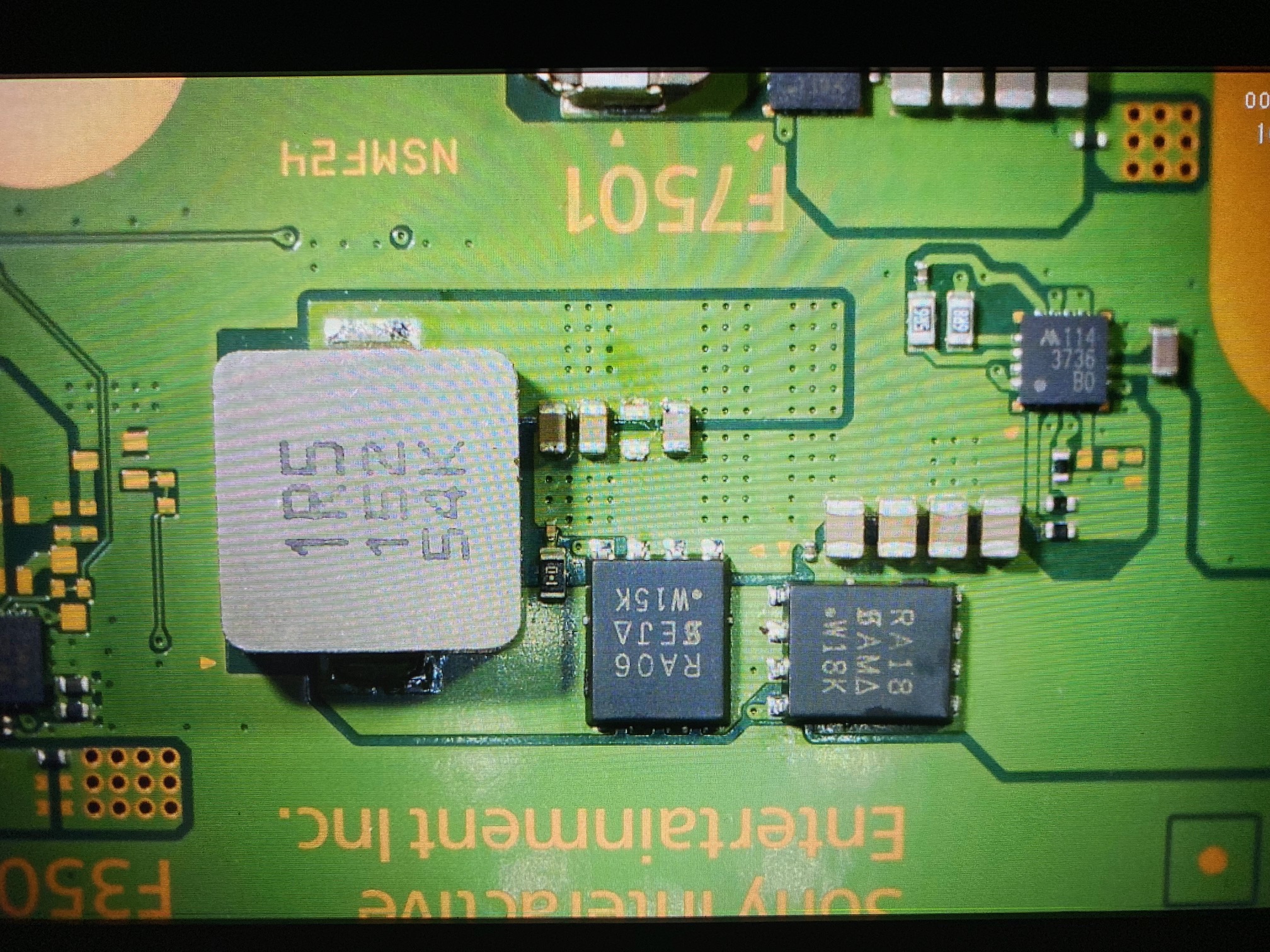

Does anyone know what the value of the 4 capacitors are near F7501?

Symptom: The console powered on and turns off after 1 second.
- Blown fuse found at F7002.
- dcdc converter near F7002 causing short to ground.
- Missing capacitor near F7501 was found short to ground.
- Removed capacitor short to ground near F7501 resolved
- Removed dcdc converter near F7002 short to ground resolved.


Attachments

  • IMG_0139.jpg
    1.1 MB · Views: 125
Just getting around to measuring these. 1pF on the meter.

Any guesses as to the PN or manufacturer? I do not have a donor board to swap.
