DSi - Won't detect 64GB SDXC card

[Ryft]

I read that you can get SD cards larger than 32gb to work by formatting them with guiformat to FAT32. I have my DSi modded to boot into TwilightMenu but it just won't detect my SD card. Works fine if I use a 8GB microsd with an adapter. Am I missing something? Here is the exact card I'm using:



[Kwyjor]

Sometimes cards have extra partition data that won't be cleared by guiformat. You can use godmode9 or Minitool Partition Wizard.



[Ryft]

Sometimes cards have extra partition data that won't be cleared by guiformat. You can use godmode9 or Minitool Partition Wizard.

I think I tried minitool and it was still being a pain. Might just be picky about this particular card.



[SylverReZ]

I read that you can get SD cards larger than 32gb to work by formatting them with guiformat to FAT32. I have my DSi modded to boot into TwilightMenu but it just won't detect my SD card. Works fine if I use a 8GB microsd with an adapter. Am I missing something? Here is the exact card I'm using:

View attachment 417721

Follow this guide to formatting your SD card.
https://dsi.cfw.guide/sd-card-setup.html



[Ryft]

Followed it exactly. Even did the h2testw and showed no errors. Still nothing. Weird.



[cloudstr]

Followed it exactly. Even did the h2testw and showed no errors. Still nothing. Weird.

If you have a machine running Linux or WinXP, give mkdosfs a try. It can be used to format SD cards.
https://www1.mager.org/mkdosfs/
https://pkgs.org/download/mkdosfs



[RocketRobz]

Followed it exactly. Even did the h2testw and showed no errors. Still nothing. Weird.

Did you follow both SDFormatter and GUIFormat in order?



[Kwyjor]

I think I tried minitool and it was still being a pain.

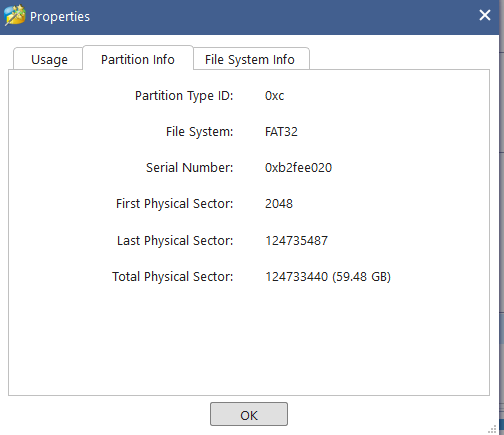

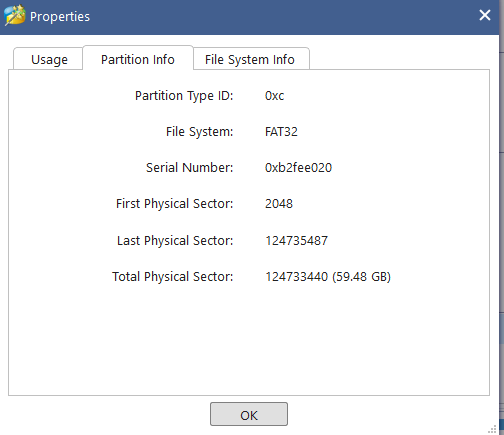

What exactly did you do with minitool? Can you provide a screenshot of what the card looks like in minitool?



[Quincy]

Could be that the DSi simply isn't able to work with the XC standard (as IIRC those days were the SDHC days), just like how some older devices would take SD fine but struggle with SDHC? Any reports of others who succesfully used XC cards?



[RocketRobz]

Could be that the DSi simply isn't able to work with the XC standard (as IIRC those days were the SDHC days), just like how some older devices would take SD fine but struggle with SDHC? Any reports of others who succesfully used XC cards?

The DSi supports SDXC cards just fine, as long as it's formatted properly. Same case as on 3DS.
Plenty of users here and at our Discord server have reported that they use SDXC cards.



[Ryft]

Did you follow both SDFormatter and GUIFormat in order?

Yeah i did SD card formatter, then guiformat, then the h2wtest.

Spoiler



[RocketRobz]

Yeah i did SD card formatter, then guiformat, then the h2wtest.

Spoiler

View attachment 417874

View attachment 417875View attachment 417877

Does the DSi Camera application display a message when you insert the SD card?



[Ryft]

Does the DSi Camera application display a message when you insert the SD card?

No I have unlaunch installed. It just boots to the unlaunch menu because it can't detect the SD card. Once I pop my other card in with the exact same files, Twilightmenu++ launches.



[RocketRobz]

No I have unlaunch installed. It just boots to the unlaunch menu because it can't detect the SD card. Once I pop my other card in with the exact same files, Twilightmenu++ launches.

Then start the DSi Camera app from the Unlaunch menu, and then insert the SD card.



[Ryft]

Then start the DSi Camera app from the Unlaunch menu, and then insert the SD card.

Says "There is no SD card inserted." Ugh this is weird lol



[RocketRobz]

Says "There is no SD card inserted." Ugh this is weird lol

Please post a photo of the back of your SD card.



[Ryft]

I give up. Maybe it's not making good contact in the DSi. Works fine with my computer and an adapter. I'll just get a new one. Thanks for trying to help!



[Quincy]

I give up. Maybe it's not making good contact in the DSi. Works fine with my computer and an adapter. I'll just get a new one. Thanks for trying to help!

If you suspect contact being the issue you could try slipping in a piece of thick enough cardboard (preferably cut to rougly the size of an sd card) with the card (label-side) to see if that improves the connection made (much like we used to do with certain batches of the acecard2i back in the NDS-days)



[KNBnoob1]

I read that you can get SD cards larger than 32gb to work by formatting them with guiformat to FAT32. I have my DSi modded to boot into TwilightMenu but it just won't detect my SD card. Works fine if I use a 8GB microsd with an adapter. Am I missing something? Here is the exact card I'm using:

View attachment 417721

I'm pretty sure that the DSi only supports cards up to 32GB though.



[Ryccardo]

I'm pretty sure that the DSi only supports cards up to 32GB though.

Because those over 32 GB cannot be standards-compliant SDXCs, which by definition must have a single FAT64 (aka EXFAT) MBR type 7 partition, while a SDHC has a single FAT32, MBR type C one - no significant low level differences unlike with SDSC
