Hacking Custom Boot Logo for Switch

[ForeverNo9437]

We can already coldboot to cfw? There is an exploit called "fusée gelée"...

I think he means by cold booting booting without anything (like the jig and RCM payload injector)



[impeeza]

Look in to the most recent post​



[Ignorat]

Hello everyone!

Based on the script one github compiled a simple app on python. It works autonomously.
All you need is a PNG of strict size 308 x 350, other switch does not accept.
Working with actual atmosphere.

Instruction:

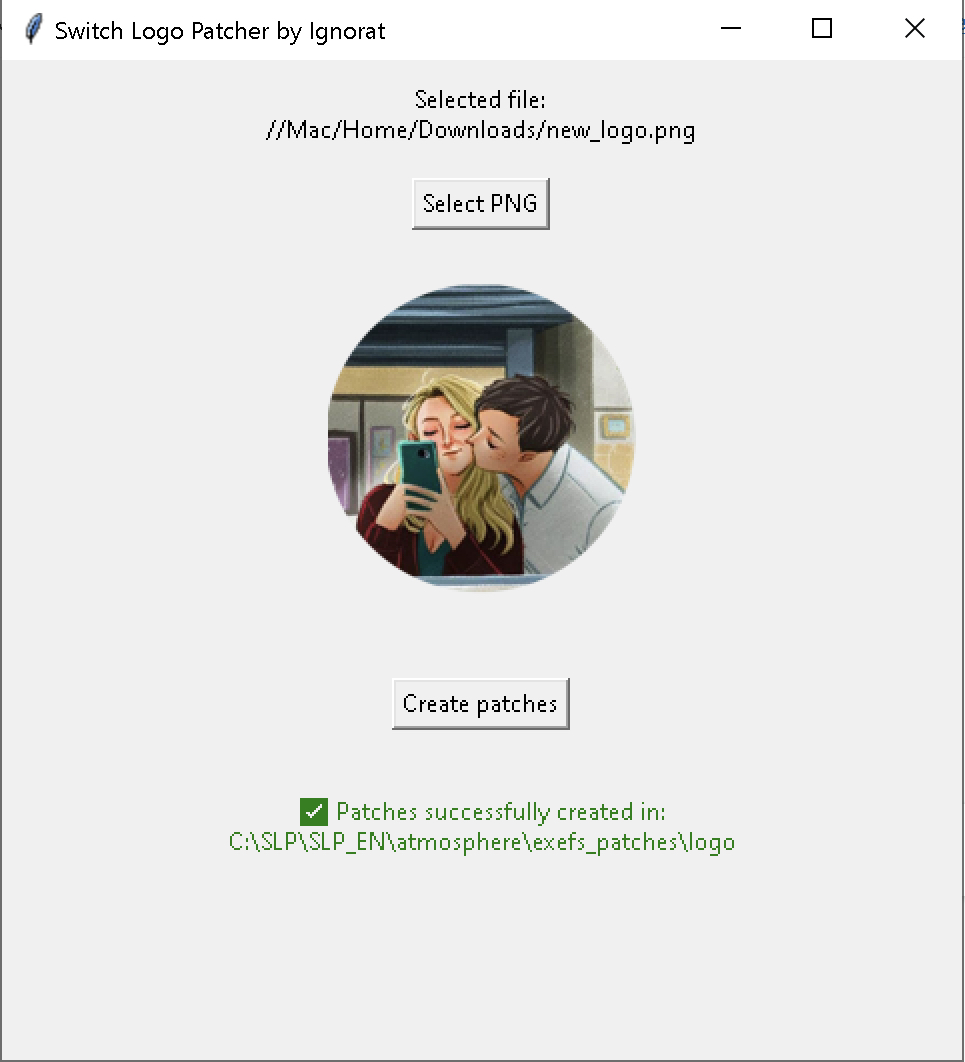

Select any PNG size 308 x 350 > Create patches > choose where to save them. The app will create all necessary patches at once with hierarchy atmosphere\exefs_patches\logo. All this stuff you should throw into root folder on your switch and enjoy.
To return the classic logo just remove folder "logo" from atmosphere\exefs_patches.

SLP_EN (google disk)

Spoiler: Screenshots



[impeeza]

Hello everyone!

Based on the script one github compiled a simple app on python. It works autonomously.
All you need is a PNG of strict size 308 x 350, other switch does not accept.
Working with actual atmosphere.

Instruction:
Select any PNG size 308 x 350 > Create patches > choose where to save them. The app will create all necessary patches at once with hierarchy atmosphere\exefs_patches\logo. All this stuff you should throw into root folder on your switch and enjoy.
To return the classic logo just remove folder "logo" from atmosphere\exefs_patches.

SLP_EN (google disk)

Spoiler: Screenshots

View attachment 505046View attachment 505047View attachment 505048

Thanks. Do you have the source code?



[Ignorat]

Thanks. Do you have the source code?

Yeap here is original one https://github.com/friedkeenan/switch-logo-patcher
And mine modified with GUI



[impeeza]

Look in to the most recent post​



[Lostbhoy]

These are awesome!! Currently using the Hyrule version with a little piano rip from totk as the sound



[chronoss]

Yeap here is original one https://github.com/friedkeenan/switch-logo-patcher
And mine modified with GUI

Post automatically merged: May 20, 2025

On Un-patched consoles you can use the RCM vulnerability called Fusèe Gelèe to inject a payload

For patched consoles (any console built since 2018) you need a modchip to inject the payload on boot.

---

The name of each picture is the name of the compressed folder, inside each compressed folder is the original picture and the patches.

View attachment 501947View attachment 501948View attachment 501949View attachment 501950View attachment 501951View attachment 501952View attachment 501953View attachment 501954View attachment 501955View attachment 501956View attachment 501957View attachment 501958View attachment 501959View attachment 501960View attachment 501961View attachment 501962View attachment 501963View attachment 501964View attachment 501965View attachment 501966View attachment 501967View attachment 501968View attachment 501969View attachment 501970View attachment 501971View attachment 501973View attachment 501974View attachment 501975View attachment 501976View attachment 501977View attachment 501978View attachment 501979View attachment 501980View attachment 501981View attachment 501982View attachment 501983View attachment 501984View attachment 501985View attachment 501986View attachment 501987View attachment 501988View attachment 501989View attachment 501990View attachment 501991View attachment 501992View attachment 501993View attachment 501994View attachment 501995View attachment 501996View attachment 501997View attachment 501998View attachment 501999View attachment 502000View attachment 502001View attachment 502002View attachment 502003View attachment 502004View attachment 502005View attachment 502006View attachment 502007View attachment 502008View attachment 502009View attachment 502010View attachment 502011View attachment 502012View attachment 502013View attachment 502014View attachment 502015View attachment 502016View attachment 502017View attachment 502018View attachment 502019View attachment 502020View attachment 502021View attachment 502022View attachment 502023View attachment 502024View attachment 502025View attachment 502026View attachment 502027View attachment 502028View attachment 502029View attachment 502030View attachment 502031View attachment 502032View attachment 502033View attachment 502034View attachment 502035View attachment 502036View attachment 502037View attachment 502038View attachment 502039View attachment 502040View attachment 502041View attachment 502042View attachment 502043View attachment 502044View attachment 502045View attachment 502046View attachment 502047
View attachment 502048View attachment 502049View attachment 502050View attachment 502051View attachment 502052View attachment 502053View attachment 502054View attachment 502055View attachment 502056View attachment 502057View attachment 502058View attachment 502059View attachment 502060View attachment 502061View attachment 502062View attachment 502063View attachment 502064View attachment 502065View attachment 502066View attachment 502067View attachment 502068View attachment 502069View attachment 502070View attachment 502071View attachment 502072
View attachment 502073View attachment 502074View attachment 502075View attachment 502076View attachment 502077View attachment 502078View attachment 502079View attachment 502080View attachment 502081View attachment 502082View attachment 502083View attachment 502084View attachment 502085View attachment 502086View attachment 502087View attachment 502088View attachment 502089View attachment 502090View attachment 502091View attachment 502092View attachment 502093View attachment 502094View attachment 502095View attachment 502096View attachment 502097View attachment 502124View attachment 502125View attachment 502126View attachment 502127View attachment 502128View attachment 502129View attachment 502130View attachment 502131View attachment 502132View attachment 502133View attachment 502134View attachment 502135View attachment 502136View attachment 502137View attachment 502138View attachment 502139View attachment 502140View attachment 502141View attachment 502142View attachment 502143View attachment 502144View attachment 502145View attachment 502146View attachment 502147View attachment 502148View attachment 502149View attachment 502150View attachment 502151View attachment 502152View attachment 502153View attachment 502154View attachment 502155View attachment 502156View attachment 502157View attachment 502158View attachment 502159View attachment 502160View attachment 502161View attachment 502162View attachment 502163View attachment 502164View attachment 502165View attachment 502166View attachment 502167View attachment 502168View attachment 502169View attachment 502170View attachment 502171View attachment 502172View attachment 502173View attachment 502174View attachment 502175View attachment 502176View attachment 502177View attachment 502178View attachment 502179View attachment 502180

And the files are as attached ones.

Good work !!!



[josete2k]

Hello everyone!

Based on the script one github compiled a simple app on python. It works autonomously.
All you need is a PNG of strict size 308 x 350, other switch does not accept.
Working with actual atmosphere.

Instruction:
Select any PNG size 308 x 350 > Create patches > choose where to save them. The app will create all necessary patches at once with hierarchy atmosphere\exefs_patches\logo. All this stuff you should throw into root folder on your switch and enjoy.
To return the classic logo just remove folder "logo" from atmosphere\exefs_patches.

SLP_EN (google disk)

Spoiler: Screenshots

View attachment 505046View attachment 505047View attachment 505048

Thanks...

Do we need the original logo as a base?

IPS patches are smaller if you use it.



[impeeza]

Thanks...

Do we need the original logo as a base?

IPS patches are smaller if you use it.

Sadly the code of this executable do not uses the original logo, so all patches will be 431243 bytes in size not the reduced one what you can get using the old logo ;(

if @Ignorat do not mind I can share the PY code with GBATemp.

By the Way @Ignorat ¿how do you convert the PY file into EXE?



[Ignorat]

Hm, mb I'll try to insert original logo in the app. But for me there is no problem with larger patches)

To make .exe file, you need compile it on windows otherwise it won't work. I'm using Parallels Desktop to do it on my mac.

After, you should open cmd in your future app

1) Make a venv

python -m venv venv
venv\Scripts\activate.bat


2) Download everything you needed from your requirements.txt

python -m pip install -r requirements.txt

3) After that you need to copy from venv/lib/python3.13/site-packages the "ips" and "pip" folder to your root folder to where you downloaded the things from point 2

The root folder should look like this

4) install pyinstaller

pip install pyinstaller

5) Compile everything

pyinstaller --onefile --noconsole gen_patches.py

6)...

7) Profit!



[impeeza]

Hm, mb I'll try to insert original logo in the app. But for me there is no problem with larger patches)

To make .exe file, you need compile it on windows otherwise it won't work. I'm using Parallels Desktop to do it on my mac.

After, you should open cmd in your future app

1) Make a venv

python -m venv venv
venv\Scripts\activate.bat


2) Download everything you needed from your requirements.txt

python -m pip install -r requirements.txt

3) After that you need to copy from venv/lib/python3.13/site-packages the "ips" and "pip" folder to your root folder to where you downloaded the things from point 2

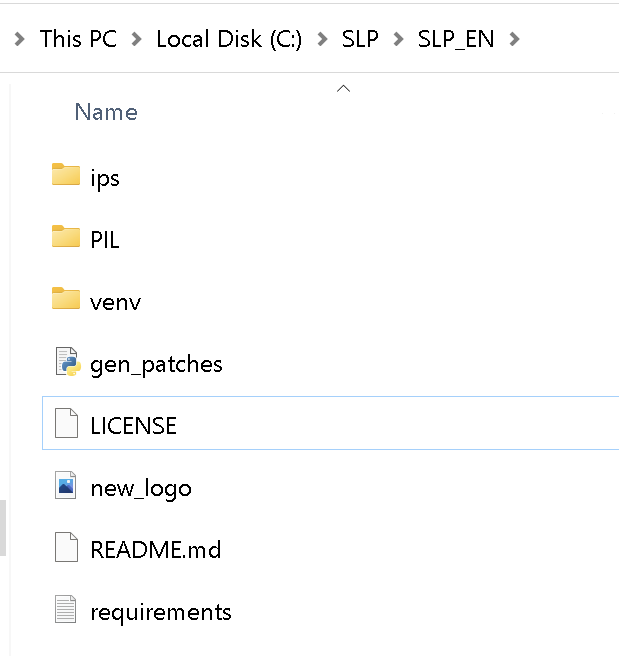

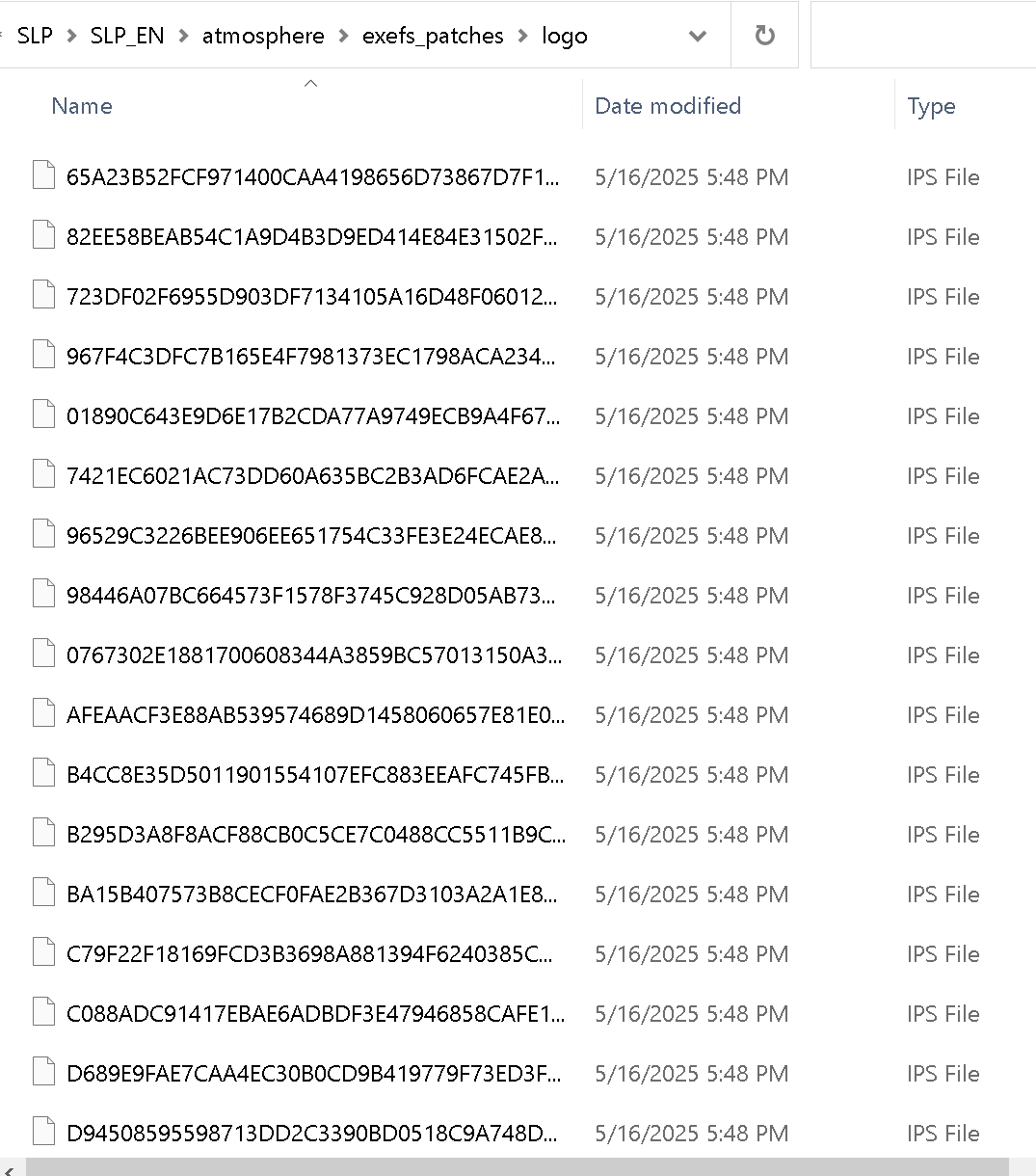

The root folder should look like this
View attachment 506294


4) install pyinstaller

pip install pyinstaller

5) Compile everything

pyinstaller --onefile --noconsole gen_patches.py

6)...

7) Profit!

Thanks buddy.



[impeeza]

Dman Ninty the new FW 20.1.0 HAVE A NEW SET OF BOOTLOGO PATCHES!!

this week will generate all bootlogo's IPS patches for new firmware.



[impeeza]

THIS COLLECTION IS UP TO FIRMWARE 20.5.0, FOR THE NEWER COLLECTION UPGRADED UP TO FIRMWARE 21.0.0 GO TO THE POST: https://gbatemp.net/threads/custom-boot-logo-for-switch.569031/post-10765233

The name of each picture is the name of the compressed folder, inside each compressed folder is the original picture and the patches.


YOU CAN LOOK FOR THE OWNER OF EACH FILE ON THIS VERY THREAD. I DIDN'T MAKE ANY OF THE IMAGES, ONLY COMPILED, AND CREATED IN BATCH THE PATCHES.



[SpeedyFight]

how would you put this into the Switch?



[impeeza]

how would you put this into the Switch?

With a lot of care!


you extract the archive on the root of your card. you can remove the PNG file if you like.

or you can extract the archive to a temp folder and copy the atmosphere folder to the root of your sd card. overwrite files.



[josete2k]

Another one



[johw]

Could someone please adjust the images to default?



[impeeza]

Could someone please adjust the images to default?

You do mean this:



And please mods, THIS WEBP MADNESS SHOULD END SOON.



[johw]

You do mean this:

View attachment 511219View attachment 511221View attachment 511223View attachment 511225View attachment 511227

And please mods, THIS WEBP MADNESS SHOULD END SOON.

thanks
