Connetion while file transfer aborting

[Adelherz]

Heyyy,

after nobody could help me on my previous post i am now trying to restore my EmuNAND backup with this tutorial. My problem is that the connection is always aborting when copying the RAW file which is reallyy big.

Methods i have tried:
- sd card into laptop (file size too big, i guess its max. 4gb)
- USB file transfer app (aborting)
- ftpd (aborting)

any other ideas?



[The Real Jdbye]

Heyyy,

after nobody could help me on my previous post i am now trying to restore my EmuNAND backup with this tutorial. My problem is that the connection is always aborting when copying the RAW file which is reallyy big.

Methods i have tried:
- sd card into laptop (file size too big, i guess its max. 4gb)
- USB file transfer app (aborting)
- ftpd (aborting)

any other ideas?

3 options:
1. Use a spare MicroSD card formatted to exFAT to restore the backup. This is fine to do, since Hekate has its own exFAT driver, it's not affected by the corruption issues of HOS.

2. Split the backup into parts:

1. Open the folder containing rawnand.bin in 7-Zip
2. Right-click rawnand.bin and choose "split..."
3. Input "2048M" for the split size
4. Once it's done, you'll need to rename the end of the files from ".001", ".002", etc to ".00", ".01", etc.
5. Restore your eMMC like normal

3. Use HacDiskMount to restore the backup from a PC.

Transferring data over USB connection was never reliable for me. Every time I tried installing over USB in title managers (regardless of which one) the install would frequently fail with a USB related error. ftpd homebrew has also not been very reliable for me and seems only suited for small files.



[Adelherz]

3 options:
1. Use a spare MicroSD card formatted to exFAT to restore the backup. This is fine to do, since Hekate has its own exFAT driver, it's not affected by the corruption issues of HOS.

2. Split the backup into parts:


3. Use HacDiskMount to restore the backup from a PC.

Transferring data over USB connection was never reliable for me. Every time I tried installing over USB in title managers (regardless of which one) the install would frequently fail with a USB related error. ftpd homebrew has also not been very reliable for me and seems only suited for small files.

thank you!


my files are like

Backup.zip
Backup.zip.002
Backup.zip.003
...

how to rename them?



[impeeza]

thank you!


my files are like

Backup.zip
Backup.zip.002
Backup.zip.003
...

how to rename them?

no! you need your rawnand.bin file that file can be splitt in to multiple files: rawnand.bin.00 to rawnand.bin.14 or rawnand.bin.00 tp rawnand.bin.07

If your card is on FAT32 format you need the 15 2GB files, if your card is ExtFAT you can copy the 32GB file.

That files are the one you use to restore. If you are using Hekate you need to put them on

SD:/backup/EMMCID/restore

Where EMMCID is the hex number of your Emmc chip



Also if you have a File based EmuNAND your backup can be the files:

on that case you only need to copy that files to your SD Card and setup the SD:/emuMMC/emummc.ini file.



[Adelherz]

no! you need your rawnand.bin file that file can be splitt in to multiple files: rawnand.bin.00 to rawnand.bin.14 or rawnand.bin.00 tp rawnand.bin.07

If your card is on FAT32 format you need the 15 2GB files, if your card is ExtFAT you can copy the 32GB file.

That files are the one you use to restore. If you are using Hekate you need to put them on

SD:/backup/EMMCID/restore

Where EMMCID is the hex number of your Emmc chip



Also if you have a File based EmuNAND your backup can be the files:
View attachment 397147
on that case you only need to copy that files to your SD Card and setup the SD:/emuMMC/emummc.ini file.

the restore function cant find the files so i think i did something wrong here:



[The Real Jdbye]

the restore function cant find the files so i think i did something wrong here:

You need to enable displaying file extensions, the .001 file wasn't renamed correctly. In the File menu in Explorer, click change folder options. Find it on the view tab, "Show file extensions for known file types"



[Adelherz]

You need to enable displaying file extensions, the .001 file wasn't renamed correctly. In the File menu in Explorer, click change folder options. Find it on the view tab, "Show file extensions for known file types"

thanks i did it with your help ^^. now i have the next problem:



[impeeza]

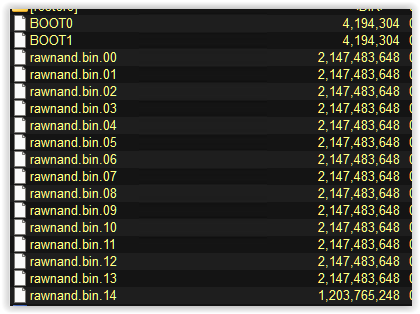

you have a mess with the names of files the correct filename set is>

Post automatically merged: Oct 3, 2023

Also I do recommend to use NxNandManger https://github.com/eliboa/NxNandManager (latest version from https://github.com/eliboa/NxNandManager/suites/15345214343/artifacts/876227106) and test your files.

you need a copy of your Keys.dat (prod.keys) on the same folder of NxNandManager.



[Adelherz]

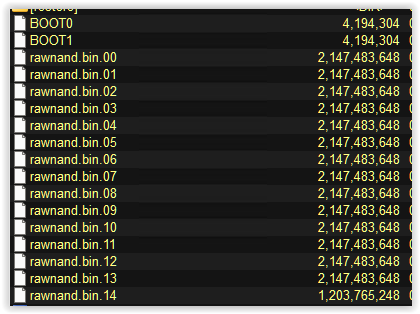

you have a mess with the names of files the correct filename set is>

View attachment 397224

Post automatically merged: Oct 3, 2023

Also I do recommend to use NxNandManger https://github.com/eliboa/NxNandManager (latest version from https://github.com/eliboa/NxNandManager/suites/15345214343/artifacts/876227106) and test your files.

you need a copy of your Keys.dat (prod.keys) on the same folder of NxNandManager.

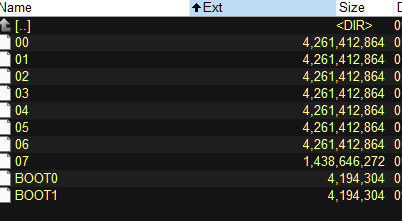

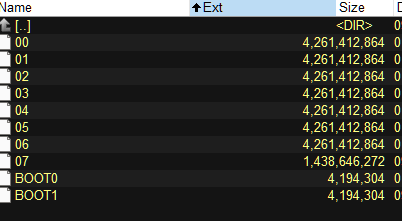

my files now look like this. i guess there another problem now.



[impeeza]

my files now look like this. i guess there another problem now.

yeah your files are messed up.

Do you have the original backup still around by there?

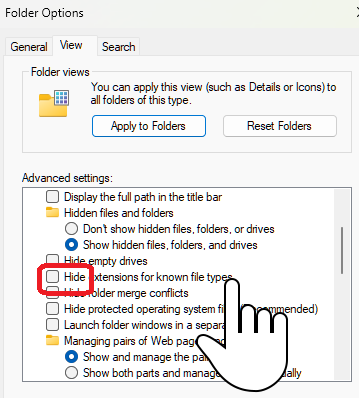

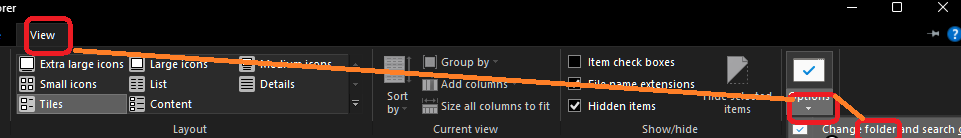

please enable on you Windows Explorer to show the file extensions:

then remove this tick:



[Adelherz]

yeah your files are messed up.

Do you have the original backup still around by there?

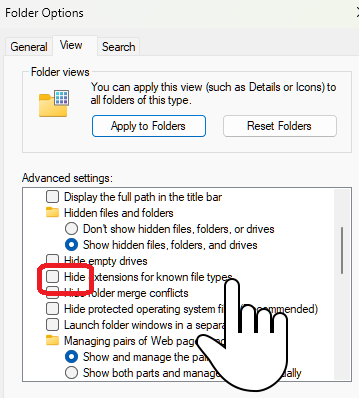

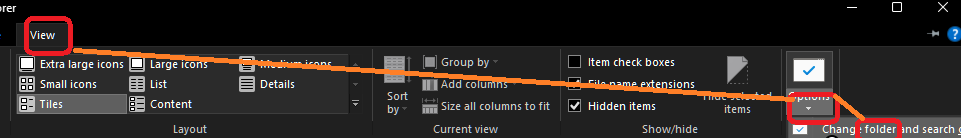

please enable on you Windows Explorer to show the file extensions:

View attachment 397574
then remove this tick:

View attachment 397575

okay i split, rename and then upload them again

Post automatically merged: Oct 6, 2023

i i have done the procedure again its the same. maybe i have to move the files into the partitions folder because my partitions folder is empty?
