Switch stucked at logo screen after thermal paste change

Discussion in 'Switch - Console, Accessories & Hardware' started by Rain82, May 16, 2019.

  1. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    RESOLVED

    Last edited by Rain82, Jul 7, 2019
  2. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    RESOLVED.

    Last edited by Rain82, Jul 7, 2019
  3. TariqSoftDev

    TariqSoftDev ~Zexceil

    Member
    6
    Sep 18, 2013
    London
    Try checking all your SD files are correct, ensure during the thermal past swap you didn't damage any parts, I'd check the SMD components, ensure the thermal past is evenly spread too, use some of the Hekate info tools to look for anything via software.

    Ericthegreat likes this.
  4. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    Thanks for the answer. I dont think i damaged anything,checked. Thermal paste spreaded. Now ill try reassembly and other sd card + hekate info tools, im report back,thanks!

    — Posts automatically merged - Please don't double post! —

    I tried another sd card. Wont help....
    Any help please which hekate info tool or how to use...?:(

    — Posts automatically merged - Please don't double post! —

    Installed hekate to sd card. Its working. but i dont see any info about problem. Where can i find something..?:(

  5. RHOPKINS13

    RHOPKINS13 Geek

    Member
    8
    Jan 31, 2009
    United States
    Try using FAT32 and not exFat.

    It's just an idea. When I first used ReiNX, I was using an exFat SD card but my Switch didn't have the exFat update, and it pretty much acted exactly how you're describing.

    Can you use Hekate to boot stock or try Atmosphere?

  6. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    RESOLVED.

    Last edited by Rain82, Jul 7, 2019
  7. ModderFokker619

    ModderFokker619 GBAtemp Advanced Fan

    Member
    6
    Oct 2, 2015
    United States
    California

    Boot switch with micro sd TF reader disconnected. See if OFW boots.

  8. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    OK... First of all, don`t panic.

    Second... What paste are you using? Forgive me if its mentioned, I`m only skimming through.

    If it is silver based, it can cause capacitance, which has potential to upset processor timings. Just as a test (don`t worry - it won`t burst into flames) - remove all paste from die i you removed the copper speader

    I`m wondering if you removed the copper pad. It acts as a heat spreader. When the console is new... After a while, the stuff under it starts going crusty until it turns into plasticine.

    You can remove the heat spreader - use some completely inert compound. You need to remove the ram shield temporarily while cleaning... The compound - Ceramic stuff I use. It is better than OEM. In my thermocouple tests, temperatures were lower. People replace the compound without giving a thought to the stuff that has turned to play-doh under the copper spreader. Pointless having good paste if you still have a layer of shit between that and the die...

    But if removing the spreader, you NEED good, non-capacitive paste. Then once the die is spotless, apply.

    If you have left the copper sheet intact, it cannot be a capacitance issue.

    Can you check your BTB connectors are fastened correctly? The gamecart one is possible to get misaligned and it fooks the pins.

    Also... Anything you have disconnected - ie emmc / joycon ribbons / backlight - make sure no old or new compound has got in the connectors. The BTB connectors ie emmc are super fragile, as is the sd card... Remove SD reader and retest. With a bent pin, that could cause problems with the emmc voltage as they run on the same 1.8v buck reg if mem serves correct (can check).

    Good luck sir

    Last edited by mattytrog, May 16, 2019
    Khodeus and TariqSoftDev like this.
  9. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    Okay. Now i tried to dissasembly and back to original state (with copper spreader), its the same..:(
    Im using Thermal Grizzly Kryonaut and Grizzly minus pads.
    Im only removed the sd card reader, but its working i think,because reinx loaded, hekate lodaded (and in hekate i can walk in the menu with volume buttons).

  10. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    OK... The most obvious culprit has to be the SD reader. Like I say - to rule the paste out, remove ram shield and spreader. Clean that stuff off and try booting. Don`t worry about popping it - you won`t. And it will probably throttle / shut down if it does get warm. Just try booting to Horizon, then shutting off again.

  11. Milenko

    Milenko GBAtemp Advanced Maniac

    Member
    10
    Oct 16, 2017
    Australia
    Use atmosphere

  12. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    Okay, ill try. (Horizon? How can, i if i have autorcm, and always needs payload?)

    Otherwise, thats what i did:

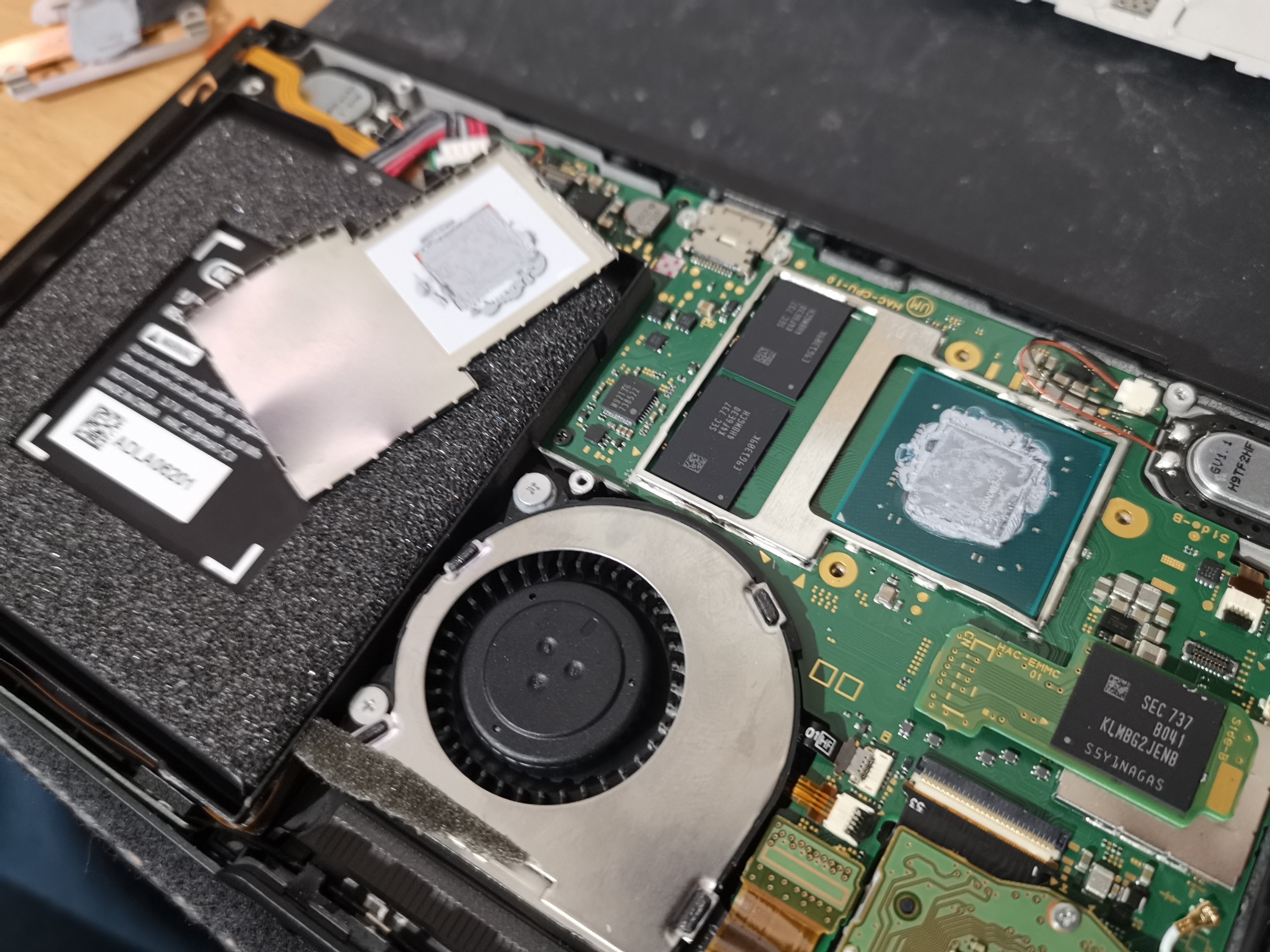

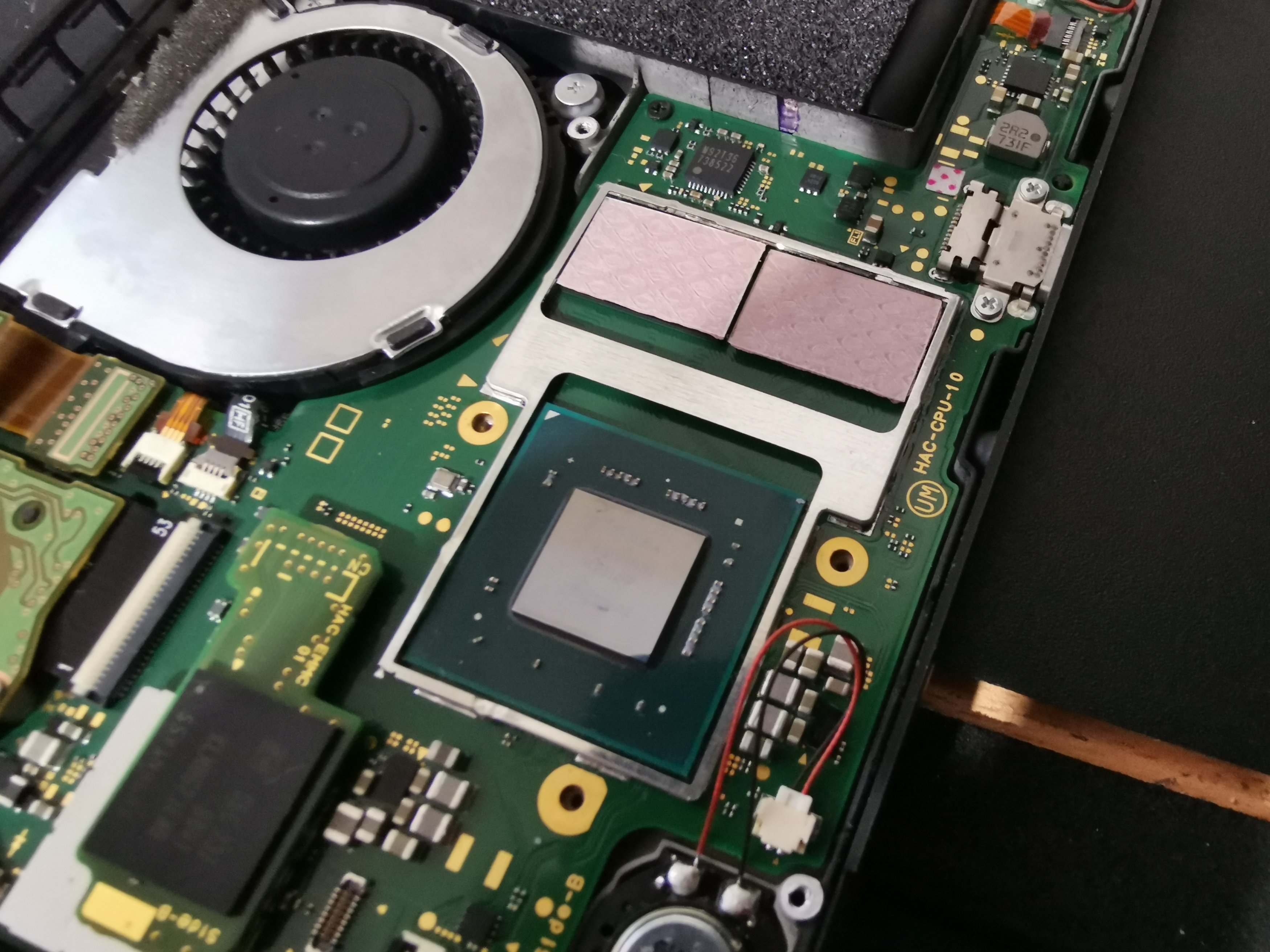

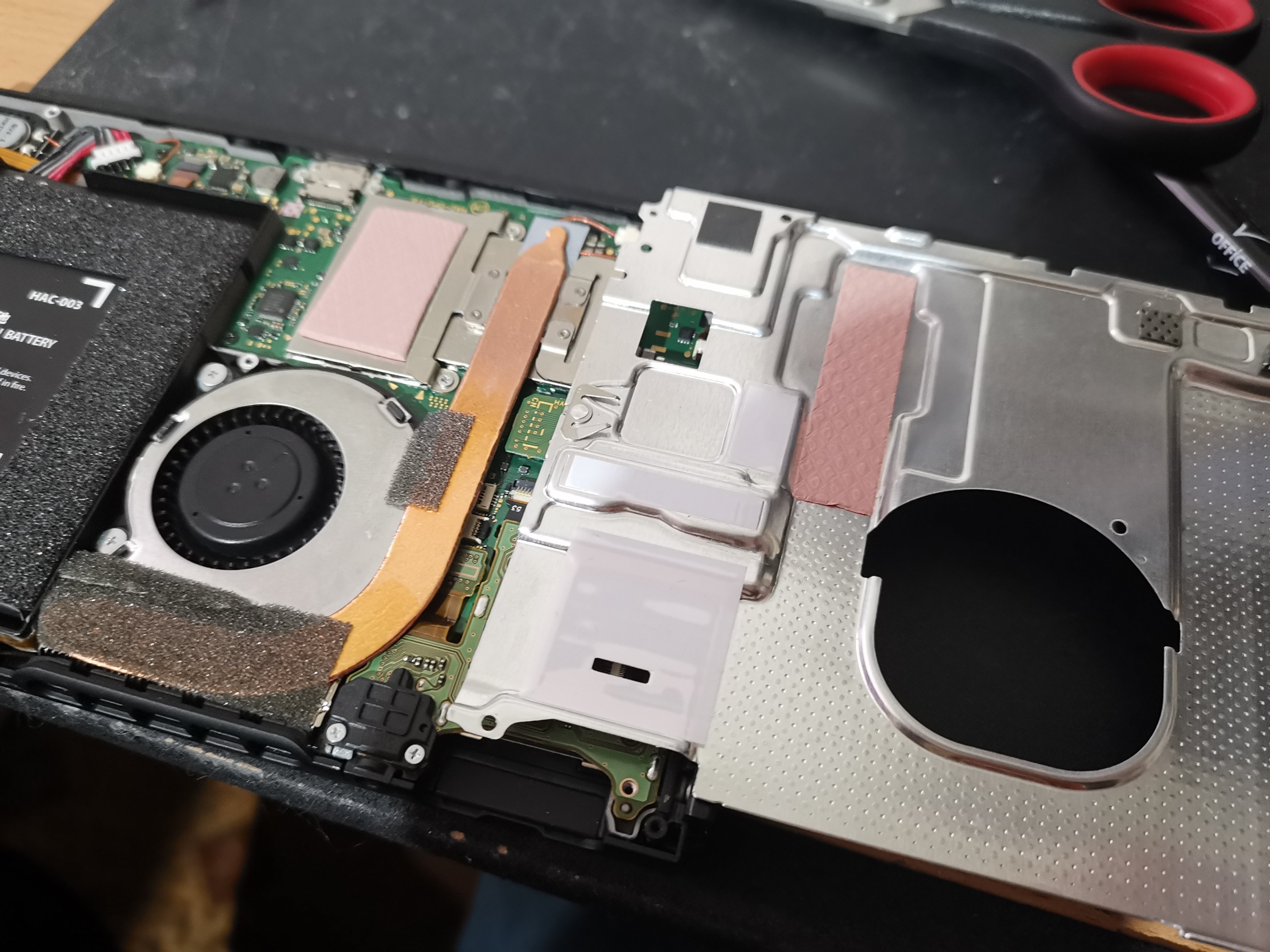

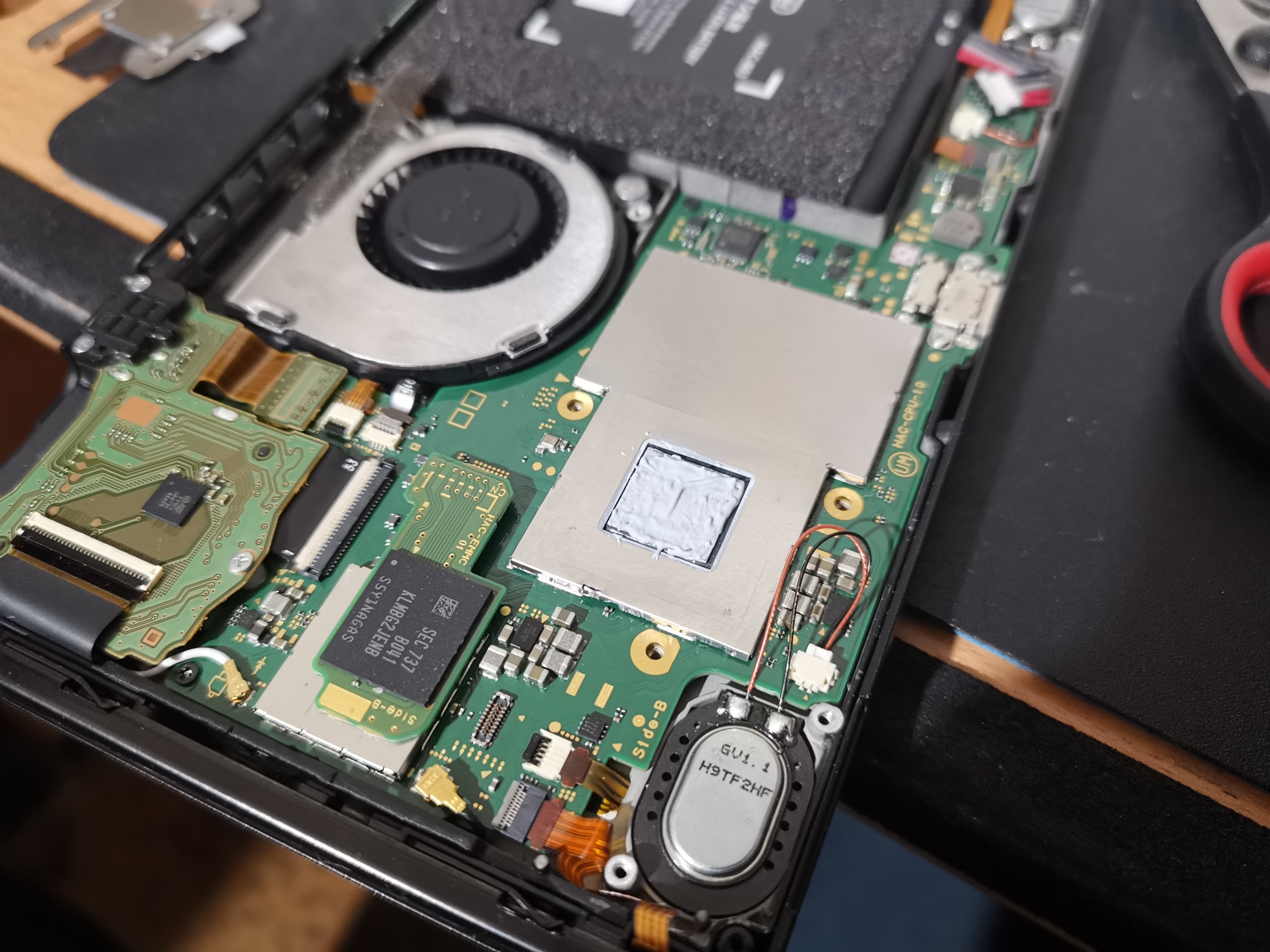

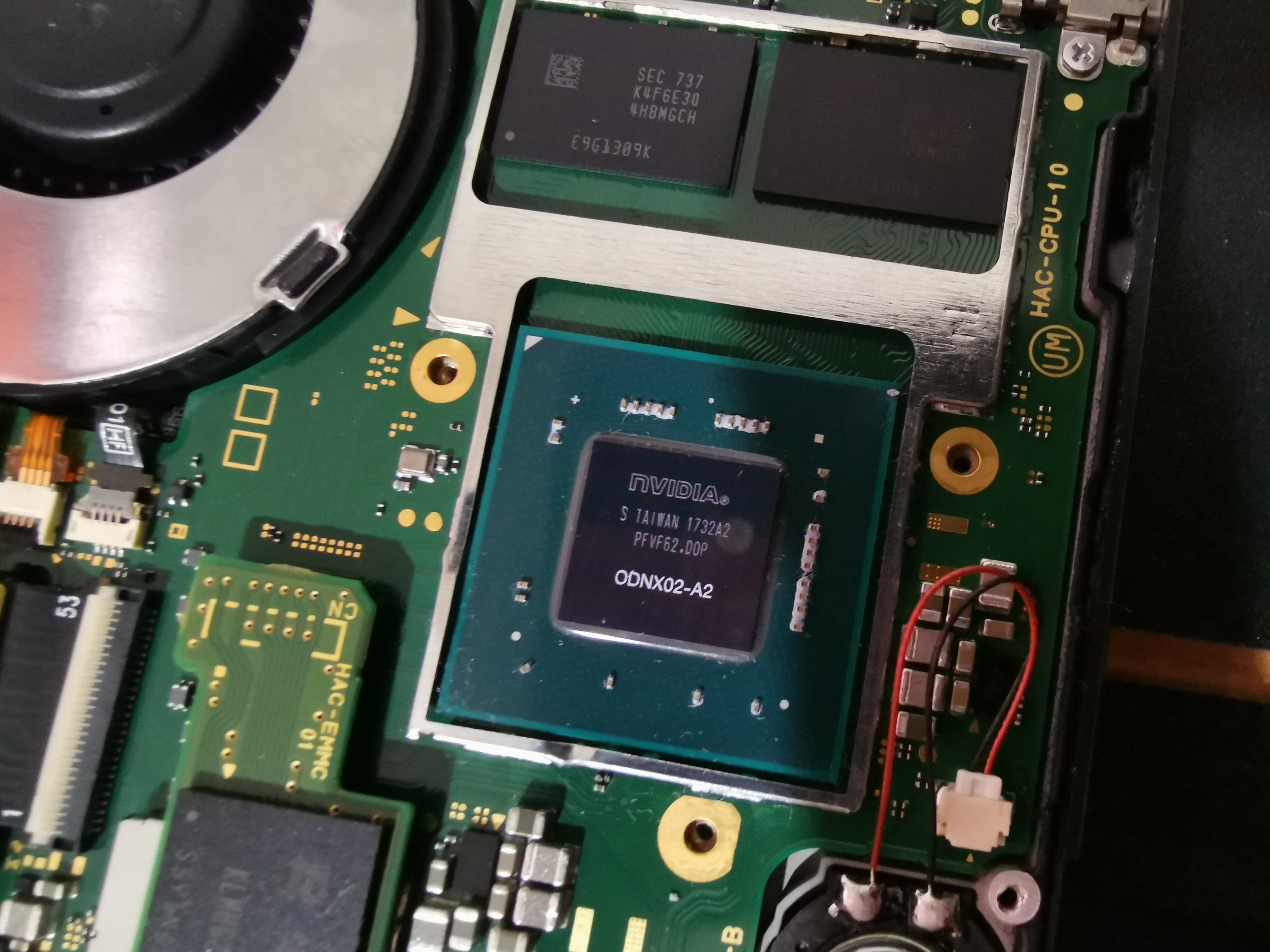

    IMG_20190516_200521. IMG_20190516_201302. IMG_20190516_203550. IMG_20190516_204728. IMG_20190516_210731.

  13. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Not bad... But you still have compound between those ceramic caps. Use a stiff(ish) non-metallic brush (toothbrush) to get it off. And isopropyl.

    Actually, I use EGR valve cleaner for initial cleaning and then an isopropyl rinse after. Keep away from the plastics though!

    Last edited by mattytrog, May 16, 2019
  14. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary

    Its the rest of the factory compund. And its there before repaste,so i think its not the problem,but okay ill try more cleaning.
    I tried start without heatpipe,without ramshield, cleaned everything. But how can i enter Horizon? Im on autocfw, it needs paload. I tried reinx again,failed.

  15. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    For now, use Atmosphere for testing...

  16. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    okay, ill make an atmosphere sd.
    One moment.

    — Posts automatically merged - Please don't double post! —

    Same probem. Atmosphere logo, nintendo logo, black screen, and then stuck at nintendo Switch logo.:(

    mattytrog likes this.
  17. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    I can see where this is heading... You need to disable autoRCM (if your fuses are low and firmware high, you might need to burn your fuses to rule out anything with the SD reader). But thats the nuclear option. Have a real close look at the SD BTB connector. The slightest bit of crap in there will cause issues.

  18. Rain82
    OP

    Rain82 Member

    Newcomer
    1
    May 1, 2019
    Hungary
    I see nothing,maybe tomorrow at work with magnifying glass...?
    But if the sd is the problem, why can i enter hekate,and why can i load the payload?

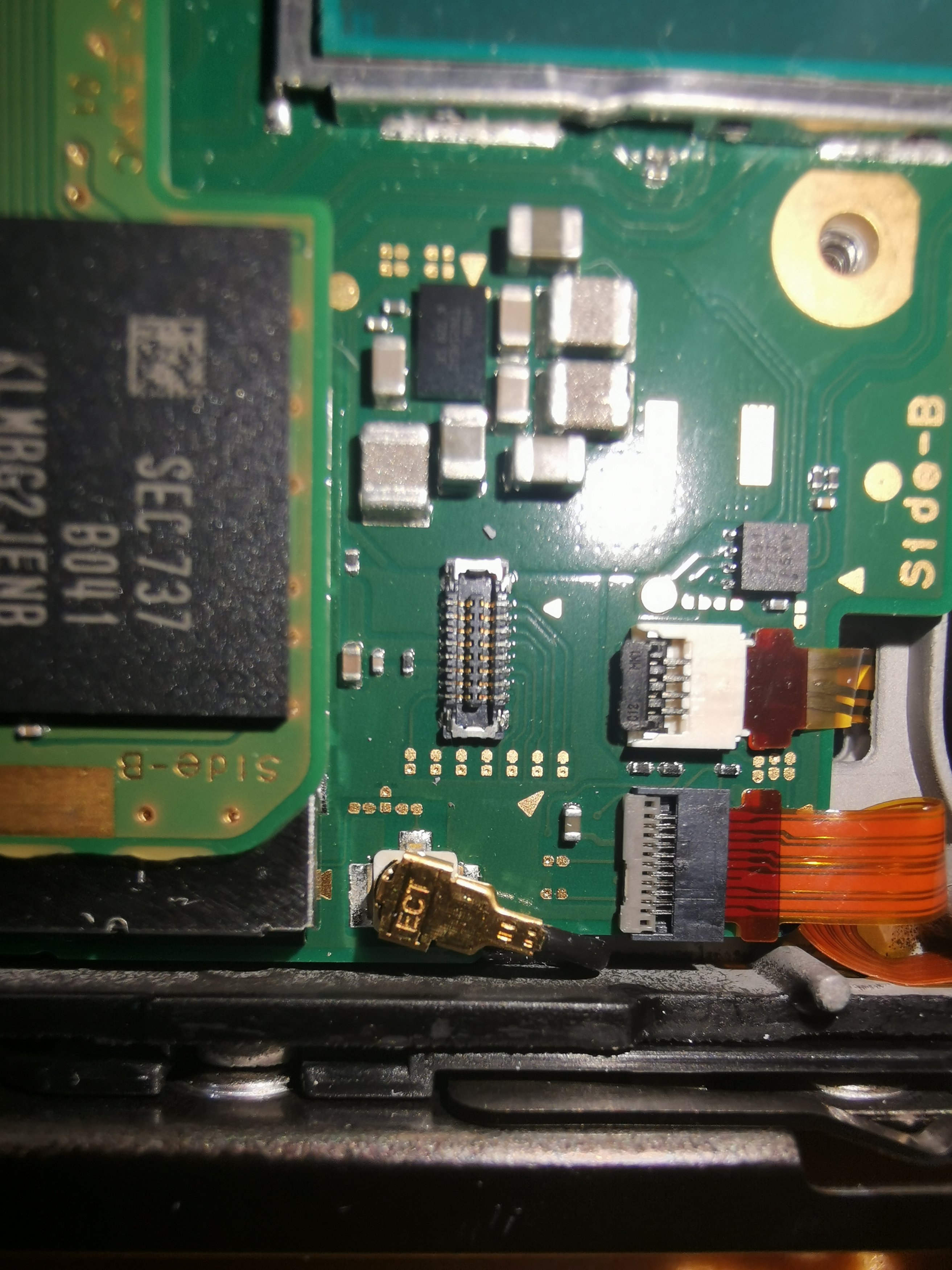

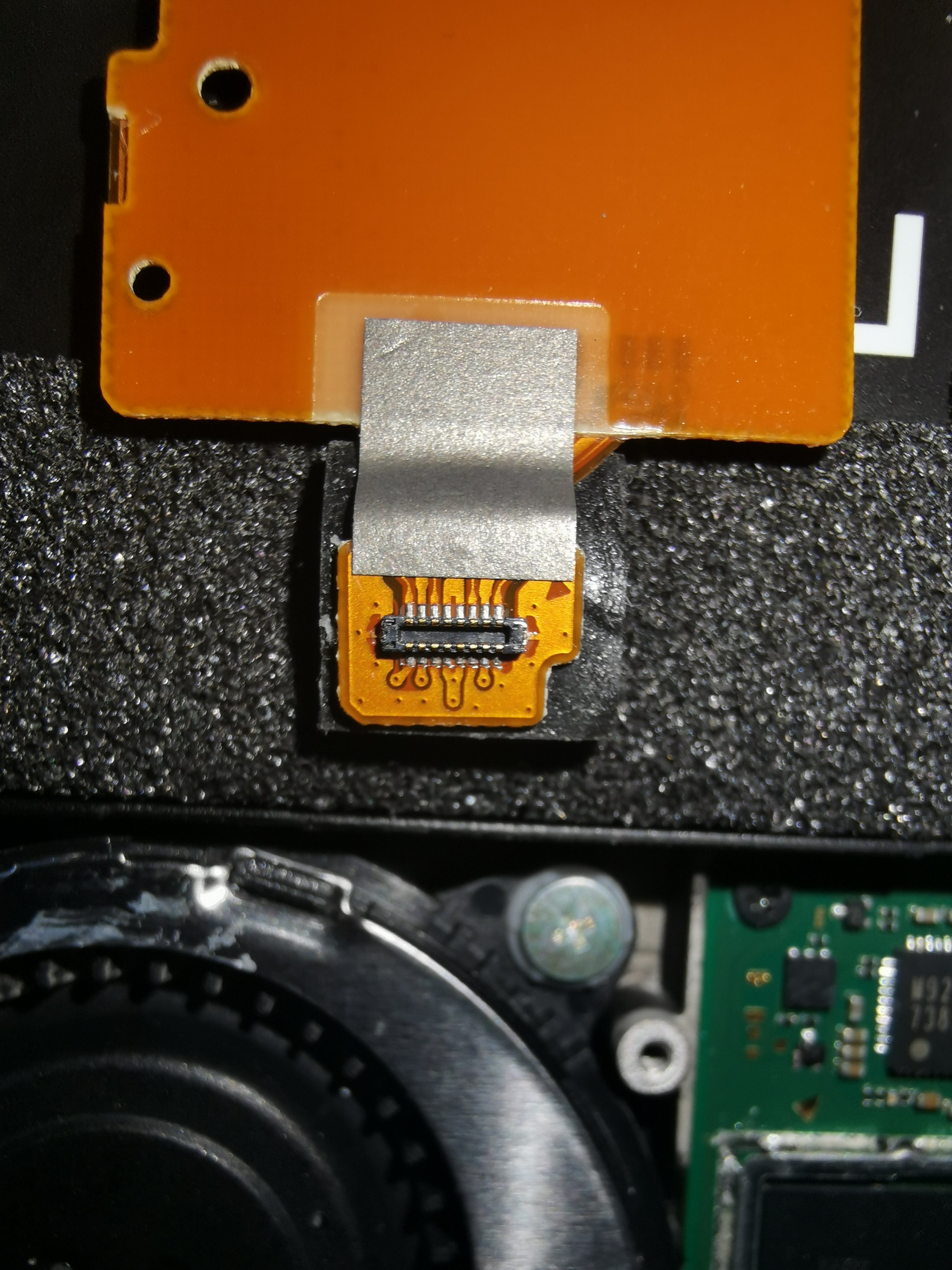

    IMG_20190517_001706. IMG_20190517_001719.

  19. TariqSoftDev

    TariqSoftDev ~Zexceil

    Member
    6
    Sep 18, 2013
    London
    That paste contains nano-aluminum which might cause interferance on a low level, while the paste is not conduc
    Check the SD flex for any damage, I remember when they used solid boards and flex circuits on the N3DS XL, absolute horror, tiny tears and etc, look for it; connectors look fine.

  20. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Good question.

    Something is either corrupted or is dropping a few mV somewhere.

    It could even be your SD itself. It could be anything. You won`t know until you start to rule stuff out.

    But thats the starting point... Make sure everything is:

    1) Clean
    2) Undamaged
    3) Aligned
    4) Secure
    5) Grounded.
