Hacking Hardware switch lite - rp2040 mosfet schema wiring

[nico77]

since last march, ive been watching this RP2040 modchip and kinda interested to mod my switch lite
i watch couple videos on youtube about this RP2040

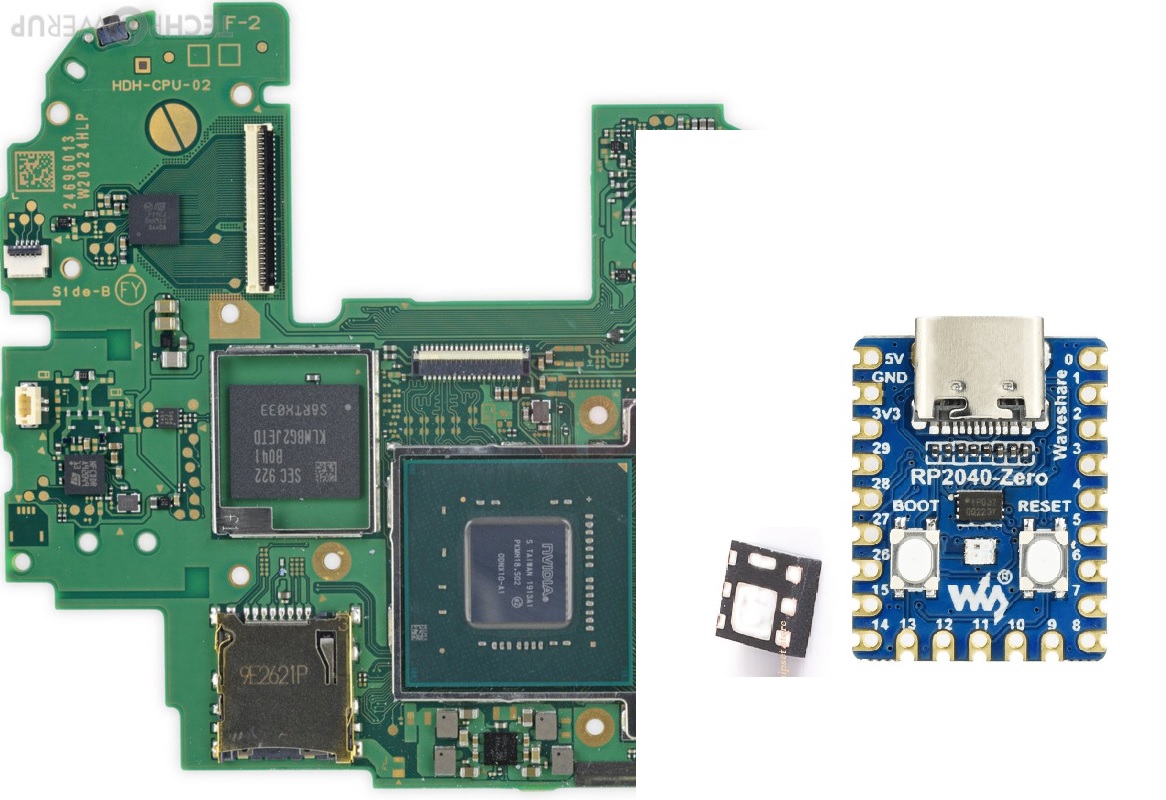

i found some of this youtube RP2040 for switch lite

sadly, he didnt record the mosfet solder process

idk how the mosfet installation work ?
can someone explain to me
how this wiring~schema work ?
btw
i plan not to use the flex cable v2
does it gonna work ?
can someone explain more easier the mosfet schema ?

and my other question :
i wonder is it possible , if i solder the mosfet outside the gpu ? i mean, i dont wanna accidently burn the nvidia gpu...
so i wanna place the mosfet near the RP2040
do you think, its gonna still work?



[Hayato213]



[Dee87]

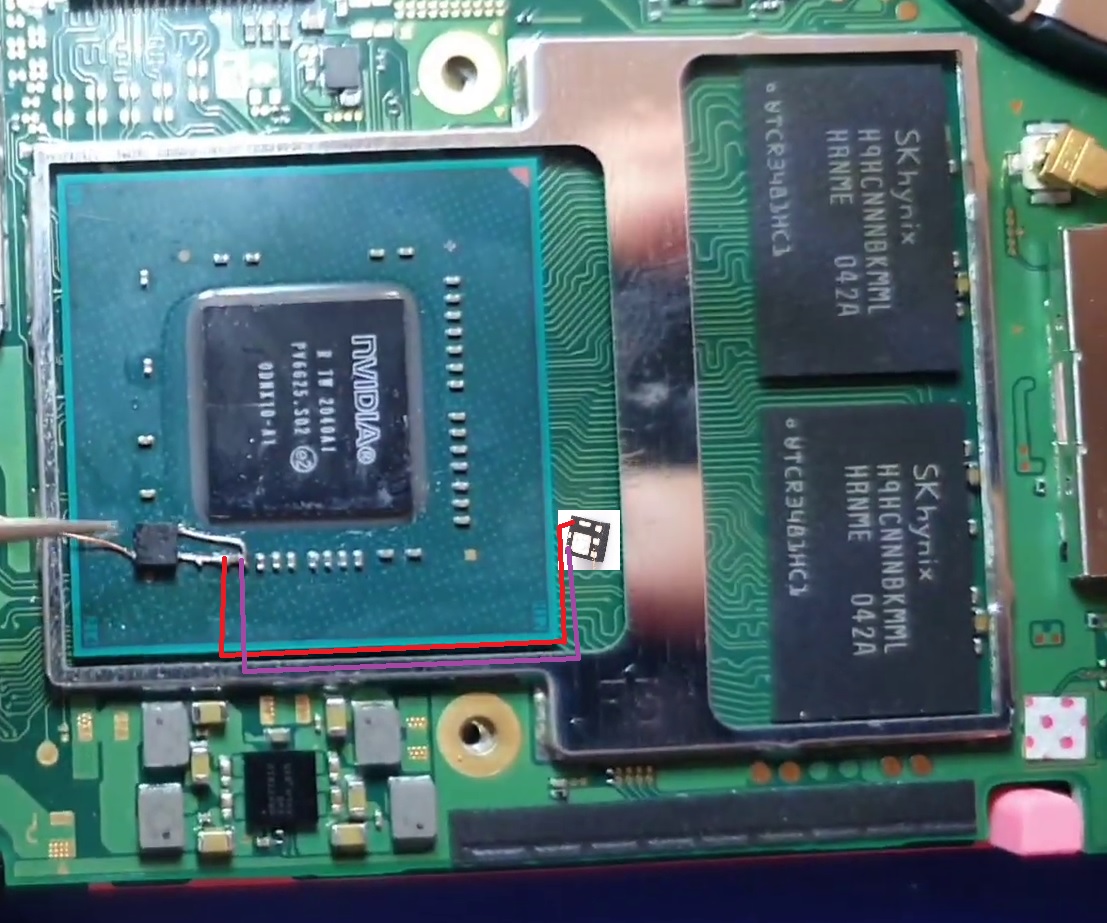

this is how i installed it on my oled u can also install it on ur lite like this
View attachment 2022_0213_201214_002.JPG



[meha]

first it's not gpu. it's tegra x1 SoC (cpu, gpu, etc all in one).
anyways it's better if you solder mosfets directly to the cpu capacitors, but if you see original post by rehius some distance would be fine.
but you would still need to soler to those capacitors so no difference in that you have to be careful.
and for the schematics D=drain S=source G=gate. and you have to solder to any one of those points



[Phantomas77]

this is how i installed it on my oled u can also install it on ur lite like this
View attachment 363338

This is nice work! What was the wire gauge (AWG) that you used for connecting to the caps?



[nico77]

first it's not gpu. it's tegra x1 SoC (cpu, gpu, etc all in one).
anyways it's better if you solder mosfets directly to the cpu capacitors, but if you see original post by rehius some distance would be fine.
but you would still need to soler to those capacitors so no difference in that you have to be careful.
and for the schematics D=drain S=source G=gate. and you have to solder to any one of those points

yeah... dat nvidia thing~
is it ok if i place the mosfet next to RP2040
yes, with distance....
cuz im planning to make more cleaner wiring

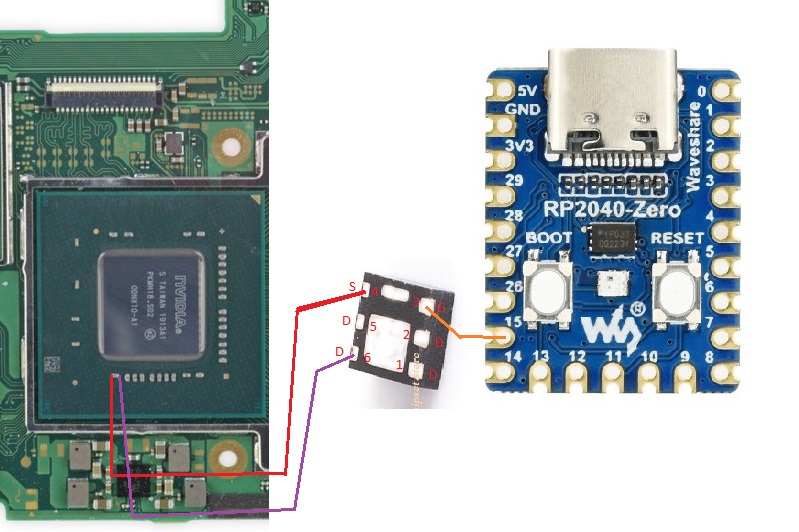

this is example (not final)

is this correct ?

Post automatically merged: Apr 6, 2023

this is how i installed it on my oled u can also install it on ur lite like this
View attachment 363338

why the mosfet 2 ?? is it like the original flex cable?



[Dee87]

yeah... dat nvidia thing~
is it ok if i place the mosfet next to RP2040
yes, with distance....
cuz im planning to make more cleaner wiring

this is example (not final)
View attachment 363356
is this correct ?

Post automatically merged: Apr 6, 2023

why the mosfet 2 ?? is it like the original flex cable?

the less distance the better some say it possible some say it not......
try it us t good gauge



[Phantomas77]

is it ok if i place the mosfet next to RP2040

No it's not, closer to the caps is better, why? High currents (on order of 10Amps) and probably signal interference with thin wiring.
If you don't want to use the transistors, just place a HWFLY CPU cable.



[Dee87]

This is nice work! What was the wire gauge (AWG) that you used for connecting to the caps?

i dont know i striped a cable split a bit of the copper wiring and "drilled"it

maybe the size of 4-6 0.1mm emaled copper wire drilled together



[nico77]

No it's not, closer to the caps is better, why? High currents (on order of 10Amps) and probably signal interference with thin wiring.
If you don't want to use the transistors, just place a HWFLY CPU cable.

ok. so closer better
but kinda scary

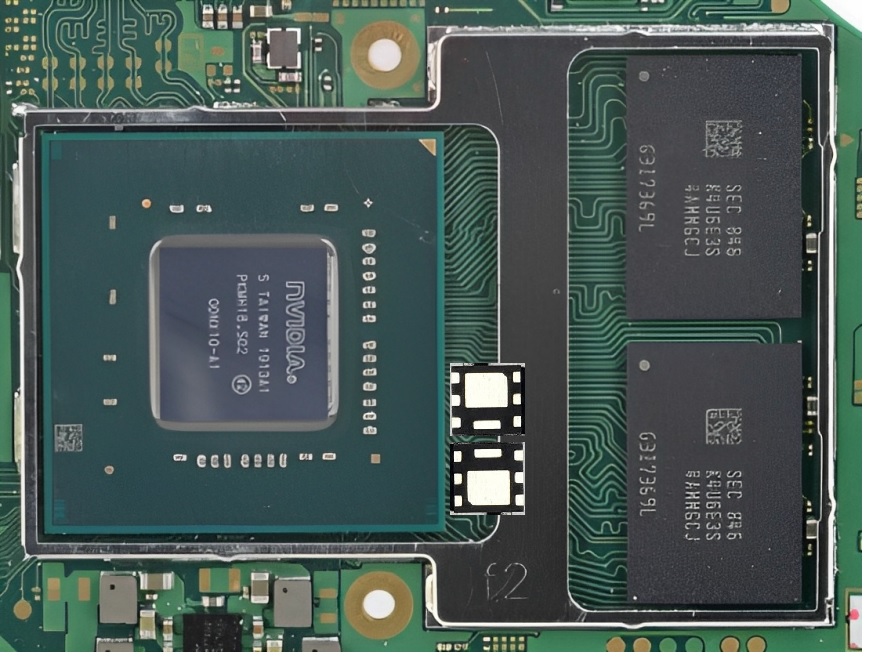

what if i place it like Dee87 ? near that empty spot ?
but only use 1 mosfet ?



[Dee87]

ok. so closer better
but kinda scary

what if i place it like Dee87 ? near that empty spot ?
but only use 1 mosfet ?
View attachment 363363

u can go ahead and do it like that depends on ur board if its okay with just one mosfet
some boards require 2 mosfets the first time i also tried one and it didnt work since then i installed on every switch i modded with a picofly (6) 2 mosfets since they are like 80 cent and i know it works

Post automatically merged: Apr 6, 2023

u can go ahead and do it like that depends on ur board if its okay with just one mosfet
some boards require 2 mosfets the first time i also tried one and it didnt work since then i installed on every switch i modded with a picofly (6) 2 mosfets since they are like 80 cent and i know it works

but u need thicker wire if u do it and place the wires on the apu that way they are gonna be shorter



[nico77]

u can go ahead and do it like that depends on ur board if its okay with just one mosfet
some boards require 2 mosfets the first time i also tried one and it didnt work since then i installed on every switch i modded with a picofly (6) 2 mosfets since they are like 80 cent and i know it works

Post automatically merged: Apr 6, 2023

but u need thicker wire if u do it and place the wires on the apu that way they are gonna be shorter

do you have switch lite too ?



[Dee87]

do you have switch lite too ?

no i have a v2 and a oled
but also installed it on 2 lights
from the forum there are also people with lites wich required 2 mosfet
just try one first if it doesnt work u need to install a second one



[nico77]

no i have a v2 and a oled
but also installed it on 2 lights
from the forum there are also people with lights wich required 2 mosfet
just try one first if it doesnt work u need to install a second one

is this the correct mosfet ?



[swutch]

my lite also needed 2



[l7777]

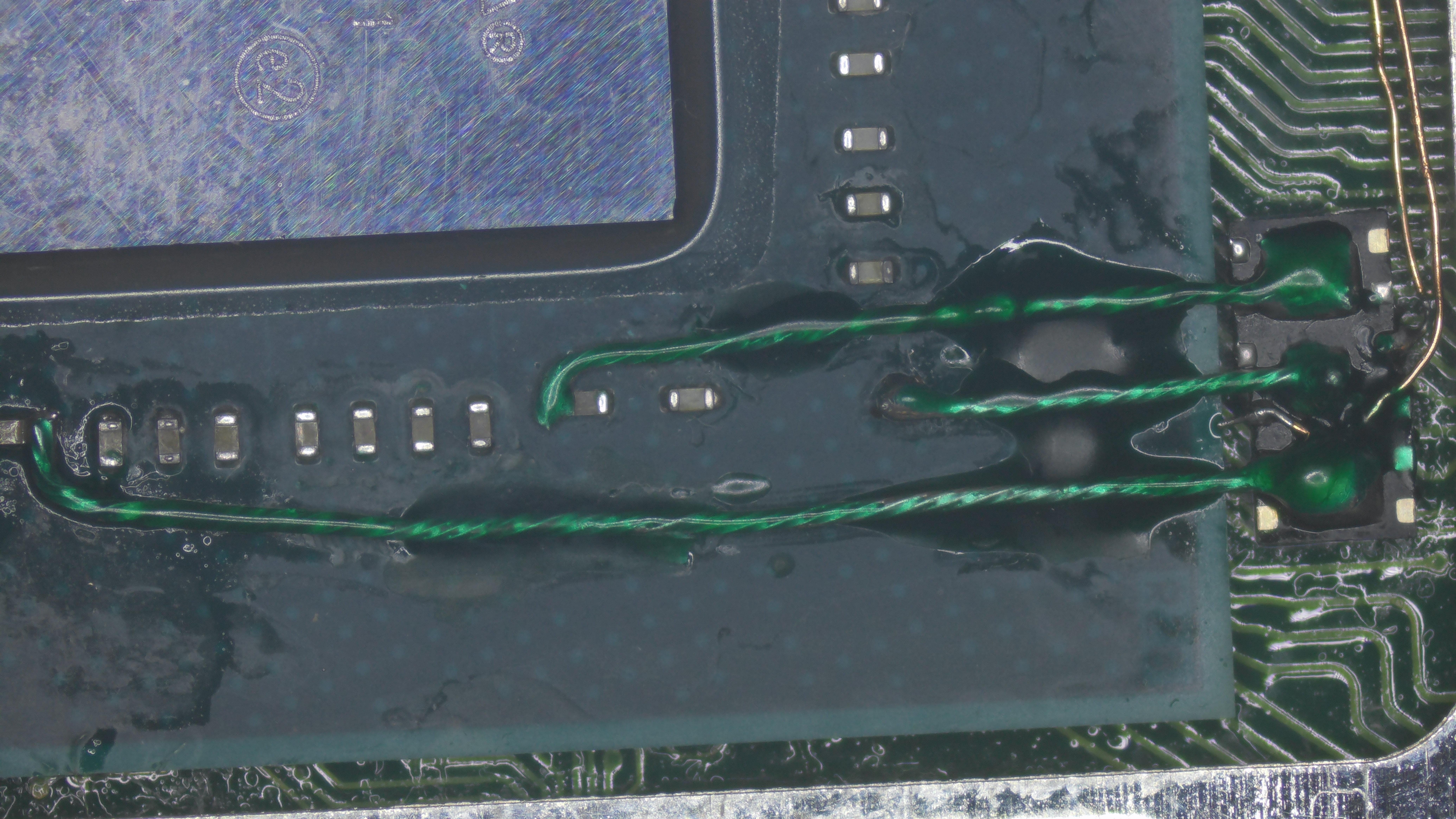

this is how i installed it on my oled u can also install it on ur lite like this
View attachment 363338

Very nice. I like the single ground. Do you really need two gate wires or could you get away with just one?



[Dee87]

Very nice. I like the single ground. Do you really need two gate wires or could you get away with just one?

well i used one on my v2 , but on the oled i used 2 just to make sure



[nico77]

this is how i installed it on my oled u can also install it on ur lite like this
View attachment 363338

is this how you place 2 mosfet ??

Post automatically merged: Apr 7, 2023

my lite also needed 2

ohhh... have you succeed ? RP2040 ?
how you wiring the mosfet?



[Dee87]

is this how you place 2 mosfet ??
View attachment 363470

Post automatically merged: Apr 7, 2023

ohhh... have you succeed ? RP2040 ?
how you wiring the mosfet?

Yes



[nico77]

Yes

can you help me draw the wiring line ?
you can use paint or maybe online like photopea.com
to draw line~
