Hacking Hardware switch lite - rp2040 mosfet schema wiring

Thread starter nico77
Start date Apr 6, 2023
Views 22,505
Replies 44

D

Dee87

Well-Known Member

Member

Apr 26, 2023

#41

Danook28 said:
On v1 how put mosfet one or two wier digram ???

pick one see wich one works

Reactions: Danook28

M

mrtton

New Member

Newbie

May 5, 2023

#42

just like this

Reactions: Dee87 and Danook28

Danook28

Well-Known Member

Member

May 5, 2023

#43

mrtton said:
just like thisView attachment 369087

This is v2 mine Board????

M

mrtton

New Member

Newbie

May 5, 2023

#44

Danook28 said:
This is v2 mine Board????

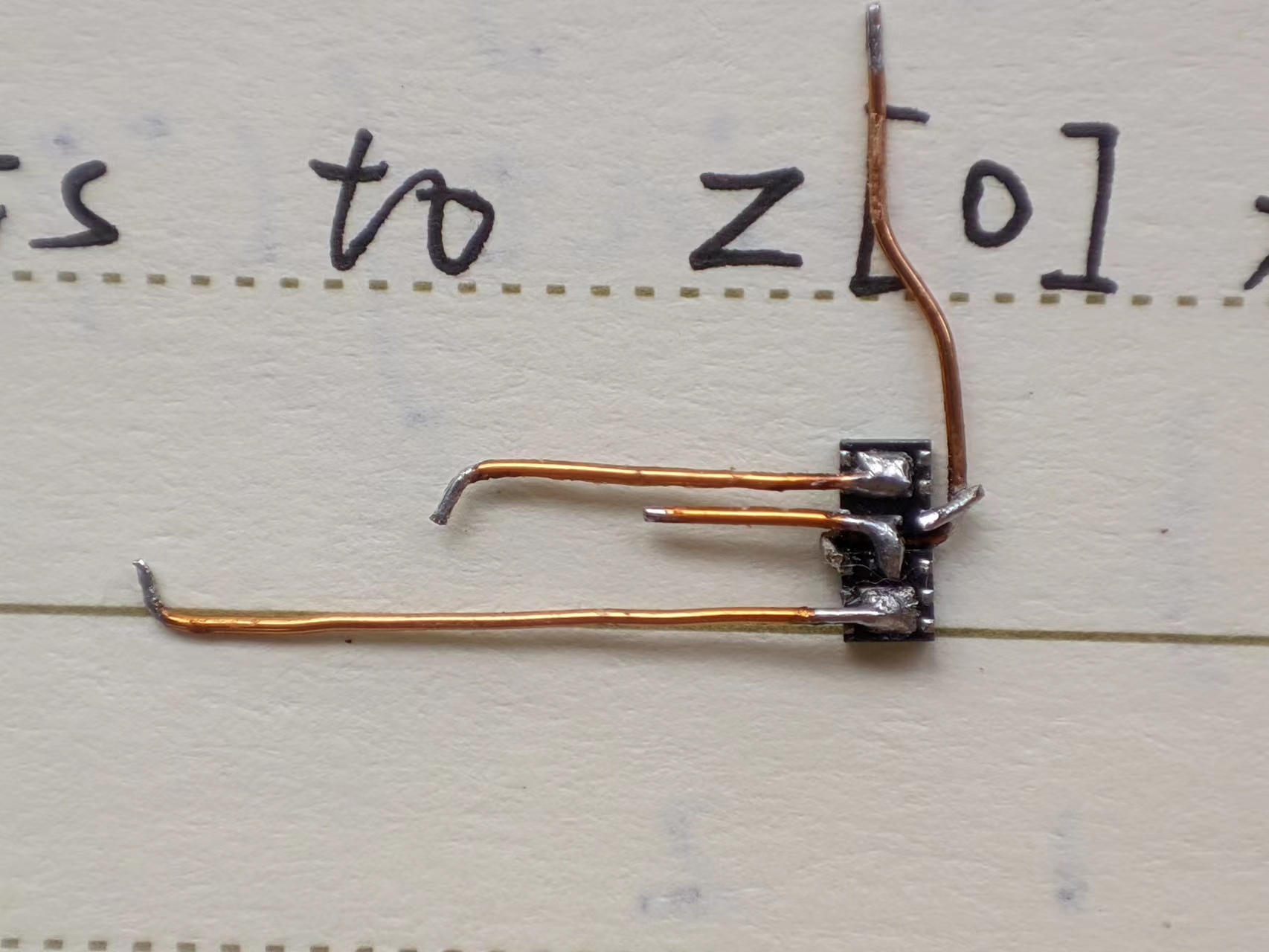

No, this is just a mosfet I welded myself, so I need to determine the position of the pad in advance.

Reactions: Danook28

nico77

Well-Known Member

OP

Member

Jun 15, 2023

#45

@Dee87
@Phantomas77

thankyou shifu~
mosfet workin!

Annotation 2023-06-15 081027.png

Reactions: Phantomas77 and Dee87
