Hardware resitor/cap replacement specs (help)

barelynotlegal

Well-Known Member
OP
Member
Joined
Mar 30, 2016
Messages
222
Trophies
0
Age
54
XP
520
Country
United States

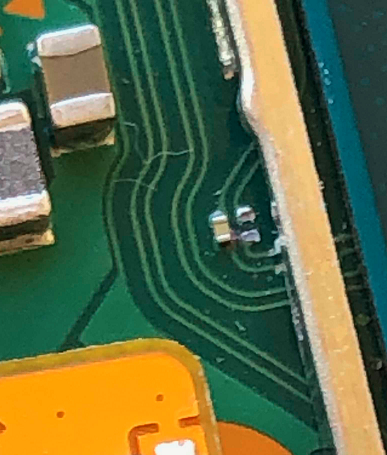

i popped of a capacitor/cap on the switch left side of the chip. there is 2 there but now only one. anyone know the specs or what the actual item is? looking to get repaired but need to know what it is first. thanx in advance.

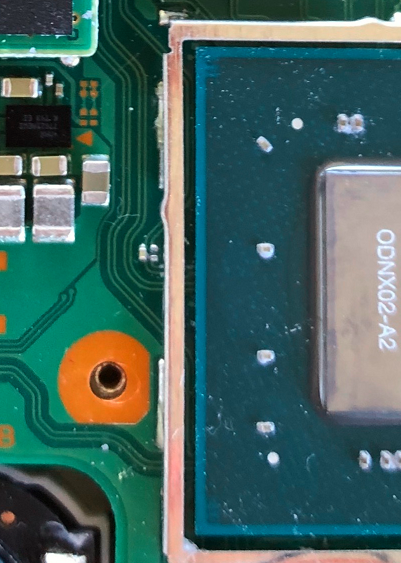

my switch.

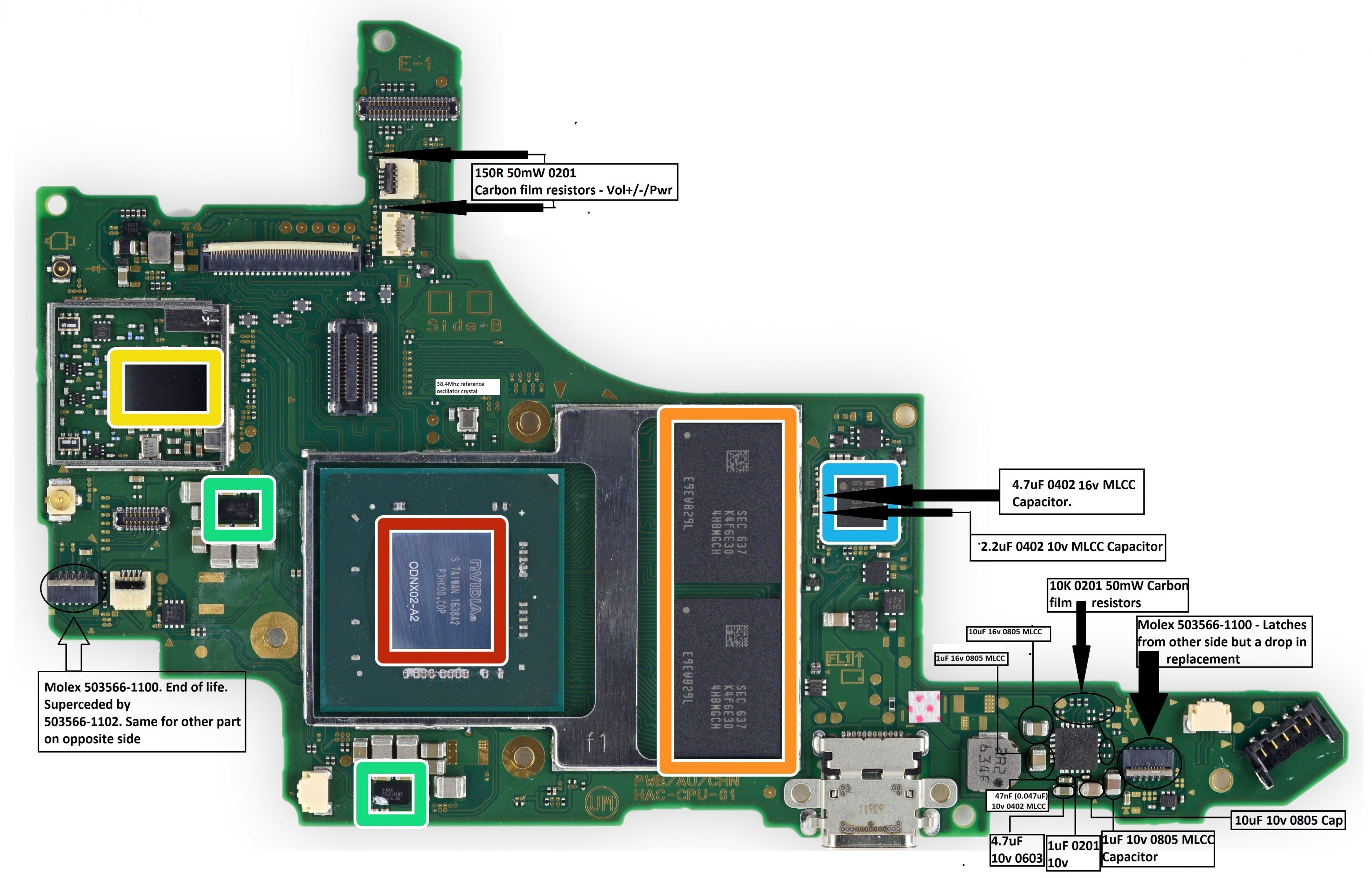

a reference?
thanX in advance


SolidSnakeUk89

Well-Known Member
Newcomer
Joined
Jul 20, 2019
Messages
94
Trophies
0
Age
34
Location
Around the world
Website
www.google.com
XP
196
Country
United Kingdom
ok so i think i found a replacement, page 8 towards the bottom
https://gbatemp.net/threads/compone...d-and-main-console.525026/page-7#post-8730425

0.1 uf(100nf) ceramic capacitor size 0201

now i just need someone to repair in the usa lol

they are easy to put on with a hot air gun and some flux. if you were in the UK you could ship it over to me but been in the USA will cost you quite a bit.. why dont you try getting in touch with jessa jones at ipadrehab? they will do it for you :)

  • Like
Reactions: barelynotlegal
